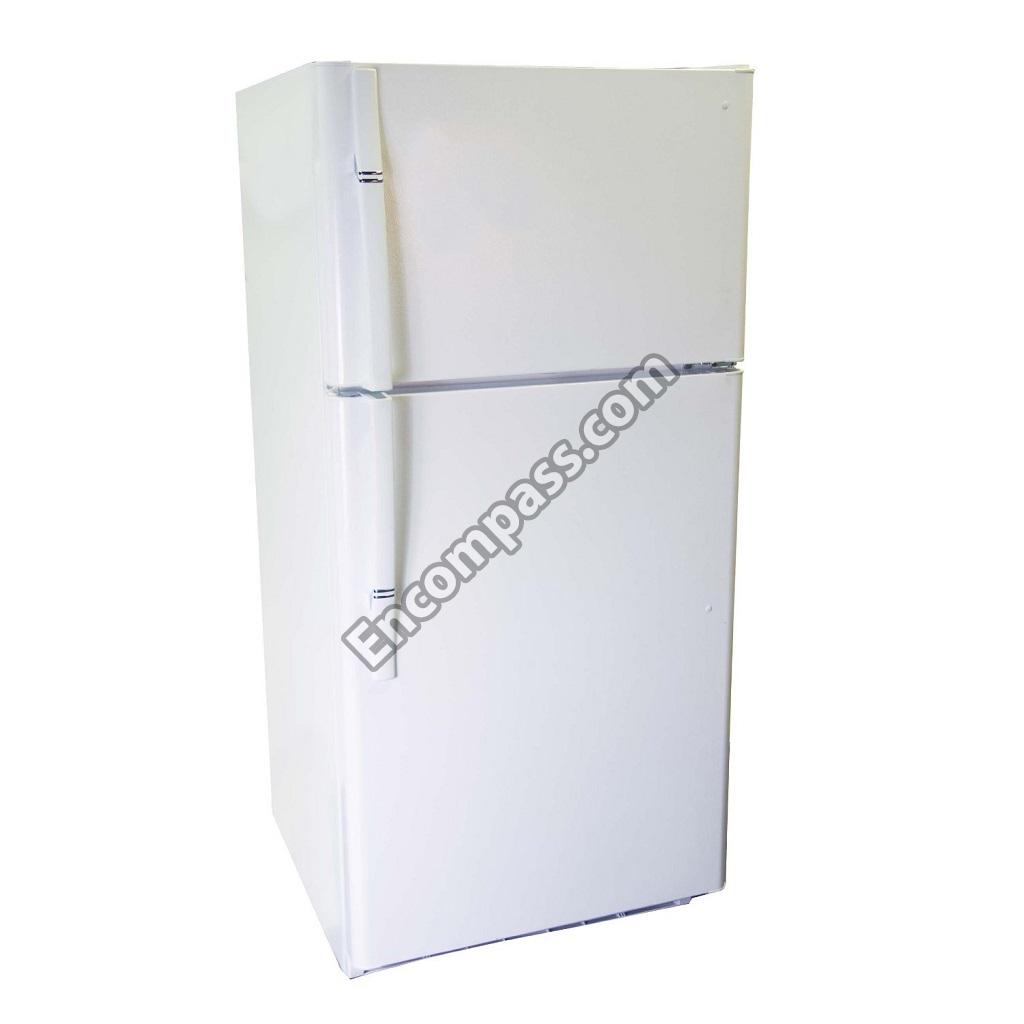

Model Image
Manufacturer

Haier

Model Number

PRTS21SACB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0150-08 RF-0150-08 BAFFLE-CONDENSER FAN
RF-0500-59 RF-0500-59 BIN-1 (FULL WIDTH) B
RF-0550-21 RF-0550-21 BLADE-CONDENSER
WR60X29904 WR60X29904 BLADE-EVAP FAN (G.E.
WR14X29896 WR14X29896 BRACKET-EVAP FAN [A]
WR14X29891 WR14X29891 BRACKET-EVAP FAN [B]
RF-0850-146 RF-0850-146 BRACKET-SHELF LEFT/R
RF-1050-26 RF-1050-26 BULB-40W
WR55X29240 WR55X29240 CABLE-DEFROST THERMO
WR02X27461 WR02X27461 CAP-DOOR (BLACK/LEFT
WR02X27460 WR02X27460 CAP-DOOR (BLACK/RIGH
WR87X27279 WR87X27279 CAPACITOR 12MFD
WR02X27362 WR02X27362 CASTER-LEFT FRONT
WR02X27363 WR02X27363 CASTER-RIGHT FRONT
WR01X29897 WR01X29897 CLIP
RF-1650-09 RF-1650-09 CLIP-CONDENSER
WR01X29822 WR01X29822 CLIP-HUMIDITY
WR87X27283 WR87X27283 COMPRESSOR - EGX70HL
RF-1950-247 RF-1950-247 COVER-COMPRESSOR
WR13X27459 WR13X27459 COVER-TOP HINGE BLAC
RF-2260-03 RF-2260-03 DIVIDER-SHELF PARTIT
RF-2300-486 RF-2300-486 DOOR-FF DOOR BLACK

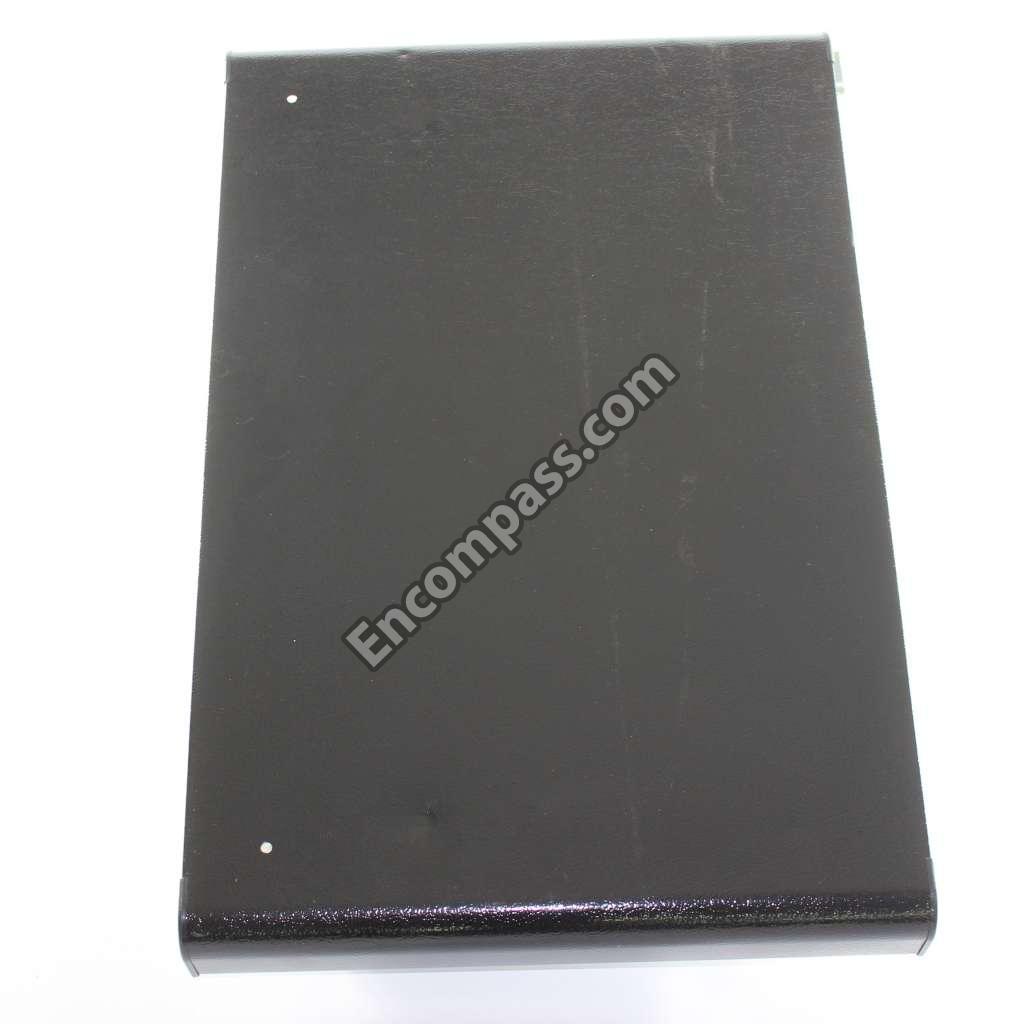

RF-2300-487 RF-2300-487 DOOR-FZ BLACK
RF-2370-06 RF-2370-06 DRAWER-SNACK
RF-2400-26 RF-2400-26 DRIER
RF-2650-81 RF-2650-81 EVAPORATOR-ASSY
WR14X29852 WR14X29852 GASKET - FF DOOR BLA
WR14X29855 WR14X29855 GASKET-FZ DOOR (BLAC
RF-3150-14 RF-3150-14 GRILL-BOTTOM [BLACK]
WR13X29812 WR13X29812 HINGE-BOTTOM
WR13X29903 WR13X29903 HINGE-TOP
WR14X29900 WR14X29900 MOTOR-EVAP [KIT]
WR02X27458 WR02X27458 PLUG-HINGE HOLE
RF-6150-221 RF-6150-221 SCREW-SELF TAPPING
WR01X29890 WR01X29890 SHIM
WR01X29893 WR01X29893 SHIM - BOTTOM HINGE
WR13X27290 WR13X27290 SHIM-CENTER
WR09X29877 WR09X29877 THERMOSTAT-ASSY
RF-7600-63 RF-7600-63 TRAY-ICE STORAGE
RF-7950-37 RF-7950-37 WASHER-RUBBER
WR01X29890 WR01X29890 WASHERS
