Model Image

Manufacturer

Haier

Model Number

PTEE0904WAA

Description

9k Ptac Ac Trane Oem

Interactive Exploded View

Parts List

Part Number	Description
AC-0344-11	BEARING
AC-0344-12	BEARING-23-B
AC-0595-60	BLOCK-CHOCK
AC-0595-59	BLOCK-CHOCK
WJ26X23823	BLOCK-TERMINAL
AC-0668-124	BOARD-DISPLAY
AC-0668-123	BOARD-POWER TERMINAL
AC-0800-100	BOX-CONTROL 8-D
AC-0850-90	BRACKET-BRACKET; WAL
AC-0850-89	BRACKET-SHROUD SUPPO

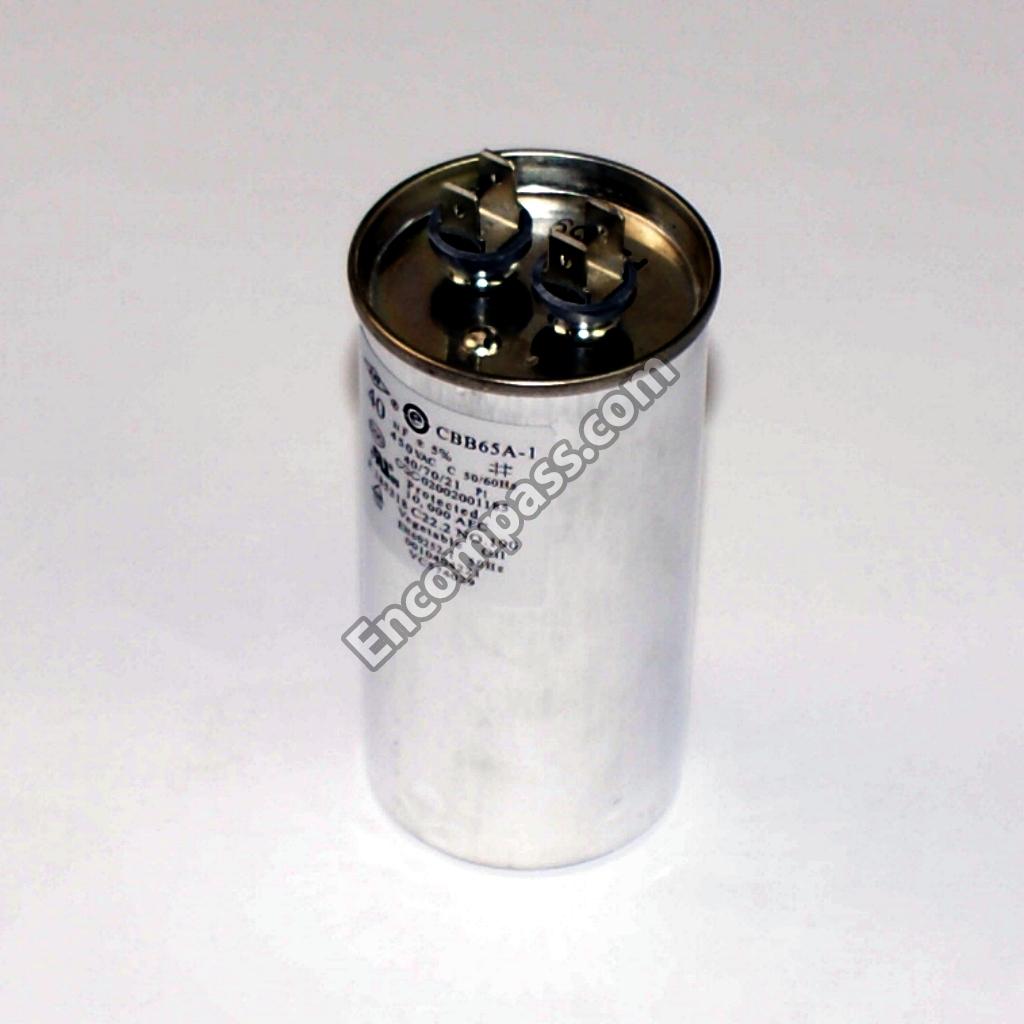

AC-1400-243	CAPACITOR-COMPRESSOR
AC-1400-104	CAPACITOR-ID MOTOR
WJ94X22874	CAPACITOR-OD MOTOR
AC-1640-21	CLAMP-CABLE
AC-1650-43	CLIP-CAPACITOR
AC-1692-06	COIL-CONDENSER
AC-1692-07	COIL-EVAPORATOR
AC-1750-07	COMPRESSOR
AC-1900-28	CORD-POWER
AC-1950-208	COVER-BEARING
AC-1950-211	COVER-CONTROL BARRIE
AC-1950-213	COVER-DRAIN 20-B
AC-1950-212	COVER-HOUSING 1-D
AC-1950-207	COVER-VENT DOOR
AC-2015-192	CUSHION
AC-2750-81	FAN-INDOOR DISK 4.33
AC-2750-82	FAN-OUTDOOR DISK, 13
AC-3100-89	GASKET-FLAP
AC-3250-03	GUARD-3-B
AC-3500-154	HOLDER
AC-3600-24	HOUSING
AC-3600-23	HOUSING-P.C.B. 2-D
AC-4000-36	KNOB-26-B
AC-4550-202	MOTOR-INDOOR
AC-4550-198	MOTOR-OUTDOOR
AC-4720-20	NUT
AC-5150-64	PAN-BASE
AC-5150-65	PAN-DRAIN
AC-5200-296	PANEL-BARRIER
AC-5200-299	PANEL-CONTROL BOX BA
AC-5200-297	PANEL-SIDE CONTROL B
AC-5255-372	PIPE-COMPRESSOR INLE
AC-5255-371	PIPE-CONDENSER INLET
AC-5255-370	PIPE-CONDENSER OUTLE
AC-5255-368	PIPE-EVAPORATOR INLE
AC-5255-369	PIPE-EVAPORATOR OUTL
AC-5310-11	PLUG-RUBBER
AC-6150-37	SCREW
AC-6340-03	SHEET-METAL 5-B
AC-7000-33	SUPPORT- ID MOTOR BR
AC-7000-35	SUPPORT-CONTROL BOX
AC-7000-36	SUPPORT-CONTROL BOX
AC-7000-37	SUPPORT-LEFT SIDE
AC-7000-34	SUPPORT-OD MOTOR BRA
AC-7750-107	TUBE-COMPRESSOR OUTL
AC-8070-07	WIRE-25-B
