Model Image
Manufacturer

Haier

Model Number

RDE350AW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WD-4150-08 WD-4150-08 ADJUSTABLE FOOT
0180200167 0180200167 AIRPROOF COVER
0180300028 0180300028 AIRPROOF FELT
WE01X28020 WE01X28020 AIRPROOF GASKET
00330208001A 00330208001A AIRPROOF SPONGE
WD-5200-122 WD-5200-122 BACK PLATE
WE04X27360 WE04X27360 BACK-UP THERMOSTAT(164.2?-177.8?)
WE04X27367 WE04X27367 BACK-UP THERMOSTAT(66.5?-75.5?)
WE12X27366 WE12X27366 BELT
WE12X26355 WE12X26355 BELT SWITCH
WD-1950-211 WD-1950-211 BLOWER COVER PLATE
WD-6150-95 WD-6150-95 BOLT
WD-6150-135 WD-6150-135 BOLT
WD-6150-145 WD-6150-145 BOLT
WD-6150-55 WD-6150-55 BOLT
WE01X27976 WE01X27976 BRACKET
0030805181G 0030805181G CABINET PARTS-COMPONENTS/
0030507625 0030507625 CARD
WD-1650-13 WD-1650-13 CLAMP
WE01X27977 WE01X27977 CLAMP
WE01X26586 WE01X26586 CLAMPING NUT
WE10X27377 WE10X27377 CLAPING SLICE
WE19X27356 WE19X27356 COMPUTER SEQUENCER
WD-5300-82 WD-5300-82 CONNECT PLATE
WH01X27931 WH01X27931 CONTROL PANEL
WE01X28005 WE01X28005 CONTROL PANEL FILM
WD-5200-133 WD-5200-133 CONTROL PANNEL SEAT
WE10X27374 WE10X27374 DOOR SWITCH
WH02X27452 WH02X27452 EARTHING BOLT
WE01X27994 WE01X27994 EXAUST PIPE
WD-5255-73 WD-5255-73 EXHAUST CANISTER
WD-6150-49 WD-6150-49 FASTEN BOLT
WD-0850-23 WD-0850-23 FASTEN BUTTON
WE02X27388 WE02X27388 FASTEN WHEEL PARTS
0180100106 0180100106 FLAMEPROOF PLATE
0030100579A 0030100579A FLAMEPROOF PLATE
0180100105 0180100105 FLAMEPROOF PLATE
0180100078 0180100078 FLAMEPROOF PLATE
0180100079 0180100079 FLAMEPROOF PLATE
WE01X27988 WE01X27988 FLANGE PLATE
WE01X27974 WE01X27974 FLANGE SEAT
WD-7950-16 WD-7950-16 FLAT GASKET
WE01X27379 WE01X27379 FRICTION ICE
WD-2950-54 WD-2950-54 FRONT DOOR FRAME
WD-1945-04 WD-1945-04 GASKET
WD-3100-34 WD-3100-34 GASKET
WD-3210-01 WD-3210-01 GROUNDING SLICE
WE01X27975 WE01X27975 HANDLE
WE01X27975 WE01X27975 HANDLE
WE11X27362 WE11X27362 HEAT ELEMENT
WE01X28009 WE01X28009 HEAT LOOP
WD-5300-093 WD-5300-093 HEATER PLATE
WE01X27990 WE01X27990 HINGE LEFT
WE01X28017 WE01X28017 HINGE REGHT
WE01X27980 WE01X27980 IMPELLER
WE01X27980 WE01X27980 IMPELLER
WD-8070-25 WD-8070-25 INNER EARTHING WIRE

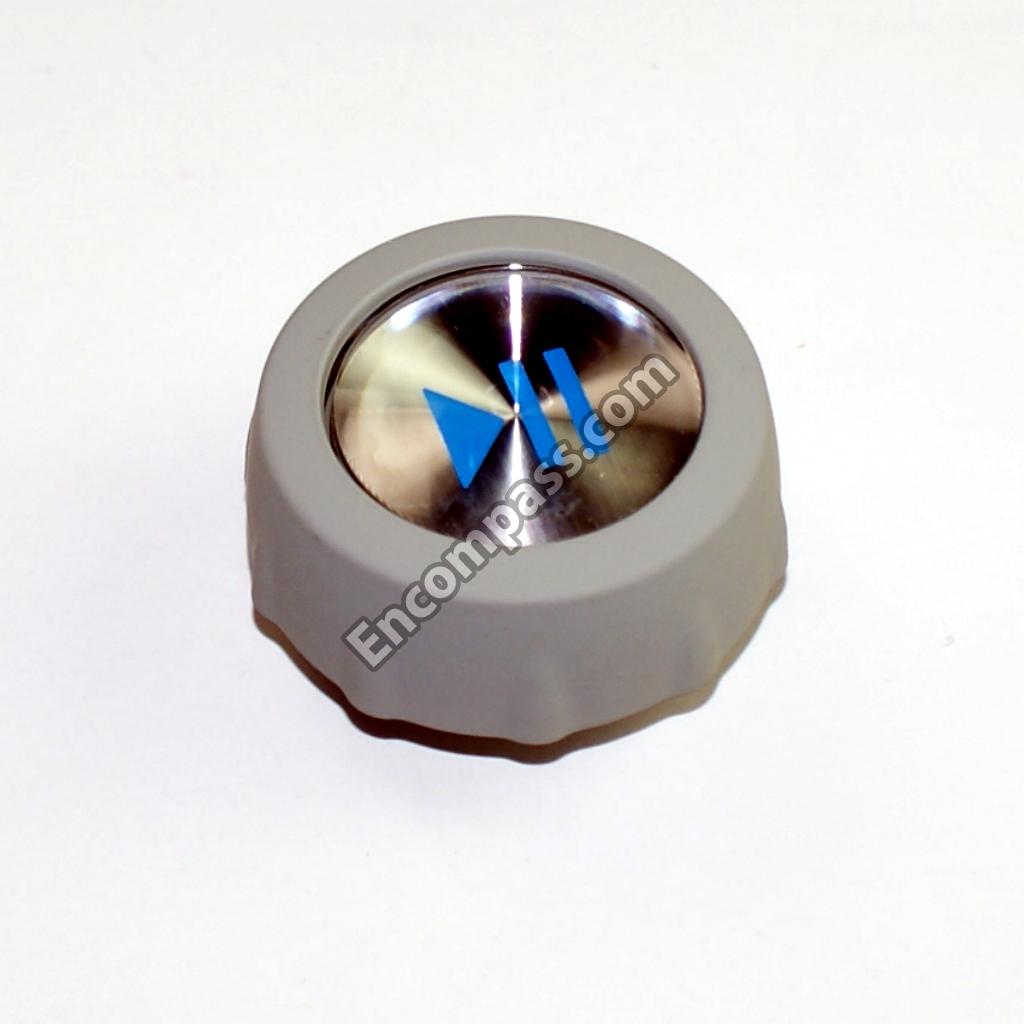

WE01X28006 WE01X28006 KNOB COMPONENT
WE01X27982 WE01X27982 LINT FILTER
WE01X27982 WE01X27982 LINT FILTER
WE01X27985 WE01X27985 LINT FILTER SUPPORT
WE01X27985 WE01X27985 LINT FILTER SURPORT
WE10X27373 WE10X27373 LOCK BODY
WE01X26391 WE01X26391 LOCKING BAND
WE09X27688 WE09X27688 LONGSEALGASKET
WD-9999-64 WD-9999-64 MANUAL
WD-0850-68 WD-0850-68 MOTOR BRACKET
WD-4550-095 WD-4550-095 MOTOR COMPONENT
WE02X26366 WE02X26366 NUT
WD-4720-19 WD-4720-19 NUT
WE01X28010 WE01X28010 ORIENTATION BOLT
WD-5300-06 WD-5300-06 ORIENTATION PLATE
WD-7950-05 WD-7950-05 OUTER DENTATE GASKET
WD-1450-23 WD-1450-23 PACKING BOX
WD-5300-43 WD-5300-43 PLATE
WD-2300-09 WD-2300-09 PLATE FRONT
0030500489 0030500489 PRODUCT PACK BAG
WE04X27375 WE04X27375 RELAY
0070601363 0070601363 RIVET
0180800270B 0180800270B ROAD COMPONENTS EXHAUST
0030508588J 0030508588J SAFEGUARD BAG
WH02X26267 WH02X26267 SCREW
WD-6150-244 WD-6150-244 SCREW
WD-6150-245 WD-6150-245 SCREW
WE01X27404 WE01X27404 SEAL STRIP
WD-6150-43 WD-6150-43 SINKING TAPPING SCREW
WE01X27979 WE01X27979 SPRING
WD-7950-15 WD-7950-15 SPRING GASKET
WE01X27992 WE01X27992 STEEL BALL
WE01X27974 WE01X27974 SUPPORT A
WE01X27978 WE01X27978 SUPPORT BLOCK
WD-6150-139 WD-6150-139 TAPPING SCREW
WH02X26188 WH02X26188 TAPPING SCREW
WH02X26927 WH02X26927 TAPPING SCREW
WH02X26155 WH02X26155 TAPPING SCREW
WE02X26576 WE02X26576 TAPPINGSCREW
WH02X27685 WH02X27685 TAPPINGSCREW
WD-6150-210 WD-6150-210 TAPPINGSCREW
WH02X26924 WH02X26924 TAPPINGSCREW
WH01X27834 WH01X27834 TAPPINGSCREW
WE04X27422 WE04X27422 TEMPERATURE CONTROL SWITCH
WE04X27365 WE04X27365 TEMPERATURE LIMITED SWITCH
WD-0850-70 WD-0850-70 THREAD-PROTECTED BOARD I
WD-0850-71 WD-0850-71 THREAD-PROTECTED BOARD II
WD-6750-83 WD-6750-83 TIGHTEN SPRING LEFT
WD-6750-84 WD-6750-84 TIGHTEN SPRING RIGHT
WD-0550-04 WD-0550-04 WHISK LEAF
WD-0550-02 WD-0550-02 WINDOW SHADE
WE15X27389 WE15X27389 WIRE HARNESS W/ TERMINAL BLOCK
WE01X27385 WE01X27385 WOOL I
WE01X27386 WE01X27386 WOOL II
0030200405B 0030200405B WORM SHELL
