Model Image
Manufacturer

Small Appliance Product

Model Number

XQB40F

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WH41X27707 WH41X27707 ADAPTER - HOSE-FAUCE
WH41X27707 WH41X27707 ADAPTER-HOSE FAUCET (LEAD FREE)
WD-0155-02 WD-0155-02 BAG-PROTECTIVE
WD-0251-01 WD-0251-01 BASEBOARD

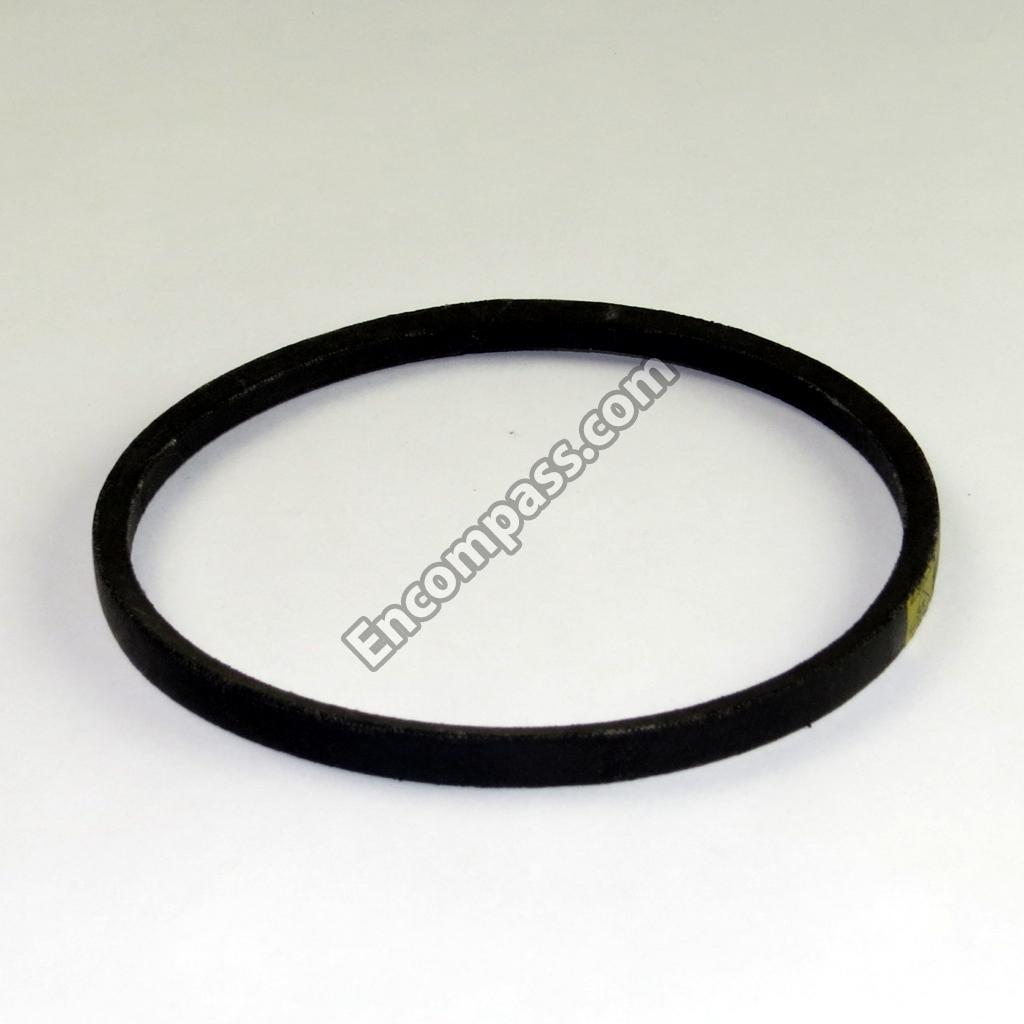

WH01X27904 WH01X27904 BELT - V
WH01X27904 WH01X27904 BELT-V
WD-0750-04 WD-0750-04 BOLT
WD-1250-01 WD-1250-01 BUZZER
WD-1350-03 WD-1350-03 CAP-CONNECTING [B]
WD-1350-06 WD-1350-06 CAP-SHOCK ABSORBER
WH01X27836 WH01X27836 CAP-VENT
WD-1400-02 WD-1400-02 CAPACITOR

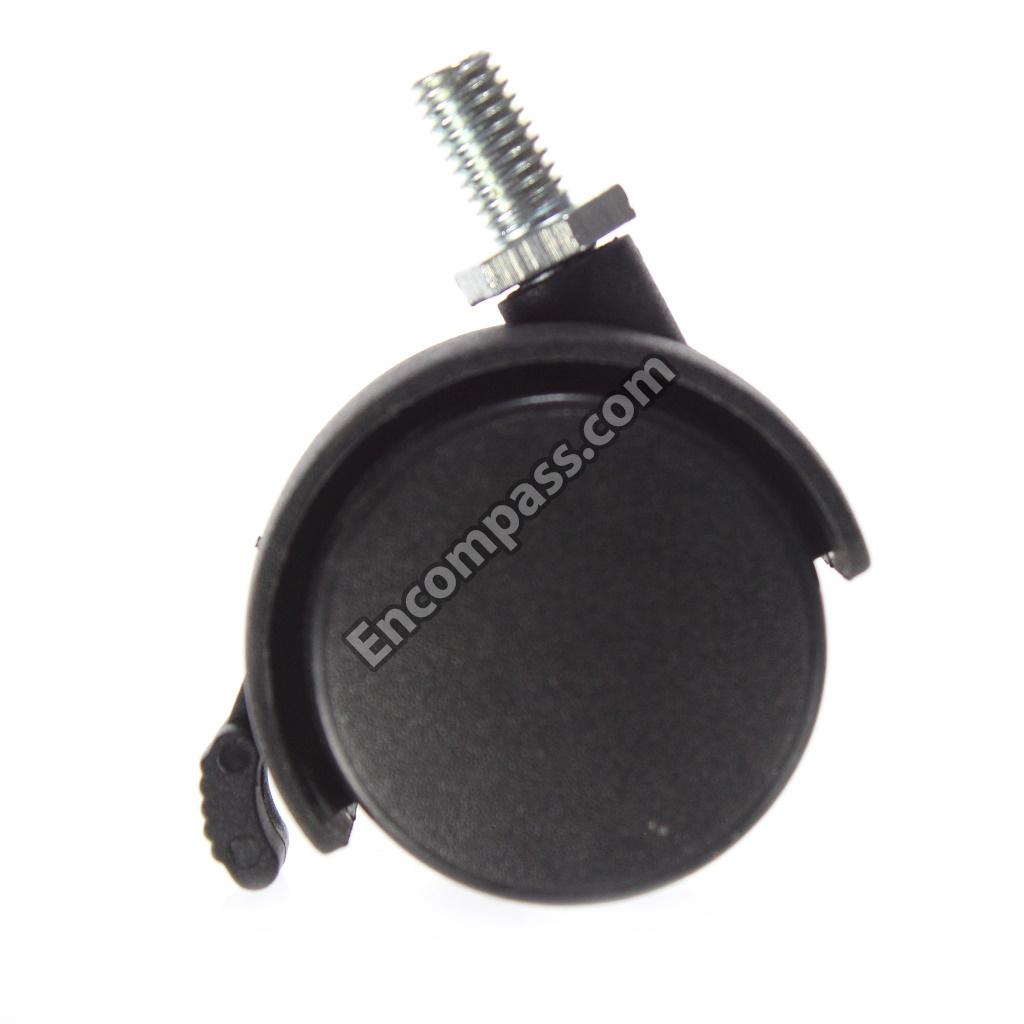

WH01X27819 WH01X27819 CASTER
WD-1640-08 WD-1640-08 CLAMP-AIR PRESSURE P
WD-1640-44 WD-1640-44 CLAMP-CONNECTING PIP
WD-1640-42 WD-1640-42 CLAMP-OUTER DRAIN PI
WD-1945-02 WD-1945-02 COUPLING-OVERFLOW
WD-1950-03 WD-1950-03 COVER-BOTTOM
WD-1950-08 WD-1950-08 COVER-DRAIN PIPE
WD-1950-02 WD-1950-02 COVER-FILTER
WD-1950-13 WD-1950-13 COVER-WATER INLET
WD-1950-05 WD-1950-05 COVER-WATER INLET
WD-2015-07 WD-2015-07 CUSHION-ELECTROMAGNE
WD-2015-01 WD-2015-01 CUSHION-MOTOR [UPPER
WD-2050-02 WD-2050-02 DECAL-REAR CONTROL P
WD-2175-01 WD-2175-01 DIAL-POINTER
WD-2840-02 WD-2840-02 FLANGE-SEALING [2]
WD-2950-28 WD-2950-28 FRAME - FILTER
WD-3100-03 WD-3100-03 GASKET-OUTER TUB
WD-3450-09 WD-3450-09 HINGE - DOOR
WD-3570-59 WD-3570-59 HOSE-INLET
WD-4150-03 WD-4150-03 LEG-ADJUSTABLE
WD-4250-05 WD-4250-05 LID-REAR SECTION
WD-9999-02 WD-9999-02 MANUAL - USE & CARE
WD-4550-02 WD-4550-02 MOTOR
WD-4720-01 WD-4720-01 NUT-ADJUSTABLE
WD-4720-09 WD-4720-09 NUT-[BOLT A]
WD-5200-06 WD-5200-06 PANEL-FRONT
WD-5255-10 WD-5255-10 PIPE-AIR PRESSURE
WD-5255-12 WD-5255-12 PIPE-DRAIN [UPPER]
WD-5255-03 WD-5255-03 PIPE-OVERFLOW
WD-5255-01 WD-5255-01 PIPE-VALVE
WD-5255-06 WD-5255-06 PIPE-WATER INLET
WD-5460-01 WD-5460-01 PULSATOR
WH01X27865 WH01X27865 PUMP-DRAIN
WD-5800-19 WD-5800-19 RING-DOOR
WD-6150-20 WD-6150-20 SCREW
WH02X26924 WH02X26924 SCREW
WD-6150-36 WD-6150-36 SCREW-BOLT WITH LOCK
WD-6150-09 WD-6150-09 SCREW-SELF-THREADING
WD-6150-12 WD-6150-12 SCREW-SELF-THREADING
WD-6150-05 WD-6150-05 SCREW-SELF-THREADING
WD-6750-06 WD-6750-06 SPRING
WD-6750-07 WD-6750-07 SPRING-LID
WD-7000-14 WD-7000-14 SUPPORT-DRAIN HOSE
WD-7100-39 WD-7100-39 SWITCH-POWER
WD-7100-04 WD-7100-04 SWITCH-WATER LEVEL
WD-7745-02 WD-7745-02 TUB - OUTER
WH13X26636 WH13X26636 VALVE - INLET
WD-7950-01 WD-7950-01 WASHER-INSULATING
WD-8000-05 WD-8000-05 WHEEL-RADIATING
WD-8070-01 WD-8070-01 WIRE-GROUNDING
