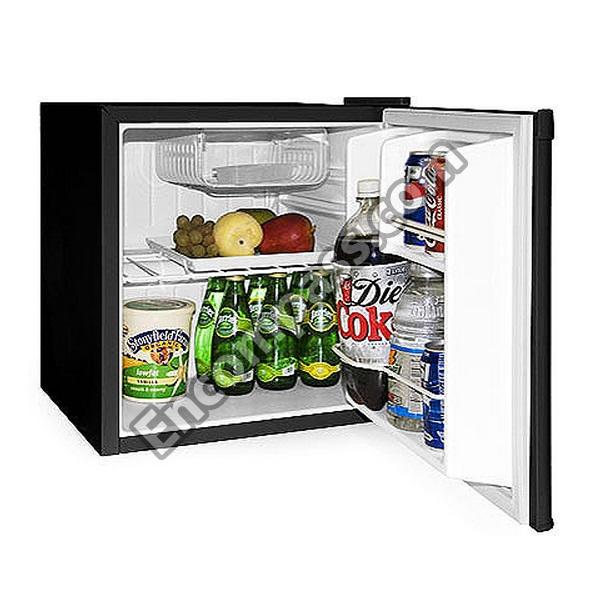

Model Image
Manufacturer

Haier

Model Number

ZHSC02CB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-3450-352 RF-3450-352 BASE-LOWER HINGE
RF-0800-54 RF-0800-54 BOX-UPPER HINGE
RF-0850-79 RF-0850-79 BRACKET-COMPRESSOR
RF-1302-22 RF-1302-22 CABLE-GROUNDING
RF-1450-149 RF-1450-149 CARTON
RF-1650-36 RF-1650-36 CLIP-CABLE
RF-1800-67 RF-1800-67 CONDENSER
RF-2300-334 RF-2300-334 DOOR-ASSY
RF-2300-302 RF-2300-302 DOOR-HINGE EVAPORATO
RF-2400-10 RF-2400-10 DRIER
RF-2650-111 RF-2650-111 EVAPORATOR
RF-3100-131 RF-3100-131 GASKET-DOOR ASSY
RF-3450-279 RF-3450-279 HINGE-UPPER
RF-3600-19 RF-3600-19 HOUSING-THERMOSTAT
WR02X27674 WR02X27674 KNOB-THERMOSTAT
WR01X27675 WR01X27675 LEG - ADJUSTABLE [0.
RF-9999-261 RF-9999-261 MANUAL - USE & CARE
RF-4600-68 RF-4600-68 NAMEPLATE
RF-6150-241 RF-6150-241 SCREW
RF-6150-62 RF-6150-62 SCREW
WR01X27774 WR01X27774 SCREW
WR01X27682 WR01X27682 SCREW
RF-6150-68 RF-6150-68 SCREW
RF-6150-144 RF-6150-144 SCREW
RF-6150-77 RF-6150-77 SCREW
RF-6150-13 RF-6150-13 SCREW-PHILLIPS TAPPI
RF-6150-195 RF-6150-195 SCREW-W/WASHER
WR71X29956 WR71X29956 SHELF
WR02X27686 WR02X27686 SPRING-EVAP DOOR
RF-7350-101 RF-7350-101 THERMOSTAT
WR02X27688 WR02X27688 TRAY-ICE
WR14X27668 WR14X27668 TRAY-WATER
RF-7750-14 RF-7750-14 TUBE-CONDENSATION
WR87X28553 WR87X28553 TUBE-DISCHARGE
