Manufacturer
Hestan
Model Number
HCO36LPOR
Description
Assembly, Oven, Convection, Lp, Orange
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTER, STRAIGHT, 1/2 NPT X 3/8-INCH CC |
|
|
ADAPTER, STRAIGHT, 1/8 NPT TO 3/16-INCH CC |
|
|
ADJUSTABLE LEG, 6-INCH |
|
|
ASSEMBLY, BOX, CONTROL, OVEN |
|
|
ASSEMBLY, BRACKET, CONTROL BOX, OVEN |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, BLACK |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, BLUE |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, BURGUNDY |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, DARK GRAY |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, GREEN |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, OLIVE GREEN |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, ORANGE |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, PURPLE |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, RED |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, TURQUOISE |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, WHITE |
|
|
ASSEMBLY, CONTROL, OVEN, CONVECTION, YELLOW |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, BLACK |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, BLUE |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, BURGUNDY |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, CHROME GREEN |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, DARK GRAY |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, GREEN |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, ORANGE |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, PASTEL GREEN |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, PURPLE |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, RED |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, TURQUOISE |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, WHITE |
|
|
ASSEMBLY, CONTROL, OVEN, STANDARD, YELLOW |
|
|
ASSEMBLY, FRAME, OVEN |
|
|
ASSEMBLY, KICK PLATE, OVEN |
|
|
ASSEMBLY, LED LIGHT, OVEN |
|
|
ASSEMBLY, PANEL, BACK, CAVITY, CO |
|
|
BEARING, FLANGE, BRONZE |
|
|
BLADE, CONV FAN, 152MM |
|
|
BOARD, CONTROL, OVEN, RAM4 |
|
|
BRACKET, MOUNTING, HINGE, DOOR, OVEN |
|
|
BRACKET, SOLENOID, OVEN |
|
|
BRACKET, SPRING, OVEN |
|
|
BUSHING, HEX REDUCING, 3/4 NPTM X 1/2 NPTF |
|
|
BUSHING, SNAP, .75 ID, NYLON |
|
|
CAPACITOR, 12 UF, CONVECTION OVEN |
|
|
CAPACITOR, 30 UF, CONVECTION OVEN |
|
|
CASTER, SWIVEL, ADJUSTABLE, 3-INCH , W/ BRAKE |
|
|
CASTER, SWIVEL, ADJUSTABLE, 3-INCH , W/O BRAKE |
|
|
CLAMP, HOLD-DOWN, BURNER |
|
|
CORD, POWER, 9FT, 3 BLADE PLUG |
|
|
COUPLING, REDUCING, 3/8 TO 1/8 FNPT, BRASS |
|
|
COVER, CONTROL, OVEN |
|
|
DAMPER, HYDRAULIC, OVEN DOOR |
|
|
ELBOW, 90 ADAPTER, 3/8 NPT TO 3/8-INCH CC |
|
|
ENDCAP, HANDLE, LH, OVEN DOOR |
|
|
ENDCAP, HANDLE, RH, OVEN DOOR |
|
|
FAN, CONVECTION, 36-INCH RANGE |
|
|
GUARD, FAN, SS, 5.91-INCH |
|
|
HANDLE, ASSEMBLY, MOTOR, CONVECTION |
|
|
HANDLE, DOOR, OVEN |
|
|

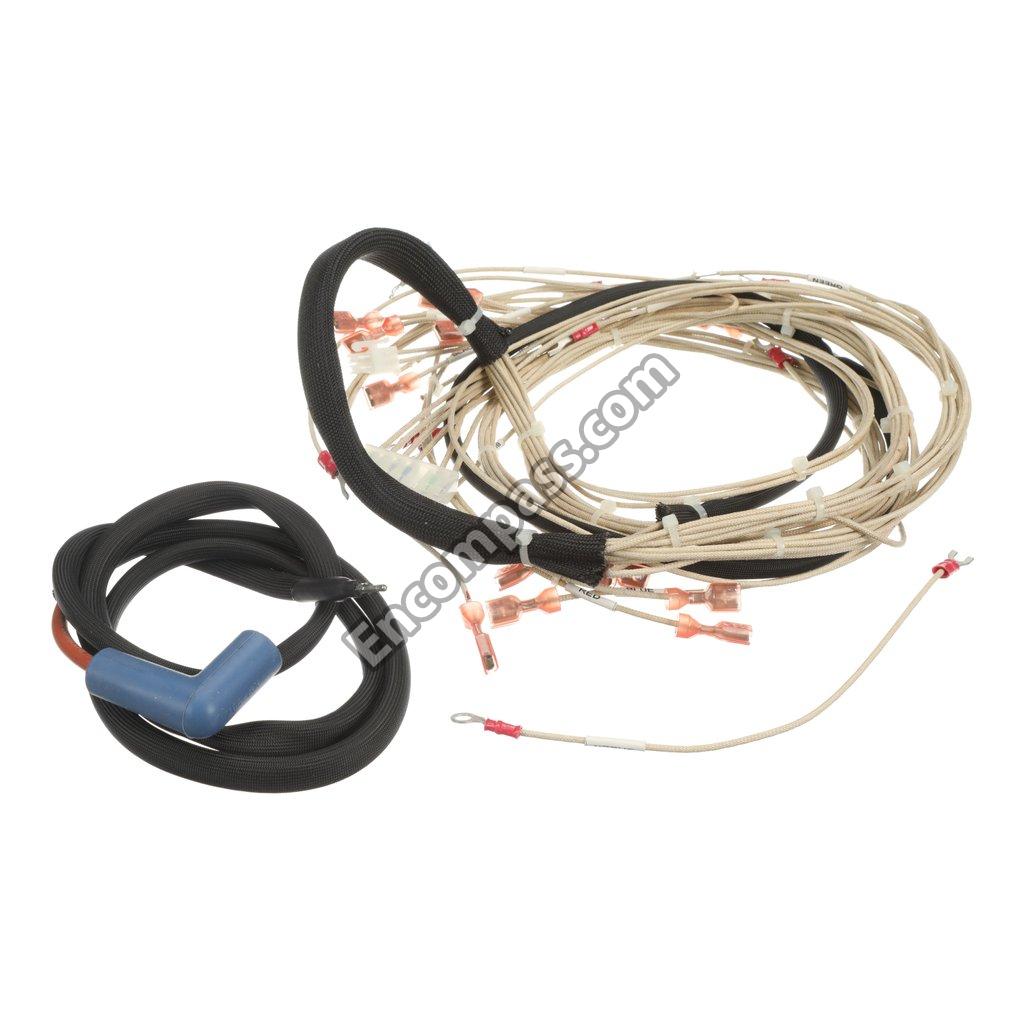

HARNESS, WIRE, CONVECTION OVEN |
|
|
HARNESS, WIRE, CONVECTION OVEN, SMALL MOTOR |
|
|
HARNESS, WIRE, STANDARD OVEN |
|
|
HEX BOLT W/ SHOULDER, SS, FOR OVEN ARM DOOR & SPRING |
|
|
HOLDER, ORIFICE, BULKHEAD, SMALL |
|
|

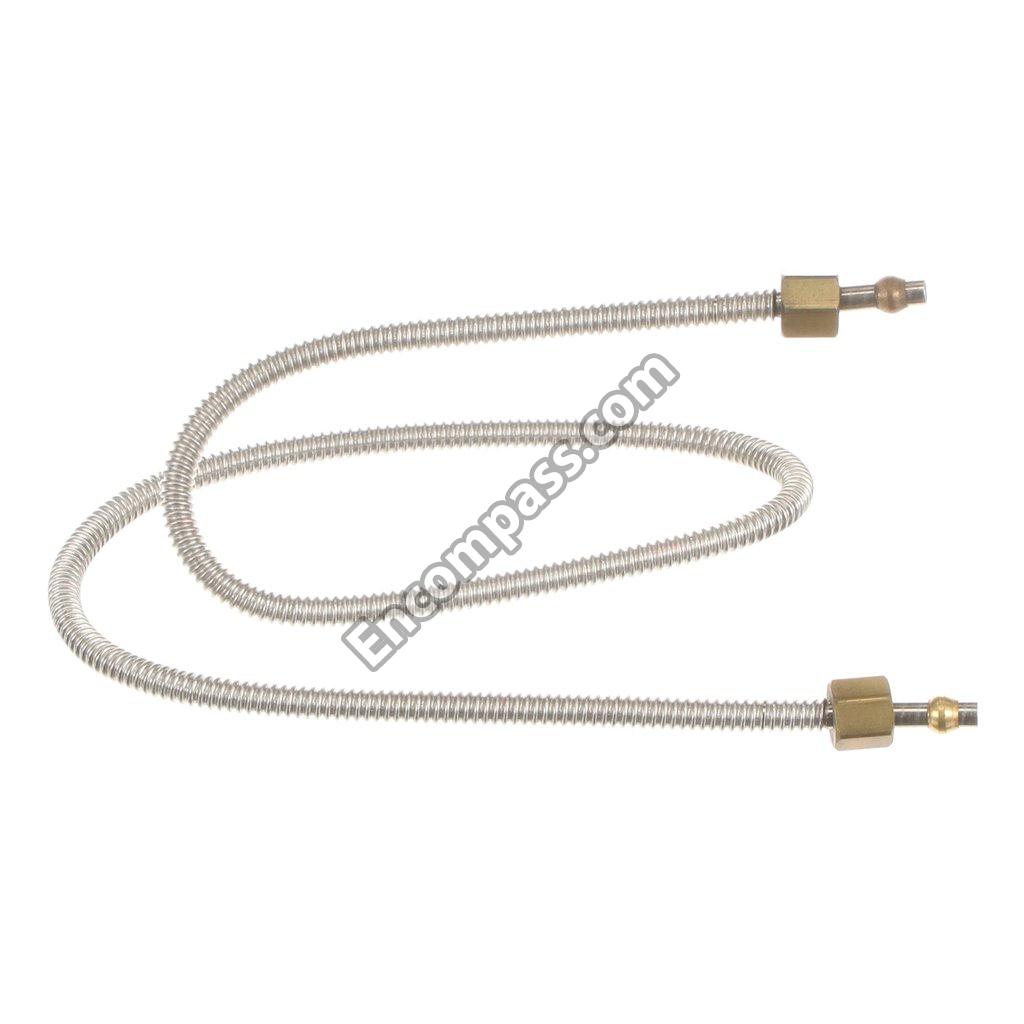

HOSE, FLEX, 3/16 OD, 24-INCH , F-F, NUT/FERRULE |
|
|
HOSE, FLEX, 3/8 OD, 18-INCH , F-F, NUT/FERRULE |
|
|
HOSE, FLEX, 3/8 OD, 48-INCH , F-F, NUT/ FERRELE |
|
|
KNOB ASSEMBLY., CONV. FAN, 85% |
|
|
KNOB ASSEMBLY., OVEN TEMP, 85% - 150-650F |
|
|
MOTOR, BLOWER, OVEN, CONVECTION (CONVERT TO NEW STYLE FAN WITH 001494 & 044995) |
|
|
MOUNTING, MOTOR, CONVECTION, W/A |
|
|
MS, 10-24 X 1/2, PH, PAN SS |
|
|
NUT, HEX, 1/4-28, CONV. FAN, RANGE |
|
|
NUT, KEPS, 5/16-18, SS |
|
|
ORIFICE HOLDER, OVEN |
|
|
ORIFICE, HOOD, 32 DMS |
|
|
ORIFICE, HOOD, 49 DMS |
|
|
PAN, BOTTOM, OVEN |
|
|
PANEL, BACK, CAVITY, OVEN, STANDARD |
|
|

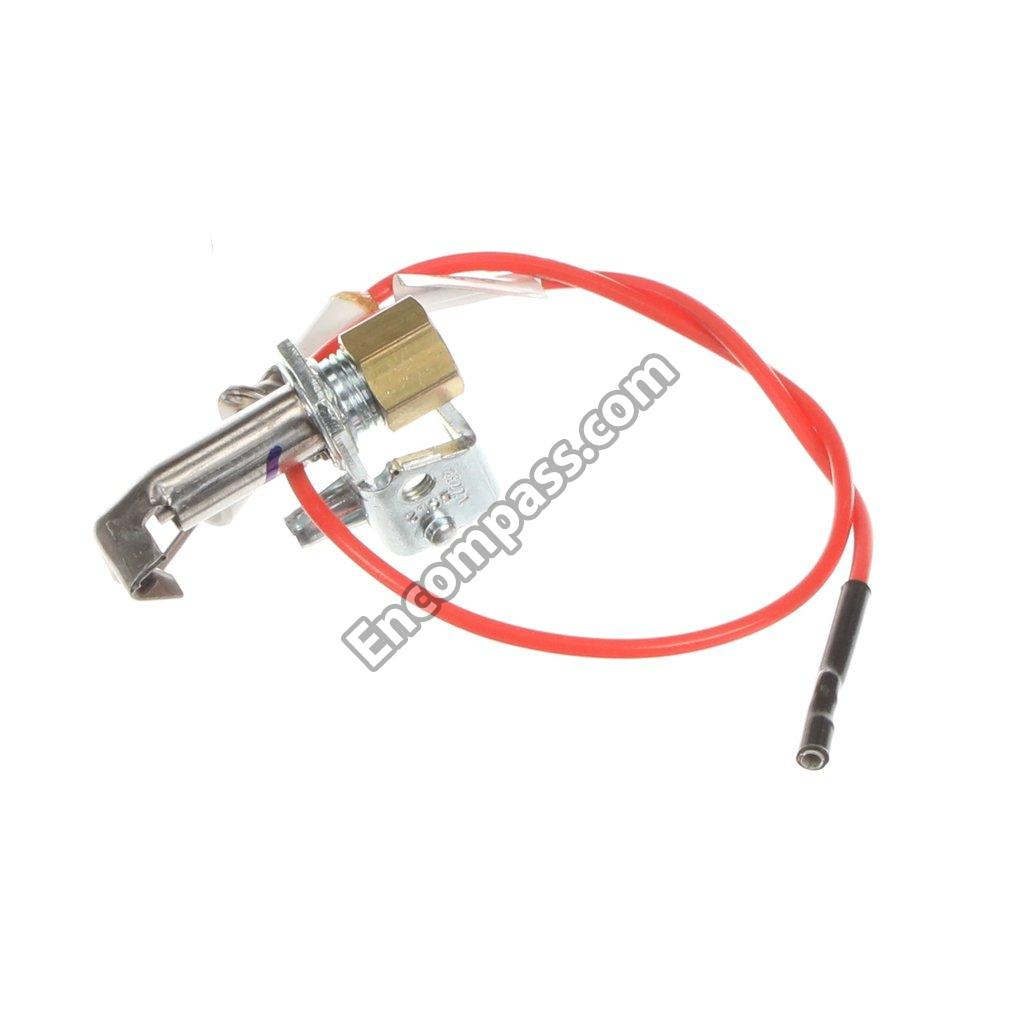

PILOT ASSEMBLY., RIGHT ANGLE, 5SL-2 LP |
|
|
PILOT, ASSEMBLY.,RIGHT ANGLE, 5SL-2 (76770) NG |
|
|
PIN, SPRING, SLOTTED, STEEL, ZINC-PLATED |
|
|
PLATE, COVER. OVEN, STANDARD |
|
|
PLATE, MOUNTING, LEG |
|
|
PLATE, MOUNTING, MOTOR, CONVECTION |
|
|
PLATE, STEEL, BOTTOM, OVEN |
|
|
PLUG, SQUARE HEAD, 3/4 NPT |
|
|
PROBE, TEMPERATURE, OVEN |
|
|
RACK, OVEN, 36-INCH |
|
|
REGULATOR, STRAIGHT-THRU, 1-INCH NPT, LP |
|
|
REGULATOR, STRAIGHT-THRU, 1-INCH NPT, NG |
|
|
REGULATOR, STRAIGHT-THRU, 3/4-INCH NPT, LP |
|
|
REGULATOR, STRAIGHT-THRU, 3/4-INCH NPT, NG |
|
|
RETAINER, CONTROL BOX, OVEN |
|
|
SERVICE, BALL STUD, MALE, 5/16-18, 10 MM, PKG 4 |
|
|
SERVICE, CONTROLLER, TEMP, OVEN, ROBERTSHAW, ASSEMBLY |
|
|
SERVICE, HB, 1/4-20 X .50, ZN, PKG. 8 |
|
|
SERVICE, HB, 1/4-20 X .625, ZN, PKG 8 |
|
|
SERVICE, HB, 1/4-20 X 1.0, SS, PKG 8 |
|
|
SERVICE, KIT, Z BRACKET, DRIP TRAY, OVEN |
|
|
SERVICE, LARGE HESTAN LOGO W/ RETAINING RINGS & TAPE |
|
|
SERVICE, MAGNET, 3/4 DIA, KIT |
|
|
SERVICE, MS, 1/4-20 X .75, PH, CSK, SS, PKG 6 |
|
|
SERVICE, MS, 10-24 X .250, PH, TRUSS, SS, PKG 6 |
|
|
SERVICE, MS, 10-24 X .750, PH, TRUSS, SS, PKG 2 |
|
|
SERVICE, MS, 10-24 X 1/4, HEXHD, SS, PKG 6 |
|
|
SERVICE, MS, 10-24 X 3/8, PH, FLT, SS, PKG 4 |
|
|

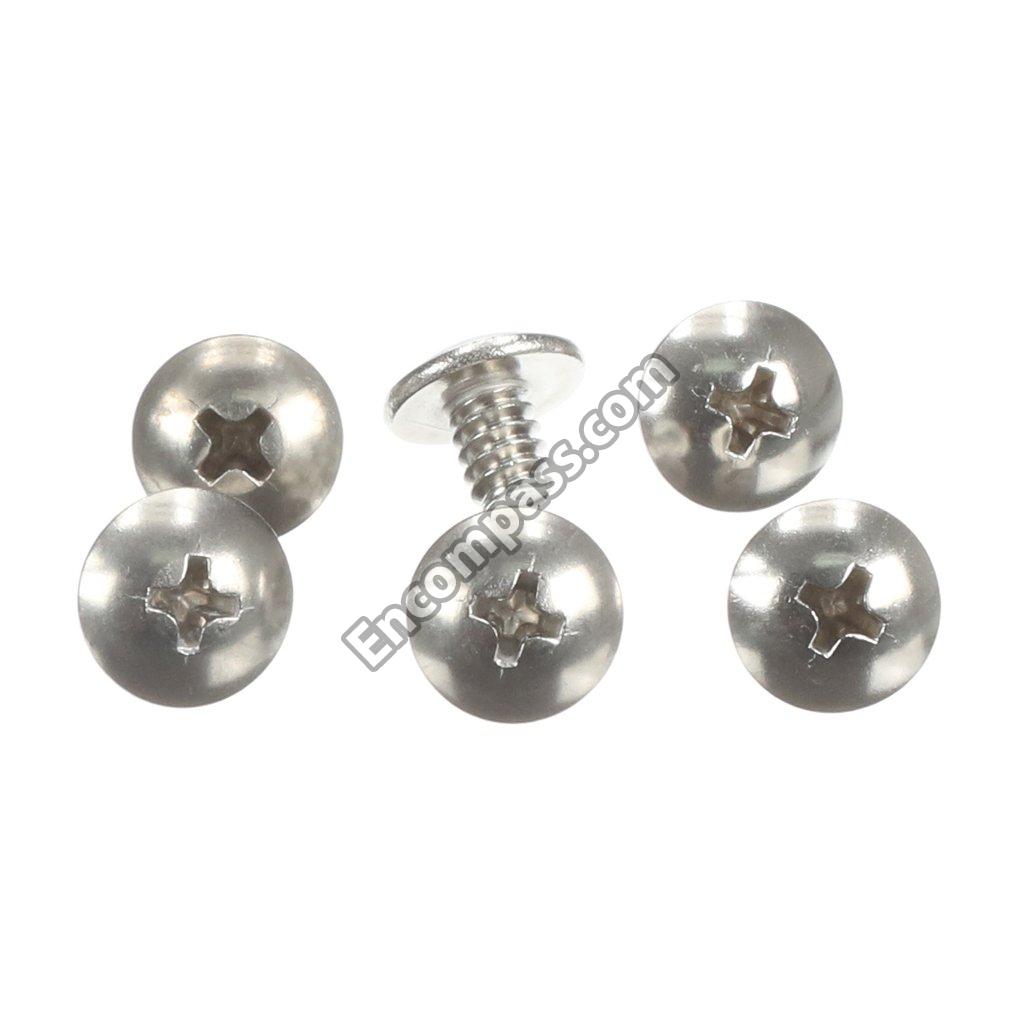

SERVICE, MS, 6-32 X .312, PH, PAN, SS, PKG 6 |
|
|
SERVICE, MS, 8-32 X .25, PH, PAN, SS, PKG 12 |
|
|
SERVICE, MS, 8-32 X .50, PH, PAN, SS, PKG 12 |
|
|
SERVICE, MS, 8-32 X .75, PH, PAN, SS, PKG 4 |
|
|
SERVICE, MS, 8-32 X 1/4, SLOT, PAN, SS, PKG 4 |
|
|
SERVICE, NUT, ACORN, 8-32 X 5/16-FEET ', SS, PKG 8 |
|
|
SERVICE, NUT, HEX, M8 X 1.25MM, ZN, PKG 6 |
|
|
SERVICE, NUT, NYLOK, #10-24, SS, PKG 4 |
|
|
SERVICE, NUT, NYLOK, #6-32, SS, PKG 4 |
|
|
SERVICE, RETAINING RING, EXTERNAL, .125-INCH DIAMETER SHAFT, PKG 4 |
|
|
SERVICE, SB, 1/4-20 X 5/16 DIA X 1/4L, SS, PKG 2 |
|
|
SERVICE, SETSCREW, #10-24 X .875, CUP PT., SS, PKG 6 |
|
|
SERVICE, SMS, TEK, #10 X 1/2-INCH , ZN, PKG 6 |
|
|
SERVICE, WSH, FLAT, #8 (.174 X .438 X .031), SS, PKG 6 |
|
|
SHIELD, AIR, OVEN, CONVECTION |
|
|
SHIELD, HEAT, OVEN PILOT |
|
|
SLIDE, FULL EXTENTION, 16, KING |
|
|
SLIDES, FULL EXTENSION, 16 |
|
|
SPACER, UNTHREADED, ALUMINUM, 3/4 X 1/2 |
|
|
SPRING, EXTENSION, ASPIRE GRILL, 30/36/42 |
|
|
SUPPORT, CONTROL BOX, OVEN |
|
|
SWITCH, ROTARY, CONV. FAN |
|
|
TEE, INLINE REDUCING, 3/4 X 1/2 NPT |
|
|
TEE, MALE, 3/8 X 3/8 X 3/8 NPT |
|
|
VALVE, SOLENOID, OVEN, ROBERTSHAW |
|
|
W/A, BURNER, OVEN |
|
|
W/A, FRONT, DOOR, OVEN |
|
|
W/A, FRONT, DOOR, OVEN, BEIGE |
|
|
W/A, FRONT, DOOR, OVEN, BLACK |
|
|
W/A, FRONT, DOOR, OVEN, BLUE |
|
|
W/A, FRONT, DOOR, OVEN, BURGUNDY |
|
|
W/A, FRONT, DOOR, OVEN, CHROME GREEN |
|
|
W/A, FRONT, DOOR, OVEN, DARK GRAY |
|
|
W/A, FRONT, DOOR, OVEN, GREEN |
|
|
W/A, FRONT, DOOR, OVEN, ORANGE |
|
|
W/A, FRONT, DOOR, OVEN, PASTEL GREEN |
|
|
W/A, FRONT, DOOR, OVEN, PURPLE |
|
|
W/A, FRONT, DOOR, OVEN, RED |
|
|
W/A, FRONT, DOOR, OVEN, SAPPHIRE BLUE |
|
|
W/A, FRONT, DOOR, OVEN, TURQUOISE |
|
|
W/A, FRONT, DOOR, OVEN, WHITE |
|
|
W/A, FRONT, DOOR, OVEN, YELLOW |
|
|
W/A, INSULATION, DOOR, OVEN |
|
|
WASHER, FLAT, M6 |
|
|
WELD ASSEMBLY, OVEN RACK |
|
|
WIRE ROPE LANYARD, 12-INCH EYE-TO-EYE, 3/64-INCH DIA ROPE, SS UNCOATED |
