Model Image
Manufacturer

Hestan

Model Number

HSMW36LP

Description

Salamander Assembly, Wall Mount, 36-inch - Lp

Interactive Exploded View

Parts List

Part Number Description
000470 000470 ADJUSTABLE LEG, ASSEMBLY, 4-INCH
008546 008546 ASSEMBLY, BAFFLE, LH, TOP, SM/CM
008621 008621 ASSEMBLY, BAFFLE, LH, TOP, SM/CM, 24-INCH
008544 008544 ASSEMBLY, BAFFLE, RH, TOP, SM/CM
011934 011934 ASSEMBLY, COUNTERWEIGHT SUPP, VER. 2, SM, WA
004122 004122 ASSEMBLY, MANIFOLD, RH, SM/CM
008620 008620 ASSEMBLY. BAFFLE, RH, TOP, SM/CM, 24-INCH
012775 012775 BAR, LOWER, SM/CM, CNTRTOP, VER. 2, 24-INCH
011977 011977 BAR, LOWER, SM/CM, CNTRTOP, VER. 2, 36-INCH
009291 009291 BRACKET, WALL, "Z", SM, FOR 24-INCH
012006 012006 BRACKET, WALL, "Z", SM/CM, VER. 2, FOR 36-INCH

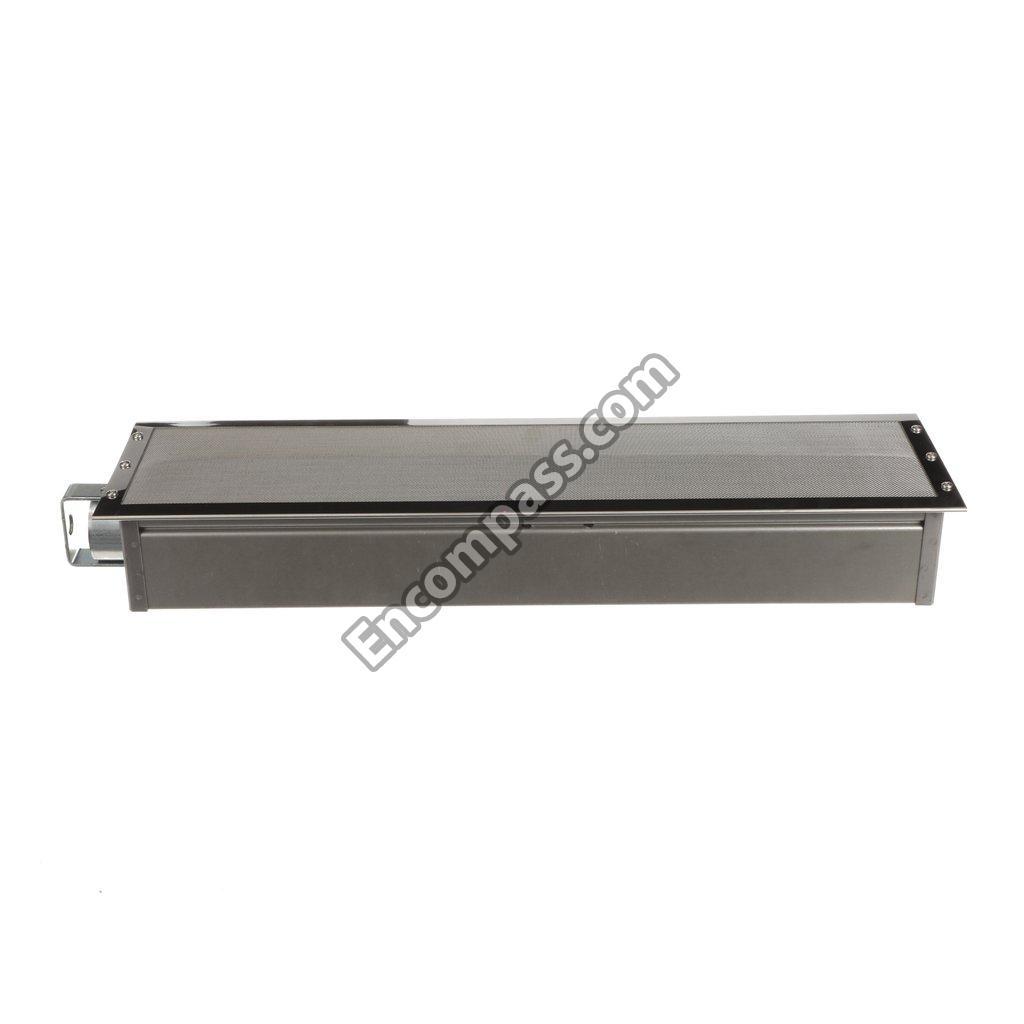

002185 002185 BURNER, INFRARED, INCONEL, B15
000677 000677 BURNER, INFRARED, INCONEL, B30
010304 010304 CHAIN, ROLLER, ANSI #35, 1.625-INCH DIAM, VER. 2
001398 001398 CONNECTING LINK, ANSI #35 CHAIN
012759 012759 COUNTER WEIGHT, SM, VER. 2, 24-INCH , WA
010295 010295 COUNTER WEIGHT, SM, VER. 2, 36-INCH , WA
011712 011712 COVER, TRAY, FIXED, SM, VER. 2, 36-INCH
002212 002212 DEFLECTOR, HEAT, SM/CM, 24-INCH
001020 001020 DEFLECTOR, HEAT, SM/CM, 36-INCH
002321 002321 ELBOW, ADAPTER, 1/4 NPT FEMALE X 3/8 CC
004643 004643 FLANGED NIPPLE, 1/4-INCH NPT
000566 000566 GEAR, LINER, SALAMANDER
000840 000840 HANDLE, OVAL
000631 000631 HANDLE, TRAY, SLIDE-OUT, SM
005820 005820 HANDLE, TRAY, SLIDE-OUT, SM, 24-INCH
003221 003221 HANGER ASSEMBLY, LH, SM/CM
003220 003220 HANGER ASSEMBLY, RH, SM/CM
005688 005688 HOSE, FLEX, 3/16 OD, 18-INCH , F-F, NUT/FERRULE
005682 005682 HOSE, FLEX, 3/8 OD, 12-INCH , F-F, NUT/FERRULE
015662 015662 KIT, VALVE, ON-OFF, FLANGE-MOUNT, A23-F
000150 000150 KNOB ASSEMBLY., ON-OFF, 85%
001842 001842 LOGO, HESTAN, 2.125 X 1.56
002865-041 002865-041 ORIFICE, SPUD, DMS 41
002865-047 002865-047 ORIFICE, SPUD, DMS 47
002865-052 002865-052 ORIFICE, SPUD, DMS 52
002865-055 002865-055 ORIFICE, SPUD, DMS 55
005753 005753 PANEL W/INDICATOR, CONTROL, SM/CM, 24-INCH
004244 004244 PANEL W/INDICATOR, CONTROL, SM/CM, 36-INCH
012765 012765 PANEL, FRONT, SM, VER. 2, 24-INCH
011866 011866 PANEL, FRONT, SM, VER. 2, 36-INCH
002213 002213 PANEL, TOP, SM/CM, 24-INCH
001176 001176 PANEL, TOP, SM/CM, 36-INCH
001579 001579 PANEL, UNDER, SIDE, SM/CM
003915 003915 PANEL, UNDER, SIDE, SM/CM, 24-INCH
000764 000764 PLATE, CONNECTOR, HANDLE, SALAMANDER
000360 000360 PLUG, HEX SOCKET, 1/8-INCH NPT
005819 005819 RACK, SM, 24-INCH
003002 003002 RACK, SM, 36-INCH
012764 012764 ROD, BEARING, SM, VER. 2, 24-INCH
010302 010302 ROD, BEARING, SM, VER. 2, 36-INCH
000762 000762 ROD, EXTENSION, HANDLE, SM
011942 011942 ROD, PULL, TRAY, FIXED, SM, VER. 2
014179 014179 SERVICE, ELBOW W/PNL NUT, ORIFICE, IR BURNER, KIT
013946 013946 SERVICE, ENDCAP, HANDLE, LH, SM, KIT
013945 013945 SERVICE, ENDCAP, HANDLE, RH, SM, KIT
014181 014181 SERVICE, HB, 1/2-13 X 1.25, ZN, PKG 4
014191 014191 SERVICE, HB, 1/4-20 X .625, SS, PKG 4
013958 013958 SERVICE, HB, 1/4-20 X 1.0, SS, PKG 8
014089 014089 SERVICE, HB, 1/4-20 X 1.0, ZN, PKG 6
013960 013960 SERVICE, HB, 3/8-16 X .625, ZN, PKG 4
014085 014085 SERVICE, KEY, ROD, BEARING, SM, VER. 2, PKG 2
013956 013956 SERVICE, MS, 1/4-20 X 1.125, SH, FLT, ZN, PKG 8
013962 013962 SERVICE, MS, 10-24 X .25, PH, PAN, ZN, PKG 8
013961 013961 SERVICE, MS, 10-24 X .313, PH, PAN, SS, PKG 15
013959 013959 SERVICE, MS, 10-24 X .375, HEXHD, ZN, PKG 8
013950 013950 SERVICE, MS, 10-24 X .875, SCKT, FLT, SS, PKG 8
010237 010237 SERVICE, MS, 10-24 X 1/4, HEXHD, SS, PKG 6
013954 013954 SERVICE, MS, 10-24 X 3/8, PH, PAN, SS, PKG 4
014189 014189 SERVICE, MS, 8-32 X .375, HEXHD, SS, PKG 4
013953 013953 SERVICE, MS, 8-32 X .375, PH, FLT, UC, SS, PKG 12
011857 011857 SERVICE, MS, 8-32 X .375, PH, PAN, SS, PKG 6
014155 014155 SERVICE, NUT, 1/4-20, ZN, PKG 4
013957 013957 SERVICE, NUT, LCK, EXPANDING, 1/4-20, SS, PKG 8
013951 013951 SERVICE, NUT, LCK, EXPANDING, 10-24, SS, PKG 8
014103 014103 SERVICE, O-RING, FLANGED NIPPLE, PKG 6

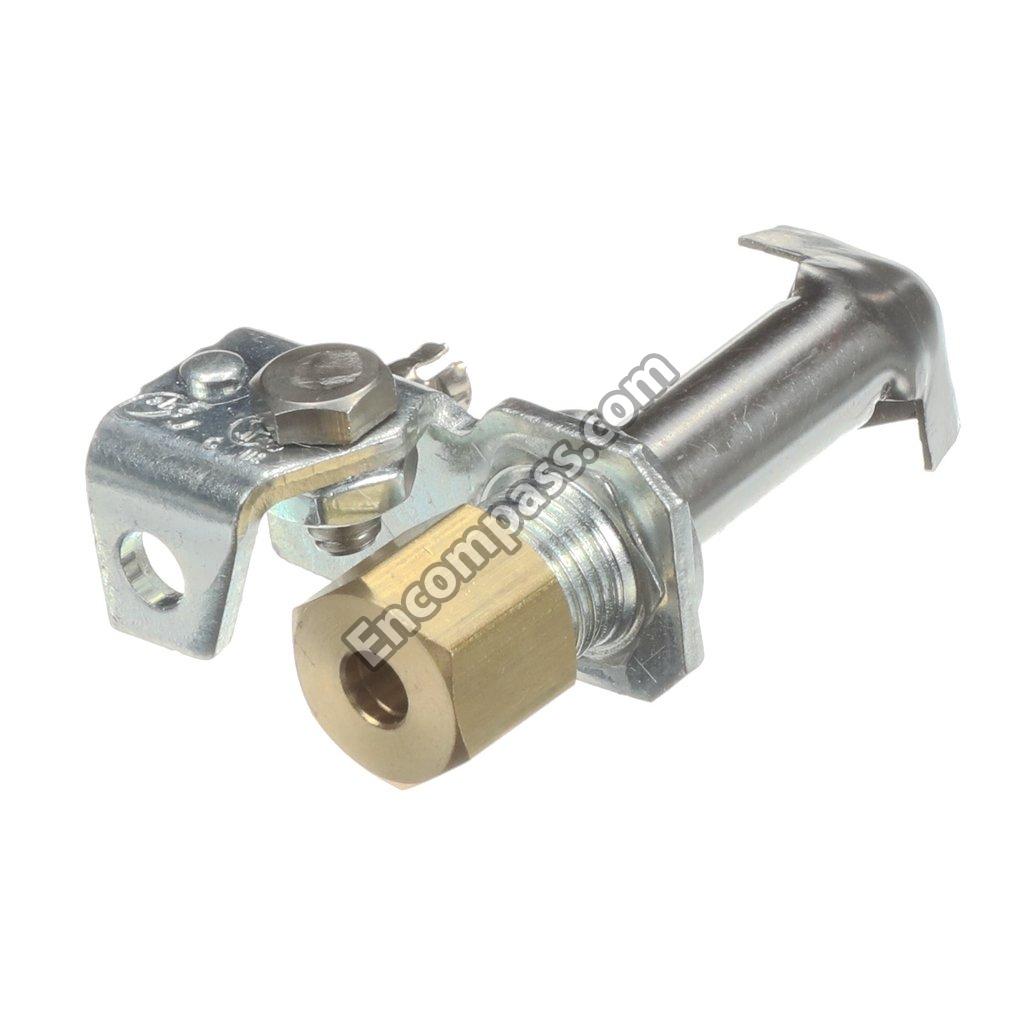

014185 014185 SERVICE, PILOT ASSEMBLY., RIGHT ANGLE, 5C-2, LP, KIT
014180 014180 SERVICE, PILOT ASSEMBLY., RIGHT ANGLE, 5C-2, NG, KIT
014188 014188 SERVICE, PIN, CLEVIS, 1/8 OD X 1 LG, W/ COTTER PIN, KIT
014439 014439 SERVICE, RETAINING RING, EXTERNAL, .125-INCH DIAMETER SHAFT, PKG 4
014086 014086 SERVICE, RING, RETAINING, 5/8-INCH SHAFT, PKG 8
014300 014300 SERVICE, SETSCREW, #10-24 X .875, CUP PT., SS, PKG 6
012750 012750 SERVICE, SHCS, #10-24 X .500, SS, PKG 6
014186 014186 SERVICE, SHIELD, SLOT, CENTER, SM, KIT
014154 014154 SERVICE, SHIELD, SWITCH/MODULE, PKG 2
013948 013948 SERVICE, SLIDE, DRAWER, ROLLER, SM, KIT
014000 014000 SERVICE, SPRING, COMPRESSION, 0.48 OD X 1.5 LG, PKG 2
014323 014323 SERVICE, WELDMENT, SIDE, REMOVABLE, SM/CM
013955 013955 SERVICE, WHEEL, ROLLER, 1.095-INCH OD, PKG 4
013949 013949 SERVICE, WHEEL, ROLLER, SLIDE, SM, PKG 4
013132 013132 SHIELD, PILOT, SM/CM
011967 011967 SHIELD, SLOT, LEFT, SM, VER. 2
011943 011943 SHIELD, SLOT, RIGHT, SM, VER. 2
011830 011830 SLEEVE BEARING, 700F, 5/8 SHAFT, 7/8 OD, 5/8 L
011834 011834 SPROCKET, ROLLER CHAIN, #35, .625 BORE X 2.47 OD
011673 011673 TRACK, VERTICAL, SM, VER. 2
005818 005818 TRAY, DRIP, SM, 24-INCH
000660 000660 TRAY, DRIP, SM, 36-INCH
000113 000113 VALVE, PILOT, 1/8NPT X 3/16 COMP., ELBOW
012784 012784 WELDMENT, BAR, LOWER, SM/CM, VER. 2, 24-INCH
011890 011890 WELDMENT, BAR, LOWER, SM/CM, VER. 2, 36-INCH
006822 006822 WELDMENT, COVER, PILOT, SM/CM
011674 011674 WELDMENT, GEAR, RACK, SM, VER. 2
011704 011704 WELDMENT, HOUSING, MECH., SM, VER. 2, 36-INCH
011907 011907 WELDMENT, LEG, HORZ, SM/CM, VER. 2
012779 012779 WELDMENT, PANEL, BACK, SM/CM, VER. 2, 24-INCH
011979 011979 WELDMENT, PANEL, BACK, SM/CM, VER. 2, 36-INCH
012768 012768 WELDMENT, SUPPORT, TRAY, SM, VER. 2, 24-INCH
012330 012330 WELDMENT, SUPPORT, TRAY, SM, VER. 2, 36-INCH
012772 012772 WELDMENT, TRAY, SLIDE-OUT, SM, VER. 2, 24-INCH
011727 011727 WELDMENT, TRAY, SLIDE-OUT, SM, VER. 2, 36-INCH
001549 001549 WHEEL, ROLLER, 1.095-INCH OD
