Manufacturer
Hestan
Model Number
HTG48NGH2
Description
Griddle, T-stat, Top Assembly, 48-inch , - Ng-h2
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADJUSTABLE LEG, ASSEMBLY, 4-INCH |
|
|
BRACKET, ORIFICE, GRIDDLE |
|
|
BRACKET, ORIFICE, GRIDDLE 12-INCH |
|
|
BRACKET, VALVE ANTI-ROTATION, STD |
|
|
BURNER, TUBE, GRIDDLE |
|
|
BURNER, U-TUBE, GRIDDLE/HOT TOP |
|
|
CAP, MANIFOLD, LEFT, ASSEMBLY |
|
|
CAP, MANIFOLD, RIGHT, ASSEMBLY |
|
|
CHIN, CONTROL PANEL, GRIDDLE, 12-INCH , ASSEMBLY |
|
|
CHIN, CONTROL PANEL, GRIDDLE, 18-INCH , ASSEMBLY |
|
|
CHIN, CONTROL PANEL, GRIDDLE, 24-INCH , ASSEMBLY |
|
|
CHIN, CONTROL PANEL, GRIDDLE, 30, ASSEMBLY |
|
|
CHIN, CONTROL PANEL, GRIDDLE, 36, ASSEMBLY |
|
|
CONTROLLER, TEMP, FLANGE-MOUNT, COMSA006K |
|
|
DEFLECTOR, HEAT, GRIDDLE, 18 |
|
|
DEFLECTOR, HEAT, GRIDDLE, 24 |
|
|
DEFLECTOR, HEAT, GRIDDLE, 30 |
|
|
DEFLECTOR, HEAT, GRIDDLE, 36 |
|
|
ELBOW, ADAPTER, 1/4 NPT FEMALE X 3/8 CC |
|
|
FIREBOX, GRIDDLE, WA, 12 |
|
|
FIREBOX, GRIDDLE, WA, 18 |
|
|
FIREBOX, GRIDDLE, WA, 24 |
|
|
FIREBOX, GRIDDLE, WA, 30 |
|
|
FIREBOX, GRIDDLE, WA, 36 |
|
|
FLANGED NIPPLE, 1/4-INCH NPT |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 12 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 18 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 24 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 30 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 36 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 48 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 60 |
|
|
GRIDDLE PLATE, MIRROR., 2-INCH SIDES, W/A, 72 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 12 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 18 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 24 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 30 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 36 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 48 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 60 |
|
|
GRIDDLE PLATE, STD., 2-INCH SIDES, W/A, 72 |
|
|
GUIDE, GREASE CAN, GRIDDLE, W/A |
|
|
HOLDER, ORIFICE, BULKHEAD, SMALL |
|
|
HOSE, FLEX, 3/16 OD, 12-INCH , F-F, NUT/FERRULE |
|
|
HOSE, FLEX, 3/8 OD, 12-INCH , F-F, NUT/FERRULE |
|
|
KIT, TRAP DOOR, LARGE, GRIDDLE, ASSEMBLY |
|
|
KIT, TRAP DOOR, SMALL, GRIDDLE, ASSEMBLY |
|
|
KNOB ASSEMBLY., GRIDDLE TEMP, 85% |
|
|
MANIFOLD, GRIDDLE, WA, 12 |
|
|
MANIFOLD, GRIDDLE, WA, 18 |
|
|
MANIFOLD, GRIDDLE, WA, 24 |
|
|
MANIFOLD, GRIDDLE, WA, 30 |
|
|
MANIFOLD, GRIDDLE, WA, 36 |
|
|
MANIFOLD, GRIDDLE, WA, 48 |
|
|
MANIFOLD, GRIDDLE, WA, 60 |
|
|
MANIFOLD, GRIDDLE, WA, 72 |
|
|
ORIFICE, HOOD, 43 DMS |
|
|
ORIFICE, HOOD, 50 DMS |
|
|
ORIFICE, HOOD, 53 DMS |
|
|
ORIFICE, HOOD, 56 DMS |
|
|
ORIFICE, HOOD, 59 DMS |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 12 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 18 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 24 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 30 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 36 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 48 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 60 |
|
|
PANEL, CONTROL, T-STAT GRIDDLE, ASSEMBLY., 72 |
|
|
PANEL, SIDE, LH, RANGETOP |
|
|
PANEL, SIDE, RH, RANGETOP |
|
|
PILOT ASSEMBLY, RIGHT ANGLE, 5CL-2 (78517) NG |
|
|
PILOT ASSEMBLY., RIGHT ANGLE, 5CL-2 LP |
|
|
PLATE SHELF, 12, W/A |
|
|
PLATE SHELF, 18, W/A |
|
|
PLATE SHELF, 24, W/A |
|
|
PLATE SHELF, 30, W/A |
|
|
PLATE SHELF, 36, W/A |
|
|
PLATE SHELF, 48, W/A |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 12 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 18 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 24 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 30 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 36 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 48 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 60 |
|
|
PLATE SHELF, 6-INCH EXTENDED, WA, 72 |
|
|
PLATE SHELF, 60, W/A |
|
|
PLATE SHELF, 72, W/A |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 12 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 18 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 24 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 30 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 36 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 48 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 60 |
|
|
PLATE SHELF, 8-INCH EXTENDED, WA, 72 |
|
|
PLUG, HEX SOCKET, 1/4-INCH NPT |
|
|
PLUG, HEX SOCKET, 1/8-INCH NPT |
|
|
PLUG, SQUARE SOCKET, 1-INCH NPT |
|
|
REAR GAS CONNECTION, 1-INCH NPT |
|
|
REGULATOR, STRAIGHT-THRU, 1-1/4-INCH NPT, LP |
|
|
REGULATOR, STRAIGHT-THRU, 1-1/4-INCH NPT, NG |
|
|
REGULATOR, STRAIGHT-THRU, 1-INCH NPT, LP |
|
|
REGULATOR, STRAIGHT-THRU, 1-INCH NPT, NG |
|
|
SCRAPER, GREASE CAN SLEEVE, GRIDDLE |
|
|
SERVICE POP RIVET, CSINK, 1/8 DIA X .275L, SS, PKG 8 |
|
|
SERVICE, CONTROLLER, TEMP, FLANGE-MOUNT, ASSEMBLY. COMSA006K |
|
|
SERVICE, HB, 1/4-20 X .50, ZN, PKG. 8 |
|
|
SERVICE, HB, 1/4-20 X .625, SS, PKG 4 |
|
|
SERVICE, KIT, THERMOSTAT, GRIDDLE |
|
|
SERVICE, NUT, 3/8-16 X .25, PKG 4 |
|
|
SERVICE, NUT, KEPS, 1/4-20, ZN, PKG 3 |
|
|
SERVICE, NUT, LCK, SERRATED FLG, 1/4-20, ZN, PKG 6 |
|
|
SERVICE, O-RING, FLANGED NIPPLE, PKG 6 |
|
|
SERVICE, PIN, COTTER, 5/64 HOLE X .5 LG, PKG 4 |
|
|
SERVICE, RECEPTACLE, BALL STUD, 18LB PULL, C1663-028-3B, PKG 4 |
|
|
SERVICE, SETSCREW, #10-24 X .375, CONE PT, SS, PKG 3 |
|
|
SERVICE, SHCS, #10-24 X .500, SS, PKG 6 |
|
|

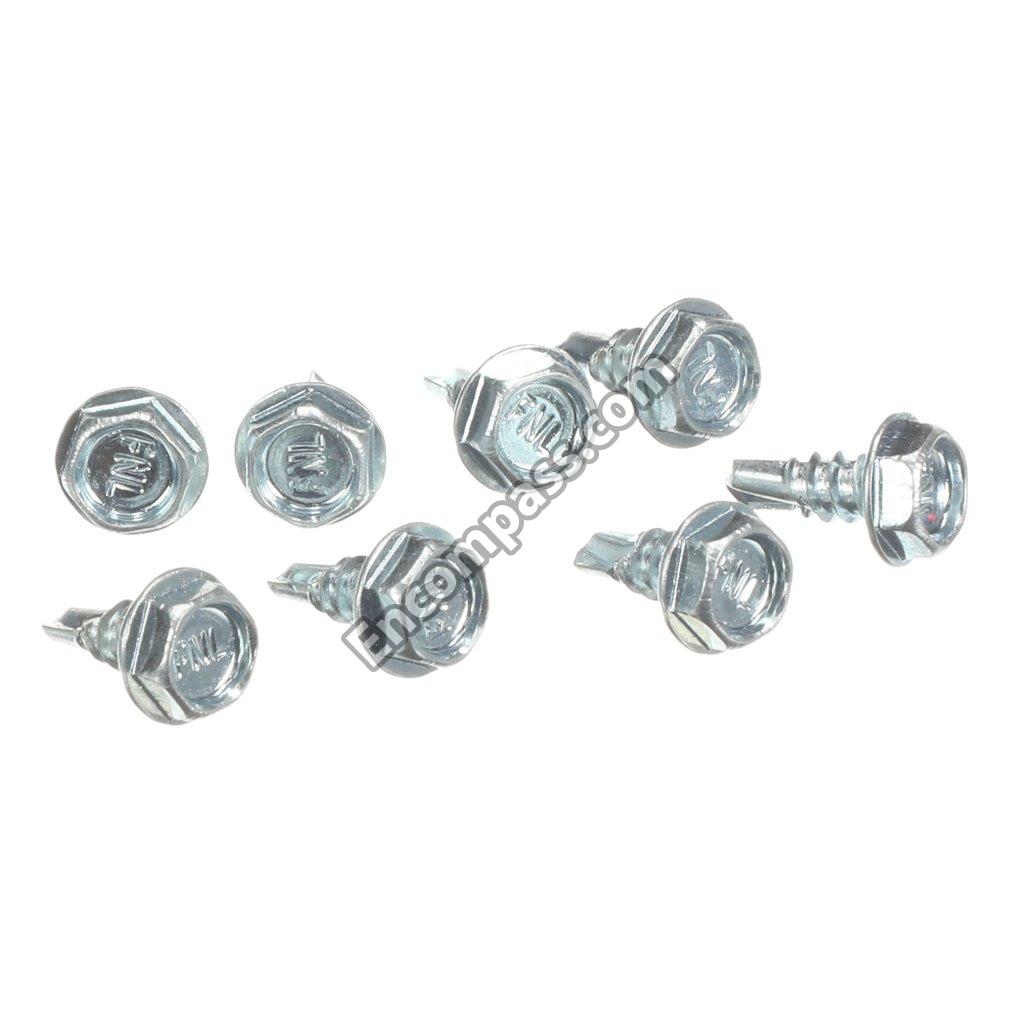

SERVICE, SMS, TEK, #10 X 1/2-INCH , ZN, PKG 8 |
|
|
SERVICE, WSH, FLAT, 3/8 SAE (.406 X .812 X .065), ZN, PKG 4 |
|
|
SHEET METAL SCREW, #10 X .5, PH, PAN, PKG 3 |
|
|
SMS, 10-24 X 1/2, PH, PAN, TYPE F, SS, PKG 4 |
|
|
SPLASH, GRIDDLE, BACK, 12-INCH |
|
|
SPLASH, GRIDDLE, BACK, 18-INCH |
|
|
SPLASH, GRIDDLE, BACK, 24-INCH |
|
|
SPLASH, GRIDDLE, BACK, 30-INCH |
|
|
SPLASH, GRIDDLE, BACK, 36-INCH |
|
|
SPLASH, GRIDDLE, BACK, 48-INCH |
|
|
SPLASH, GRIDDLE, BACK, 60-INCH |
|
|
SPLASH, GRIDDLE, BACK, 72-INCH |
|
|
THERMOCOUPLE, PUSH-IN, 18-INCH |
|
|
TRAY, GREASE CAN, GRIDDLE, ASSEMBLY. |
|
|
UNION, 1.25-INCH NPT |
|
|
VALVE, PILOT, 1/8 NPT X 3/16 COMP, STRAIGHT |
