Manufacturer
HP
Model Number
C6659A
Description
Officejet 700/710/720/725
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADVANCED GLOSSY PHOTO PAPER - A SIZE (8.5 X 11-INCHES) - 25 SHEETS |
|
|
BASE - SHEET METAL USED AS BOTTOM OF UNIT |
|
|
BHP INKJET CRTG 29G BLACK ECON EUR |
|
|
BLACK PRINT CARTRIDGE (HIGH CAPACITY) - (TWO-PACK OF 51629A) EACH PRINTS APPROXI |
|
|
BLACK PRINT CARTRIDGE (REGULAR) - PRINTS APPROXIMATELY 325 PAGES BASED ON 5% DEN |
|
|
BRACE |
|
|
BRIGHT WHITE INKJET PAPER - A SIZE (8.5 X 11-INCHES) - 200 SHEETS PER PACKAGE |
|
|
BRIGHT WHITE INKJET PAPER - A SIZE (8.5 X 11-INCHES) - 250 SHEETS |
|
|
BRIGHT WHITE INKJET PAPER - A SIZE (8.5 X 11-INCHES) - 500 SHEETS |
|
|
BRIGHT WHITE INKJET PAPER - A4 SIZE (21.0CM X 29.7CM) - 200 SHEETS |
|
|
BRIGHT WHITE INKJET PAPER - A4 SIZE (21.0CM X 29.7CM) - 250 SHEETS |
|
|
BRIGHT WHITE INKJET PAPER - A4 SIZE (21.0CM X 29.7CM) - 500 SHEETS |
|
|
BROCHURE AND FLYER PAPER - GLOSSY ON BOTH SIDES - A SIZE (8.5 X 11-INCHES), 98 B |
|
|
CABLE ASSEMBLY - HAS 14-PIN (F) CONNECTORS - 40.6CM (16IN) LONG |
|
|
CABLE ASSEMBLY - HAS 3-PIN (F) CONNECTORS - 18.1CM (7.1IN) LONG |
|
|
CABLE ASSEMBLY - HAS 5-PIN (F) CONNECTORS - 11.8CM (4.6IN) LONG |
|
|
CAP - HOLDS LEFT END OF CARRIAGE ROD IN PRINT MECHANISM |
|
|
CAP - HOLDS RIGHT END OF CARRIAGE ROD IN PRINT MECHANISM |
|
|
CARRIAGE BELT CLIP |
|
|
CARRIAGE DRIVE MOTOR ASSEMBLY (INCLUDES GEAR ONLY FOR GRAY CARRIAGE DRIVE BELT W |
|
|
CARRIAGE ROD - SHAFT THAT THE CARRIAGE ASSEMBLY RIDES ON |
|
|
CLAMP - HOLDS THE CABLE FOR THE PRINT MECHANISM PAPER DETECT SENSOR TO THE BACK, |
|
|
CLUTCH ASSEMBLY - USED TO PREVENT REVERSAL OF THE STARWHEEL SHAFT AND OUTPUT ROL |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 700 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 700 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 700 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 700 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 700 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 710 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 720 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL OVERLAY (FLINT GRAY) - FOR THE OFFICEJET 725 - SNAPS ON TOP OF THE |
|
|
CONTROL PANEL REMOVAL AND REPLACEMENT INSTRUCTION GUIDE (ENGLISH) |
|
|
CONTROL PANEL/KEYPAD AND DISPLAY ASSEMBLY (NEW STYLE) - HAS EDGE CONNECTOR SOCKE |
|
|
ENCODER STRIP SPRING |
|
|
GIMBAL SPRING - COIL SPRING INSTALLED IN THE SCANNER COVER ASSEMBLY LOCATED UNDE |
|
|
GREETING CARD PAPER PACK (WHITE) - A SIZE (8.5 X 11-INCHES) - INCLUDES 20 SHEETS |
|
|
HOOK TOOL - SPECIAL TOOL REQUIRED TO RELEASE THE BACK EDGE LOCKING TAB ON THE CO |
|
|
HP 29 ECONOMY BLACK INKJET PRINT CARTRIDGE - PRINTS APPROXIMATELY 325 PAGES BASE |
|
|
HP 29 ECONOMY BLACK INKJET PRINT CARTRIDGE - PRINTS APPROXIMATELY 325 PAGES BASE |
|
|
HP 49 ECONOMY TRI-COLOR INKJET PRINT CARTRIDGE - PRINTS APPROXIMATELY 155 PAGES |
|
|
HP 49 ECONOMY TRI-COLOR INKJET PRINT CARTRIDGE - PRINTS APPROXIMATELY 155 PAGES |
|
|
HP 49A LARGE COLOR CARTRIDGE |
|
|
HP INK CRTG 49A LARGE COLOR AP |
|
|
HP INK CRTG 49A LARGE COLOR LAR |
|
|
HP INK CRTG 49A LARGE COLOR NAM |
|
|
HP INK PHOTO CRTG 16A COLOR AP |
|
|
HP INK PHOTO CRTG 16A COLOR CAN |
|
|
HP INK PHOTO CRTG 16A COLOR EUR |
|
|
HP INK PHOTO CRTG 16A COLOR LAR) |
|
|
HP INK PHOTO CRTG 16A COLOR NAM |
|
|
HP INKJET CRTG 29A BLACK LARGE AP |
|
|
HP INKJET CRTG 29A LARGE BLACK LAR |
|
|
HP TEXTURED HALF-FOLD GREETING CARDS (WHITE) - A SIZE (8.5 X 11-INCHES) |
|
|
INKJET NON-GLOSSY LX PAPER - A4 SIZE (21.0CM X 29.7CM) - 200 SHEETS |
|
|
IRON-ON T-SHIRT TRANSFERS - A SIZE (8.5 X 11-INCHES) - 10 SHEETS |
|
|
IRON-ON T-SHIRT TRANSFERS - A4 SIZE (21.0CM X 29.7CM) - 10 SHEETS |
|
|
LAMP DRIVER PC BOARD - DRIVES THE SCANNER LAMP |
|
|
LEFT SIDE CASE (FLINT GRAY) - INCLUDES OFFICEJET 700 SERIES NAMEPLATE WHICH YOU |
|
|
LEVER - USED TO MANUALLY RELEASE THE PINCH ROLLER PRESSURE ON THE MAIN DRIVE ROL |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - DOES NOT COME WITH L |
|
|
LINE INTERFACE UNIT (LIU) - PLUG-IN FAX/PHONE LINE MODULE - INCLUDES LIU TO WALL |
|
|
LOWER BACK CASE (FLINT GRAY) - REAR PANEL |
|
|
LOWER FRONT CASE (FLINT GRAY, U-SHAPED) - SUPPORTS THE MEDIA OUTPUT TRAY |
|
|
MAIN PC BOARD SHIELD |
|
|
MEDIA OUTPUT TRAY - FLINT GRAY |
|
|
NAMEPLATE - OFFICEJET 700 SERIES LOGO |
|
|
OFFICEJET SERIES 700 MANUALS KIT - INCLUDES WARRANTY FLYER, USER'S GUIDE, SETUP |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (BRAZILIAN, PORTUGUESE) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (DANISH) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (DUTCH) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (ENGLISH, SOUTH AFRICA) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (FINLAND) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (FRENCH) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (FRENCH, DUTCH) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (FRENCH, GERMAN, ITALIAN, SWISS) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (GERMAN) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (GERMAN, AUSTRIA) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (HEBREW) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (IRELAND) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (ITALIAN) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (NORWAY) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (SPANISH) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (SWEDISH) |
|
|
OFFICEJET SERIES 700 SETUP GUIDE (UK ENGLISH) |
|
|
OFFICEJET SERIES 700 TECHNICAL GUIDE (ENGLISH, GERMAN) |
|
|
OFFICEJET SERIES 700 TECHNICAL GUIDE (FRENCH, DUTCH) |
|
|
OFFICEJET SERIES 700 TECHNICAL GUIDE (ITALIAN, SPANISH, BRAZILIAN, PORTUGUESE) |
|
|
OFFICEJET SERIES 700 USER'S GUIDE (ENGLISH, GERMAN) |
|
|
OFFICEJET SERIES 700 USER'S GUIDE (FRENCH, DUTCH) |
|
|
OFFICEJET SERIES 700 USER'S GUIDE (ITALIAN, SPANISH, BRAZILIAN, PORTUGUESE) |
|
|
PAD INSTALLED IN THE SCANNER COVER ASSEMBLY - USED ALONG WITH PAD SPRING TO MAIN |
|
|
PAPER ADVANCEMENT MOTOR ASSEMBLY (INCLUDES GEAR) |
|
|
PAPER DETECT FLAG - LOCATED ON THE BACK, LEFT, REAR OF THE PRINT MECHANISM - USE |
|
|
PHOTO GREETING CARDS (WHITE, MATTE) - A SIZE (8.5 X 11-INCHES), HALF FOLD, PRE-S |
|
|
PHOTO QUALITY INKJET PAPER (MATTE) - WITH TWO SIDED MATTE FINISH - A SIZE (8.5 X |
|
|
PLATE/BRACKET - INSTALLED IN THE SCANNER COVER ASSEMBLY OVER THE PRE-FEED SPRING |
|
|
POWER CORD (DOVE GRAY) - 17 AWG, 2.3M (7.5FT) LONG - HAS STRAIGHT (F) RECEPTACLE |
|
|
POWER CORD (DOVE GRAY) - 18 AWG, 2.0M (6.6FT) LONG - HAS STRAIGHT (F) C13 RECEPT |
|
|
POWER CORD (FLINT GRAY) - 1.8M (6.0FT) LONG - HAS STRAIGHT (F) C13 RECEPTACLE (F |
|
|
POWER CORD (FLINT GRAY) - 17 AWG, 2.3M (7.5FT) LONG - HAS STRAIGHT (F) RECEPTACL |
|
|
POWER CORD (FLINT GRAY) - 3-WIRE, 16 AWG, 2.3M (7.5FT) LONG - HAS STRAIGHT (F) C |
|
|
PRE-FEED SPRING (RECTANGULAR) |
|
|
PREMIUM GLOSSY INKJET PAPER - A SIZE (8.5 X 11-INCHES) - 10 SHEETS |
|
|
PREMIUM GLOSSY INKJET PAPER - A4 SIZE (21.0CM X 29.7CM) - 10 SHEETS |
|
|
PREMIUM GLOSSY PAPER - A SIZE (8.5 X 11-INCHES) - 25 SHEETS PER PACKAGE |
|
|
PREMIUM HIGH-GLOSS FILM - A SIZE (8.5 X 11-INCHES) - 50 SHEETS |
|
|
PREMIUM HIGH-GLOSS FILM - A4 SIZE (21.0CM X 29.7CM) - 50 SHEETS |
|
|
PREMIUM INKJET RAPID-DRY TRANPARENCIES - A SIZE (8.5 X 11-INCHES) - 50 SHEETS |
|
|
PREMIUM INKJET RAPID-DRY TRANPARENCIES - A4 SIZE (21.0CM X 29.7CM) - 50 SHEETS |
|
|
PREMIUM INKJET TRANSPARENCY FILM - A SIZE (8.5 X 11-INCHES) - 20 SHEETS |
|
|
PREMIUM INKJET TRANSPARENCY FILM - A SIZE (8.5 X 11-INCHES) - 50 SHEETS |
|
|
PREMIUM INKJET TRANSPARENCY FILM - A4 SIZE (21.0CM X 29.7CM) - 20 SHEETS |
|
|
PREMIUM PHOTO PAPER (GLOSSY) - A SIZE (8.5 X 11-INCHES) - 15 SHEETS |
|
|
PREMIUM PHOTO PAPER (GLOSSY) - A SIZE (8.5 X 11-INCHES) - 50 SHEETS |
|
|
PROFESSIONAL BROCHURE AND FLYER PAPER (MATTE) - A SIZE (8.5 X 11-INCHES) - 50 SH |
|
|
RETURN KIT WITH BOX AND INSTRUCTIONS - FOR RETURNING DEFECTIVE THERMAL INKJET (T |
|
|
RIBBON CABLE - HAS 15-PIN (M) EDGE CONNECTORS - 17.2CM (6.8IN) LONG |
|
|
RIBBON CABLE - HAS 30-PIN (M) CONNECTORS - 13.3CM (5.2IN) LONG |
|
|
RIBBON CABLE ASSEMBLY - TWO RIBBON CABLES BUNDLED TOGETHER - HAS 14-PIN (M) EDGE |
|
|
RIGHT SIDE CASE (FLINT GRAY) |
|
|
ROUND RE-STICKABLE INKJET STICKERS - HP BRIGHT WHITE 6.35CM (2.5IN) ROUND STICKE |
|
|
RUBBER FOOT - REPLACEMENT RUBBER FOOT FOR THE BOTTOM OF THE PRINTER (TWO USED) |
|
|
SERVICE STATION SLED ASSEMBLY - MOUNTS ON TOP OF THE SERVICE STATION - PERFORMS |
|
|
SPITTOON SPONGE - ABSORBS EXCESS INK FROM BLACK CARTRIDGES |
|
|
SPITTOON SPONGE - LOCATED IN BOTTOM OF SPITTOON |
|
|
SPRING - LOCATED ON RIGHT SIDE OF STARWHEEL ASSEMBLY |
|
|
SPRING FOR THE CARRIAGE BELT TENSION ARM |
|
|
SQUARE RE-STICKABLE INKJET STICKERS - HP BRIGHT WHITE 6.35CM (2.5IN) SQUARE STIC |
|
|
STARWHEEL ASSEMBLY - INCLUDES STARWHEEL CHASSIS ASSEMBLY AND STARWHEELS |
|
|

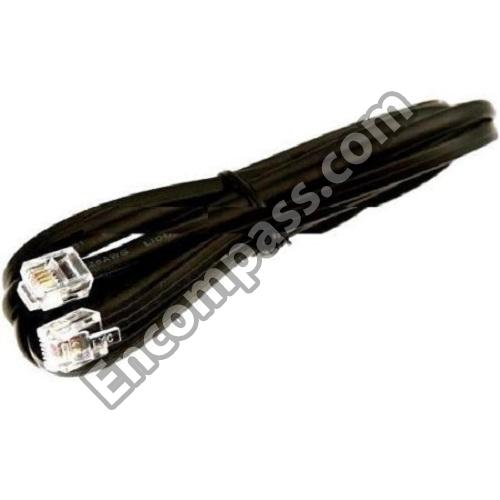

TELEPHONE CABLE (2-WIRE) - RJ11 (M) CONNECTORS - 3M (10FT) LONG (USA, CANADA, ME |
|
|
TELEPHONE CABLE (AUSTRIA) |
|
|
TELEPHONE CABLE (BELGIUM) |
|
|
TELEPHONE CABLE (CANADA) |
|
|
TELEPHONE CABLE (DENMARK) |
|
|
TELEPHONE CABLE (FIVE CONDUCTOR) - RJ-11 (M) TO GIGOGNE (M/F) - 3M (9.8FT) LONG |
|
|
TELEPHONE CABLE (FOUR CONDUCTOR) - RJ-11 (M) TO TELEPHONE PLUG/SOCKET CONNECTOR |
|
|
TELEPHONE CABLE (IRELAND AND SINGAPORE) |
|
|
TELEPHONE CABLE (ISRAEL) |
|
|
TELEPHONE CABLE (SOUTH AFRICA) |
|
|
TELEPHONE CABLE (SPAIN) |
|
|
TELEPHONE CABLE (SWEDEN) |
|
|
TELEPHONE CABLE (SWITZERLAND) |
|
|
TELEPHONE CABLE - HAS A 4-PIN (M) CONNECTOR FOR THE WALL SOCKET AND A 6-PIN (M) |
|
|
TELEPHONE CABLE - ONE 3-PIN (M) CONNECTOR TO RJ-11 (F) CONNECTOR ADAPTER AND ONE |
|
|
TELEPHONE CABLE - ONE 4-PIN (M) CONNECTOR TO RJ-11 (F) CONNECTOR ADAPTER AND ONE |
|
|
TORSION SPRING - FOR PAPER DETECT FLAG |
|
|
TRI-COLOR INK ECONOMY PRINT CARTRIDGE - PRINTS APPROXIMATELY 155 PAGES BASED ON |
|
|
TRI-COLOR INK ECONOMY PRINT CARTRIDGE - PRINTS APPROXIMATELY 155 PAGES BASED ON |
|
|
TRI-COLOR INK PRINT CARTRIDGES - (TWO-PACK OF 51649A) - EACH PRINTS APPROXIMATEL |
