Manufacturer
HP
Model Number
C7779CR
Description
Designjet 800ps (24-inch/postscript)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
128MB SO-DIMM MEMORY MODULE |
|
|
128MB SO-DIMM MEMORY MODULE - CAN BE INSTALLED ONLY INTO THE FORMATTER BOARD |
|
|
24-INCH ROLLFEED SPINDLE ROD ASSEMBLY - INCLUDES SPINDLE, HUBS, AND END CAPS |
|
|
42-INCH ROLLFEED SPINDLE ROD ASSEMBLY - INCLUDES SPINDLE, HUBS, AND END CAPS |
|
|
64MB SO-DIMM MEMORY MODULE |
|
|
BACK PLATEN ASSEMBLY - CURVED COVER/GUIDE THAT IS INSTALLED BELOW THE PAPER DRIV |
|
|
BACK PLATEN ASSEMBLY - CURVED COVER/GUIDE THAT IS INSTALLED BELOW THE PAPER DRIV |
|
|
BANNER PAPER WITH TYVEK (140 GSM) - UV INK ONLY - 61CM (24IN) X 15.2M (50FT) ROL |
|
|
BANNER PAPER WITH TYVEK (140 GSM) - UV INK ONLY - 91.4CM (36IN) X 15.2M (50FT) R |
|
|
BASIC BOND PAPER - 106.7CM (42IN) X 45.7M (150FT) ROLL |
|
|
BASIC BOND PAPER - 91.4CM (36IN) X 45.7M (150FT) ROLL |
|
|
BASIC COATED PAPER - 61CM (24IN) X 45.7M (150FT) ROLL (USA AND ASIA/PACIFIC) |
|
|
BASIC COATED PAPER - 91.4CM (36IN) X 45.7M (150FT) ROLL (USA AND ASIA/PACIFIC) |
|
|
BASIC HEAVYWEIGHT PAPER - 61CM (24IN) X 30.5M (100FT) ROLL (USA AND ASIA/PACIFIC |
|
|
BASIC HEAVYWEIGHT PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL (USA AND ASIA/PACIF |
|
|
BASIC PHOTO SATIN PAPER - 106.7CM (42IN) X 30.5M (100FT) ROLL (USA) |
|
|
BASIC PHOTO SATIN PAPER - 61CM (24IN) X 30.5M (100FT) ROLL (USA AND ASIA/PACIFIC |
|
|
BELT TENSIONER KIT - KEEPS CARRIAGE BELT TIGHT - INCLUDES PULLEY AND PULLEY MOUN |
|
|
BRACKET KIT - INCLUDES THE LEFT CUTTER GUIDE BRACKET AND LEFT ENCODER HOLDER |
|
|
BRIGHT WHITE INKJET PAPER - 42.0CM (16.5IN) X 45.7M (150FT) ROLL |
|
|
BRIGHT WHITE INKJET PAPER - 59.4CM (23.4IN) X 45.7M (150FT) ROLL |
|
|
BRIGHT WHITE INKJET PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
BRIGHT WHITE INKJET PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
BRIGHT WHITE INKJET PAPER - 91.4CM (36IN) X 45.7M (150FT) ROLL |
|
|
BRIGHT WHITE INKJET PAPER - 91.4CM (36IN) X 45.7M (150FT) ROLL |
|
|
CANVAS WITH MATTE FINISH - 61CM (24IN) X 10.7M (35FT) ROLL (USA) |
|
|
CARRIAGE (SCAN-AXIS) MOTOR ASSEMBLY - INCLUDES CABLE |
|
|

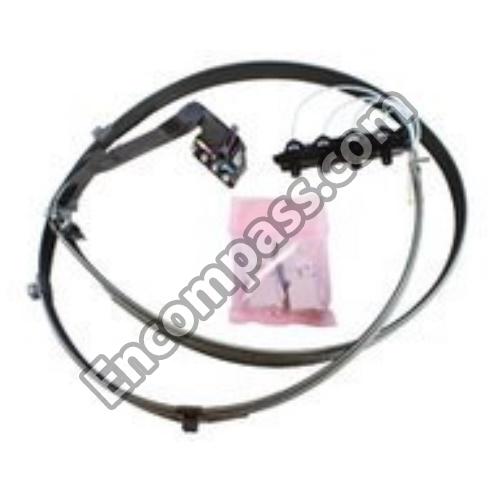

CARRIAGE ASSEMBLY TRAILING CABLE KIT - INCLUDES INSTALLATION INSTRUCTIONS, TRAIL |
|
|

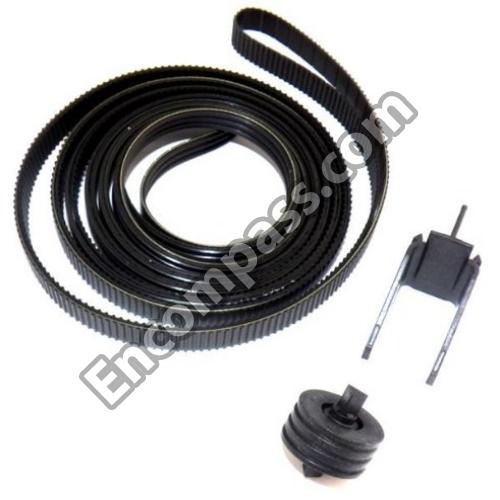

CARRIAGE BELT - DRIVES THE CARRIAGE ASSEMBLY (24-INCH) |
|
|
CARRIAGE BELT - DRIVES THE CARRIAGE ASSEMBLY (42-INCH) |
|
|
CLEAR FILM (4 MIL) - 61CM (24IN) X 22.9M (75FT) ROLL |
|
|
CLEAR FILM (4 MIL) - 91.4CM (36IN) X 22.9M (75FT) ROLL |
|
|
COATED PAPER (98 GSM) - 106.7CM (42IN) X 45.7M (150FT) ROLL (USA, CANADA, AND LA |
|
|
COATED PAPER (98 GSM) - 61CM (24IN) X 45.7M (150FT) ROLL (USA, CANADA, AND LATIN |
|
|
COATED PAPER (98 GSM) - 91.4CM (36IN) X 45.7M (150FT) ROLL (USA, CANADA, AND LAT |
|
|
COATED PAPER (98 GSM) - 91.4CM (36IN) X 91.4M (300FT) ROLL (USA, CANADA, AND LAT |
|
|
COATED PAPER - 42.0CM (16.5IN) X 45.7M (150FT) ROLL |
|
|
COATED PAPER - 59.4CM (23.4IN) X 45.7M (150FT) ROLL |
|
|
COLORFAST ADHESIVE VINYL (328 GSM) - 91.4CM (36IN) X 12.2M (40FT) ROLL - FOR REG |
|
|
CONTROL PANEL ASSEMBLY - INCLUDES RIBBON CABLE AND ENGLISH OVERLAY MARKED WITH M |
|
|
COVER KIT FOR DRIVE ROLLER ENCODER SENSOR |
|
|
CROSS-BRACE - BRACE THAT CONNECTS AND SUPPORTS THE TWO STAND LEGS - FOR 24-INCH |
|
|
CROSS-BRACE - BRACE THAT CONNECTS AND SUPPORTS THE TWO STAND LEGS - FOR 42-INCH |
|
|
CUTTER ASSEMBLY |
|
|
CUTTER BUSHING |
|
|
CUTTER GUIDE - GUIDE BAR FOR THE CUTTER ASSEMBLY - FOR 24-INCH PLOTTERS |
|
|
CUTTER GUIDE - GUIDE BAR FOR THE CUTTER ASSEMBLY - FOR 42-INCH PLOTTERS |
|
|
DESIGNJET 500/800 SERIES INTERACTIVE SUPPORT CD-ROM |
|
|
DOUBLE MATTE ERASEABLE FILM - 61CM (24IN) X 38.1M (125FT) ROLL (USA) |
|
|
DOUBLE MATTE FILM - 106.7CM (42IN) X 38.1M (125FT) ROLL (USA) |
|
|
DRIVE ROLLER ENCODER SENSOR |
|
|
ENCODER DISK ASSEMBLY - HELPS PROVIDE POSITION THE INFORMATION OF THE PAPER |
|
|
ENCODER STRIP (42-INCH) |
|
|
EXTERNAL JETDIRECT 170X LAN INTERFACE MODULE - INTERFACES A PARALLEL PRINTER TO |
|
|
EXTERNAL JETDIRECT LAN INTERFACE MODULE WITH ETHERTWIST (10BASE-T) CONNECTOR |
|
|
FOOT ASSEMBLY (INCLUDES CASTERS) - MOUNTS TO THE BOTTOM OF THE LEFT AND RIGHT PR |
|
|
FOOT BRACE ASSEMBLY - FOR 24-INCH PLOTTERS |
|
|
FOOT BRACE ASSEMBLY - FOR 42-INCH PLOTTERS |
|
|
FOOT KIT - CONTAINS FOUR RUBBER FEET FOR BOTTOM OF PLOTTER - FOR THE DESIGNJET 5 |
|
|
FORMATTER UPGRADE KIT - ADDS HP-GL/2 AND RTL SUPPORT AND A SLOT FOR AN ADDITIONA |
|
|
FRONT PANEL OVERLAY (CHINESE) |
|
|
FRONT PANEL OVERLAY (ENGLISH) |
|
|
FRONT PANEL OVERLAY (FRENCH) |
|
|
FRONT PANEL OVERLAY (GERMAN) |
|
|
FRONT PANEL OVERLAY (ITALIAN) |
|
|
FRONT PANEL OVERLAY (JAPANESE) |
|
|
FRONT PANEL OVERLAY (KOREAN) |
|
|
FRONT PANEL OVERLAY (PORTUGUESE) |
|
|
FRONT PANEL OVERLAY (SPANISH) |
|
|
FRONT PANEL OVERLAY (TAIWANESE) |
|
|
FRONT PLATEN KIT - INCLUDES PLATENS FOR BOTH THE 24-INCH AND THE 42-INCH MODELS |
|
|
HEAVYWEIGHT COATED PAPER - 106.7CM (42IN) X 30.5M (100FT) ROLL - FOR REGULAR OR |
|
|
HEAVYWEIGHT COATED PAPER - 61CM (24IN) X 30.5M (100FT) ROLL (USA, CANADA, AND LA |
|
|
HEAVYWEIGHT COATED PAPER - 61CM (24IN) X 30.5M (100FT) ROLL - FOR REGULAR OR UV |
|
|
HEAVYWEIGHT COATED PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL - FOR REGULAR OR U |
|
|
HEAVYWEIGHT COATED PAPER - 91.4CM (36IN) X 4.6M (15FT) ROLL |
|
|
HIGH GLOSS PHOTO PAPER - 106.7CM (42IN) X 30.5M (100FT) ROLL (USA, CANADA, AND L |
|
|
HIGH GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
HIGH GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
HIGH GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL (USA, CANADA, AND LATI |
|
|
HIGH GLOSS PHOTO PAPER - 91.4CM (36IN) X 3.0M (10FT) ROLL |
|
|
HIGH GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
HIGH GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
HIGH GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL (USA AND ASIA/PACIFI |
|
|
HIGH GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL (USA, CANADA, AND LA |
|
|
HIGH GLOSS WHITE FILM (4 MIL) - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
HIGH GLOSS WHITE FILM (4 MIL) - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
HP 10 HIGH CAPACITY BLACK INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGES |
|
|
HP 10 HIGH CAPACITY BLACK INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGES |
|
|
HP 10 HIGH CAPACITY BLACK INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGES |
|
|
HP 10 HIGH CAPACITY BLACK INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGES |
|
|
HP 10 LARGE BLACK INK CARTRIDGE - PRINTS APPROXIMATELY 1430 PAGES (EUROPE) |
|
|
HP 11 BLACK PRINTHEAD |
|
|
HP 11 CYAN PRINTHEAD |
|
|
HP 11 CYAN PRINTHEAD |
|
|
HP 11 MAGENTA PRINTHEAD |
|
|
HP 11 YELLOW PRINTHEAD |
|
|
HP 82 HIGH CAPACITY MAGENTA INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGE |
|
|
HP 82 HIGH CAPACITY YELLOW INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGES |
|
|
HP JETDIRECT 170X EXTERNAL PRINT SERVER MODULE (10BASE-T) - CONNECTS BETWEEN PRI |
|
|
HP JETDIRECT 300X EXTERNAL PRINT SERVER MODULE (10BASE-T AND 100BASE-TX) - CONNE |
|
|
HP JETDIRECT 300X EXTERNAL PRINT SERVER MODULE (10BASE-T AND 100BASE-TX) - CONNE |
|
|
HP JETDIRECT 620N INTERNAL PRINT SERVER - 10BASET AND 100BASETX LAN INTERFACE BO |
|
|
HP JETDIRECT 680N INTERNAL WIRELESS IEEE-802.11B (WI-FI) PRINT SERVER - PLUGS IN |
|
|
HP JETDIRECT EW2400 802.11G WIRELESS PRINT SERVER MODULE - INCLUDES POWER SUPPLY |
|
|
HP MATTE PROOFING PAPER - 61CM (24IN) X 15.2M (50FT) ROLL |
|
|
HP PREMIUM INSTANT-DRY GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) - 36 I |
|
|
HP SUPER HEAVYWEIGHT PLUS MATTE PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL HIGH-GLOSS PHOTO PAPER - 107CM (42IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL HIGH-GLOSS PHOTO PAPER - 137CM (54IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL HIGH-GLOSS PHOTO PAPER - 152CM (60IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL HIGH-GLOSS PHOTO PAPER - 91CM (36IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL INSTANT-DRY GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL SEMI GLOSS PHOTO PAPER - 106.7CM (42IN) X 22.9M (75FT) |
|
|
HP UNIVERSAL SEMI-GLOSS PHOTO PAPER - 137CM (54IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL SEMI-GLOSS PHOTO PAPER - 152CM (60IN) X 30.5M (100FT) ROLL |
|
|
HP UNIVERSAL SEMI-GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
HP VELLUM PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
INK SUPPLY STATION (ISS) - INCLUDES INK PUMP MOTOR, PUMP SENSOR, AND OUT-OF-INK |
|
|
INK TUBES ASSEMBLY - FOR THE 24-INCH DESIGNJET 500/800 PRINTER SERIES - INCLUDES |
|
|
INK TUBES ASSEMBLY - FOR THE 42-INCH DESIGNJET 500/800 PRINTER SERIES - INCLUDES |
|
|
INTERCONNECT PC BOARD - INSTALLED IN RIGHT-SIDE OF PRINTER |
|
|
JETDIRECT 615N INTERNAL PRINT SERVER (10BASE-T AND 100BASE-TX) LAN INTERFACE BOA |
|
|
LEFT END COVER AND EIO COVER - WHITE PLASTIC COVER ON LEFT SIDE |
|
|
LEFT SPITTOON ASSEMBLY - CONTAINS ABSORBERS WHICH HOLD EXCESS INK FROM PRINTHEAD |
|
|
LEG ASSEMBLY - SIDE SUPPORT FOR THE PRINTER - DOES NOT INCLUDE THE FOOT ASSEMBLY |
|
|
MEDIA BIN (FLINT GRAY) - PLASTIC TRAY THAT MOUNTS TO THE PRINTER STAND LEGS - FO |
|
|
MEDIA BIN (GRAPHITE GRAY) - PLASTIC TRAY THAT MOUNTS TO THE PRINTER STAND LEGS |
|
|
MEDIA DEFLECTOR HOLDERS - FOR THE DESIGNJET 500/800 PRINTER SERIES |
|
|
MEDIA DEFLECTOR KIT - KIT INCLUDES THREE DEFLECTORS |
|
|
MEDIA SENSOR - INSTALLED IN THE FRONT OF THE REAR PLATEN |
|
|
NATURAL TRACING PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
NATURAL TRACING PAPER - 91.4CM (36IN) X 45.7M (150FT) ROLL |
|
|
NO. 82 STANDARD CAPACITY CYAN INK CARTRIDGE (69ML INK) |
|
|
PAPER BASED SEMI-GLOSS MEDIA - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
PAPER DRIVE ROLLER KIT - INCLUDES ROLLER ASSEMBLY, BUSHINGS, GEAR ON ROLLER, TRA |
|
|
PAPER DRIVE ROLLER KIT - INCLUDES ROLLER ASSEMBLY, BUSHINGS, GEAR ON ROLLER, TRA |
|
|
PAPER DRIVE TRANSMISSION GEAR KIT - INCLUDES TWO GEARS USED TO DRIVE THE PAPER D |
|
|
PHOTO PAPER RC MATTE - 91.4CM (36IN) X 30.5M (100FT) ROLL (USA) |
|
|
PINCHARM ASSEMBLY WITH WHEELS |
|
|
PINCHARM LIFT MECHANISM - INCLUDES CAM (A LONG BAR) , CAM BUSHINGS, PINCH ARM LE |
|
|
PINCHARM SENSOR - INSTALLED IN RIGHT FRONT OF PRINT CHASSIS |
|
|
PLASTITE SCREW (THREADED INSERT MOLD-IN, TEXTRON K40) - M4.0 X 0.7, 20MM LONG, T |
|
|
POLYESTER MATTE FILM - 61CM (24IN) X 36.6M (120FT) ROLL |
|
|
POLYESTER MATTE FILM - 91.4CM (36IN) X 36.6M (120FT) ROLL |
|
|
POLYPROPYLENE ADHESIVE BACK PRINT MEDIA - 106.7CM (42IN) X 21.3M (70FT) ROLL |
|
|
POLYPROPYLENE WITH MATTE FINISH - 106.7CM (42IN) X 22.9M (75FT) ROLL |
|
|
POLYPROPYLENE WITH MATTE FINISH - 137.2CM (54IN) X 22.9M (75FT) ROLL |
|
|
POLYPROPYLENE WITH MATTE FINISH - 91.4CM (36IN) X 22.9M (75FT) ROLL |
|
|
POWER SUPPLY ASSEMBLY - INCLUDES POWER SWITCH |
|
|
PRINTHEAD CARRIAGE ASSEMBLY - INCLUDES CARRIAGE, BUSHINGS, PEN LATCHES, CARRIAGE |
|
|
PRODUCTIVITY GLOSSY PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
PRODUCTIVITY PHOTO SEMI-GLOSS PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
RIBBON CABLE KIT - INCLUDES INSTALLATION INSTRUCTIONS AND RIBBON CABLE WITH FERR |
|
|
RIBBON CABLE KIT - INCLUDES INSTALLATION INSTRUCTIONS AND RIBBON CABLE WITH FERR |
|
|
RIGHT SIDE COVER (BLACK) - FOR THE DESIGNJET 800 PRINTER SERIES ONLY |
|
|
RIGHT SIDE COVER (GRAY) - FOR THE DESIGNJET 500 PRINTER SERIES ONLY |
|
|
ROLLFEED MOUNT KIT - INCLUDES LEFT AND RIGHT HOUSING |
|
|
SATIN POSTER PAPER - 91.4CM (36IN) X 4.6M (15FT) ROLL |
|
|
SCRIM BANNER - 91.4CM (36IN) X 15.2M (50FT) ROLL |
|
|
SEMI-GLOSS PHOTO PAPER - 106.7CM (42IN) X 30.5M (100FT) ROLL (USA, CANADA, AND L |
|
|
SEMI-GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
SEMI-GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
SEMI-GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL (USA, CANADA, AND LATI |
|
|
SEMI-GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
SEMI-GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL (USA, CANADA, AND LA |
|
|
SERVICE STATION - INCLUDES WIPERS, PEN CAPS, AND THE RIGHT HAND SPITTOON - INSTA |
|
|
SERVICE STATION BRACKET - INSTALLED ON RIGHT-SIDE OF SERVICE STATION |
|
|
STUDIO CANVAS (368 GSM) - 91.4CM (36IN) X 10.7M (35FT) ROLL - FOR REGULAR INK OR |
|
|
SUPER HEAVYWEIGHT PAPER - 91.4CM (36IN) X 22.9M (75FT) ROLL (USA AND ASIA/PACIFI |
|
|
TOP COVER ASSEMBLY (BLACK) - FOR THE 24-INCH DESIGNJET 800 PRINTER SERIES |
|
|
TOP COVER ASSEMBLY (BLACK) - FOR THE 42-INCH DESIGNJET 800 PRINTER SERIES |
|
|
TOP COVER ASSEMBLY (GRAY) - FOR THE 24-INCH DESIGNJET 500 PRINTER SERIES |
|
|
TOP COVER ASSEMBLY (GRAY) - FOR THE 42-INCH DESIGNJET 500 PRINTER SERIES |
|
|
TRANSLUCENT BOND PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
TRANSLUCENT BOND PAPER - 91.4CM (36IN) X 45.7M (150FT) ROLL |
|
|
TRIM KIT - INCLUDES THE FRONT AND BACK TRIMS FOR THE LEFT AND RIGHT SIDES - INST |
|
|
TWO VIEW CLING FILM - 106.7CM (42IN) X 22.9M (75FT) ROLL |
|
|
UNIVERSAL BOND PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
UNIVERSAL BOND PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
UNIVERSAL HEAVYWEIGHT COATED PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
UNIVERSAL HEAVYWEIGHT COATED PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
UNIVERSAL HIGH-GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
VACUUM FAN ASSEMBLY |
|
|
VELLUM - 91.4CM (36IN) X 45.7M (150FT) ROLL |
|
|
VISCOSE PAPER-BACKED FABRIC PRINT MEDIA - 106.7CM (42IN) X 10.1M (33FT) ROLL |
|
|
VISCOSE PAPER-BACKED FABRIC PRINT MEDIA - 137.2CM (54IN) X 10.1M (33FT) ROLL |
|
|
VISCOSE PAPER-BACKED FABRIC PRINT MEDIA - 91.4CM (36IN) X 10.1M (33FT) ROLL |
