Manufacturer
HP
Model Number
C8049A
Description
Laserjet 4100
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
128MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
16MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
2.1GB HARD DRIVE - LASERJET EIO FONT/PRINT JOB STORAGE |
|
|
2MB FLASH DIMM MEMORY - FONT STORAGE DEVICE |
|
|
32MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
500-SHEET PAPER FEEDER AND TRAY/CASSETTE - THIS IS THE FRAME AND TRAY THAT THE P |
|
|
500-SHEET PAPER FEEDER AND TRAY/CASSETTE - THIS IS THE FRAME AND TRAY THAT THE P |
|
|
500-SHEET TRAY/CASSETTE - THIS IS ONLY THE TRAY, DOES NOT INCLUDE FEEDER OR FRAM |
|
|
64MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
8MB SIMPLIFIED CHINESE MROM DIMM - FOR LASERJET PRINTERS |
|
|
8MB TRADITIONAL CHINESE MROM DIMM - FOR LASERJET PRINTERS |
|
|
8MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
8MB, 100MHZ SDRAM DIMM MEMORY MODULE |
|
|
AC POWER RECEPTACLE - CONNECTOR AND HOUSING ASSEMBLY - 110VAC |
|
|
AC POWER RECEPTACLE - CONNECTOR AND HOUSING ASSEMBLY - 220VAC |
|
|
ADF ASSEMBLY - DOES NOT INCLUDE ADF INPUT TRAY |
|
|
ANTENNA ASSEMBLY |
|
|
ARM LIFTER - WHITE PLASTIC ARM THAT HOLDS TOP LEFT SIDE METAL CORNER PIECE UP WH |
|
|
ARM LIFTER - WHITE PLASTIC ARM THAT HOLDS TOP RIGHT SIDE METAL CORNER PIECE UP W |
|
|
BLACK TONER (EP) CARTRIDGE - WITH 'MICRO-FINE' TONER - HAS MAXIMUM CAPACITY TONE |
|
|
BLACK TONER (EP) CARTRIDGE - WITH 'MICRO-FINE' TONER - HAS MAXIMUM CAPACITY TONE |
|
|
BLACK TONER (EP) CARTRIDGE - WITH 'MICRO-FINE' TONER - HAS STANDARD CAPACITY TON |
|
|
BOTTOM CABLE GUIDE |
|
|
CABLE ASSEMBLY |
|
|
CABLE ASSEMBLY |
|
|
CABLE ASSEMBLY - 13-PIN (F) CONNECTOR TO 12-PIN (F) CONNECTOR - 30.8CM (12.1IN) |
|
|
CABLE ASSEMBLY - A 7-PIN (F) CONNECTOR TO BOTH A 27.9CM (11IN) CABLE WITH A 4-PI |
|
|
CABLE ASSEMBLY - HAS TWO 10-PIN (F) CONNECTORS - 33.0CM (13IN) LONG |
|
|
CARTRIDGE MEMORY ANTENNA MOUNTING BRACKET (SUPPORT PLATE) |
|
|
CARTRIDGE MEMORY CONTROLLER BOARD - BETWEEN ECU AND THE TONER CARTRIDGE MEMORY A |
|
|
CONTINUITY PLATE |
|
|
CONTROL PANEL - DOES NOT INCLUDE OVERLAY |
|
|
COUPLER KIT - CONTAINS PICKUP ROLLER COUPLER, FOUR PAPER TRAY LOAD LIMIT CLIPS A |
|
|
DELIVERY DRIVE ASSEMBLY |
|
|
DELIVERY SENSOR ARM ASSEMBLY |
|
|
DUPLEXER ACCESS TOP COVER |
|
|
DUPLEXER ASSEMBLY - FOR TWO-SIDED PRINTING |
|
|
DUPLEXER CABLE |
|
|
DUPLEXER COVER - COVERS THE DUPLEXER ON THE BACK OF THE PRINTER |
|
|
DUPLEXER REAR COVER PANEL |
|
|
EIO SLOT COVER - INSTALLS ON FORMATTER BOARDS WITHOUT JETDIRECT PCA |
|
|
ENGINE CONTROLLER BOARD - PROVIDES ALL POWER SUPPLY AND MOTOR CONTROL FUNCTIONS |
|
|
ENGINE CONTROLLER BOARD - PROVIDES ALL POWER SUPPLY AND MOTOR CONTROL FUNCTIONS, |
|
|
ENGINE CONTROLLER BOARD - PROVIDES ALL POWER SUPPLY AND MOTOR CONTROL FUNCTIONS, |
|
|
ENVELOPE FEEDER CABLE WITH CONNECTOR |
|
|
ENVELOPE FEEDER COVER |
|
|
ENVELOPE FEEDER INPUT TRAY |
|
|
ENVIRONMENT TEMPERATURE DETECTION THERMISTOR - DETECTS AMBIENT AIR TEMPERATURE T |
|
|
ETHERNET 10BASE-T/10BASE2 AND LOCALTALK (RJ-45, BNC, LOCALTALK) EIO NETWORK PCA |
|
|
FAN MOUNTING CLIP |
|
|
FEED/REGISTRATION SENSOR ASSEMBLY CABLE |
|
|
FEEDER CONTROLLER BOARD - PAPER SIZE DETECTION |
|
|
FEEDER COVER LEFT SIDE - TRAY 2 |
|
|
FORMATTER BOARD ASSEMBLY |
|
|
FORMATTER BOARD CABLE HOLDER - RIGHT SIDE |
|
|
FORMATTER BOARD COVER PANEL |
|
|
FRONT RIGHT SIDE INNER COVER ASSEMBLY |
|
|
FUSER ASSEMBLY DELIVERY ROLLER |
|
|
FUSING ASSEMBLY - 110 VOLTS |
|
|
FUSING ASSEMBLY - FOR 220 VAC OPERATION - BONDS TONER TO THE PAPER BY HEAT |
|
|
FUSING ASSEMBLY PRESSURE ROLLER |
|
|
FUSING ROLLER - HEATING ELEMENT AND FILM SLEEVE - 110V |
|
|
FUSING ROLLER - HEATING ELEMENT AND FILM SLEEVE - 220V |
|
|
GEAR COVER ON RIGHT SIDE OF TRAY 1 PICKUP ASSEMBLY |
|
|
GROUNDING STRAP |
|
|
HP FAST INFRARED CONNECT POD (FIR) - ALLOWS WIRELESS PRINTING FROM ANY IRDA-COMP |
|
|
HP FAST INFRARED CONNECT POD (FIR) - ALLOWS WIRELESS PRINTING FROM ANY IRDA-COMP |
|
|
HP JETDIRECT 620N INTERNAL PRINT SERVER - 10BASET AND 100BASETX LAN INTERFACE BO |
|
|
HP LASERJET 4000/4100 500 SHEET TRAY/CASSETTE - TRAY ONLY, DOES NOT INCLUDE FEED |
|
|
HP LASERJET 4100 500-SHEET PAPER FEEDER AND TRAY/CASSETTE - THIS IS THE ASSEMBLY |
|
|
INSULATION SHEET - FOR CONTROLLER BOARD |
|
|
JETDIRECT 610N INTERNAL PRINT SERVER (10BASE-T AND 100BASE-TX) LAN INTERFACE BOA |
|
|
JETDIRECT 615N INTERNAL PRINT SERVER (10BASE-T AND 100BASE-TX) LAN INTERFACE BOA |
|
|
JETDIRECT CONNECTIVITY CARD - HAS ONE USB PORT, ONE SERIAL (DB9) PORT, AND ONE L |
|
|
LASER SHUTTER SPRING - PROVIDES TENSION FOR LASER SHUTTER |
|
|
LASER/SCANNER ASSEMBLY |
|
|
LASER/SCANNER ASSEMBLY LASER CABLE |
|
|
LASER/SCANNER SHUTTER |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (ARABIC) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (CZECHOSLOVAKIAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (DANISH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (DUTCH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (ENGLISH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (FINNISH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (FRENCH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (GERMAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (GREEK) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (HEBREW) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (HUNGARIAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (ITALIAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (JAPANESE) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (KOREAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (NORWEGIAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (POLISH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (PORTUGUESE) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (RUSSIAN) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (SIMPLIFIED CHINESE) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (SWEDISH) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (THAILAND) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (TRADITIONAL CHINESE) |
|
|
LASERJET 4050/4100 CONTROL PANEL OVERLAY (TURKISH) |
|
|

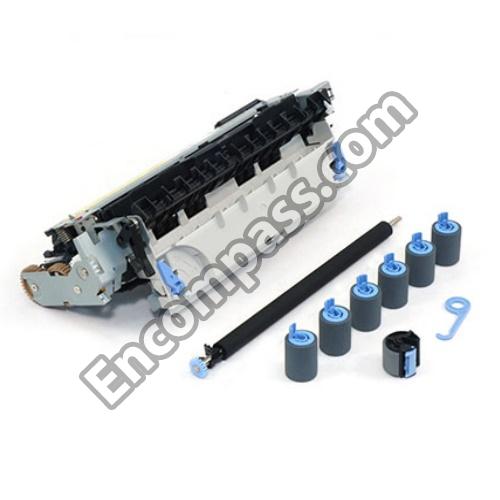

LASERJET 4100 SERIES MAINTENANCE KIT (120V) - INCLUDES FUSING ASSEMBLY THREE SEP |
|
|
LASERJET 4100 SERVICE MANUAL (ENGLISH) |
|
|
LASERJET PART LIST BOOKLET - COVERS LASERJET 1005, 1010, 1012, 1015, 1200, 2300, |
|
|
LASERJET QUICK REFERENCE SERVICE GUIDE (MONOCHROME) - VOLUME IV |
|
|
LEFT SIDE COVER ASSEMBLY - INCLUDES PANEL RETAINER CLIP |
|
|
LEFT SIDE DUPLEXER COVER - WITH CONNECTOR |
|
|
LEFT SIDE FRAME ASSEMBLY |
|
|
LEFT SIDE OUTPUT KICKER |
|
|
LOWER PAPER GUIDE |
|
|
LOWER TRANSFER ROLLER GUIDE |
|
|
LOWER TRAY CONNECTOR AND CABLE |
|
|
MACHINE SCREW - M4 X 8.3MM |
|
|
MAIN MOTOR ASSEMBLY |
|
|
MAIN MOTOR CABLE |
|
|
MAINTENANCE KIT (120V) - INCLUDES FUSING ASSEMBLY THREE SEPARATION ROLLERS, TRAN |
|
|
MAINTENANCE KIT (240V) - INCLUDES FUSING ASSEMBLY THREE SEPARATION ROLLERS, TRAN |
|
|
MAINTENANCE KIT - FOR 120 VAC OPERATION - INCLUDES FUSER ASSEMBLY THREE SEPARATI |
|
|
MAINTENANCE KIT - FOR 240 VAC - INCLUDES FUSING ASSEMBLY, THREE SEPARATION ROLLE |
|
|
MP TRAY COUPLER GEAR AND MOUNTING PLATE |
|
|
OPTICAL SENSOR CABLE |
|
|
OPTIONAL 500 SHEET PAPER PICKUP DRIVE ASSEMBLY |
|
|
OPTIONAL LOWER CASSETTE SUPPORT GUIDE |
|
|
OPTIONAL LOWER CASSETTE SUPPORT GUIDE |
|
|
PAPER DELIVERY ASSEMBLY |
|
|
PAPER FEED AND TRAY 1 PICKUP SOLENOID CABLE |
|
|
PAPER FEED ASSEMBLY |
|
|
PAPER FEED GUIDE ASSEMBLY |
|
|
PAPER FEED ROLLER |
|
|
PAPER FEEDER CABLE |
|
|
PAPER INPUT TRAY (TRAY 1) - MULTI-PURPOSE TRAY ASSEMBLY |
|
|
PAPER PICKUP ROLLER - 'D' ROLLER (SOLD INDIVIDUALLY) |
|
|
PAPER SENSOR FLAG - ARM THAT TRIGGERS PS106 |
|
|
PICKUP ROLLER SHAFT - SHAFT THAT THE FOUR PICKUP ROLLERS MOUNT TO - TRAY 2 PICKU |
|
|
PICKUP ROLLER SPRING HOOK |
|
|
POWER SWITCH ACTUATOR ROD |
|
|
POWER SWITCH BUTTON |
|
|
PRINT DRIVE GEAR ASSEMBLY |
|
|
REAR OUTPUT TRAY - DROP DOWN RELEASE LATCH |
|
|
REAR TRAY COVER |
|
|
REAR TRAY LATCH RELEASE SPRING |
|
|
REGISTRATION AND FEED SENSORS ASSEMBLY - INCLUDES PS 102/103 |
|
|
REGISTRATION ASSEMBLY |
|
|
REGISTRATION ASSEMBLY GROUNDING CLIP |
|
|
RELEASE LEVER - ACTUATED BY RELEASE BUTTON |
|
|
RELEASE LEVER BUTTON |
|
|
RELEASE LEVER SPRING - PROVIDES TENSION FOR TRAY RELEASE LEVER |
|
|
RIGHT FRONT COVER ASSEMBLY - MOUNTS BEDIE THE FORMATTER PANEL |
|
|
RIGHT SIDE DUPLEXER COVER |
|
|
RIGHT SIDE FRAME ASSEMBLY |
|
|
RIGHT SIDE PANEL RETAINER CLIP |
|
|
RIGHT SIDE TRAY 2 FRAME ASSEMBLY WITH PAPER SIZE PCB |
|
|
ROLLER KIT - LASERJET 4100 SERIES PAPER PATH ROLLER KIT - KIT CONTAINS 4 FEED/SE |
|
|
SEPARATION PAD FOR TRAY 1 PICKUP ASSEMBLY |
|
|
SEPARATION ROLLER ACCESS PANEL |
|
|
SEPARATION ROLLER BUSHING |
|
|
SEPARATION ROLLER CLUTCH - TORQUE LIMITER |
|
|
SEPARATION ROLLER MOUNTING ASSEMBLY |
|
|
SEPARATION ROLLER/GEAR COUPLER |
|
|
THERMISTOR MOUNT FOR TH3 |
|
|
TONER CARTRIDGE DRIVE ROD |
|
|
TONER CARTRIDGE GROUNDING SPRING |
|
|
TONER CARTRIDGE MEMORY TRANSCEIVER ASSEMBLY - PROVIDES COMMUNICATION BETWEEN MEM |
|
|
TONER CLEANING CLOTH - SPECIALLY TREATED CLOTH FOR ABSORBING TONER (1 PER PACKAG |
|
|
TOP COVER INTERLOCK ACCESS SWITCH |
|
|
TOP COVER LEFT SIDE SUPPORT |
|
|
TOP COVER SWITCH CABLE |
|
|
TORSION SPRING - PROVIDES TENSION FOR PAPER FLAG |
|
|
TRANSFER ROLLER ASSEMBLY |
|
|
TRAY 1 DOOR ASSEMBLY KIT - DROP DOWN MP TRAY WITH PULL OUT EXTENSION - INCLUDES |
|
|
TRAY 1 PAPER PICKUP ASSEMBLY |
|
|
TRAY 1 PAPER SENSOR ACTUATOR ARM AND COVER |
|
|
TRAY 1 PICKUP ROLLER ASSEMBLY - D-SHAPED ROLLER WITH BLUE SHAFT LOCK LATCH |
|
|
TRAY 1 RETAINING ARM |
|
|
TRAY 2 PICK-UP ASSEMBLY |
|
|
TRAY 2 UPPER FRAME ASSEMBLY |
|
|
TRAY SIZE SENSING LEVER ASSEMBLY |
|
|
UPPER FRAME ASSEMBLY |
