Manufacturer
HP
Model Number
C8157A
Description
Hp Officejet Pro K550 Color Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ABSORBER BASE - FOAM TO ABSORB INK SPILLAGE FROM SERVICE STATION |
|
|
AC POWER SUPPLY ASSEMBLY - 100-240V, 50/60HZ TO 32VDC, 50/60HZ AC (WORLDWIDE OPE |
|
|
ADVANCED GLOSSY PAPER - 10.2CM (4IN) X 15.2CM (6IN) - 100 SHEETS |
|
|
ADVANCED GLOSSY PHOTO PAPER - 10.2CM (4IN) X 15.2CM (6IN) FINISHED SIZE - 10.2CM |
|
|
ADVANCED GLOSSY PHOTO PAPER - A SIZE (8.5 X 11-INCHES) - 100 SHEETS |
|
|
ADVANCED GLOSSY PHOTO PAPER - A SIZE (8.5 X 11-INCHES) - 25 SHEETS |
|
|
AUTO PEN TO PAPER SPACING STAND - HELPS MAINTAIN THE CORRECT DISTANCE OF THE CAR |
|
|
BEARING RETAINER - METAL PIECE THAT HOLDS THE FELT-CARRIAGE |
|
|
BRACKET MOTOR ASSEMBLY - INCLUDES MOTOR (RATED OPERATING VOLTAGE 19V) AND TWO SE |
|
|
CARRIAGE CUSION CONTRAINT - SMALL PIECE OF FOAM, PART OF PACKAGING MATERIAL FOR |
|
|
CARRIAGE FELT - FOAM WITH LUBRICANT FOR THE CARRIAGE ROD |
|
|
CARRIAGE PCA - ELECTRONIC CIRCUIT BOARD THAT CONTROLS THE PRINTHEAD FUNCTION - I |
|
|
CARRIAGE ROD - A METAL ROD WHERE THE CARRIAGE TRAVELS ON |
|
|
CONTROL PANEL ASSEMBLY - ELECTRONIC PCA (OUTPUT VOLTAGE 5V, INPUT VOLTAGE 5V) - |
|
|
DOOR - MAIN PRINTER DOOR |
|
|
DRIVE ROLLER GRIT ASSEMBLY ADVANCES PAPER DURING PRINTING |
|
|
DROP DETECTOR WIRING HARNESS - WIRES WITH CONNECTORS THAT CONNECT TO THE DROP DE |
|
|
DTN CONTROL PANEL ASSEMBLY - ELECTRONIC PCA (OUTPUT VOLTAGE 5V, INPUT VOLTAGE 5 |
|
|
DTN MAIN PCA LOGIC BOARD - CONTROLS THE FUNCTION OF THE ENTIRE PRINTER (INPUT VO |
|
|
DTNW CONTROL PANEL ASSEMBLY - ELECTRONIC PCA (OUTPUT VOLTAGE 5V, INPUT VOLTAGE 5 |
|
|
DTWN MAIN PCA LOGIC BOARD - CONTROLS THE FUNCTION OF THE ENTIRE PRINTER (INPUT V |
|
|
DUPLEXER - ALLOWS PRINTING ON BOTH SIDES OF PAPER - PROVIDES ACCESS FOR PAPER JA |
|
|
DUPLEXER CLEANOUT INTERCONNECT PCA - PCA (OUTPUT VOLTAGE 5V, INPUT VOLTAGE 5V) - |
|
|
ETHERNET CROSSOVER CABLE |
|
|
HANGER ASSEMBLY - STAMPED STEEL PART USED TO HOLD THE CASINGS |
|
|

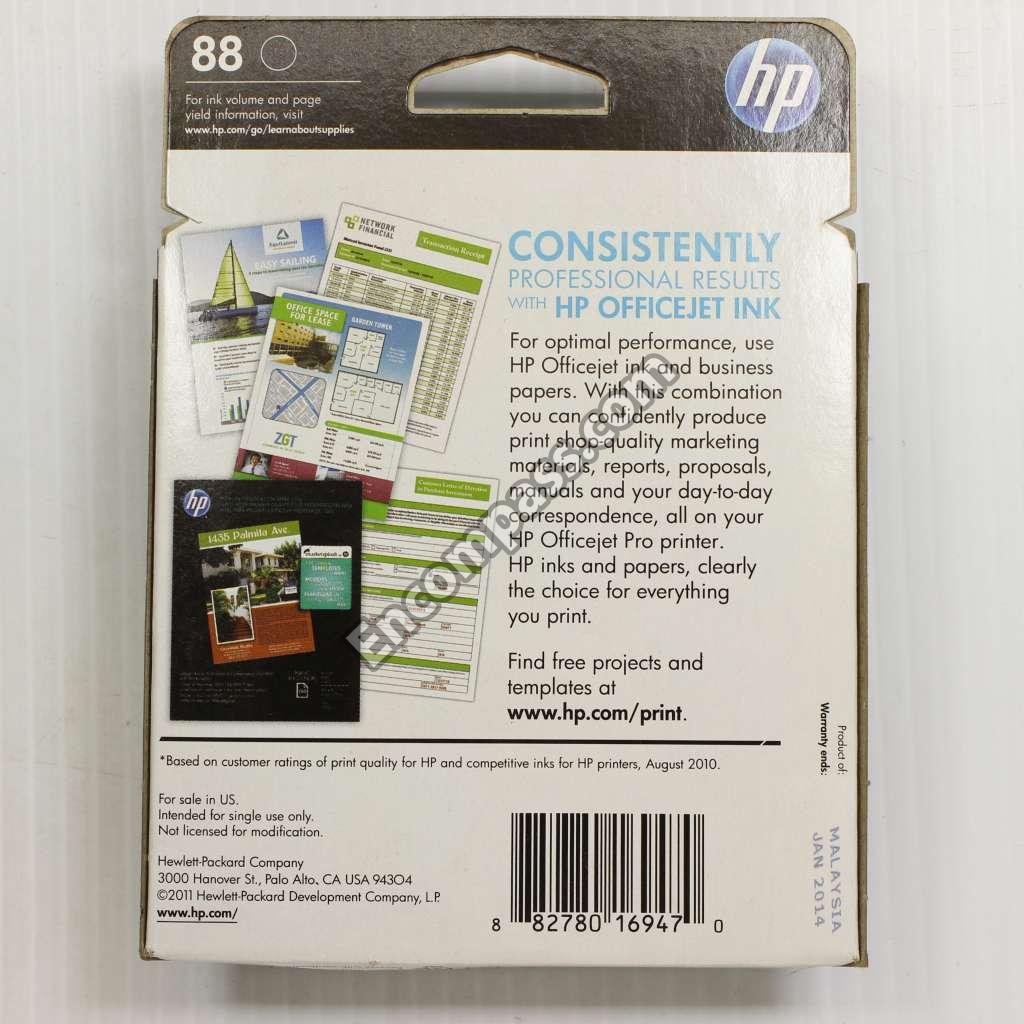

HP 88 BLACK INK CARTRIDGE |
|
|
HP 88 BLACK INK CARTRIDGE - PRINT CARTRIDGE VOLUME 20.5ML (LATIN AMERICA) |
|
|
HP 88 CYAN INK CARTRIDGE |
|
|
HP 88 CYAN INK CARTRIDGE - PRINT CARTRIDGE VOLUME 9.0ML (EUROPE) |
|
|
HP 88 CYAN INK CARTRIDGE - PRINT CARTRIDGE VOLUME 9.0ML (LATIN AMERICA) |
|
|
HP 88 LARGE BLACK INK CARTRIDGE |
|
|
HP 88 LARGE BLACK INK CARTRIDGE - PRINT CARTRIDGE VOLUME 58.9ML (EUROPE) |
|
|
HP 88 LARGE CYAN INK CARTRIDGE |
|
|
HP 88 LARGE CYAN INK CARTRIDGE |
|
|
HP 88 LARGE CYAN INK CARTRIDGE - PRINT CARTRIDGE VOLUME 17.ML (EUROPE) |
|
|
HP 88 LARGE MAGENTA INK CARTRIDGE |
|
|
HP 88 LARGE MAGENTA INK CARTRIDGE - PRINT CARTRIDGE VOLUME 17.ML (EUROPE) |
|
|
HP 88 LARGE YELLOW INK CARTRIDGE - PRINT CARTRIDGE VOLUME 17.ML (EUROPE) |
|
|
HP 88 MAGENTA AND CYAN PRINTHEAD |
|
|
HP 88 MAGENTA INK CARTRID |
|
|
HP 88 MAGENTA INK CARTRIDGE - PRINT CARTRIDGE VOLUME 9.0ML (EUROPE) |
|
|
HP 88 MAGENTA INK CARTRIDGE - PRINT CARTRIDGE VOLUME 9.0ML (LATIN AMERICA) |
|
|
HP 88 YELLOW INK CARTRIDGE |
|
|
HP 88 YELLOW INK CARTRIDGE - PRINT CARTRIDGE VOLUME 9.0ML (EUROPE) |
|
|
HP 88 YELLOW INK CARTRIDGE - PRINT CARTRIDGE VOLUME 9.0ML (LATIN AMERICA) |
|
|
HP CD/DVD TATTOOS - 13CM (5IN) X 18CM (7IN) - 15 SHEETS (USA, LATIN AMERICA, AND |
|
|
HP JETDIRECT EN3700 EXTERNAL PRINT SERVER - FAST ETHERNET INTERNET CONNECTOR FOR |
|
|
HP MULTIPURPOSE PAPER - A SIZE (8.5 X 11-INCHES) - 500 SHEETS |
|
|
HP OFFICEJET PRO K550DTN COLOR PRINTER |
|
|
HP PREMIUM PLUS GLOSSY PHOTO PAPER - 10.2CM (4IN) X 15.2CM (6IN) - 20 SHEETS |
|
|
HP PREMIUM PRESENTATION PAPER - B SIZE (11 X 17-INCHES)- 100 SHEETS |
|
|
HP UNIVERSAL HIGH-GLOSS PHOTO PAPER - 137CM (54IN) X 30.5M (100FT) ROLL |
|
|
INKJET PRINTER - OFFICEJET PRO K550 - DOES NOT INCLUDE DUPLEXER OR SECOND BIN |
|
|
INKJET PRINTER - OFFICEJET PRO K550 - DOES NOT INCLUDE DUPLEXER OR SECOND BIN (U |
|
|
INKJET PRINTER - OFFICEJET PRO K550DT - NEW (EUROPE) |
|
|
INKJET PRINTER - OFFICEJET PRO K550DTN - DOES NOT INCLUDE DUPLEXER OR SECOND BIN |
|
|
INKJET PRINTER - OFFICEJET PRO K550DTWN (WIRELESS) - DOES NOT INCLUDE DUPLEXER O |
|
|
INKJET PRINTER - OFFICEJET PRO K550DTWN (WIRELESS) - DOES NOT INCLUDE DUPLEXER O |
|
|
LABEL - ETHERNET MAC ADDRESS LABEL |
|
|
LABEL - SERIAL NUMBER LABEL |
|
|
LABEL - WIRELESS MAC ID LABEL |
|
|
LEFT PRINTER COVER |
|
|
LOWER PAPER GUIDE ASSEMBLY - MOLDED PLASTIC PART GUIDES THE PAPER DURING PAPER A |
|
|
MAIN PCA LOGIC BOARD - CONTROLS THE FUNCTION OF THE ENTIRE PRINTER (INPUT VOLTAG |
|
|
MAIN PRINTER CASE |
|
|
MAIN WIRING HARNESS - ELECTRICAL WIRES WITH PLASTIC CONNECTORS - ENABLES TRANSMI |
|
|
MOTOR WIRING HARNESS - ELECTRICAL WIRES WITH PLASTIC CONNECTORS (SIGNAL AND POWE |
|
|
PAPER INPUT TRAY (TRAY 1) - STANDARD 250-SHEET PAPER INPUT TRAY - HOLDS PAPER RE |
|
|
PAPER INPUT TRAY (TRAY 2) - OPTIONAL 350-SHEET PAPER INPUT TRAY THAT SITS UNDERN |
|
|
PAPER INPUT TRAY (TRAY 2) - OPTIONAL 350-SHEET PAPER INPUT TRAY THAT SITS UNDERN |
|
|
PAPER OUTPUT TRAY - FOR THE COLLECTION OF PRINTED PAPER |
|
|
PCA CAGE - METAL CASING TO HOUSE THE PCA LOGIC BOARD |
|
|
PCA CAGE PLATE - METAL CASING TO HOUSE THE PCA LOGIC BOARD |
|
|
PINCH LIFT ASSEMBLY - MOLDED PLASTIC PART - GUIDES THE PAPER DURING PAPER ADVANC |
|
|
POWER CORD (BLACK) - 18 AWG, THREE CONDUCTOR, 1.9M (75IN) LONG - HAS STRAIGHT (F |
|
|
POWER CORD (BLACK) - 3-WIRE, 18 AWG, 1.9M (75IN) LONG - HAS STRAIGHT (F) C13 REC |
|
|
POWER CORD (FLINT GRAY) - 18 AWG, 1.9M (6.25FT) LONG - HAS STRAIGHT (F) C13 RECE |
|
|
POWER CORD (FLINT GRAY) - 3-WIRE, 16 AWG, 2.3M (7.5FT) LONG - HAS STRAIGHT (F) C |
|
|
PREMIUM PHOTO PAPER (GLOSSY) - 10.2CM (4IN) X 15.2CM (6IN) - 20 SHEETS |
|
|
PREMIUM PLUS PHOTO PAPER (HIGH GLOSS) - B SIZE (11 X 17-INCHES) - 25 SHEETS |
|
|
PREMIUM PLUS PHOTO PAPER (SATIN MATTE) - 10.2CM (4IN) X 15.2CM (6IN) FINISHED SI |
|
|
PREMIUM PLUS SOFT-GLOSS PHOTO PAPER (MATTE) - A SIZE (8.5 X 11-INCHES) - 25 SHEE |
|
|
PRINTER BASE - FORMS THE BASE OF THE PRINTER WITH THE RIGHT AND LEFT WALLS (DOES |
|
|
RAIL ADJUSTMENT COVER - REMOVABLE COVER THAT ALLOWS ACCESS TO THE RAIL ADJUSTER |
|
|
RIGHT COVER PANEL - BASE AND DTN MODELS |
|
|
RIGHT COVER PANEL - DTWN MODEL |
|
|
STARWHEEL ASSEMBLY - ENSURES PAPER HANDOVER FROM FEEDROLLERS TO OUTPUT ROLLERS |
|
|
THERMAL INKJET 4.0 INK CARTRIDGE RETURN KIT (NON-UNITED STATES) |
|
|
UNIVERSAL SERIAL BUS (USB) INTERFACE CABLE - TYPE 'A' CONNECTOR TO TYPE 'B' CONN |
|
|
WIRELESS PCA MODULE - PCA THAT PROVIDES WIRELESS INTERFACE TO THE PRINTER |
|
|
WIRING HARNESS - POWER SUPPLY TO MAIN LOGIC PCA - ELECTRICAL WIRES WITH PLASTIC |
