Manufacturer
HP
Model Number
CB428A
Description
Hp Laserjet M4345xm Mfp
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
128MB, 100-PIN, DDR DIMM |
|
|
128MB, 100-PIN, DDR DIMM - USED TO ADD FLASH MEMORY-BASED ACCESSORY FONTS, MACRO |
|
|
23-TOOTH GEAR - LOCATED ON RIGHT SIDE UNDER PAPER PICKUP DRIVE ASSEMBLY |
|
|
256MB, 100-PIN, DDR DIMM |
|
|
256MB, 100-PIN, DDR DIMM - USED TO ADD FLASH MEMORY-BASED ACCESSORY FONTS, MACRO |
|
|
256MB, 100-PIN, DDR DIMM - USED TO ADD FLASH MEMORY-BASED ACCESSORY FONTS, MACRO |
|
|
30-TOOTH GEAR - BLACK PLASTIC GEAR THAT ATTACHES TO PAPER FEED ASSEMBLY CLUTCH |
|
|
32MB, 100-PIN, DDR DIMM - USED TO ADD FLASH MEMORY-BASED ACCESSORY FONTS, MACROS |
|
|
500 SHEET STAPLER/STACKER ASSEMBLY |
|
|
500-SHEET FEEDER DRIVER PCA |
|
|
500-SHEET STAPLER/STACKER ASSEMBLY |
|
|
64MB, 100-PIN, DDR DIMM - USED TO ADD FLASH MEMORY-BASED ACCESSORY FONTS, MACROS |
|
|
ACCESS LATCH - ADF JAM ACCESSS LATCH |
|
|

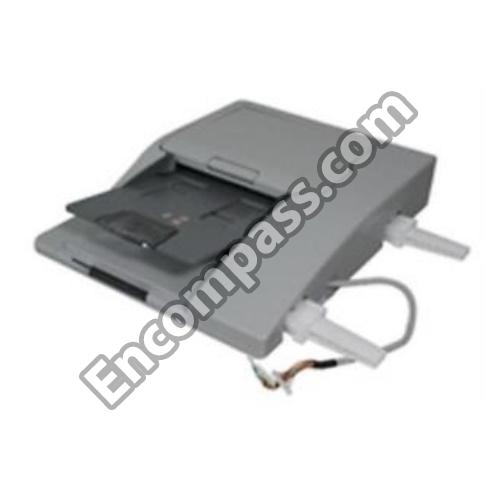

ADF ASSEMBLY - FOR LASERJET 4345MFP - INCLUDES ADF REAR COVER, ADF CABLE, ADF IN |
|
|
ADF COVER - PLASTIC FRONT COVER FOR ADF ASSEMBLY |
|
|
ADF COVER - PLASTIC REAR COVER FOR ADF ASSEMBLY |
|
|
ADF FRONT COVER FLANGE - NARROW COVER THAT SNAPS INTO PLACE TO COVER THE LEADIN |
|
|
ADF HINGE FLAP - ESD HINGE COVER FOR ADF ASSEMBLY |
|
|
ADF INPUT TRAY ASSEMBLY |
|
|
ADF MAINTENANCE KIT - INCLUDES THE ADF PAPER PICK-UP ROLLER ASSEMBLY, SEPARATION |
|
|
ADF MYLAR REPLACEMENT KIT - INCLUDES THREE CLEAR MYLAR REPLACEMENT STRIPS FOR TH |
|
|
ADF OUTPUT TRAY BOTTOM COVER |
|
|

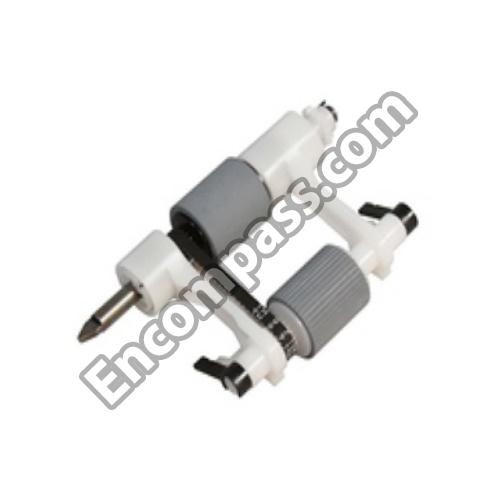

ADF PAPER PICKUP ROLLER ASSEMBLY - INCLUDES THE PICKUP ROLLER, SEPARATION ROLLER |
|
|

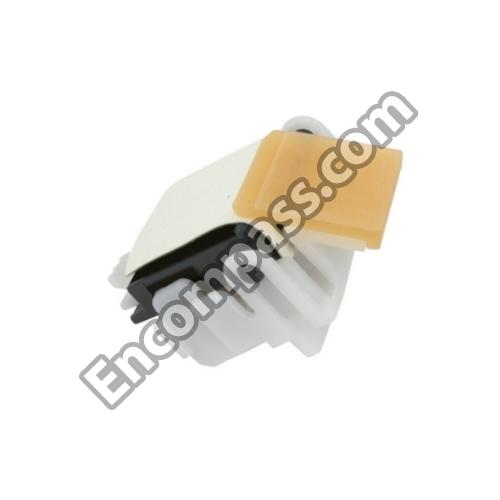

ADF PAPER SEPERATION PAD ASSEMBLY - MOUNTS IN THE CENTER OF THE ADF SEPARATION P |
|
|
ADF SEPARATION PAD FRAME ASSEMBLY - INCLUDES THE FULL WIDTH SUPPORT STRUCTURE AN |
|
|
ADF WHITE PLASTIC SCANNER BACKGROUND PLATE - USED AS A WHITE BACKGROUND DURING F |
|
|
ARM - TRIANGLE SHAPED ARM ON UPPER INSIDE FRONT OF PRINTER |
|
|
ARM COVER - LOCATED ON UPPER FRONT INSIDE OF THE PRINTER |
|
|
BLACK TONER CARTRIDGE - HAS MAXIMUM CAPACITY TONER (PRINTS APPROXIMATELY 18,000 |
|
|
BLACK TONER CARTRIDGE - HAS MAXIMUM CAPACITY TONER (PRINTS APPROXIMATELY 18,000 |
|
|
CARTRIDGE SUPPORT - LOWER TONER CARTRIDGE SUPPORT - LOCATED IN UPPER PLATE ASSEM |
|
|
CASSETTE SUPPORT RAIL - LEFT SIDE TRAY 2 SUPPORT RAIL ASSEMBLY |
|
|
CASSETTE SUPPORT RAIL - RIGHT SIDE TRAY 2 SUPPORT RAIL ASSEMBLY |
|
|
COLOR LASERJET 4345 AND 4370MFP THREE BIN MULTI-BIN MAILBOX |
|
|
COMPRESSION SPRING - HOLDS THE WHITE MYLAR BACKING PLATE FIRMLY AGAINST THE DOCU |
|
|
CONTROL PANEL ASSEMBLY - CONTROL BUTTONS AND DISPLAY LOCATED ON TOP OF THE PRINT |
|
|
CONTROL PANEL ASSEMBLY - CONTROL BUTTONS AND DISPLAY LOCATED ON TOP OF THE PRINT |
|
|
CONTROL PANEL CABLE - FROM DC CONTROLLER PCA TO THE FRONT CONTROL PANEL |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (ENGLISH) |
|
|
COOLING FAN - LOCATED ON LEFT SIDE OF PRINTER (FN101) |
|
|
COOLING FAN - LOCATED ON RIGHT SIDE OF PRINTER - PROVIDES AIR TO THE PRINT CARTR |
|
|
COVER SPRING - PROVIDES TENSION FOR LEFT SIDE PLASTIC COVER OF ADF ASSEMBLY - TW |
|
|
CROSSMEMBER SUPPORT - PLATE ON LEFT SIDE OF UPPER PLATE ASSEMBLY |
|
|
DAMPER SUPPORT - METAL SUPPORT BRACKET THAT ATTACHES TO PRINTER CHASSIS THAT SUP |
|
|
DATA CABLE FOR HARD DISK DRIVE (2-WIRE) |
|
|
DC CONTROLLER FAN (FN104) - PROVIDES AIR TO THE DC CONTROLLER AREA |
|
|
DC CONTROLLER PCA - FOR LASERJET 4345MFP SERIES |
|
|
DC POWER SUPPLY - 110VAC |
|
|
DC POWER SUPPLY - FOR 220 VAC OPERATION |
|
|
DELIVERY UNIT CABLE - FROM DC CONTROLLER PCA TO STAPLER/STACKER UNIT |
|
|
DOOR SENSOR ASSEMBLY - 500 SHEET FEEDER ASSEMBLY ACCESS DOOR OPEN SENSOR SWITCH |
|
|
DOOR SWITCH CABLE - FROM DC CONTROLLER PCA TO TOP COVER SWITCH (SW101) |
|
|
DOOR SWITCH HOLDER - SECURES TOP COVER SWITCH (SW101) TO FRAME |
|
|
DROP DOWN TRAY 1 - INCLUDES ADJUSTABLE PAPER WIDTH GUIDE ASSEMBLY |
|
|
DUPLEXER ASSEMBLY - FOR TWO SIDED PRINTING |
|
|
DUPLEXER GUIDE - GUIDE/SUPPORT FOR DUPLEXER ASSEMBLY |
|
|
DUPLEXER SLOT COVER ASSEMBLY - REMOVABLE LOWER REAR COVER FOR DUPLEXER ATTACHMEN |
|
|
E-TYPE RETAINER RING |
|
|
ENGINE POWER SUPPLY BOARD - FOR 110 VAC |
|
|
ENGINE POWER SUPPLY BOARD - FOR 220 VAC |
|
|
ENTRANCE GUIDE - FUSER PAPER ENTRANCE GUIDE |
|
|
ENVELOPE FEEDER CABLE - FROM DC CONTROLLER BOARD TO ENVELOPE FEEDER CONNECTOR - |
|
|
ENVELOPE FEEDER CONNECTOR CASE - PLASTIC PIECE THAT SECURES THE ENVELOPE FEEDER |
|
|
ENVELOPE FEEDER COVER |
|
|
ENVIRONMENT TEMPERATURE DETECTION THERMISTOR - DETECTS AMBIENT AIR TEMPERATURE T |
|
|
FAN CABLE - FROM DC CONTROLLER PCA TO DC CONTROLLER PCA COOLING FAN (FN104) |
|
|
FEED ROLLER HIGH CAPACITY INPUT (HCI) - TRANSMIT THE PAPER FROM THE CASSETTE AND |
|
|
FEEDER CABLE - DATA CABLE FOR OPTIONAL 500-SHEET FEEDER ASSEMBLY - FROM DC CONTR |
|
|
FLAG HOLDER - OUTPUT BIN FULL FLAG HOLDER |
|
|
FLAT RIBBON CABLE - RIBBON CABLE BETWEEN THE SCANNER CONTROLLER PCA AND THE FORM |
|
|
FORMATTER COVER |
|
|
FROM ADF TO SCAN CONTROL BOARD CABLE |
|
|
FRONT CORNER SCANNER COVER |
|
|
FRONT COVER - FRONT SIDE UPPER COVER FOR 500 SHEET FEEDER |
|
|
FRONT COVER ASEMBLY - FRONT PLASTIC PIECE THAT CONTROL PANEL MOUNTS TO |
|
|
FRONT COVER LOCK STOPPER HOLDER |
|
|
FRONT GAS DAMPER ASSEMBLY |
|
|
FRONT GUIDE - FOR THE 500-SHEET PAPER CASSETTE |
|
|
FRONT LEFT SIDE COVER |
|
|
FUSING ASSEMBLY - FOR 100-127 VAC - BONDS TONER TO PAPER WITH HEAT |
|
|
FUSING ASSEMBLY - FOR 220 VAC OPERATION - BONDS TONER TO PAPER WITH HEAT |
|
|
GEAR - 14-TOOTH GEAR LOCATED IN RIGHT REAR CORNER OF 500 SHEET PAPER CASSETTE |
|
|
GEAR - 15-TOOTH GEAR LOCATED IN RIGHT REAR CORNER OF 500 SHEET PAPER CASSETTE |
|
|
GEAR - 20-TOOTH GEAR USED TO SYNCHRONIZE PAPER WIDTH ADJUSTMENT STOPS - LOCATED |
|
|
GROUNDING CABLE - DUPLEXING UNIT GROUNDING CABLE |
|
|
GROUNDING SPRING - LOCATED NEAR FRONT OF LEFT SIDE CASSTTE SUPPORT RAIL |
|
|
GUIDE ASSEMBLY - GUIDE THAT PROTECTS THE LARGE FLAT CABLE BETWEEN THE SCANNER CO |
|
|
HANDLE COVER - LOWER RIGHT SIDE COVER HANDLE |
|
|
HANDLE LINK - MECHANICAL LINK BETWEEN UPPER PLATE HANDLE AND RELEASE LATCH |
|
|
HARD DRIVE - HIGH PERFORMANCE EIO SERIAL ATA HARD DRIVE |
|
|
HARD DRIVE RIBBON CABLE - INCLUDES THE DATA CABLE AND POWER CONNECTIONS |
|
|
HEX HEAD BOLT - THUMBSCREW ON LEFT REAR CORNER - TWO USED |
|
|
HINGE ASSEMBLY - ADF LEFT SIDE HINGE ASSEMBLY |
|
|
HINGE ASSEMBLY - ADF RIGHT SIDE HINGE ASSEMBLY |
|
|
HINGE SHAFT STOPPER - HOLDS THE RIGHT SIDE DOOR HINGE PIN IN PLACE |
|
|
HP LASERJET 4345 MFP 500-SHEET FEEDER ASSEMBLY |
|
|
HP LASERJET 4345MFP 110VAC MAINTENANCE KIT |
|
|
HP LASERJET 4345MFP 220V MAINTENANCE KIT |
|
|
IMAGE SCANNER CABLE - FROM DC CONTROLLER BOARD TO IMAGE SCANNER ASSEMBLY |
|
|
INNER FRONT LEFT CORNER COVER |
|
|
JAM ACCESS COVER - TOP ACCESS COVER FOR ADF ASSEMBLY |
|
|
JOG GUIDE ASSEMBLY |
|
|
LASER SCANNER CABLE - FROM DC CONTROLLER BOARD TO LASER SCANNER ASSEMBLY |
|
|
LASER SCANNER SHUTTER LEVER |
|
|
LASER/SCANNER ASSEMBLY |
|
|
LASERJET 4345MFP DELIVERY TRAY ASSEMBLY |
|
|
LASERJET 4345MFP PRINTER MAINTENANCE KIT - FOR 220 VAC - INCLUDES FUSING ASSEMBL |
|
|
LATCH HANDLE COVER - FRONT COVER FOR LATCH HANDLE ON UPPER PLATE ASSEMBLY |
|
|
LEFT COVER - LEFT EXTERNAL COVER FOR ADF UNIT |
|
|
LEFT COVER - LEFT SIDE COVER FOR 500 SHEET FEEDER |
|
|
LEFT REAR CORNER COVER |
|
|
LEGAL SIZE PAPER GUIDE - LOCATED IN UPPER PLATE ASSEMBLY |
|
|
LIFTER DRIVE ASSEMBLY - FOR 500-SHEET PAPER FEEDER ASSEMBLY |
|
|
LIFTER DRIVE ASSEMBLY SUPPORT - TRAY 2 PAPER PICKUP LIFTER DRIVE SUPPORT ASSEMBL |
|
|
LINK HOLDER - HOLDER/MOUNT FOR MECHANICAL LINK BETEEN METAL ROD AND OUTSIDE POWE |
|
|
LINK ROD - CONNECTS TO THE TONER CARTRIDGE DRIVE GEAR MECHANISM |
|
|
LOCK COVER - FLATBED SCANNER CARRIAGE LOCK COVER - TOP LEFT SIDE OF FLATBED SCAN |
|
|
LOWER LEFT COVER - PLASTIC COVER FOR LEFT SIDE OF SCANNER MODULE - PRINTER POWER |
|
|
LOWER RIGHT COVER ASSEMBLY - SMALLER PLASTIC PIECE BELOW UPPER RIGHT COVER - ALL |
|
|
M12 PAN-HEAD PHILLIPS SCREW WITH ANNULAR NAILS - 8MM LONG |
|
|
M3 PAN-HEAD PHILLIPS SCREW WITH MACHINE THREADS - 8MM LONG |
|
|
M3 PAN-HEAD PHILLIPS SCREW WITH MACHINE THREADS AND CAPTIVE WASHER - 8MM LONG |
|
|
M3 PAN-HEAD PHILLIPS SCREW WITH PLASTITE THREADS - 8MM LONG |
|
|
M3 PAN-HEAD PHILLIPS SCREW WITH WASHER - 6MM LONG |
|
|
M3 SELF-TAPPING PAN HEAD PHILLIPS SCREW (BLACK OXIDE FINISH) - 8MM LONG |
|
|
M3 STEPPED SHAFT SCREW |
|
|
M3 X 8MM PAN HEAD PHILLIPS SCREW WITH CAPTIVE FLAT AND SPLIT-LOCK WASHERS |
|
|
M3X6MM SCREW WITH CAPTURED WASHER |
|
|
M4 PAN-HEAD PHILLIPS SCREW WITH MACHINE THREADS - 10MM LONG |
|
|
M4 PAN-HEAD PHILLIPS SCREW WITH SELF-TAPPING THREADS - 10MM LONG |
|
|
MAILBOX ACCESSORY - THREE BIN MAILBOX FOR LASERJET 4345 SERIES |
|
|
MAIN DRIVE GEAR ASSEMBLY - LOCATED AT THE REAR PART OF THE PRINTER |
|
|
MAIN MOTOR (M101) ASSEMBLY |
|
|
MAINTENANCE KIT - FOR 120 VAC - INCLUDES FUSING ASSEMBLY, SEPARATION ROLLERS, TR |
|
|
MULTI-PURPOSE/TRAY 1 PAPER INPUT TRAY - FOLD DOWN TRAY - LOCATED ON THE RIGHT SI |
|
|
MULTI-PURPOSE/TRAY 1 PAPER INPUT TRAY ASSEMBLY - DOES NOT INCLUDE OUTSIDE COVER |
|
|
MYLAR HOLDER ASSEMBLY - THIS IS THE COVER (HOLDER) THAT HOLDS THE CLEAR MYLAR SH |
|
|
OPTIONAL 500-SHEET PAPER FEEDER AND TRAY/CASSETTE - FOR HP LASERJET 4345 SERIES |
|
|
OUTPUT BIN FULL FLAG |
|
|
PAPER CASSETTE - 500 SHEET PAPER HOLDING CASSETTE - CAN BE USED IN OPTIONAL 500- |
|
|
PAPER FEED ASSEMBLY CLUTCH (CL101) - ELECTRO MECHANICAL CLUTCH THAT CONNECTS TO |
|
|
PAPER FEED BELT ASSEMBLY |
|
|
PAPER FEED ROLLER ASSEMBLY |
|
|
PAPER FEED SENSOR FLAG - FOR TRAY 1 |
|
|
PAPER GUIDE - ADF CLEAR PLASTIC PAPER GUIDE |
|
|
PAPER OUTPUT TRAY - WITH PULL OUT TRAY EXTENSION |
|
|
PAPER PICK UP DRIVE ASSEMBLY |
|
|
PAPER PICKUP ASSEMBLY - PAPER PICKUP DRIVE ASSEMBLY FOR TRAY 1/MULTIPURPOSE INPU |
|
|
PAPER PICKUP ROLLER - GRAY SPONGY RUBBER ROLLER ON A WHITE CYLINDER AND 24-TOOTH |
|
|
PAPER PICKUP SOLENOID |
|
|
PAPER SENSING ASSEMBLY - PAPER PRESENT SENSING ASSEMBLY - SR1 |
|
|
PAPER SENSING GUIDE - PAPER GUIDE/FLAG ASSEMBLY WITH SENSOR (PS101) |
|
|
PAPER SIZE ARM - SENSES PAPER SIZE IN PAPER TRAY - THREE USED |
|
|
PAPER STOP - ADF OUTPUT TRAY PAPER STOP |
|
|
PARALLEL PORT CARD - 1284B PARALLEL CARD - COMPATIBLE OPERATING SYSTEMS WINDOWS |
|
|
PICK-UP GEAR |
|
|
PICKUP ROLLER COVER - 'C' SHAPED PLASTIC COVER THAT SURROUNDS THE PAPER PICKUP R |
|
|
POWER CABLE - FROM DC CONTROLLER PCA TO POWER FACTOR CORRECTION (PFC) POWER SUPP |
|
|
POWER CABLE FOR HARD DISK DRIVE (5-WIRE) |
|
|
POWER CORD (BLACK) - 18 AWG, THREE CONDUCTOR, 1.9M (75IN) LONG - HAS STRAIGHT (F |
|
|
POWER SWITCH BUTTON - LOCATED ON LOWER LEFT SIDE OF PRINTER |
|
|
POWER SWITCH LINK - MECHANICAL LINK BETEEN METAL ROD AND OUTSIDE POWER SWITCH |
|
|
REAR COVER - BACK SIDE COVER FOR 500 SHEET FEEDER |
|
|
REAR COVER - LOCATED ON BACK OF THE PRINTER NEXT TO THE FORMATTER COVER |
|
|
REAR COVER LOCK - LOCATED AT REAR OF UPPER PLATE ASSEMBLY |
|
|
REAR GAS DAMPER ASSEMBLY |
|
|
REAR PRINTER COVER ASSEMBLY - PLASTIC COVER FOR REAR OF PRINTER |
|
|
REGISTRATION ROLLER ASSEMBLY |
|
|
REVERSING ASSEMBLY - REVERSES PAPER ORIENTATION OF OUTPUT TRAY |
|
|
REVERSING CABLE - FROM DC CONTROLLER PCA TO REVERSING INTERMEDIATE PCA |
|
|
REVERSING SEPARATION GUIDE ASSEMBLY |
|
|
REVERSING UNIT FACE-UP SOLENOID (SL105) |
|
|
REVERSING UNIT INTERMEDIATE PC BOARD |
|
|
REVERSING UNIT PAPER DELIVERY SENSOR (PS109) |
|
|
REVERSING UNIT PAPER JAM SENSOR (PS111) |
|
|
REVERSING UNIT SEPARATION ROLLER SOLENOID (SL106) |
|
|
RIBBON CABLE - FLAT CABLE BETWEEN DC CONTROLLER BOARD AND ENGINE POWER SUPPLY BO |
|
|
RIBBON CABLE - FLAT CABLE BETWEEN DC CONTROLLER BOARD AND ENGINE POWER SUPPLY BO |
|
|
RIGHT COVER - RIGHT SIDE UPPER COVER FOR 500 SHEET FEEDER |
|
|
RIGHT COVER ASSEMBLY - TRAY 1 ATTACHES TO THIS COVER |
|
|
RIGHT SIDE DOOR HINGE - TWO USED |
|
|
RIGHT SIDE LASER SHUTTER HOLDER |
|
|
ROD LINK |
|
|
SCANNER ASSEMBLY - COMPLETE FLATBED SCANNER ASSEMBLY |
|
|
SCANNER CARRIAGE LOCK ASSEMBLY - INCLUDES THE BRACKECT, THE TWO SLIDER/LOCK PIEC |
|
|
SCANNER CONTROL BOARD (SCB) - PROVIDES TIMING AND CONTROL FOR THE FLATBED SCANNE |
|
|
SCANNER JOINT CABLE - FROM DC CONTROLLER TO J1422D - SCANNER MOTOR AND BEAM DET |
|
|
SCANNER OPEN SENSOR ASSEMBLY - INCLUDES THE HOUSING, SPRING-LOADED PLUNGER, AND |
|
|
SCREW - FLAT HEAD PHILLIPS DRIVE MACHINE SCREW - M3 X 6MM |
|
|
SCREW - USED TO SECURE FLATBED SCANNER SLIDE RAIL |
|
|
SCREW SPACER - WASHER USED WITH SCREWS TO SECURE BOTTOM PLATE TO PRINTER - TWO U |
|
|
SENSOR CABLE - FROM DC CONTROLLER PCA TO DELIVERY TRAY FULL SENSOR (PS104) |
|
|
SHUTTER FLAG |
|
|
SIDE COVER - LEFT SIDE TRIM COVER FOR FLATBED SCANNER ASSEMBLY |
|
|
SIDE COVER - RIGHT SIDE TRIM COVER FOR FLATBED SCANNER ASSEMBLY |
|
|
SLIDE SPRING - PROVIDES TENSION FOR FLATBED SCANNER LEFT SIDE COVER |
|
|
SPRING - SMALL COMPRESSION GROUNDING SPRING ON UPPER REAR OF PRINTER CHASSIS |
|
|
STAPLER MECHANISM |
|
|
STAPLER/STACKER ACCESS DOOR - FRONT JAM ACCESS DOOR FOR STAPLER/STACKER UNIT |
|
|
STEPPER MOTOR (M104) - CROSSING MOTOR LOCATED IN THE PAPER REVERSING ASSEMBLY |
|
|
STEPPER MOTOR (M105) - MOTOR THAT DRIVES THE REVERSING ROLLER LOCATED IN THE PAP |
|
|
STEPPER MOTOR (M106) - PAPER DELIVERY MOTOR LOCATED IN THE PAPER REVERSING ASSE |
|
|
STOP - BUSHING STOP FOR FUSER LEVER LOCATED ON HTE INSIDE UPPER FRONT PART OF T |
|
|
STOPPER - FRONT COVER LOCK STOPPER |
|
|
SWING PLATE ASSEMBLY - FOR TRAY 2 PAPER LIFT ASSEMBLY - LOCATED BETWEEN THE MAIN |
|
|
SWING PLATE ASSEMBLY - FOR TRAY 2 PAPER LIFT ASSEMBLY - LOCATED BETWEEN THE MAIN |
|
|
SWITCH ROD - METAL ROD THAT CONNECTS SWITCH LINK TO ELECTRICAL SWITCH ON THE ENG |
|
|
TELEPHONE CABLE (2-WIRE) - RJ11 (M) CONNECTORS - 3M (10FT) LONG (USA, CANADA, ME |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (DENMARK) |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (GERMANY) |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (ISRAEL) |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (ITALY) |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (NETHERLANDS |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (SWEDEN) |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG ON ONE END (TURKEY) |
|
|
TELEPHONE CABLE - 3.0M (9.8FT) LONG (GRAY) - RJ-11 PLUG ON ONE END (KOREA) |
|
|
TELEPHONE CABLE WITH BILL TONE FILTER - 3.0M (9.8FT) LONG (BLACK) - RJ-11 PLUG O |
|
|
TENSION SPRING - PROVIDES TENSION FOR PAPER SIZE SENSOR (PS102) |
|
|
THREE BIN MAILBOX ACCESS DOOR - FRONT JAM ACCESS DOOR FOR THREE BIN MAILBOX UNIT |
|
|
TONER CARTRIDGE MOTOR (M102) - MOUNTS ON THE FRONT RIGHT SIDE OF THE PRINTER |
|
|
TOP COVER INTERLOCK ACCESS SWITCH |
|
|
TORQUE LIMITER - LIMITS ROTATION OF FEED ROLLERS |
|
|
TORSION SPRING - PROVIDES TENSION FOR SHUTTER FLAG |
|
|
TRANSFER ROLLER ASSEMBLY - LONG BLACK SPONGY ROLLER THAT TRANSFERS CHARGE TO PAP |
|
|
TRAY 1 PICKUP ROLLER - D-SHAPED ROLLER LOCATED UNDER THE ENVELOPE COVER |
|
|
TRAY 1 SOLENOID - ENGAGES TRAY 1 PICK-UP ROLLER |
|
|
TRAY 2 PAPER SIZE TRAY SENSING ASSEMBLY - WHITE PLASTIC TRAY SIZE SENSING FINGER |
|
|
TRAY NUMBER PLATE ASSEMBLY - CHANGEABLE TRAY NUMBER DISPLAY ASSEMBLY - LOCATED I |
|
|
UPPER CARTRIDGE GUIDE - LOCATED IN UPPER PLATE ASSEMBLY |
|
|
UPPER COVER - LEFT SIDE UPPER COVER FOR 500 SHEET FEEDER - SMALL TOP EDGE COVER |
|
|
UPPER GUIDE SUPPORT BLOCK - SMALL L-SHAPED PLASTIC BLOCK WHICH SUPPORTS THE UPPE |
|
|
UPPER PLATE LATCH - LOCKING LATCH FOR UPPER PLATE ASSEMBLY |
|
|
WHITE BACKING PLATE ASSEMBLY - USED AS A WHITE BACKGROUND FOR SCANNING DOCUMENTS |
