Model Image
Manufacturer

HP

Model Number

CB451A

Description

Hp Laserjet P2014n Printer

Interactive Exploded View

Parts List

Part Number Description
RU5-0332-000 RU5-0332-000 19-TOOTH GEAR (WHITE PLASTIC)
RK2-0424-000 RK2-0424-000 24V DC SOLENOID (SL1) - ENGAGES THE PICKUP ROLLER GEAR/CLUTCH ASSEMBLY FOR TRAY
RM1-4251-000 RM1-4251-000 250-SHEET PAPER INPUT TRAY 2 CASSETTE - PULL OUT CASSETTE THAT PAPER IS LOADED I

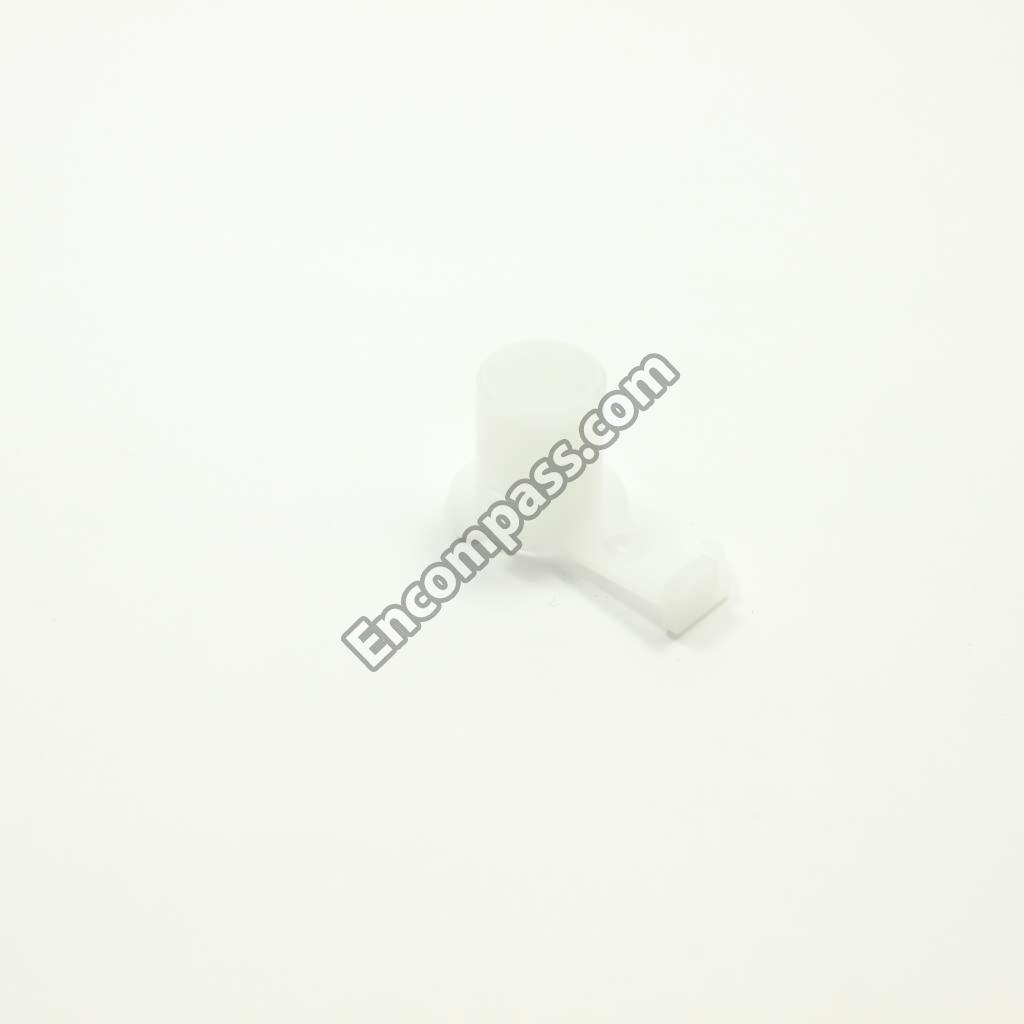

RC2-0392-000 RC2-0392-000 ARM TAG
RC2-0405-000 RC2-0405-000 CAM ARM - ATTACHES TO THE DRAWER CONNECTOR
RC1-3794-000 RC1-3794-000 CAUTION LABEL - DO NOT RUN STAPLES THROUGH THE ENGINE - HAS GRAPHIC OF A STAPLE
RU5-2323-000 RU5-2323-000 COMPRESSION SPRING
RU5-2335-000 RU5-2335-000 COMPRESSION SPRING - APPLIES DOWNWARD PRESSURE ON THE MEMORY TAG ARM TO CONTACT
RU5-2894-000 RU5-2894-000 COMPRESSION SPRING - LOCATED ON THE SEPARATION PAD BASE OF THE MULTIPURPOSE TRAY
RC2-1569-000 RC2-1569-000 DC CABLE GUIDE - ATTACHES TO THE MAIN DRIVE ASSEMBLY
RK2-1567-000 RK2-1567-000 DC MOTOR - PROVIDES POWER FOR DRIVE ASSEMBLY - LOCATED ON THE RIGHT SIDE OF PRIN
RM1-1301-000 RM1-1301-000 DOUBLE GEAR ASSEMBLY - INCLUDES THE GEAR BODY, INSET GEAR (BOTH WITH A TOOTHLESS
RC1-3728-000 RC1-3728-000 DRAWER HOLDER - RIGHT SIDE TRAY 2 HOLDER - ALSO TRAY 2 CONNECTOR MOUNT HOUSING
RC1-3471-000 RC1-3471-000 DRIVE SHAFT - DRIVES PICKUP ROLLER
RM1-4273-000 RM1-4273-000 ENGINE CONTROLLER BOARD (ECU) - 110VAC - FOR LASERJET P2010 PRINTER SERIES
RM1-4274-000 RM1-4274-000 ENGINE CONTROLLER BOARD (ECU) - 220VAC - FOR THE LASERJET P2010 PRINTER SERIES
RK2-1589-000 RK2-1589-000 FAN ASSEMBLY - FOR THE LASERJET P2010 PRINTER SERIES
RC2-0349-000 RC2-0349-000 FAN HOLDER - HOLDS THE COOLING FAN
CC382-60001 CC382-60001 FORMATTER (MAIN LOGIC) BOARD - FOR THE LASERJET P2014N PRINTER (NETWORK MODELS O
RC1-3668-000 RC1-3668-000 GEAR RELEASE LINK
Q7553X Q7553X HP 53X LASERJET BLACK PRINT CARTRIDGE - PRINTS APPROXIMATELY 7000 PAGES
J6035C J6035C HP JETDIRECT 175X EXTERNAL PRINT SERVER - HAS ON 4-PIN USB CONNECTOR AND ONE RJ-
J7942A J7942A HP JETDIRECT EN3700 EXTERNAL PRINT SERVER - FAST ETHERNET INTERNET CONNECTOR FOR
J7951G J7951G HP JETDIRECT EW2400 802.11G WIRELESS PRINT SERVER MODULE - INCLUDES POWER SUPPLY
RC1-3470-000 RC1-3470-000 IDLER ROLLER (PLASTIC) - FREE WHEELING ROLLER - TWO USED
RM1-4267-000 RM1-4267-000 INNER COVER ASSEMBLY OF CARTRIDGE DOOR
RM1-4262-000 RM1-4262-000 LASER/SCANNER ASSEMBLY - MOUNTS ON TOP OF PRINT STRUCTURE
RC2-0339-000 RC2-0339-000 LEFT LOWER CARTRIDGE GUIDE
RL1-1529-000 RL1-1529-000 LEFT SIDE COVER ASSEMBLY - FOR THE LASERJET P2010 PRINTER SERIES
RC2-0425-000 RC2-0425-000 LEFT UPPER CARTRIDGE GUIDE
XB4-7300-809 XB4-7300-809 M3 SELF-TAPPING PAN HEAD PHILLIPS SCREW (BLACK OXIDE FINISH) - 8MM LONG
XA9-1504-000 XA9-1504-000 M3 TRUSS HEAD (FLANGED) SCREW - 8MM LONG
XA9-1420-000 XA9-1420-000 M3 X 8MM PAN HEAD PHILLIPS SCREW WITH CAPTIVE FLAT AND SPLIT-LOCK WASHERS
XB4-7401-607 XB4-7401-607 M4 PAN-HEAD PHILLIPS SCREW WITH SELF-TAPPING THREADS - 10MM LONG
XA9-1422-000 XA9-1422-000 M4 X 12MM MACHINE SCREW WITH WASHER
RM1-4253-000 RM1-4253-000 MAIN DRIVE ASSEMBLY
RK2-0534-000 RK2-0534-000 MICROSWITCH - DOOR OPEN SWITCH (SW501)
RC2-0387-000 RC2-0387-000 MULTIPURPOSE PAPER INPUT TRAY LEFT SIDE CAM - SMALL PLASTIC CAM THAT MOVES INSID
RL1-1525-000 RL1-1525-000 MULTIPURPOSE PAPER INPUT TRAY PICK-UP ROLLER
RC2-0420-000 RC2-0420-000 MULTIPURPOSE PAPER INPUT TRAY PICK-UP ROLLER COVER - PLASTIC COVER THAT PROTECTS
RC2-0388-000 RC2-0388-000 MULTIPURPOSE PAPER INPUT TRAY RIGHT SIDE CAM - SMALL PLASTIC CAM THAT MOVES INSI
RL1-1524-000 RL1-1524-000 MULTIPURPOSE PAPER INPUT TRAY SEPARATION PAD
RC2-0419-000 RC2-0419-000 MULTIPURPOSE PAPER INPUT TRAY SEPARATION PAD BASE - WHERE THE SEPARATION PAD ATT
Q5931A Q5931A OPTIONAL 250-SHEET PAPER TRAY ASSEMBLY - INCLUDES BASE ASSEMBLY AND REMOVABLE PA
RM1-4263-000 RM1-4263-000 PAPER FEED GUIDE ASSEMBLY
RC2-0386-000 RC2-0386-000 PAPER PICK-UP ROLLER HOLDER
RL1-0540-000 RL1-0540-000 PAPER PICKUP ROLLER - INCLUDES THE D SHAPED PICKUP ROLLER SPINDLE WITH THE RUBB
RC1-3472-000 RC1-3472-000 PAPER SENSOR FLAG - CYLINDRICAL PLASTIC PIECE WITH A FLAG ON EACH END (ONE SENSE
RM1-4245-000 RM1-4245-000 PAPER WIDTH SENSOR ASSEMBLY
RM1-4277-020 RM1-4277-020 REAR COVER ASSEMBLY - FOR THE LASERJET P2010 PRINTER SERIES
RM1-4244-000 RM1-4244-000 REGISTRATION ASSEMBLY - SET OF ROLLERS BEFORE TONER CARTRIDGE AND AFTER FEED ROL
RC2-0346-000 RC2-0346-000 RIGHT LOWER CARTRIDGE GUIDE
RL1-1530-000 RL1-1530-000 RIGHT SIDE COVER ASSEMBLY - FOR THE LASERJET P2010 PRINTER SERIES
RC2-0426-000 RC2-0426-000 RIGHT UPPER CARTRIDGE GUIDE
RB2-2897-020 RB2-2897-020 SHAFT BUSHING/RETAINER
RB2-2896-000 RB2-2896-000 SHAFT BUSHING/RETAINER - LEFT SIDE PICKUP ROLLER SUPPORT BUSHING
RB2-2895-000 RB2-2895-000 SHAFT BUSHING/RETAINER - RIGHT SIDE PICKUP ROLLER SUPPORT BUSHING
RC1-3665-000 RC1-3665-000 SHAFT BUSHING/RETAINER - SMALL PLASTIC CYLINDER WITH FOUR NUBS THAT TWIST - LOCK
RM1-1321-000 RM1-1321-000 SHUTTER LINK ASSEMBLY - SPRING LOADED LINK WHICH ENGAGES THE SHUTTER ON THE LASE
RC2-0334-000 RC2-0334-000 SOLENOID HOLDER/MOUNT - FOR SOLENOID SL2 ? USED ON MULTIPURPOSE TRAY
RA0-1090-000 RA0-1090-000 TENSION SPRING
RM1-4272-000 RM1-4272-000 TOP COVER ASSEMBLY - FOR THE LASERJET P2010 PRINTER SERIES
RL1-0527-000 RL1-0527-000 TOP OUTPUT BIN DELIVERY ROLLER ASSEMBLY - PLASTIC ROD WITH FOUR RUBBER WHEELS (T
RM1-1305-000 RM1-1305-000 TOP OUTPUT GEAR ASSEMBLY - INCLUDES THREE WHITE PLASTIC GEARS MOUNTED ON A SUPPO
RM1-1283-000 RM1-1283-000 TOP SENSOR ASSEMBLY - INCLUDES THE BRACKET AND FLAGS FOR THE TOP OF PAGE DETECTI
RC1-3796-000 RC1-3796-000 TRANSFER GUIDE OPEN LABEL - LOCATED ON REGISTRATION ROLLER ASSEMBLY
RM1-4279-000 RM1-4279-000 TRANSFER ROLLER - TRANSFER CHARGE ROLLER
