Manufacturer
HP
Model Number
CC519A
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
128MB DDR DIMM MEMORY MODULE |
|
|
256MB DDR DIMM MEMORY MODULE |
|
|
500-SHEET PAPER FEEDER AND TRAY/CASSETTE - THIS IS THE ASSEMBLY FRAME AND TRAY T |
|
|
512MB DDR DIMM MEMORY MODULE |
|
|
80GB SATA HARD DRIVE 2.5IN WIDTH |
|
|
ADF ROLLER ASSEMBLY - INCLUDES ADF SEPARATION PAD ASSEMBLY |
|
|
AUTOMATIC DOCUMENT FEEDER (ADF) ASSEMBLY |
|
|
BLACK TONER CARTRIDGE SWITCH - DETECTS WHEN BLACK CARTRIDGE IS IN CORRECT POSITI |
|
|
CONTROL PANEL ASSEMBLY - CONTROL BUTTONS AND DISPLAY LOCATED ON TOP FRONT OF PRI |
|
|
CONTROL PANEL CABLE ASSEMBLY |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (BAHASA INDON |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (ENGLISH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (JAPANESE) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (KOREAN) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (SIMPLIFIED C |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (THAI) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (TRADITIONAL |
|
|
DRAWER CONNECTOR - CONNECTOR LOCATED ON TOP OF TRAY ASSEMBLY FRAME (RIGHT SIDE), |
|
|

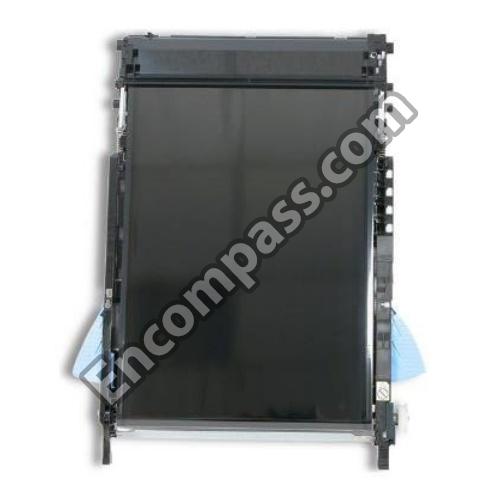

ELECTROSTATIC TRANSFER BELT (ETB) ASSEMBLY - INCLUDES 2ND TRANSFER ROLLER ASSEMB |
|
|
FAX CABLE - CABLE THAT CONNECTS THE FAX CARD TO THE FORMATTER BOARD |
|
|
FAX CONTROLLER PCA |
|
|
FRONT DOOR ASSEMBLY AND NAMEPLATE |
|
|
FUSER ASSEMBLY - FOR 110 VAC - BONDS TONER TO PAPER WITH HEAT |
|
|
FUSER DELIVERY DRIVE ASSEMBLY MICROSWITCH |
|
|
HP COLOR LASERJET BLACK PRINT CARTRIDGE WITH HP COLORSPHERE TONER - WILL PRINT A |
|
|
HP COLOR LASERJET BLACK PRINT CARTRIDGE WITH HP COLORSPHERE TONER - WILL PRINT A |
|
|
HP COLOR LASERJET CYAN PRINT CARTRIDGE WITH HP COLORSPHERE TONER - WILL PRINT AP |
|
|
HP COLOR LASERJET MAGENTA PRINT CARTRIDGE WITH HP COLORSPHERE TONER - WILL PRINT |
|
|
HP COLOR LASERJET YELLOW PRINT CARTRIDGE WITH HP COLORSPHERE TONER - WILL PRINT |
|
|
INTERCONNECT BOARD (ICB) - MOUNTS ON TOP OF THE LOW VOLTAGE POWER SUPPLY PCA |
|
|
LASER/SCANNER ASSEMBLY |
|
|
M4 PAN-HEAD PHILLIPS SCREW WITH SELF-TAPPING THREADS - 10MM LONG |
|
|
MAIN DRIVE ASSEMBLY |
|
|
PCI EXPRESS CABLE |
|
|
PHOTO-INTERRUPTER SENSOR ASSEMBLY (DOES NOT INCLUDE THE SENSOR FLAG) |
|
|
SATA HARD DRIVE POWER/DATA CABLE |
|
|
SCANNER ASSEMBLY - ADF ASSEMBLY AND SCB PCA ARE NOT INCLUDED |
|
|
SCANNER CONTROLLER BOARD (SCB) |
|
|
SCREW - M3 X 8MM LONG |
|
|

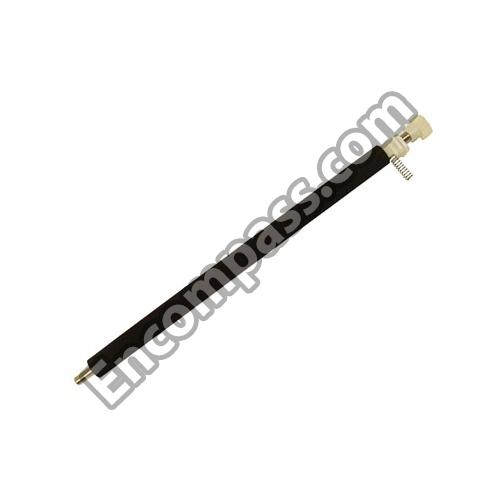

SECONDARY TRANSFER ROLLER ASSEMBLY - LONG BLACK SPONGY ROLLER THAT TRANSFERS CHA |
|
|

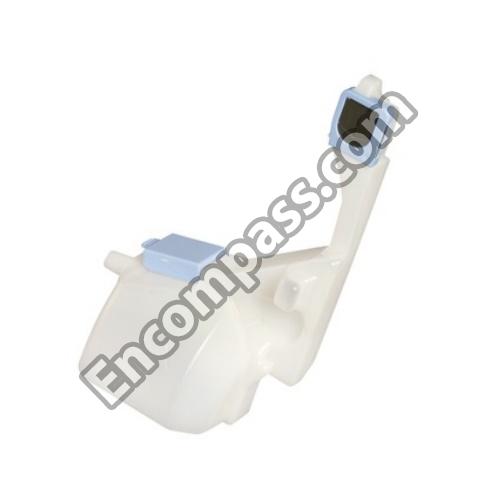

TONER COLLECTION UNIT - WASTE TONER BOX - COLLECTS THE EXCESS OF TONER |
