Manufacturer
HP
Model Number
CJ997A
Description
Hp Designjet 510ps 42-in Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
256MB DIMM MEMORY MODULE - UPGRADE DIMM FOR DESIGNJET PRINTERS |
|
|
BACK PLATEN ASSEMBLY - CURVED COVER/GUIDE THAT IS INSTALLED BELOW THE PAPER DRIV |
|
|
BELT TENSIONER KIT - KEEPS CARRIAGE BELT TIGHT - INCLUDES PULLEY AND PULLEY MOUN |
|
|
BRACKET KIT - INCLUDES THE LEFT CUTTER GUIDE BRACKET AND LEFT ENCODER HOLDER |
|
|
BRIGHT WHITE INKJET PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
CARRIAGE (SCAN-AXIS) MOTOR ASSEMBLY - INCLUDES CABLE |
|
|
CARRIAGE ASSEMBLY TRAILING CABLE KIT - INCLUDES INSTALLATION INSTRUCTIONS, TRAIL |
|
|
CARRIAGE BELT - DRIVES THE CARRIAGE ASSEMBLY (42-INCH) |
|
|
COATED PAPER (98 GSM) - 61CM (24IN) X 45.7M (150FT) ROLL (USA, CANADA, AND LATIN |
|
|
COVER KIT FOR DRIVE ROLLER ENCODER SENSOR |
|
|
CUTTER ASSEMBLY |
|
|
CUTTER BUSHING |
|
|
CUTTER GUIDE - GUIDE BAR FOR THE CUTTER ASSEMBLY - FOR 42-INCH PLOTTERS |
|
|
DEFLECTOR KIT - FOR THE 42-INCH DESIGNJET 510 PRINTER SERIES |
|
|
DESIGNJET 500/800 42-INCH MODEL PREVENTIVE MAINTENANCE KIT - INCLUDES IDLER PULL |
|
|
DRIVE ROLLER ENCODER SENSOR |
|
|
ENCODER DISK ASSEMBLY - HELPS PROVIDE POSITION THE INFORMATION OF THE PAPER |
|
|
ENCODER SPRING |
|
|
ENCODER STRIP (42-INCH) |
|
|
FORMATTER (MAIN LOGIC) BOARD - FOR THE DESIGNJET 510 PRINTER SERIES |
|
|
FRONT PANEL SERVICE KIT - FOR THE DESIGNJET 510 PRINTER SERIES |
|
|
FRONT PLATEN KIT - INCLUDES PLATENS FOR BOTH THE 24-INCH AND THE 42-INCH MODELS |
|
|
HARDWARE KIT - INCLUDES VARIOUS SCREWS AND NUTS FOR THE STAND AND TOUCH SCREEN A |
|
|
HEAVYWEIGHT COATED PAPER - 61CM (24IN) X 30.5M (100FT) ROLL - FOR REGULAR OR UV |
|
|
HP 11 BLACK PRINTHEAD |
|
|
HP 11 CYAN PRINTHEAD |
|
|
HP 82 HIGH CAPACITY MAGENTA INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGE |
|
|
HP 82 HIGH CAPACITY YELLOW INK CARTRIDGE - 69ML, PRINTS APPROXIMATELY 1400 PAGES |
|
|
HP JETDIRECT 620N INTERNAL PRINT SERVER - 10BASET AND 100BASETX LAN INTERFACE BO |
|
|
HP JETDIRECT 625N INTERNAL ETHERNET PRINT SERVER - PROVIDES 10BASET, 100BASETX, |
|
|
HP JETDIRECT 635N IPV6/IPSEC PRINT SERVER - 10BASET AND 100BASETX LAN INTERFACE |
|
|
HP JETDIRECT EW2400 802.11G WIRELESS PRINT SERVER MODULE - INCLUDES POWER SUPPLY |
|
|
HP MATTE PROOFING PAPER - 61CM (24IN) X 15.2M (50FT) ROLL |
|
|
HP UNIVERSAL COATED PAPER - 61CM (24IN) X 45.7M (150FT) ROLL |
|
|
HP UNIVERSAL SEMI-GLOSS PHOTO PAPER - 91.4CM (36IN) X 30.5M (100FT) ROLL |
|
|
INK SUPPLY STATION (ISS) - INCLUDES INK PUMP MOTOR, PUMP SENSOR, AND OUT-OF-INK |
|
|
INK SUPPLY STATION (ISS) - INCLUDES INK PUMP MOTOR, PUMP SENSOR, AND OUT-OF-INK |
|
|
INK TUBES ASSEMBLY - FOR THE 42-INCH DESIGNJET 500/800 PRINTER SERIES - INCLUDES |
|
|
INTERCONNECT PC BOARD - INSTALLED IN RIGHT-SIDE OF PRINTER |
|
|
LEFT SIDE COVER (LIGHT GRAY) - FOR THE DESIGNJET 510 PRINTER SERIES |
|
|
LEFT SPITTOON ASSEMBLY - CONTAINS ABSORBERS WHICH HOLD EXCESS INK FROM PRINTHEAD |
|
|
MEDIA DEFLECTOR HOLDERS - FOR THE DESIGNJET 500/800 PRINTER SERIES |
|
|
MEDIA SENSOR - INSTALLED IN THE FRONT OF THE REAR PLATEN |
|
|
NO. 82 STANDARD CAPACITY CYAN INK CARTRIDGE (69ML INK) |
|
|
PAPER DRIVE ROLLER KIT - INCLUDES ROLLER ASSEMBLY, BUSHINGS, GEAR ON ROLLER, TRA |
|
|
PAPER DRIVE TRANSMISSION GEAR KIT - INCLUDES TWO GEARS USED TO DRIVE THE PAPER D |
|
|
PINCHARM ASSEMBLY WITH WHEELS |
|
|
PINCHARM LIFT MECHANISM - INCLUDES CAM (A LONG BAR) , CAM BUSHINGS, PINCH ARM LE |
|
|
PINCHARM SENSOR - INSTALLED IN RIGHT FRONT OF PRINT CHASSIS |
|
|
POLYESTER MATTE FILM - 61CM (24IN) X 36.6M (120FT) ROLL |
|
|
PRINTHEAD CARRIAGE ASSEMBLY - INCLUDES CARRIAGE, BUSHINGS, PEN LATCHES, CARRIAGE |
|
|

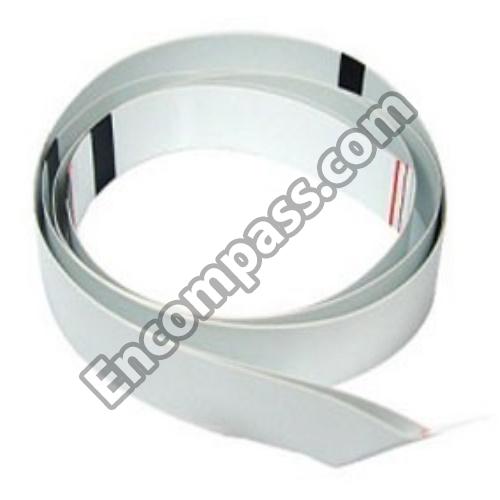

RIBBON CABLE KIT - INCLUDES INSTALLATION INSTRUCTIONS AND RIBBON CABLE WITH FERR |
|
|
RIGHT SIDE COVER ASSEMBLY (LIGHT GRAY) - FOR THE DESIGNJET 510 PRINTER SERIES |
|
|
SERVICE STATION - INCLUDES WIPERS, PEN CAPS, AND THE RIGHT HAND SPITTOON - INSTA |
|
|
SERVICE STATION BRACKET - INSTALLED ON RIGHT-SIDE OF SERVICE STATION |
|
|
TOP COVER ASSEMBLY (LIGHT GRAY) - WITH WINDOW - FOR THE 42-INCH DESIGNJET 510 SE |
|
|
TRIM KIT - INCLUDES THE FRONT AND BACK TRIMS FOR THE LEFT AND RIGHT SIDES |
|
|
TUBE GUIDE - BLACK PLASTIC GUIDE THAT INK TUBE SYSTEM SITS IN - FOR 42 INCH MODE |
|
|
UNIVERSAL BOND PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
UNIVERSAL HEAVYWEIGHT COATED PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
UNIVERSAL HIGH-GLOSS PHOTO PAPER - 61CM (24IN) X 30.5M (100FT) ROLL |
|
|
VACUUM FAN ASSEMBLY |
