Model Image
Manufacturer

HP

Model Number

E6B71A

Description

Hp Laserjet Enterprise M605x Printer

Interactive Exploded View

Parts List

Part Number Description
RU5-0088-000 RU5-0088-000 18 TOOTH GEAR (ON RT SIDE OF PRINTER IN 500 SHEET TRAY PAPER PICKUP ASSY)
RU7-0295-000 RU7-0295-000 23/19-TOOTH GEAR
VS1-7500-008 VS1-7500-008 6-PIN CONNECTOR
RM1-4666-000 RM1-4666-000 BIN FLAPPER ASSEMBLY - LOCATED ON THE MULTI-BIN MAILBOX (MBM) ASSEMBLY
RM1-4667-000 RM1-4667-000 CENTER FLAPPER ASSEMBLY - LOCATED ON THE MULTI-BIN MAILBOX (MBM) ASSEMBLY
RC1-0213-000 RC1-0213-000 COMPRESSION SPRING- PRESSURE PAPER PICKUP AND FEED ROLLERS (TRAY 2 PICKUP ASSY)
RM1-8348-000 RM1-8348-000 CONNECTOR CABLE - LOCATED ON THE HIGH-VOLTAGE POWER SUPPLY ASSEMBLY
RK2-3244-000 RK2-3244-000 COOLING FAN (FM2) - PROVIDES AIR TO THE CARTRIDGE AREA FOR COOLING
RK2-1988-000 RK2-1988-000 COOLING FAN (FN101) - FAN THAT COOLS THE CARTRIDGE AND POWER SUPPLY AREA
RK2-1992-000 RK2-1992-000 COOLING FAN (FN102) - EXHAUSTS HEAT FROM TONER CARTRIDGES
RK2-1989-000 RK2-1989-000 COOLING FAN (FN102) - FAN THAT COOLS THE CARTRIDGE AREA
RM1-8344-000 RM1-8344-000 DOOR SWITCH (SW103) CABLE
RM1-5267-000 RM1-5267-000 DRIVE ASSEMBLY - LOCATED ON THE MULTI-BIN MAILBOX MAIN BODY
RM1-8358-000 RM1-8358-000 DRUM MOTOR (M102) ASSY (DRIVES DRUM, PRIMARY CHARGING ROLLER, TRANSFER ROLLER)
WG8-5849-000 WG8-5849-000 DUPLEX RE-PICK SENSOR - DETECTS THE LEADING EDGE OF THE PAGE
VS1-7514-008 VS1-7514-008 DUPLEXER CONNECTOR - CONNECTOR ON POWER SUPPLY ASSEMBLY FOR DUPLEXER
RK2-2016-000 RK2-2016-000 DUPLEXER COOLING FAN (FN1501) - PROVIDES AIR TO THE DUPLEXER AREA FOR COOLING
RL1-1667-000 RL1-1667-000 ENVELOPE COVER
RM1-8438-000 RM1-8438-000 ENVIRONMENTAL SENSOR ASSEMBLY
RM1-8311-000 RM1-8311-000 FEED MOTOR (M101) CABLE (CONNECT MULTI-PURPOSE/TRAY 1 (M101) W/ DC CONTROL PCB
Q7829-67925 Q7829-67925 FEED ROLLER HIGH CAPACITY INPUT (HCI) (BLUE)
RM1-5088-000 RM1-5088-000 FUSER MOTOR CABLE - CONNECTS FUSER MOTOR (M229) TO THE CONTROLLER BOARD
RU5-0040-000 RU5-0040-000 GEAR - 23 TOOTH GEAR IN LOWER FRONT SECTION OF PICKUP DRIVE ASSEMBLY
RC2-2599-000 RC2-2599-000 GUIDE PAPER RE-PICK UP
RM1-8406-000 RM1-8406-000 LASER/SCANNER ASSEMBLY
RM1-8340-000 RM1-8340-000 LASER/SCANNER CABLE - CONNECT LASER/SCANNER ASSEMBLY W/ DC CONTROL PCB
RG1-4266-030 RG1-4266-030 LED PC BOARD ASSEMBLY - LOCATED ON THE STACKER MIDDLE ASSEMBLY
RL1-1703-000 RL1-1703-000 LEFT SUPPORT - LOCATED ON THE STAPLER/STACKER ASSEMBLY
RH7-1603-020 RH7-1603-020 MOTOR - STEPPER MOTOR IN 1500 SHEET FEEDER ASSEMBLY
RC1-0214-000 RC1-0214-000 MOUNTS ON THE PAPER PICK-UP DRIVE ASSEMBLY
RC3-1403-000 RC3-1403-000 MOUNTS ON THE PAPER PICK-UP DRIVE ASSEMBLY NEXT TO THE 18-TOOH GEAR
RM1-5096-000 RM1-5096-000 MULTI-BIN MAILBOX SENSOR ASSEMBLY
RL1-1709-000 RL1-1709-000 MULTI-BIN MAILBOX SOLENOID (SL1302 SL1303 SL1304 SL1305)
RM1-5266-000 RM1-5266-000 MULTI-BIN MAILBOX SOLENOID ASSEMBLY

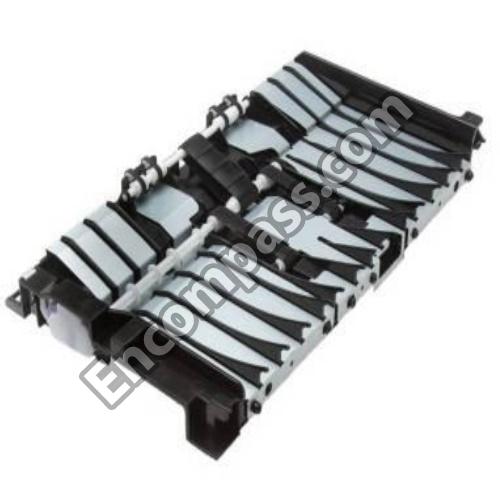

RM1-4548-000 RM1-4548-000 PAPER FEED GUIDE ASSEMBLY

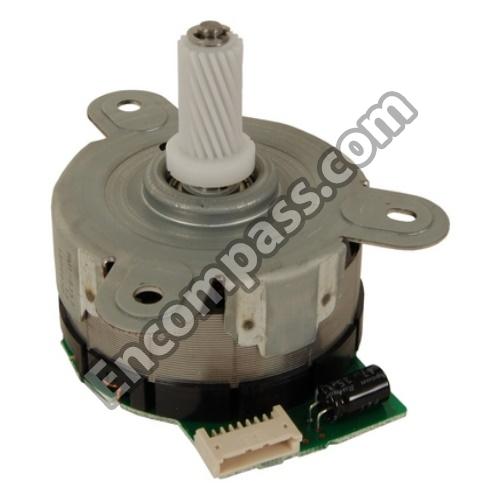

RM1-8285-000 RM1-8285-000 PAPER FEED MOTOR (M101) ASSY (DRIVES THE TRAY 1/TRAY 2 P/U ROLLER -FEED ROLLERS)
RC2-5701-000 RC2-5701-000 PAPER FEED ROLLER - FOR THE ENVELOPE FEEDER
RM1-5223-000 RM1-5223-000 PAPER FEED ROLLER ASSEMBLY - LOCATED ON THE ENVELOPE FEEDER ASSEMBLY
RM1-0253-020 RM1-0253-020 PAPER FEED ROLLER ASSEMBLY - LOCATED ON THE STAPLER/STACKER MIDDLE ASSEMBLY
RM1-8424-000 RM1-8424-000 PAPER FEED SHAFT ASSEMBLY
RM1-1166-000 RM1-1166-000 PAPER FULL SENSOR ASSEMBLY - STAPLER/STACKER MIDDLE ASSY (FULL CAPACITY)
RM1-0036-020 RM1-0036-020 PAPER P/U ROLLER (GRAY SPONGY RUBBER ROLLER ON WHITE CYLINDER W/24T GEAR ON END)
RM1-8415-000 RM1-8415-000 PAPER PICK-UP DRIVE ASSEMBLY
RC2-5700-000 RC2-5700-000 PAPER PICK-UP ROLLER - FOR THE ENVELOPE FEEDER
RM1-5221-000 RM1-5221-000 PAPER PICK-UP ROLLER ASSEMBLY - LOCATED ON THE ENVELOPE FEEDER
RM1-5269-000 RM1-5269-000 PAPER SENSING FLAG ASSEMBLY - LOCATED ON THE MULTI-BIN MAILBOX (MBM) ASSEMBLY
RM1-0239-000 RM1-0239-000 PAPER SENSING FLAG ASSEMBLY - ON STAPLER/STACKER MIDDLE ASSY (PAPER POSITION)
RM1-4525-000 RM1-4525-000 PAPER SIZE SENSOR/DETECT ASSEMBLY
RM1-5261-000 RM1-5261-000 PAPER SIZE SENSOR/DETECT ASSEMBLY - FOR THE 1,500-SHEET FEEDER
RM1-8441-000 RM1-8441-000 PICK-UP DRIVE SIDE PLATE ASSEMBLY
WC2-5637-000 WC2-5637-000 PUSH SWITCH - RIGHT CARTRIDGE DOOR OPEN SWITCH (SW6)
RM1-8413-000 RM1-8413-000 REGISTRATION ROLLER ASSEMBLY
XD9-0232-010 XD9-0232-010 RETAINING RING (E-TYPE)
RL1-3020-000 RL1-3020-000 RETARD DRIVE SHAFT - LOCATED ON THE RIGHT FRONT GUIDE ASSEMBLY
RL1-1704-000 RL1-1704-000 RIGHT SUPPORT - LOCATED ON THE STAPLER/STACKER ASSEMBLY
RC1-0136-000 RC1-0136-000 ROLLER BUSHING - BUSHING THAT SUPPORTS MIDDLE OF PAPER DELIVERY ROLLER
RM1-5224-000 RM1-5224-000 SEPARATION ROLLER ASSY (EF)
RL1-0506-000 RL1-0506-000 SOLENOID (SL1102) - LOCATED ON THE STAPLER/STACKER MIDDLE ASSEMBLY
RM1-5270-000 RM1-5270-000 SOLENOID (SL1301) ASSEMBLY - LOCATED ON THE MULTI-BIN MAILBOX (MBM) ASSEMBLY
Q3216-60500 Q3216-60500 STAPLE CARTRIDGE ASSY (3 CARTRIDGES OF 1000 STAPLES EACH)
RK2-2027-000 RK2-2027-000 STEPPING MOTOR (M1101) - LOCATED ON THE STAPLER/STACKER AREA - FOR 24 VAC
RK2-2025-000 RK2-2025-000 STEPPING MOTOR (M1103) - LOCATED ON THE STAPLER/STACKER AREA - FOR 24 VAC
RK2-2139-000 RK2-2139-000 STEPPING MOTOR (M1502) - LOCATED ON THE DUPLEXER AREA - FOR 24 VAC
RK2-2162-000 RK2-2162-000 STEPPING MOTOR (M1800) - LOCATED ON THE ENVELOPE FEEDER AREA - FOR 24 VAC
WC2-5806-000 WC2-5806-000 SWITCH BUTTON (SW21) - FOR THE 550-SHEET PAPER TRAY FEEDER
RM1-4665-000 RM1-4665-000 TOP BIN FLAPPER ASSEMBLY - LOCATED ON THE MULTI-BIN MAILBOX (MBM) ASSEMBLY
RC2-5771-000 RC2-5771-000 TORQUE LIMITER - FOR TRAY 2
