Manufacturer
HP
Model Number
Q2475A
Description
Hp Laserjet 2300dn
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
12 TOOTH GEAR - ON LEFT SIDE OF FEED ROLLER |
|
|
14 TOOTH GEAR - DRIVES DELIVERY ROLLER - ATTACHES TO LOWER DELIVERY GUIDE |
|
|
16 TOOTH GEAR - ATTACHES TO RIGHT END OF DELIVERY ROLLER |
|
|
16MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
250 SHEET FEEDER COVER - COVERS BOTTOM OF THE FRONT LOWER RIGHT CORNER |
|
|
250 SHEET FEEDER DRIVE COVER - COVERS BOTTOM OF THE DRIVE ASSEMBLY - LOCATED ON |
|
|
250 SHEET PAPER TRAY - ADJUSTS FOR LETTER, LEGAL, EXECUTIVE, AND A4 PAPER |
|
|
250 SHEET TRAY SEPARATION PAD KIT - CONTAINS SEPARATION PAD, PAD HOLDER, PAD COM |
|
|
250-SHEET PAPER TRAY (ONLY) - CAN HOLD LETTER, LEGAL, EXECUTIVE, A4, A5, ISO B5, |
|
|
250-SHEET TRAY FEEDER ASSEMBLY - INCLUDES THE FEEDER BASE ASSEMBLY AND 250-SHEET |
|
|
26 TOOTH GEAR - TRAY 1 PICKUP ROLLER DRIVE GEAR |
|
|
27 TOOTH GEAR - ATTACHES TO END OF PRESSURE ROLLER |
|
|
29 TOOTH GEAR - CASSETTE PICKUP GEAR |
|
|
32MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
500 SHEET FEEDER AND PAPER TRAY ASSEMBLY - HOLDS 500 SHEETS OF LETTER AND A4 SIZ |
|
|
8MB, 100-PIN SDRAM DIMM MEMORY MODULE |
|
|
ADJUSTABLE WIDTH PLATE - LEFT SIDE PAPER WIDTH STOP PLATE |
|
|
ADJUSTABLE WIDTH PLATE - RIGHT SIDE PAPER WIDTH STOP PLATE |
|
|
BELT DRIVE GEAR ASSEMBLY - GEAR ASSEMBLY ON THE RIGHT SIDE OF PRINTER THAT DRIVE |
|
|
BLACK TONER CARTRIDGE (ULTRA PRECISE TONER) - PRINTS APPROXIMATELY 6,000 PAGES B |
|
|
CABLE AND GUIDE ASSEMBLY - CABLES RUN BETWEEN SOLENOIDS SL1/SL2 AND ENGINE CONTR |
|
|
CABLE GUIDE - ATTACHES TO REAR OF LASER/SCANNER ASSEMBLY |
|
|
CABLE GUIDE - BLACK PLASTIC COVER THAT PROTECTS FLAT CABLE ON UPPER RIGHT SIDE O |
|
|
CARTRIDGE GUIDE - LEFT SIDE TONER CARTRIDGE GUIDE |
|
|
CENTER FEEDING PLATE - MIDDLE METAL PIECE IN CENTER OF PRINTER PAPER PATH |
|
|
COMPRESSION CONTACT SPRING - PROVIDES ELECTRICAL VOLTAGE CONTACT |
|
|
COMPRESSION CONTACT SPRING - PROVIDES ELECTRICAL VOLTAGE CONTACT |
|
|
COMPRESSION CONTACT SPRING - PROVIDES ELECTRICAL VOLTAGE CONTACT |
|
|
COMPRESSION SPRING - BETWEEN FUSING ROLLER AND PRESSURE PLATE ABOVE FUSING ROLLE |
|
|
COMPRESSION SPRING - PROVIDES ELECTRICAL GROUND CONNECTION |
|
|
COMPRESSION SPRING - PROVIDES ELECTRICAL GROUND CONNECTION |
|
|
COMPRESSION SPRING - PROVIDES PRESSURE FOR TOP OUTPUT BIN DELIVERY ROLLER ASSEMB |
|
|
COMPRESSION SPRING - PROVIDES TENSION FOR RIGHT SIDE OF TRANSFER ROLLER BUSHING |
|
|
COMPRESSION SPRING - PROVIDES TENSION FOR UPPER DELIVERY ROLLERS MOUNTED ON UPPE |
|
|
CONTACT HOLDER - ANCHORS FUSING ASSEMBLY TO CHASSIS |
|
|
CONTACT SPRING - HIGH VOLTAGE CONTACT FOR TRANSFER ROLLER |
|
|
CONTINUITY CAP - GEAR RETAINER FOR 30 TOOTH TRAY 1 PICKUP ROLLER SHAFT |
|
|
CONTROL PANEL ASSEMBLY - CONTROL PANEL MOUNTED ON UPPER RIGHT FRONT OF PRINTER |
|
|
CONTROL PANEL CABLE ASSEMBLY |
|
|
COOLING DUCT - PROVIDES AIRFLOW FOR LASER/SCANNER ASSEMBLY |
|
|
DC MOTOR - PROVIDES POWER FOR DRIVE ASSEMBLY ON RIGHT SIDE OF PRINTER - MOTOR M1 |
|
|
DELIVERY ROLLER - FEEDS PAPER OUT OF FUSING ASSEMBLY |
|
|
DELIVERY ROLLER - ROLLER FOR UPPER DELIVERY GUIDE - 4 USED |
|
|
DELIVERY ROLLER GEAR - GEAR ON LEFT SIDE OF DELIVERY ROLLER - 48 TEETH |
|
|
DELIVERY ROLLER GUIDE - SUPPORTS DELIVERY ROLLER |
|
|
DELIVERY SENSOR CABLE ASSEMBLY |
|
|
DIMM KIT LJ2300D,DN,DTN (VERSION 04.050.2) |
|
|
DIMM MEMORY KIT - 2300 BASE FIRMWARE DIMM |
|
|
DIMM MEMORY KIT - 2300L FIRMWARE DIMM |
|
|
DRIVE GEAR - PROVIDES POWER TRANSMISSION TO GEAR ASSEMBLY THAT DRIVES PAPER FEED |
|
|
DRIVE GEAR - UPPER DELIVERY ROLLER DRIVE GEAR - 15 TOOTH |
|
|
DUPLEX FEED GUIDE ASSEMBLY |
|
|
DUPLEXER SOLENOID - SL3 |
|
|
E-LABEL READER ASSEMBLY - SENSOR THAT READS TONER CARTRIDGE INFORMATION |
|
|
ENGINE CONTROLLER ASSEMBLY - ENGINE CONTROLLER PC BOARD AND BACK PLATE |
|
|
ENGINE CONTROLLER PC BOARD ONLY - DOES NOT INCLUDE METAL PAN |
|
|
ENTRANCE GUIDE - PAPER INPUT GUIDE OF FUSING ASSEMBLY |
|
|
F/G CABLE - CHASSIS TO SCANNER MOUNTING PLATE GROUND CABLE |
|
|
FACE DOWN DELIVERY ROLLER ASSEMBLY - MIDDLE TWO ROLLER ASSEMBLIES IN CENTER OF T |
|
|
FACE DOWN TOP OUTPUT BIN DELIVERY ROLLER ASSEMBLY - INCLUDES ROLLER AND HOLDER |
|
|
FACE-DOWN DELIVERY ROLLER - LOWER ROLLERS |
|
|
FACE-DOWN OUTPUT ROLLER - BLACK ROLLER SHAFT WITH FOUR GRAY SOFT ROLLERS ATTACHE |
|
|
FAN - COOLING FAN MOUNTED ON LEFT SIDE OF PRINTER - FM1 |
|
|
FAN MOUNT - SECURES FAN TO CHASSIS ON LEFT SIDE OF PRINTER |
|
|
FEED ROLLER ASSEMBLY |
|
|
FEED ROLLER ASSEMBLY - INCLUDES ROLLER, HOLDER AND SPRING |
|
|
FLAT INTERFACE CABLE - FLAT CABLE THAT CONNECTS BETWEEN THE FORMATTER AND ECU BO |
|
|
FORMATTER (MAIN LOGIC) BOARD |
|
|
FRONT COVER - WHITE PLASTIC COVER BEHIND DROP DOWN TRAY 1/MP TRAY PAPER INPUT TR |
|
|
FRONT FEEDING PLATE - SMALL FRONT SIDE METAL PIECES IN CENTER OF PRINTER PAPER P |
|
|
FUSE - 15A, 250V MAX |
|
|
FUSE - 8A, 250V MAX |
|
|

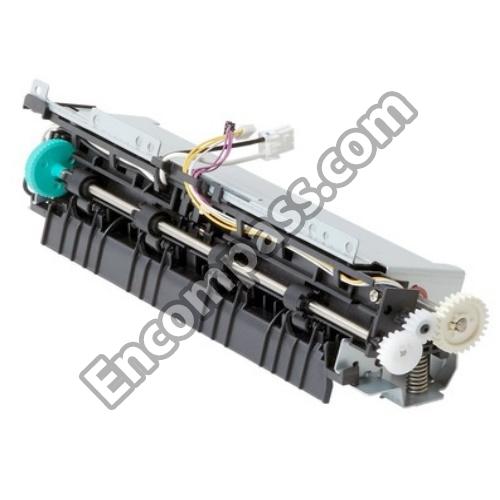

FUSING ASSEMBLY - FOR 110 VAC OPERATION - BONDS TONER TO PAPER WITH HEAT |
|
|
FUSING ASSEMBLY - FOR 220 VAC TO 240 VAC OPERATION - BONDS TONER TO PAPER WITH H |
|
|
FUSING ROLLER ASSEMBLY (FOR 100V TO 120V OPERATION) - INCLUDES HEATING ELEMENT A |
|
|
FUSING ROLLER ASSEMBLY (FOR 220V TO 240V OPERATION) - INCLUDES HEATING ELEMENT A |
|
|
GEAR - 10 TOOTH - MECHANICAL CONNECTION BETWEEN RIGHT AND LEFT SIDE PAPER PLATES |
|
|
GEAR HOLDER - PLASTIC PIECE ON LEFT SIDE OF DELIVERY ROLLER BETWEEN THE 48 TOOTH |
|
|
GROUNDING CABLE - ENGINE CONTROLLER PCA GROUND CABLE |
|
|
GROUNDING PLATE |
|
|
GROUNDING PLATE - ATTACHES TO RIGHT REAR CORNER OF FORMATTER BOARD |
|
|
GUIDE ASSEMBLY - DUPLEXER PORTION PAPER GUIDE ASSEMBLY |
|
|
GUIDE ROLLER (FREE SPINNING WHITE PLASTIC ROLLER) - MOUNTS ON THE PAPER PICKUP D |
|
|
HP JETDIRECT 620N INTERNAL PRINT SERVER - 10BASET AND 100BASETX LAN INTERFACE BO |
|
|
I/O COVER - HINGED PANEL LOCATED ON RIGHT REAR OF PRINTER THAT ALLOWS ACCESS TO |
|
|
INNER COVER (SMALL QUARTZ GRAY PLASTIC COVER) |
|
|
INSULATION SHEET - PLASTIC INSULATOR SHEET BETWEEN POWER SUPPLY PCA AND METAL FR |
|
|
INTERFACE CABLE - THE I/F CABLE FROM THE ENGINE CONTROLLER PCA TO THE ACCESSORY |
|
|
JAM CLEARING LEVER - HELPS TO CLEAR PAPER JAMS |
|
|
JAM CLEARING ROD - HELPS TO CLEAR PAPER JAMS |
|
|
JETDIRECT 610N TOKEN RING LAN INTERFACE BOARD - DB-9 AND RJ-45 CONNECTORS |
|
|
JETDIRECT 615N INTERNAL PRINT SERVER (10BASE-T AND 100BASE-TX) LAN INTERFACE BOA |
|
|
JETDIRECT CONNECTIVITY CARD - HAS ONE USB PORT, ONE SERIAL (DB9) PORT, AND ONE L |
|
|
LASER/SCANNER ASSEMBLY - MOUNTS ON TOP OF PRINT STRUCTURE |
|
|
LASER/SCANNER MOUNTING PLATE - PLATE THAT ATTACHES TO PRINTER CHASSIS THE LASER/ |
|
|
LASERJET 2300 SERIES PRINTER SERVICE MANUAL - ENGLISH ONLY |
|
|
LASERJET PART LIST BOOKLET - COVERS LASERJET 1005, 1010, 1012, 1015, 1200, 2300, |
|
|
LASERJET QUICK REFERENCE SERVICE GUIDE (MONOCHROME) - VOLUME IV |
|
|
LEAF SPRING - GROUNDING SPRING |
|
|
LEAKAGE PREVENTION SHEET - PREVENTS TONER FROM LEAKING ON MEDIA |
|
|
LEFT COVER ASSEMBLY - INCLUDES POWER BUTTON AND SPRING |
|
|
LEFT FEEDING PLATE - LEFT SIDE METAL PIECE IN CENTER OF PRINTER PAPER PATH |
|
|
LOCK ARM - LOCKS REAR PAPER LENGTH ADJUSTMENT PLATE |
|
|
M4 PAN-HEAD PHILLIPS SCREW WITH SELF-TAPPING THREADS - 10MM LONG |
|
|
MACHINE SCREW WITH ATTACHED WASHER - M3, 10MM - USED TO HOLD PLASTIC TO METAL |
|
|
MAINTENANCE KIT (120V) - INCLUDES FUSER ROLLER ASSEMBLY, TRANSFER ROLLER ASSEMBL |
|
|
MAINTENANCE KIT (220V) - INCLUDES FUSER ROLLER ASSEMBLY, TRANSFER ROLLER ASSEMBL |
|
|
MICROSWITCH WITH LEVER ACTIVATOR |
|
|
MULTI-PURPOSE TRAY PICKUP ROLLER ASSEMBLY - INCLUDES PICKUP ROLLER, ROLLER CAM, |
|
|
OUTPUT BIN EXTENSION - PULL OUT EXTENSION FOR REAR PAPER OUTPUT BIN |
|
|
PAD SPRING - PROVIDES TENSION FOR SEPARATION PAD ON FRONT OF PAPER TRAY |
|
|
PAPER FEED DRIVE SHAFT - CONNECTS MAIN DRIVE TO PAPER FEED DRIVE ASSEMBLY |
|
|
PAPER FEED ROLLER - WHITE PLASTIC SHAFT WITH THREE ROLLERS THAT DRIVE THE THREE |
|
|
PAPER FEED SHAFT DRIVE GEAR - BETWEEN PAPER FEED ROLLER AND PAPER FEED SHAFT |
|
|
PAPER JAM CLEARING KNOB |
|
|
PAPER PICKUP ASSEMBLY - PAPER PICKUP ASSEMBLY FOR TRAY 2 PAPER CASSETTE |
|
|
PAPER SENSOR ARM |
|
|
PAPER SENSOR ARM - FLAG FOR REGISTRATION PHOTOSENSOR |
|
|
PAPER SENSOR LEVER - ACTUATES PS2301 PAPER SENSOR |
|
|
PAPER SENSOR LEVER - MECHANICAL DEVICE THAT ENGAGES PHOTO SENSOR PS504 |
|
|
PAPER SENSOR LEVER - SENSES PAPER AT PICKUP ROLLER |
|
|
PAPER-FEED CABLE - INCLUDES THE INTERFACE CABLE FROM THE ENGINE CONTROLLER PC BO |
|
|
PC BOARD SPACER - POWER SUPPLY BOARD SPACER ON RIGHT EDGE OF BOARD |
|
|
PC BOARD SUPPORT - PLASTIC STANDOFF FOR SUPPORTING A PC BOARD |
|
|
PLATE END - MOVABLE END PLATE AT BACK OF TRAY 2 PAPER CASSETTE |
|
|
PLATE SPRING - PROVIDES PRESSURE FOR PAPER LIFTING PLATE |
|
|
PLATE SPRING - PROVIDES TENSION FOR LEFT SIDE WIDTH PLATE |
|
|
POWER BUTTON - LOCATED ON LEFT SIDE OF PRINTER |
|
|
POWER BUTTON SPRING - PROVIDES TENSION FOR POWER BUTTON |
|
|
POWER RECEPTACLE - POWER INPUT RECEPTACLE AND CABLE GOING TO POWER SUPPLY PCA |
|
|
POWER SUPPLY ASSEMBLY - INCLUDES FRAME, INSULATOR, SENSOR HOLDER AND PCA - FOR 1 |
|
|
POWER SUPPLY ASSEMBLY - INCLUDES FRAME, INSULATOR, SENSOR HOLDER AND PCA - FOR 2 |
|
|
POWER SUPPLY PCA - POWER SUPPLY BOARD ONLY - FOR 110V-127V OPERATION |
|
|
POWER SUPPLY PCA - POWER SUPPLY BOARD ONLY - FOR 220V-240V OPERATION |
|
|
PRESSURE PLATE - PLATE THAT ATTACHES ABOVE FUSING ROLLER |
|
|
PRESSURE ROLLER BUSHING - SUPPORT BUSHING UNDER EACH END OF FUSING PRESSURE ROLL |
|
|
PRINTER DRIVE ASSEMBLY - LARGE GEAR DRIVE ASSEMBLY ON RIGHT SIDE OF PRINTER |
|
|
REAR COVER - BACK OF PRINTER COVER - INCLUDES FACE-DOWN OUTPUT TRAY ASSEMBLY |
|
|
REAR OUTPUT TRAY - DROP DOWN FACE UP REAR PAPER OUTPUT TRAY |
|
|
REAR PAPER GUIDE - ATTACHES TO BASE OF REAR OUTPUT BIN |
|
|
REGISTRATION ASSEMBLY - REGISTRATION SHUTTER AND ROLLER WITH HOLDER FRAME ASSEMB |
|
|
REGISTRATION ROLLER DRIVE GEAR - 14 TOOTH |
|
|
RELEASE ARM - RIGHT SIDE LIFTING PLATE RELEASE ARM |
|
|
RETURN SERVICE PACKAGING KIT - CONTAINS NEW BOX WITH TOP AND BOTTOM FOAM SET, PL |
|
|
REVERSE GUIDE ASSEMBLY - GUIDES PAPER BACK INTO PRINTER TO PRINT BACK SIDE WHEN |
|
|
RIGHT FEEDING PLATE - RIGHT SIDE METAL PIECE IN CENTER OF PRINTER PAPER PATH |
|
|
RIGHT SIDE COVER ASSEMBLY |
|
|
ROLLER BUSHING - DELIVERY ROLLER BUSHING - SUPPORTS RIGHT SIDE OF DELIVERY ROLLE |
|
|
ROLLER BUSHING - RIGHT SIDE TRANSFER ROLLER BUSHING |
|
|
ROLLER GUIDE - SMALL WHITE PLASTIC ROLLER IN REAR PAPER OUTPUT TRAY - 2 USED |
|
|
ROLLER HOLDER |
|
|
ROLLER SPRING - PROVIDES PRESSURE FOR FEED ROLLER |
|
|
RUBBER FOOT - NON-SLIP REPLACEMENT RUBBER FOOT |
|
|
RUBBER FOOT - SQUARE SELF-ADHESIVE RUBBER FOOT |
|
|
SCREW - 6 MM PHILLIPS HEAD SCREW WITH ATTACHED WASHER |
|
|
SENSOR (TLP1242) PC BOARD - SMALL BOARD WITH FLAG ACTIVATED PHOTOSENSOR |
|
|
SENSOR LEVER HOLDER - AUTOMATIC DUPLEXER PICKUP SENSOR (PS503) |
|
|
SEPARATION PAD ASSEMBLY - FOR THE 250-SHEET PAPER TRAY |
|
|
SEPARATION PAD ASSEMBLY - SEPARATION PAD AND HOLDER |
|
|
SHAFT BUSHING/RETAINER - LEFT SIDE PICKUP ROLLER SUPPORT BUSHING |
|
|
SHAFT BUSHING/RETAINER - RIGHT SIDE PICKUP ROLLER SUPPORT BUSHING |
|
|
SOLENOID - AUTOMATIC DUPLEXER SOLENOID - SL3 |
|
|
STATIC CHARGE ELEMINATOR |
|
|
TENSION SPRING |
|
|
TENSIONING SPRING - FOR THE PAPER PICKUP GEAR ASSEMBLY |
|
|
TOP OUTPUT BIN ROLLER - LOWER OF THE TWO MIDDLE SET OF ROLLERS - 2 USED |
|
|
TORSION SPRING - PROVIDES A SMALL AMOUNT OF BACK PRESSURE FOR THE PAPER SENSOR F |
|
|
TORSION SPRING - PROVIDES TENSION FOR PAPER SENSOR LEVER |
|
|
TRANSFER ROLLER ASSEMBLY - INCLUDES LEFT SIDE BUSHING |
|
|
TRAY 1 EXTENDER - PULL-OUT TRAY EXTENSION |
|
|
TRAY 1 PAPER INPUT - ADJUSTABLE PAPER WIDTH PORTION OF TRAY 1 ASSEMBLY - MOUNTS |
|
|
TRAY 1/MP TRAY ASSEMBLY - DROP DOWN TRAY ON FRONT OF PRINTER |
|
|
TRAY 1/MP TRAY DAMPER - DAMPENS MOVEMENT ON RIGHT SIDE OF DROP DOWN TRAY 1 - WHI |
|
|
TRAY 1/MP TRAY EXTENSION - FLIP-OUT EXTENSION PART OF TRAY CONNECTED TO THE PULL |
|
|
TRAY 3 CONTROLLER BOARD - PAPER FEED DRIVE PCA |
|
|
TRAY 3 HOUSING - BARE FRAME THAT PRINTER SITS ON TOP OF PRINTER |
|
|
UPPER DELIVERY GUIDE - HAS FOUR SEPARATE ROLLERS AND SPRINGS |
|
|
UPPER LIFTING PLATE |
