Manufacturer
HP
Model Number
Q6510A
Description
Hp Laserjet 3050z All-in-one
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTER - TWO TO FOUR WIRE PHONE CORD ADAPTOR |
|
|
BLACK TONER CARTRIDGE - WILL PRINT APPROXIMATELY 2,000 PAGES BASED ON A 5% PRINT |
|
|
BUSHING - TWIST LOCKS INTO PLACE |
|
|
COMPRESSION SPRING |
|
|
COMPRESSION SPRING - PROVIDES PRESSURE FOR SCANNER LINK - TWO USED, ONE ON EACH |
|
|
CONTROL PANEL ELECTRONICS ASSEMBLY - CONTROL PANEL DISPLAY AND BUTTONS ASSEMBLY |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (ARABIC) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (CZECH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (DANISH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (FINNISH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (GREEK) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (HEBREW) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (HUNGARIAN) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (ITALIAN) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (KOREAN) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (NORWEGIAN) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (POLISH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (RUSSIAN) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (SIMPLIFIED C |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (SLOVAK) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (SWEDISH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (THAI) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (TRADITIONAL |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (TURKISH) |
|
|
CONTROL PANEL OVERLAY - SNAPS ON TOP OF THE CONTROL PANEL ASSEMBLY (VIETNAMESE) |
|
|
DOCUMENT SCANNER PAPER DELIVERY GUIDE |
|
|
ENGINE CONTROL UNIT (ECU) PC BOARD - CONTROLLER BOARD - PROVIDES CONTROL LOGIC F |
|
|
FORMATTER BOARD - CONTROLS THE LOGIC AND TIMING OPERATION OF THE PRINTER, TRANSL |
|
|
FRONT COVER ASSEMBLY - HAS CUTOUTS FOR THE TONER CARTRIDGE DOOR RELEASE BUTTON, |
|
|

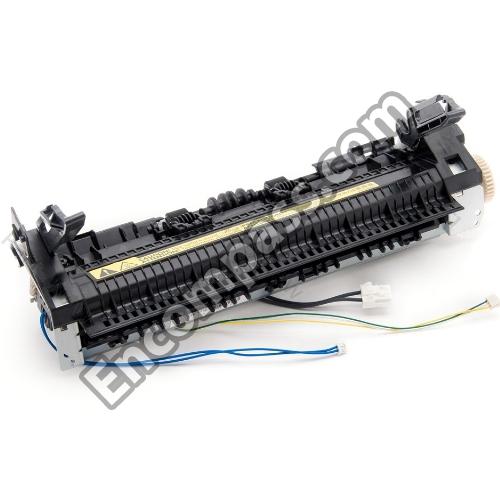

FUSING ASSEMBLY - FOR 110 TO 127 VAC OPERATION - BONDS THE TONER TO THE PAPER WI |
|
|
HP LOGO (JEWEL) |
|
|
LASER/SCANNER ASSEMBLY - MOUNTS ON THE FRONT SUPPORT SHELF ON THE PRINTER FRAME |
|
|
LEFT SIDE COVER ASSEMBLY - SLIGHTLY CURVED PLASTIC COVER WITH THE HP LOGO MOLDED |
|
|
LEFT SIDE SCANNER LATCH - THIS LATCH HOLDS THE SCANNER IN PLACE - CARTRIDGE RELE |
|
|
LINE INTERFACE UNIT (LIU) PC BOARD - PROVIDES TELEPHONE COMMUNICATIONS (FOR FAX |
|
|
LINE INTERFACE UNIT (LIU) PC BOARD - PROVIDES TELEPHONE COMMUNICATIONS TO THE PR |
|
|
LOWER COUPLER LINK - CONNECTS BETWEEN THE TONER CARTRIDGE DRIVE GEAR DISENGAGING |
|
|
LOWER REAR COVER ASSEMBLY - COVERS THE PAPER PICKUP ASSEMBLY - LARGER OF THE TWO |
|
|
M3 PAN-HEAD PHILLIPS SCREW - 10MM LONG |
|
|
M3 SCREW WITH CAPTIVE FLAT WASHER - 6MM LONG |
|
|
M3 X 8MM PAN HEAD PHILLIPS SCREW WITH CAPTIVE FLAT AND SPLIT-LOCK WASHERS |
|
|
MACHINE SCREW WITH ATTACHED WASHER - M3, 10MM - USED TO HOLD PLASTIC TO METAL |
|
|
MACHINE SCREW WITH ATTACHED WASHER - M3, 6MM - USED TO HOLD PLASTIC TO METAL |
|
|
PAPER PICKUP ASSEMBLY - COMPLETE ASSEMBLY THAT PAPER PICKUP ROLLER MOUNTS IN |
|
|
PAPER SCANNER FRAME ASSEMBLY - INCLUDES ALL PAPER SCANNER PARTS EXCEPT SCANNER T |
|
|
PLASTIC SELF THREAD-FORMING SCREW - USED TO SECURE PARTS TO PLASTIC HOLES |
|
|
POWER CORD (FLINT GRAY) - 18 AWG, 1.9M (6.25FT) LONG - HAS STRAIGHT (F) C13 RECE |
|
|
POWER SUPPLY ASSEMBLY - FOR 110 TO 127 VAC OPERATION - INCLUDES THE POWER SUPPLY |
|
|
POWER SUPPLY ASSEMBLY - FOR 220 TO 240 VAC OPERATION - INCLUDES THE POWER SUPPLY |
|
|
PRINT CARTRIDGE ACCESS DOOR |
|
|
RIGHT SCANNER LINK ASSEMBLY - CONNECTS BETWEEN THE TOP OF THE PRINTER AND THE BO |
|
|
RIGHT SIDE COVER ASSEMBLY - SLIGHTLY CURVED PLASTIC COVER WITH THE HP LOGO MOLDE |
|
|
RIGHT SIDE SCANNER LATCH - THIS LATCH HOLDS THE SCANNER IN PLACE - CARTRIDGE REL |
|
|
SCANNER CUSHION - SQUARE FOAM PICES THAT CUSHION THE SCANNER WHEN LOCKED IN PLAC |
|
|
SCANNER GROUND PLANE (OR SHEET) - FLEXIBLE SHEET THAT RUNS FROM THE GROUND PC BO |
|
|
SCANNER GUIDE ASSEMBLY - SCANNER PAPER GUIDE ASSEMBLY |
|
|
SCANNER HINGE TOOL (WIRE-FORM) - USED TO SUPPORT THE SCANNER ASSEMBLY, AND TO KE |
|
|
SCANNER MEIDA LEVER - PAPER TYPE SELCTOR LEVER FOR SCANNER ADF INPUT TRAY |
|
|
SCANNER SUPPORT FRAME - C-SHAPED PLASTIC FRAME THAT MOUNTS TO THE TOP OF THE PRI |
|
|
SCANNER TOP PLASTIC COVER - DOES NOT INCLUDE ELECTRONICS ASSEMBLY |
|
|
SCREW - M3 X 6MM |
|
|
SPEAKER ASSEMBLY - MOUNTED ON RIGHT FRONT SIDE OF PRINTER - SPEAKER SP1 |
|
|
STEPPING MOTOR - MAIN DRIVE MOTOR FOR THE PRINTER - MOTOR M1 |
|
|
TELEPHONE CABLE (2-WIRE) - RJ11 (M) CONNECTORS - 3M (10FT) LONG (USA, CANADA, ME |
|
|
TOP COUPLER LINK - L-SHAPED PLASTIC BRACKET - PULLS THE LOWER COUPLER LINK TO DI |
|
|
TORSION SPRING |
|
|
TRANSFER ROLLER ASSEMBLY - STEEL SHAFT WITH BLACK SPONGY ROLLER AND DRIVE GEAR - |
|
|
UNIVERSAL SERIAL BUS (USB) INTERFACE CABLE - TYPE 'A' CONNECTOR TO TYPE 'B' CONN |
|
|
WHITE PLATEN ASSEMBLY STRIP - USED AS A WHITE REFERENCE FOR DOCUMENT SCANNING |
