Manufacturer
HP
Model Number
Q7732A
Description
Color Laserjet 4610n Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2 X 500 SHEET FEEDER/TRAY ASSEMBLY - FEEDER ASSEMBLY THAT HOLDS TWO 500 SHEET PA |
|
|
24 VDC BRUSHLESS MOTOR |
|
|
24VDC MOTOR - DISENGAGING DRIVE MOTOR - MOTOR M7 |
|
|
40GB EIO HARD DRIVE |
|
|
500-SHEET PAPER FEEDER ASSEMBLY - INCLUDES THE PAPER FEEDER BASE ASSEMBLY AND 50 |
|
|
500-SHEET PAPER FEEDER ASSEMBLY - INCLUDES THE PAPER FEEDER BASE ASSEMBLY, 500-S |
|
|
AC CABLE - CONNECTS AC POWER SUPPLY TO FUSER POWER SUPPLY - 110 VOLT AC |
|
|
AC CABLE - CONNECTS AC POWER SUPPLY TO FUSER POWER SUPPLY - 220 VOLT AC |
|
|
AIR FILTER AT TOP REAR OF PRINTER - FORMATTER FAN AIR FILTER |
|
|
AIR FILTER ON UPPER LEFT SIDE |
|
|
ANTENNA CABLE - BETWEEN TONER CARTRIDGE MEMORY TAG AND ANTENNA MEMORY PC BOARD - |
|
|
ANTENNA PC BOARD - PC BOARD ANTENNA FOR TONER CARTRIDGE MEMORY TAG - FOUR USED |
|
|
BLACK TONER CARTRIDGE - FOR THE COLOR LASERJET 46XX SERIES PRINTERS |
|
|
BLACK TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES |
|
|
BLACK TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES - FOR SALE IN EUROPE ONLY |
|
|
CABLE - CASSETTE SIZE CABLE |
|
|
CARTRIDGE DRIVE GEAR - DRIVES TONER CARTRIDGE GEAR - 29 TEETH |
|
|
CARTRIDGE FAN - LOCATED AT LEFT REAR CORNER - EXHAUSTS HEAT FROM TONER CARTRIDGE |
|
|
CARTRIDGE GUIDE - UPPER RIGHT SIDE TONER CARTRIDGE GUIDES - FOR BLACK AND MAGENT |
|
|
CARTRIDGE INLET ASSEMBLY - BLACK PLASTIC PIECE ON RIGHT FRONT SIDE |
|
|
CARTRIDGE PRESSURE LEVER |
|
|
CASSETTE PAPER SIZE SWITCH - SENSES PAPER SIZE IN PAPER TRAY |
|
|
CONTACT PIN ASSEMBLY |
|
|
CONTROL PANEL ASSEMBLY - 100/127 VOLT |
|
|
CONTROL PANEL ASSEMBLY - 220/240VAC |
|
|
CONTROL PANEL CROSSMEMBER ASSEMBLY - SUPPORTS CONTROL PANEL |
|
|
CONTROLLER PC BOARD - FOR THE 500-SHEET PAPER FEEDER ASSEMBLY - INCLUDES THE CON |
|
|
CYAN TONER CARTRIDGE - FOR THE COLOR LASERJET 46XX SERIES PRINTERS |
|
|
CYAN TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES |
|
|
CYAN TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES - FOR SALE IN EUROPE ONLY |
|
|
DC CABLE - DC POWER SUPPLY CABLE |
|
|
DC CONTROLLER PC BOARD |
|
|
DEVELOPER DISENGAGEMENT DRIVE ASSEMBLY |
|
|
DISENGAGEMENT PLATE GEAR - DRIVES DEVELOPER DISENGAGEMENT PLATE |
|
|
DRIVE ASSEMBLY - 2 X 500 PAPER PICKUP FEEDER DRIVE ASSEMBLY - INCLUDES MOTOR AND |
|
|
DRUM DRIVE ASSEMBLY - FOR BLACK CARTRIDGE |
|
|
DRUM DRIVE ASSEMBLY - FOR MAGENTA AND CYAN CARTRIDGES |
|
|
DRUM DRIVE ASSEMBLY - FOR YELLOW CARTRIDGE |
|
|
DRUM DRIVE INTERLOCK PLATE |
|
|
DRUM GROUND ASSEMBLY - CHASSIS TO TONER CARTRIDGE GROUND STRAP THAT GOES ACROSS |
|
|
DRUM GROUND ASSEMBLY - CHASSIS TO TONER CARTRIDGE GROUND STRAP THAT GOES ACROSS |
|
|
ELECTROSTATIC TRANSFER BELT (ETB) ASSEMBLY - FOR HP COLOR LASERJET 4600 SERIES |
|
|
ENVIRONMENT/HUMIDITY SENSOR - LOCATED AT LOWER LEFT SIDE OF PRINTER |
|
|
ENVIRONMENT/HUMIDITY SENSOR CABLE - FROM ENVIRONMENT/HUMIDITY SENSOR TO DC CONTR |
|
|
ETHERNET 10BASE-T/10BASE2 AND LOCALTALK (RJ-45, BNC, LOCALTALK) EIO NETWORK PCA |
|
|
EXTERNAL JETDIRECT 170X LAN INTERFACE MODULE - INTERFACES A PARALLEL PRINTER TO |
|
|
EXTERNAL JETDIRECT LAN INTERFACE MODULE WITH ETHERTWIST (10BASE-T) CONNECTOR |
|
|
FEED DRIVE ASSEMBLY - INCLUDES THE METAL PLATE, DRIVE MOTOR, PICKUP DRIVE SOLENO |
|
|
FLAG LEVER - LEVER HALF OF THE SENSOR FLAG FOR DETECTING WHEN THE ADF INPUT TRAY |
|
|

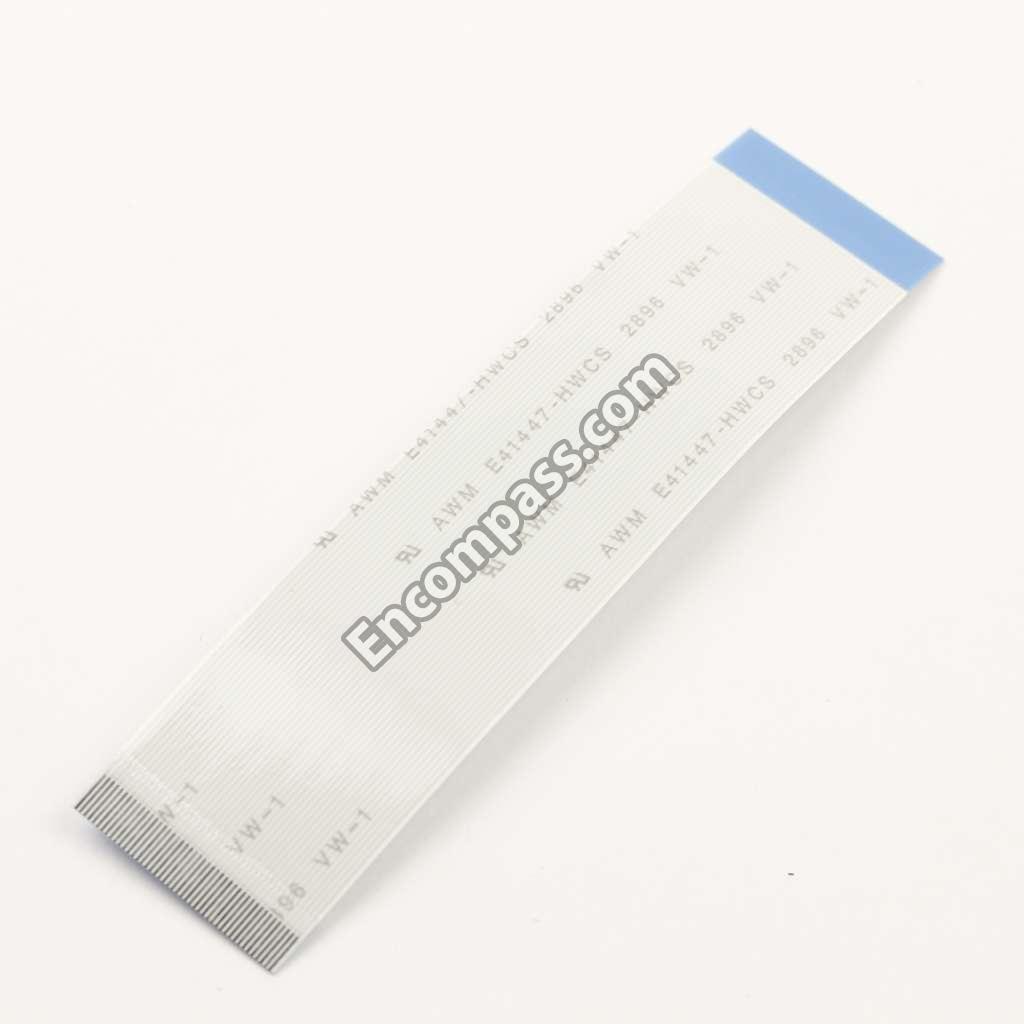

FLAT CABLE - CONNECTS FORMATTER BOARD TO DC CONTROLLER BOARD |
|
|
FORMATTER PC BOARD |
|
|
FRONT DOOR MICRO SWITCH - FRONT DOOR OPEN SWITCH |
|
|
FUSE - 125 VOLT, 6.3 AMP |
|
|
FUSE - 250 VOLT, 20 AMP - 100-127VAC |
|
|
FUSE - 250 VOLT, 4 AMP - 220-240V |
|
|
FUSE - 250 VOLT, 8 AMP |
|
|
FUSER DRAWER FUSING CABLE |
|
|
FUSER DRIVE ASSEMBLY |
|
|
FUSER POWER SUPPLY PC BOARD - 100/127 VOLTS |
|
|
FUSER POWER SUPPLY PC BOARD - 220/240 VOLT |
|
|
GROUNDING PLATE - ELECTRICAL GROUND CONNECTION FOR FUSER SENSOR ASSEMBLY |
|
|
GROUNDING PLATE - PROVIDES GROUND FOR DEVELOPER UNITS |
|
|
GROUNDING PLATE SERVICE KIT - MOUNTS AT BOTTOM OF ETB ASSEMBLY - CONTAINS NEW RI |
|
|
HIGH VOLTAGE POWER SUPPLY PC BOARD |
|
|
HIGH VOLTAGE TONER CONTACT ASSEMBLY - ELECTRICAL CONTACTS FOR TONER CARTRIDGE (F |
|
|
HP COLOR LASER SOFT-GLOSS PRESENTATION PAPER - A SIZE (8.5 X 11-INCHES) - 200 SH |
|
|
HP FAST INFRARED CONNECT POD (FIR) - ALLOWS WIRELESS PRINTING FROM ANY IRDA-COMP |
|
|
HP JET DIRECT 300X EXTERNAL PRINT SERVER MODULE (THREE PACK) (10BASE-T AND 100BA |
|
|
HP JETDIRECT 300X EXTERNAL PRINT SERVER MODULE (10BASE-T AND 100BASE-TX) - CONNE |
|
|
HP JETDIRECT 300X EXTERNAL PRINT SERVER MODULE (10BASE-T AND 100BASE-TX) - CONNE |
|
|
HP JETDIRECT 500X EXTERNAL TOKEN RING PRINT SERVER MODULE - INTERFACES UP TO 3 P |
|
|
HP JETDIRECT 500X EXTERNAL TOKEN RING PRINT SERVER MODULE - INTERFACES UP TO 3 P |
|
|
HP JETDIRECT 620N INTERNAL PRINT SERVER - 10BASET AND 100BASETX LAN INTERFACE BO |
|
|
HP JETDIRECT 680N INTERNAL WIRELESS IEEE-802.11B (WI-FI) PRINT SERVER - PLUGS IN |
|
|
HP JETDIRECT EN3700 EXTERNAL PRINT SERVER - FAST ETHERNET INTERNET CONNECTOR FOR |
|
|
HP LASERJET 4650 FUSING ASSEMBLY - FOR 110 VAC OPERATION - BONDS TONER TO PAPER |
|
|
HP LASERJET 4650 FUSING ASSEMBLY - FOR 220 VAC OPERATION - BONDS TONER TO PAPER |
|
|
HP LASERJET 4650 IMAGE TRANSFER BELT KIT - INCLUDES THE ELECTROSTATIC TRANSFER B |
|
|
HP PRINTER STAND ACCESSORY - STAND USED TO MOUNT COLOR LASERJET 46XX FAMILY PRIN |
|
|
IEEE 1284 BI-TRONICS PARALLEL CABLE - DB-25 (M) CONNECTOR (TYPE A) TO 36-PIN HIG |
|
|
INTRAFACE CABLE - CONNECTS FORMATTER BOARD TO DC CONTROLLER BOARD AND LVPS TO FO |
|
|
JETDIRECT 610N TOKEN RING LAN INTERFACE BOARD - DB-9 AND RJ-45 CONNECTORS |
|
|
JETDIRECT 615N INTERNAL PRINT SERVER (10BASE-T AND 100BASE-TX) LAN INTERFACE BOA |
|
|
JETDIRECT CONNECTIVITY CARD - HAS ONE USB PORT, ONE SERIAL (DB9) PORT, AND ONE L |
|
|
LARGE DRUM DRIVE GEAR - 200 TEETH - USED WITH BLACK AND YELLOW DRUM DRIVES |
|
|
LARGE DRUM DRIVE GEAR - 200 TEETH - USED WITH MAGENTA AND CYAN DRUM DRIVES |
|
|
LASER SCANNER SUPPORT SPRING - SUPPORTS LASER SCANNER MODULE - THREE USED |
|
|
LASER/SCANNER ASSEMBLY - SEPARATE SCANNER USED FOR EACH TONER CARTRIDGE |
|
|
LED PC BOARD - THE LED PC BOARD ASSEMBLY THAT PERFORMS THE FUNCTION CALLED PRIMA |
|
|
LEFT COVER - LEFT SIDE OF PRINTER COVER |
|
|
LEFT PLATE CABLE |
|
|
LEFT SIDE COVER OF FUSER ASSEMBLY |
|
|
LOW VOLTAGE POWER SUPPLY PC BOARD - 100/127 VAC 60HZ |
|
|
LOW VOLTAGE POWER SUPPLY PC BOARD - 220/240VAC |
|
|
LOWER FAN - LOCATED NEAR LOW VOLTAGE POWER SUPPLY IN BOTTOM OF PRINTER |
|
|
LOWER FRONT COVER ASSEMBLY - FRONT OF PRINTER THAT TRAY 1 ATTACHES TO |
|
|
MAGENTA TONER CARTRIDGE - FOR THE COLOR LASERJET 46XX SERIES PRINTERS |
|
|
MAGENTA TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES |
|
|
MAGENTA TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES - FOR SALE IN EUROPE ONLY |
|
|
MEMORY CONTROLLER PC BOARD - BETWEEN DC CONTROLLER AND TONER ANTENNA |
|
|
MOUNTING BRACKET - BRACKET THAT SECURES THE 2 X 500 SHEET FEEDER/TRAY ASSEMBLY T |
|
|
MOUNTING BRACKET - BRACKET THAT SECURES THE 2 X 500 SHEET FEEDER/TRAY ASSEMBLY T |
|
|
MULTIPURPOSE/TRAY 1 SEPARATION PAD ASSEMBLY |
|
|
OBLIQUE ROLLER - RIGHT SIDE OF ETB - 2 USED |
|
|
OPTIONAL FEEDER AND CASSETTE SIZE CABLE/CONNECTOR |
|
|
OUTRIGGER COVER - ADJUSTABLE STABILIZER LEG COVER - SIX USED |
|
|
OUTRIGGER STABILIZER ASSEMBLY - SIDE STABILIZER LEG WITH ADJUSTABLE FOOT - SIX U |
|
|
PAPER CASSETTE - LOWER 500 SHEET PAPER CASSETTE - BOTTOM PAPER CASSETTE OF 2 X 5 |
|
|
PAPER CASSETTE - UPPER 500 SHEET PAPER CASSETTE - TOP PAPER CASSETTE OF 2 X 500 |
|
|
PAPER CASSETTE FRAME - LEFT SIDE TRAY 2 SUPPORT FRAME ASSEMBLY |
|
|
PAPER CASSETTE FRAME - RIGHT SIDE TRAY 2 SUPPORT FRAME ASSEMBLY |
|
|
PAPER FEEDER DRIVER PCA ASSEMBLY - DRIVER PC BOARD FOR 2 X 500 FEEDER TRAY ASSEM |
|
|
PAPER FEEDER MAIN CABLE |
|
|
PAPER PICKUP ASSEMBLY - 2 X 500 SHEET FEEDER LOWER PAPER PICKUP ASSEMBLY - PAPER |
|
|
PAPER PICKUP ASSEMBLY - 2 X 500 SHEET FEEDER UPPER PAPER PICKUP ASSEMBLY - PAPER |
|
|
PAPER PICKUP DRIVE ASSEMBLY - TRAY 2 PAPER PICKUP DRIVE ASSEMBLY |
|
|
PAPER PICKUP DRIVE ASSEMBLY SOLENOID - 2 USED |
|
|
PAPER PICKUP ROLLER - WHITE PLASTIC WITH BLACK FRICTION PAD - MOUNTS ON THE PAPE |
|
|
PAPER PICKUP SENSOR PC BOARD - SMALL BOARD WITH FOUR SENSORS ON RIGHT SIDE OF BO |
|
|
PAPER SENSOR FLAG IN FUSER ASSEMBLY |
|
|
PAPER SIZE ARM - SENSES PAPER SIZE IN PAPER TRAY - 3 USED |
|
|
PICKUP ROLLER FOR MULTI-PURPOSE TRAY/TRAY 1 - MOUNTS IN TOP/FRONT OF TRAY 2 |
|
|
PRESSURE ARM |
|
|
REAR COVER - REAR OF PRINTER COVER |
|
|
REAR LOWER COVER - SMALL PLASTIC COVER LOCATED BELOW LARGE REAR UPPER COVER |
|
|
RELAY CABLE - CONNECTS DC CONTROLLER TO HVPS, INTERLOCK SWITCH TO DC CONTROLLER, |
|
|
RIGHT SIDE COVER OF FUSER ASSEMBLY |
|
|
SENSOR ASSEMBLY - COLOR REGISTRATION DETECTION ASSEMBLY - COLOR SENSOR FOR DC CO |
|
|
SENSOR CABLE - CABLE FOR PS12 FUSER DELIVERY AND PS13 OUTPUT BIN FULL |
|
|
SENSOR COVER - METAL COVER FOR FUSER PHOTOSENSOR ASSEMBLY |
|
|
SENSOR SUPPORT BRACKET - BLACK PLASTIC PIECE THAT HOLDS PHOTO SENSORS PS12 AND P |
|
|
SEPARATION PLATE FOR TRAY 2 - BLACK PLASTIC T SHAPE WITH FRICTION PAD |
|
|
SERVICE MANUAL - COVERS COLOR LASERJET 4600 AND 4650 SERIES PRINTERS - ENGLISH O |
|
|
SIDE COVER - RIGHT SIDE OF PRINTER COVER |
|
|
SPRING ROD - PROVIDES MECHANICAL LINK FOR SPRING PRESSURE TO ASSIST OPENING TRAY |
|
|
TENSION SPRING - PROVIDES TENSION FOR DEVELOPER DISENGAGEMENT PLATE |
|
|
TEST PRINT ARM - EXTERNAL TEST PRINT BUTTON/ROD |
|
|
TONER CLEANING CLOTH - SPECIALLY TREATED CLOTH FOR ABSORBING TONER (1 PER PACKAG |
|
|
TONER SENSOR PC BOARD - SMALL VERTICAL BOARD ON RIGHT SIDE OF TONER CARTRIDGES |
|
|
TOP COVER ASSEMBLY - REAR PORTION OF PRINTER TOP COVER |
|
|
TOP COVER HINGE ASSEMBLY - TOP COVER DAMPER ASSEMBLY |
|
|
TOP/FRONT PRINTER COVER ASSEMBLY - LIFT-UP FRONT COVER |
|
|
TRAY 2 PAPER CASSETTE ASSEMBLY |
|
|
YELLOW TONER CARTRIDGE - FOR THE COLOR LASERJET 46XX SERIES PRINTERS |
|
|
YELLOW TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES |
|
|
YELLOW TONER CARTRIDGE - FOR THE LASERJET 46XX SERIES - FOR SALE IN EUROPE ONLY |
