Manufacturer
Hisense
Model Number
LC70D6EWD
Description
7-cu Ft Chest Freezer (white)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC POWER WIREL03120025\\SJ 18AWG/3C |
|
|

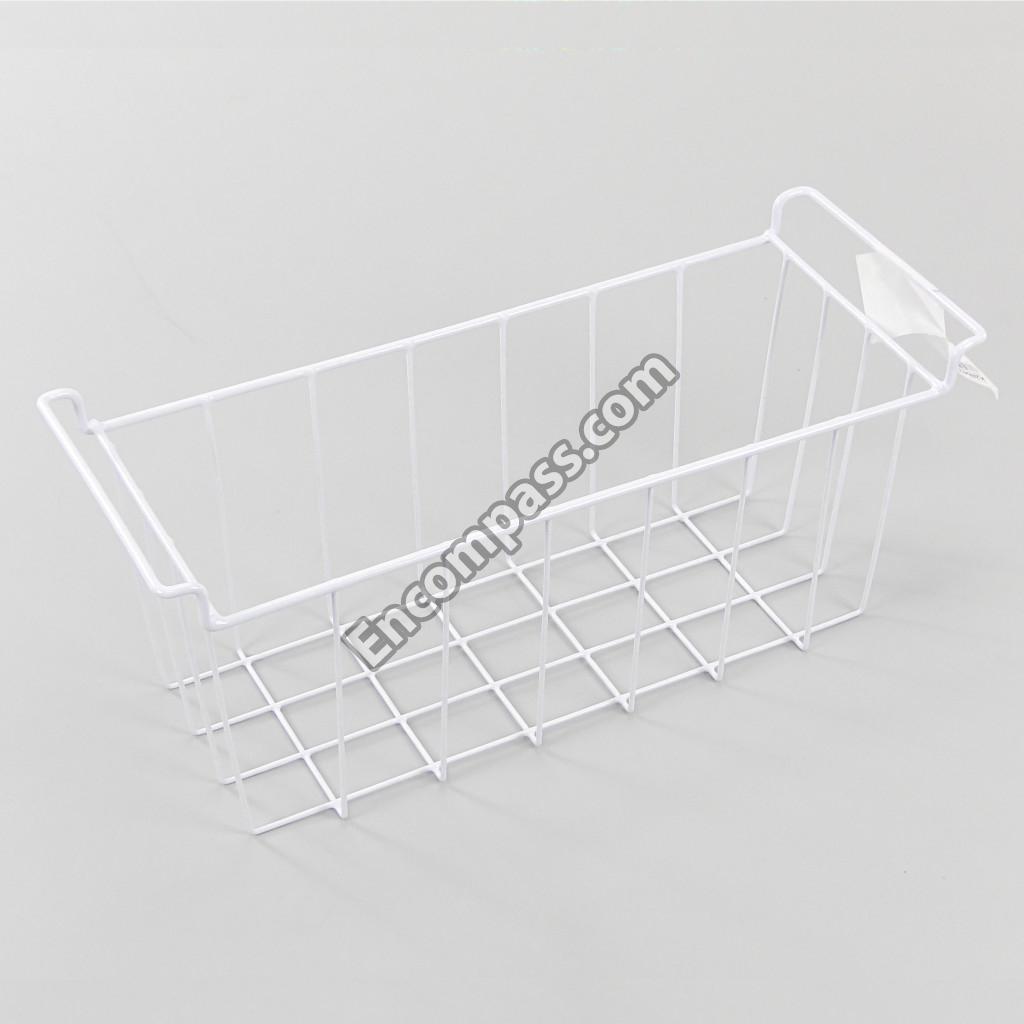

BASKETL04200965\\(A02)\NONE\BD-144 |
|
|
COMPRESSOR OVERLOAD PROTECTOR\\DRB30T61A |
|
|
COMPRESSOR PARTSL02020466\GMCC\FZ59E1G-U |
|
|
COMPRESSOR SUPPORT PLATE COMPONENTL01090 |
|
|
DRAINING MOUTHL05060191\HDPE\(A34)\NO |
|
|
DRY FILTER |
|
|
ELECTRIC BOX COVER FOR COMPRESSOR\GMCC\N |
|
|
FIXED CARDL05200231\PP\(A34)\BD-144 |
|
|
FOAMING BOXL01022526\(19)\BD-199/G |
|
|
FOAMING DOORL01132343\(19)\NONE\BD |
|
|
GASKET PARTL01140357\(A34)\NONE\BD-19 |
|
|
HIGH FRONT LEGS |
|
|
HIGH VOLTAGE CABLESL03170169\UL1015\18AW |
|
|
HINGE PARTS |
|
|
HINGE PARTS\L01080238\BD-96/HC(ER) |
|
|
L05210655\HIPS\(A34)\\BD-144/HC( |
|
|
LIMIT CIRCLE |
|
|
PAN HEAD SCREW WITH CROSS RECESS\GB/T818 |
|
|
PAN HEAD SCREW WITH CROSS RECESS\SM2TN50 |
|
|
PILOT LAMP |
|
|
PIPE LID |
|
|
PLATEN |
|
|
POWER CORP CLIP |
|
|
PTC |
|
|
RIGHT IMPACT BOARD |
|
|
SCREW |
|
|
SELF-TAPPING SCREW |
|
|
STEEL SLEEVE |
|
|
THE BOTTOM HINGE COVERL05210656\HIPS\ |
|
|
THE COMPRESS COVERL05210657\PP\(A34 |
|
|
THERMOSTAT |
|
|
THERMOSTAT KNOB |
|
|
THERMOSTAT PANEL |
|
|
VIBRATION PAD |
