Manufacturer
Hitachi
Model Number
32UDX10S
Description

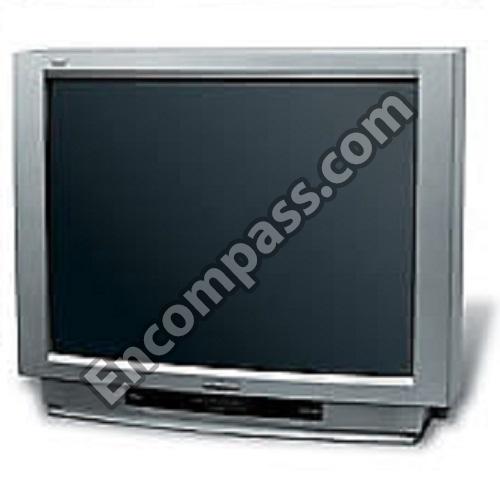

Crt Color Television
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| ED03192 | 15P 2.5MM PITCH PLUG TAC-L15P- |
| ED03215 | 18P 2.5MM PITCH CONNECTOR TAC- |
| ED03195 | 18P 2.5MM PITCH PLUG TAC-L18P- |
| H211461 | 1J MINI CONNECTOR |
| H211391 | 1J MINI CONNECTOR |
| H211351 | 1P CONNECTOR(PLUG) |
| ED03196 | 20P 2.5MM PITCH PLUG TAC-L20P- |
| NA54641 | 2H BRACKET MF1 |
| MD07291 | 2H PWB SHIELD MF1 |
| CJ00362 | 3/2 OHM POSITIVE THERMISTOR |
| 4194804 | 3X12 POLY WAVE SCREW |
| CP05431 | ANALOG MONOLITHIC IC (TLP621F |
| CP05351 | ANALOG MONOLITHIC IC NJM2150D |
| 2123411M | AXIAL COIL 1.0UH-K TYPE LAL02 |
| QD09852 | BACK COVER 32UDX |
| 0893013R | CAP 2125 CHIP 220000PF-KB 16V |
| 0228048R | CAP 2125 CHIP 56PF-J CH 50V T |
| 0228032R | CAP 2125CHIP 12PFJCH 50V TAPE |
| 0893038R | CAP 2125CHIP 3900PFKB 50V TAPE |
| 0228044R | CAP 2125CHIP 39PFJCH 50V TAPE |
| 0893025R | CAP 2125CHIP 68000PFKB 25V TAP |
| 0244881R | CAP. CERAMIC DE0405B101K2K |
| 0244202 | CAP. CERAMIC DE0907R471K2K |
| 0244729 | CAP. CERAMIC DE1005B222K2K |
| 0284408F | CAP.-ELECTRO 1000UF 16V |
| 0800346R | CAP.-ELECTRO 330UF 35V |
| 0284438F | CAP.-ELECTRO. 330UF-M 35V |
| 0284665R | CAP.-ELECTRO. 47UF-MBPR(SME)6. |
| 0284825F | CAP.-ELECTRO.3300UF-M 35V |
| 0270425R | CAP.-POLY.1200PF 50V |
| 0299974F | CAP.-POLYPROPYLENE 0.0027UF-63 |
| 0246836R | CAP.CERAMIC 18PF 500V TAPE |
| 0893095R | CAP.CHIP-CERAMIC 330000PF 16V |
| 0284393F | CAP.ELECTR.1000UF-M(KMF)10V |
| 0284377F | CAP.ELECTR.1000UF-M(KMF)6.3V |
| 0800338R | CAP.ELECTRO.220UF-M 50V(SMG) |
| 0893062 | CAP2125CHIP 1000000PFZF16V TAP |
| 0244139R | CAPACITOR-CERAMIC 1000PF-K B50 |
| 0299622F | CAPACITOR-POLYPROPYLENE FILM 0 |
| 0890059R | CCL-9R0D500SLDFT-D3 |
| 0252003 | CE 47UF 6.3V |
| NA40071 | CHAS.CONNECT MTL MM1 |
| NT01301 | CHASSIS FRAME L MM1 |
| NT01292 | CHASSIS FRAME R MF1 |
| 3744174 | CLAMP 20 L16 V0 |
| EF06452 | CO-02C-A7R5-271LOCK |
| BH00673R | COIL 1.5UH |
| BH00676R | COIL 2.7UH |
| BH00678R | COIL 3.9UH |
| BH01682 | COIL SL1415-101K2R5 |
| CW00022 | COMB FILTER (337KNT) |
| JT22322 | DELFECTION PWB |
| 2331913M | DIODE 1SS83 (TAPE) |
| 2336614 | DIODE RU3YX |
| BW02492 | FBT:1735YD-RC |
| BH00207R | FILTER COIL 33UH |
| BH00211R | FILTER COIL 56UH |
| EZ01005 | FOCUS LEAD |
| QD21861 | FRAME COSMETICS 32FDX |
| FN00291 | FUSE 125V 8A |
| AZ00106M | FUSE PROTECTOR |
| BH01301 | HC-331K-1 |
| ME03091 | HEAT SINK PROTECTOR MF1 |
| 2381345 | I.C. |
| CP07081 | IC AN5539N |
| CK32711R | IC BA7609F-E2 |
| CP06931U | IC BD3867S |
| CK30941U | IC CXA2069Q |
| 2015452R | IC HD74HC04FPEL |
| CP07792U | IC MN102H51KHD |
| CP06951U | IC NJM2198L |
| CP05162F | IC SI-3050F |
| CP05163F | IC SI-3090F |
| CP03924F | IC SI-8120S |
| CZ00864 | IC STR-F6626(LF1352) |
| CP06551 | IC TA1300AN |
| CK34051R | IC TC74HCT245AF |
| 2004781 | ICL-LA7213 |
| ES00202 | JACK |
| ES00261 | JACK 03P HORIZONTAL |
| ES00211 | JACK 2P VERTICAL |
| ES00271 | JACK S-TERMINAL |
| HP01061R | KC-301SE(3DYC SEP UNIT) |
| 2123416M | LAL AXIAL COIL 2.7UH-K |
| UE08892 | MF-1 MAIN CHASSIS ASS'Y |
| NT01221 | MM1 CHAASIS SUPPORT |
| NT01231 | MM1 POWER HOLDER |
| NT01222 | MM1CHASSIS SUPPORT R |
| OG-32UDX10S | OWNERS MANUAL (32/36UDX10S) |
| DE01373 | PICTURE TUBE A80LJF30X50 |
| ED00389 | PLUG 10P WITH LOCK |
| ED00391 | PLUG 11P WITH LOCK |
| ED01591U | PLUG CP-020BP7R5VU-TBL-LOCK |
| MA01162 | POWER HEAT SINK METAL MF1 A110 |
| MA01291 | POWER SUPPLY PWB HEATSINK DP0X |
| AZ00101M | PROTECTOR |
| 2633322 | PUSH SWITCH 5-5P TACT SW LONG |
| 0179559M | REG.-METAL GRAZED FILM 1.2M-JB |
| FJ00142 | RELAY ALKS329 |
|
|
REMOTE CONTROL (CLU-5713TSI) |
| 0195968R | RES 2125 CHIP 1/16W 560K-J TAP |
| 0196872R | RES 2125CHIP 1/10W 220-F TAPE |
| 0196873R | RES 2125CHIP 1/10W 240-F TAPE |
| 0196880R | RES 2125CHIP 1/10W 470-F TAPE |
| 0196858R | RES 2125CHIP 1/10W 56-F TAPE |
| 0196882R | RES 2125CHIP 1/10W 560-F TAPE |
| 0196860R | RES 2125CHIP 1/10W 68-F TAPE |
| 0196884R | RES 2125CHIP 1/10W 680-F TAPE |
| 0196861R | RES 2125CHIP 1/10W 75-F TAPE |
| 0196888R | RES 2125CHIP 1/10W1.0K-F TAPE |
| 0196890R | RES 2125CHIP 1/10W1.2K-F TAPE |
| 0196923R | RES 2125CHIP 1/16W 30K-F TAPE |
| 0196924R | RES 2125CHIP 1/16W 33K-F TAPE |
| 0196930R | RES 2125CHIP 1/16W 56K-F TAPE |
| 0196932R | RES 2125CHIP 1/16W 68K-F TAPE |
| 0196892R | RES 2125CHIP 1/16W1.5K-F TAPE |
| 0196896R | RES 2125CHIP 1/16W2.2K-F TAPE |
| 0196897R | RES 2125CHIP 1/16W2.4K-F TAPE |
| 0196898R | RES 2125CHIP 1/16W2.7K-F TAPE |
| 0196946R | RES 2125CHIP 1/16W270K-F TAPE |
| 0196899R | RES 2125CHIP 1/16W3.0K-F TAPE |
| 0196900R | RES 2125CHIP 1/16W3.3K-F TAPE |
| 0196904R | RES 2125CHIP 1/16W4.7K-F TAPE |
| 0196906R | RES 2125CHIP 1/16W5.6K-F TAPE |
| 0179625M | RES. MTL GRAZED FLM 1M-F 1/8W |
| 0147807 | RES. WIRE WOUND 1.0-J 15W |
| 0144068 | RES. WIRE WOUND 1.5K 7W |
| 0147718 | RES. WIRE WOUND 10W 2.2 OHM |
| 0188123M | RES.-CARBON FLM 1/2W 270-JB |
| 0188098M | RES.-CARBON FLM 1/2W 3.9-JB |
| 0188141M | RES.-CARBON FLM 1/2W 5.6K-JB |
| 0188142M | RES.-CARBON FLM 1/2W 6.8K-JB |
| 0188146M | RES.-CARBON FLM 1/4W 15K-JB |
| 0100068M | RES.-CARBON FLM 1/8W 1.3K-JB |
| 0100096M | RES.-CARBON FLM 1/8W 20K-JB |
| 0100081M | RES.-CARBON FLM 1/8W 4.7K-JB |
| 0188157M | RES.-CARBON FLM 100K-J 1/2W |
| 0188145M | RES.-CARBON FLM 12K-J 1/2W |
| 0188159M | RES.-CARBON FLM 150K-JB 1/2W |
| 0188136M | RES.-CARBON FLM 2.7K-J 1/2W |
| 0188162M | RES.-CARBON FLM 220K-JB 1/2W |
| 0188151M | RES.-CARBON FLM 33K-J 1/2W |
| 0188166M | RES.-CARBON FLM 470K-JB 1/2W |
| 0119561M | RES.-MTL FLM 1/8W 12-FB |
| 0119633M | RES.-MTL FLM 1/8W 12K-FB |
| 0119641M | RES.-MTL FLM 1/8W 27K-FB |
| 0110153S | RES.-MTL OXIDE FLM 2.2K-JS |
| 0147568 | RES.-WIRE WOUND 5W 150-JM CEME |
| 0147552 | RES.-WIRE WOUND 5W 33-JM CEMEN |
| 0195958R | RES.2125 CHIP 1/10W 220KJ TAPE |
| 0195888R | RES.2125 CHIP 1/10W 360-J TAPE |
| 0195911R | RES.2125 CHIP 1/16W 3.0K-J TAP |
| 0195936R | RES.2125 CHIP 1/16W 30K-J TAPE |
| 0195956R | RES.CHIP 1/16W 180K-J TAPE |
| 0195868R | RES.MINI-CHIP RMC1/10 56-J TAP |
| 0700032M | RESISTOR |
| 0195864R | RESISTOR MINI-CHIP RMC1/10 |
| MD06132 | SHIELD METAL DP06B SECC20/20E |
| MD04491 | SHIELD PLATE CPT MM1 |
| CP03926F | SI-8051S ANALOG MONOLITHIC IC |
| JT22351 | SIGNAL PWB ASSEMBLY |
| MD07302 | SIGNAL SHIELD MF1 |
| CZ00865 | STR-F6629B (LF1351) |
| NA53631 | SURROUND SUP. BKT |
| BT01981 | SW TRANS. |
| BT01993 | SW. TRANSFORMER MF-1 |
| PH09891 | TERMINAL HOLDER |
| PH30741 | TERMINAL LABEL MF-1 |
| MD07251 | TERMINAL SHIELD MF1 |
| 2323531R | TRS. 2SB740(B/C TYPE) |
| CF01891F | TRS. 2SC5413 |
| 2325715M | TRS.2SA933S (Q/R) |
| 2322521 | TRS.2SB649A (C TYPE) |
| 2323891 | TRS.2SD669A (C TYPE) |
| MA01493 | V-OUT HEAT SINK MF1 A1100P-H14 |
| 3875351 | WIRE CLAMP 18 |
| 2339153M | ZENER DIODE HZS12(C3L) |
| 2339952M | ZENER DIODE HZS27.2 TA |
| 2334315M | ZENER DIODE RD33E TAPE (B4) |
| 2331771M | ZENER HZ-3A1 TAPE |
| 2331795M | ZENER HZ-5 (B2 TAPE) SI 200MA |
| 2339861M | ZENER HZS-9 A1 |
| 2339826M | ZENER HZS4B3 TAPE |
| 2339847M | ZENER HZS6C1 TA |
| 2339852M | ZENER HZS7-A2 TA |
| 2339863M | ZENER HZS9A3 TA |
