Manufacturer
Hitachi
Model Number
50EX20B
Description
Projection Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 2334304 | #D906 |
| 2331827 | #D907 |
| 2331785 | #D973 |
| 2339693 | #D975 |
|
|

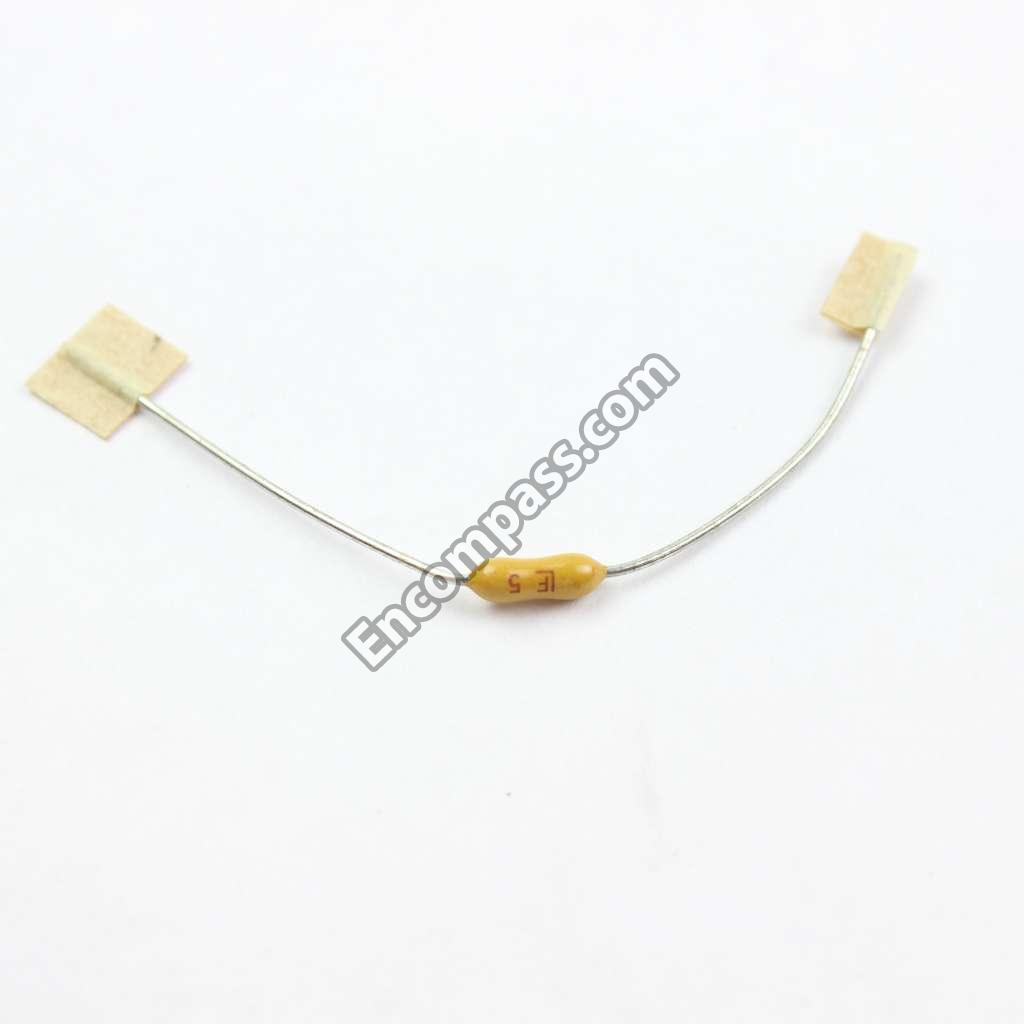

#F903 |
| 2373343 | #IC901 |
| 2973927S | 10J CONNE L=1000 |
| 2973957S | 11J CONNE L=1000 |
| ES00002 | 11P-PINJACK(S) |
| 2997977 | 1J MINI CONNE. L=910 |
| 4520885 | 3X16 SCREW WITH WASHER |
| 4159425 | 3X16 TAPPING WITH WASHER |
| H210621 | 4J CONNE. L=750 |
| 2666191 | 4P PLUG PIN WITH BASE |
| 2903544 | 4P PLUG PIN WITH BASE |
| H360954 | 50EX16B CARTON BOX |
| QD01328 | 50EX20B CABINET ASSY |
| 0649092 | 6 WASHER |
| 2973837S | 7J CONNE. L=1000 |
| 3875781 | ANODE CLAMPL90 |
| QR21011 | AP52-501 INSTRUCTION BOOK |
| QR21001 | AP52-511 INSTRUCTION BOOK |
| JT01802 | AP53 CONV CORR PWB ASSEMBLY |
| 4621121 | BELLOWS R |
| UE02683 | BLUE CRT |
| H461237 | BOARD MAP AP52 |
| H460353 | BRACEKT LABEL (B) |
| 4490723 | BRACKET G(D77) |
| H460351 | BRACKET LABEL (R) |
| 4490733 | BRACKET RB(D77) |
| 0244171R | CAP.-CERAMIC 0.01UF-Z F 50V TA |
| 0890089R | CAP.-CERAMIC 1500PF-K 50V |
| 0248688R | CAP.-CERAMIC 150PF-J SL 50V |
| 0243503R | CAP.-CERAMIC 150PF-K B 500V |
| 0890063R | CAP.-CERAMIC 15PF-J 50V |
| 0890116R | CAP.-CERAMIC 15PF-J CH 50V |
| 0890077R | CAP.-CERAMIC 180PF-K 50V |
| 0890081R | CAP.-CERAMIC 330PF 50V |
| 0243507R | CAP.-CERAMIC 330PF-K 500V TAPE |
| 0890028M | CAP.-CERAMIC 330PF-K B 50V |
| 0890067R | CAP.-CERAMIC 33PF-J 50V |
| 0890082R | CAP.-CERAMIC 390PF-K 50V |
| 0243509R | CAP.-CERAMIC 470PF-K 500V |
| 0890083R | CAP.-CERAMIC 470PF-K 50V |
| 0890084R | CAP.-CERAMIC 560PF-K 50V |
| 0247848R | CAP.-CERAMIC 56PF-J SL 500V |
| 0243511R | CAP.-CERAMIC 680PF-K 500V TAPE |
| 0800282R | CAP.-ELECTORO. 2.2UF-M(SMG) 50 |
| 0284436R | CAP.-ELECTRO 100UF-M 35V |
| 0285224 | CAP.-ELECTRO 2200UF-M 25V |
| 0253983F | CAP.-ELECTRO 33UF-M 350V |
| 0284621R | CAP.-ELECTRO. 0.47UF 50V (BP) |
| 0800048R | CAP.-ELECTRO. 100UF-M 10V |
| 0800331R | CAP.-ELECTRO. 100UF-M 63V |
| 0800329R | CAP.-ELECTRO. 100UF-M(SMG) 50V |
| 0800291 | CAP.-ELECTRO. 10UF-M(SMG) 16V |
| 0284638R | CAP.-ELECTRO. 10UF-SME(BP) 16V |
| 0258121R | CAP.-ELECTRO. 2.2UF-M 100V |
| 0800368N | CAP.-ELECTRO. 2200UF-M 25V |
| 0253934F | CAP.-ELECTRO. 2200UF-M 35V |
| 0284405R | CAP.-ELECTRO. 220UF-M 16V |
| 0253957F | CAP.-ELECTRO. 22UF-M 160V |
| 0800007 | CAP.-ELECTRO. 3.3UF-M 50V |
| 0800345R | CAP.-ELECTRO. 330UF-M(SMG) 25V |
| 0800347N | CAP.-ELECTRO. 330UF-M(SMG) 50V |
| 0800009 | CAP.-ELECTRO. 4.7UF-M 25V |
| 0800288R | CAP.-ELECTRO. 4.7UF-M(SMG) 50V |
| 0800321R | CAP.-ELECTRO. 47UF-M 50V |
| 0800317R | CAP.-ELECTRO. 47UF-M(SMG) 16V |
| 0284667R | CAP.-ELECTRO. 47UF-MBPR 16V |
| 0800363F | CAP.-ELECTRO. SMG1000UF-M 35V |
| 0880198R | CAP.-POLY. 0.22UF-J 50V (TF TY |
| 0880031R | CAP.-POLY.1000PF-K 50V |
| 0880041R | CAP.-POLYESTER 0.0056UF-KEB50V |
| 0299981F | CAP.-POLYESTER 0.01UF-J 630V |
| 0880051R | CAP.-POLYESTER 0.033UF-KEB 50V |
| 0299636F | CAP.-POLYESTER 0.068UF-J 1600V |
| 0880018R | CAP.-POLYESTER FILM 0.22UF-K |
| 0299932F | CAP.-POLYPRO. 0.33UF-K 200V |
| 0292714F | CAP.-TANTALUM 10UF-K 16V |
| 0244120R | CAPACITOR-CERAMIC 820PF-K B 50 |
| 0279859 | CAPACITOR-POLYESTER FILM 0.1UF |
| 0299720F | CAPACITOR-POLYPROPYLENE FILM 0 |
| H361071 | CARTON BOX 50 |
| 4491082 | CHASSIS PWB BKT FB2 |
| 4491061 | CHASSIS PWB BKT L1 |
| NA03131 | CHASSIS PWB BRACKET AP5 BB1 |
| NA03111 | CHASSIS PWB BRACKET AP5 CL1 |
| NA03101 | CHASSIS PWB BRACKET AP5 CR1 |
| NA03121 | CHASSIS PWB BRACKET AP5 FA1 |
| 3443361 | CHIELD PLATE AP33 A |
| BT00152 | COIL PT-EE45F15US |
| 2973631 | CONECTOR 3P |
| 2958351 | CONN. W/WIRE MINI 2J |
| 2958134 | CONN. W/WIRE MINI 4J (L1000) |
| 2993557 | CONN. W/WIRE MINI 4J (L1500) |
| 2993567 | CONN. W/WIRE MINI 5J (L1500) |
| 3446181 | CONV.HEAT SINK NSX1 |
| 4105241 | CONV.IC SUPPORT BK |
| 3855435 | CONVERGENCE SHIELD |
| 4966347 | CONVERGENCE WARNING LABEL AP |
| ED00516 | CP-TAC-L20P-A1 |
| ED00576 | CP-TAC-L20X-A1 |
| H310666 | DECO RAIL 50EX R/L |
| 2339892M | DIODE (HZS15-2TA) |
| 3872182 | FBT HOLDER PT A2 |
| 3446171 | FOCUS IC HEAT SINK |
| NT00475 | FRAME ASSEMBLY 50EX |
| H420512 | FRAME RETAINING BRACKET |
| 3189767 | FRESNEL SHEET UV2 MAXUS50D |
| 3189774 | FRONT SHEET AP32-50 |
| 4663281 | FTC LABEL |
| H310924 | GRILL, SPEAKERS |
| 3335321 | GROUNDING SPRING |
| 3332021 | GX EARTH SPRING |
| 3442071 | HEAT SINK (H) |
| 3442083 | HEAT SINK (V) AP53 |
| 3446477 | HEAT SINK H60P10 |
| PU00161 | HITACHI BADGE |
| 3816691 | HOLDER G9 LED |
| 2260291 | HORIZONTAL DRIVE TRANS. |
| 3810112 | HP BELLOWS STAY |
| KL00051 | IC SPRING |
| 3875441 | LEAD CLAMPER |
| 3813121 | LEAD CLAMPER 2135 PA |
| 4491961 | LENS PLATE(AP32) |
| 4618771 | LENS SEAL P |
| BZ00318 | LINEARITY COIL 50UH-W |
| 4526322 | M8X10 SEAL SCREW |
| 0880012R | MYLAR CAPACITOR 0.022U |
| 3733243 | NP3 LEAD CRAMP (V0) |
| 4618311 | O RING (P9) |
| 4738241 | ORING PRTX |
| OG-50EX20B | OWNERS GUIDE (E) |
| QR21012 | OWNERS MANUAL 50EX20B/60EX38B |
| 4618321 | PAD RUBBER |
| 3782714 | PCB SUPPORT 10S |
| H420542 | PIN MOUNTING BRACKET |
| 2959056 | PIN POST(7P) |
| 2902269 | PLUG PIN SUB MINI10P |
| MA00551 | POWER HEAT SINK AP5X A |
| JT01762R | POWER/DEFLECTION PW BOARD AP52 |
| 0119839M | RES. MTL OXIDE FLM 0.56-J 1W |
| 0187098M | RES.-CARBON FLM 1/16W 24K-JB |
| 0187076M | RES.-CARBON FLM 1/16W 3.0K-JB |
| 0700022M | RES.-CARBON FLM 1/16W 39-J |
| 0700023 | RES.-CARBON FLM 1/16W 47-J |
| 0187082M | RES.-CARBON FLM 1/16W 5.1K-JB |
| 0700024M | RES.-CARBON FLM 1/16W 56-J |
| 0187086M | RES.-CARBON FLM 1/16W 7.5K-JB |
| 0113729M | RES.-CARBON FLM 1/2W 150-JB |
| 0113686M | RES.-CARBON FLM 1/2W 2.7-J |
| 0113692 | RES.-CARBON FLM 1/2W 4.7-J |
| 0113696 | RES.-CARBON FLM 1/2W 6.8-J |
| 0113698M | RES.-CARBON FLM 1/2W 8.2-J |
| 0114135M | RES.-CARBON FLM 1/4W 150-JB |
| 0114141M | RES.-CARBON FLM 1/4W 270-JB |
| 0114143M | RES.-CARBON FLM 1/4W 330-JB |
| 0100069M | RES.-CARBON FLM 1/8W 1.5K-JB |
| 0100089M | RES.-CARBON FLM 1/8W 10K-JB |
| 0100115M | RES.-CARBON FLM 1/8W 120K-JB |
| 0100121M | RES.-CARBON FLM 1/8W 220K-JB |
| 0100051M | RES.-CARBON FLM 1/8W 270-JB |
| 0100053M | RES.-CARBON FLM 1/8W 330-JB |
| 0100127M | RES.-CARBON FLM 1/8W 390K-JB |
| 0100085M | RES.-CARBON FLM 1/8W 6.8K-JB |
| 0100038M | RES.-CARBON FLM 1/8W 75-JB |
| 0100087M | RES.-CARBON FLM 1/8W 8.2K-JB |
| 0100039M | RES.-CARBON FLM 1/8W 82-JB |
| 0119722 | RES.-METAL OXIDE FILM 1.0-JB/W |
| 0119732M | RES.-METAL OXIDE FILM 1.2-JB |
| 0119688 | RES.-MTL FLM 1W 0.22-JB |
| 01195125 | RES.-MTL FLM RN1/4P 1.0-JF |
| 0110145S | RES.-MTL OXIDE FLM 1.0K-JS |
| 0110151S | RES.-MTL OXIDE FLM 1.8K-JS |
| 0110121S | RES.-MTL OXIDE FLM 100-JS |
| 0110101 | RES.-MTL OXIDE FLM 1W 15-JS |
| 0110229 | RES.-MTL OXIDE FLM 220-J |
| 0110129S | RES.-MTL OXIDE FLM 220-JS |
| 0110229S | RES.-MTL OXIDE FLM 220-JS |
| 0110132S | RES.-MTL OXIDE FLM 300-JS |
| 0110135S | RES.-MTL OXIDE FLM 390-JS |
| 0110365S | RES.-MTL OXIDE FLM 3U 6.8K-JS |
| 0110265S | RES.-MTL OXIDE FLM 6.8K-JS |
| 0150114 | RES.-VARIABLE RV6 10K-B |
| 0150110 | RES.-VARIABLE RV6 500-B |
| 0147152 | RES.-WIRE WOUND 3W 27-JA |
| 0113717M | RESISTOR CARBON FILM SRD1/2P-B |
| 0113701M | RESISTOR CARBON FILM SRD1/2P-B |
| 0113716M | RESISTOR CARBON FILM SRD1/2P-B |
| 0113725M | RESISTOR CARBON FILM SRD1/2P-B |
| 0113766M | RESISTOR CARBON FILM SRD1/2P-B |
| 0113770M | RESISTOR CARBON FILM SRD1/2P-B |
| 0113776M | RESISTOR CARBON FILM SRD1/2P-B |
| 0150111 | RESISTOR VARIABLE RV6 1K-B |
| 0114139M | RESISTOR-CARBON FILM SRD 1/4 P |
| 0114149M | RESISTOR-CARBON FILM SRD 1/4 P |
| 0114165M | RESISTOR-CARBON FILM SRD 1/4 P |
| 0114177M | RESISTOR-CARBON FILM SRD 1/4 P |
| 0114213M | RESISTOR-CARBON FILM SRD 1/4 P |
| 0110351S | RESISTOR-METAL OXIDE FILM 1.8K |
| 4531761 | SCREEN 3X16 TAPPING W/S-WASHER |
| H810181 | SCREW 4.1X16 CROSS HEAD WOOD |
| 4518772 | SCREW3X12TAPPINGWITHWSRSTEEL |
| SM-PA0082 | SERVICE MANUAL |
| SM-50EX20B | SERVICE MANUAL KIT |
| 4967922 | SERVICE WARNING LABEL 1 AP |
| 3443352 | SHIELD CASE AP53 A2 |
| 3855434 | SHIELD PLATE-CONVERGENCE |
| 63200246 | SMALL SOLAR GRILLE CUP |
| 3442022 | SOUND HEAT SINK 2CH |
| NA03281 | SP PWB SUPPORT BKT AP5 A |
| T-50PS | SUPER SHIELD |
| JT01782 | SURROUND PWB ASSEMBLY AP52 |
| 3872502 | TREELOK FASTENER 2 |
| 2429691 | TUNER |
| 4911633 | WARNING LABEL AP31/32 |
| 2781697 | YC20A INSULATION WASHER |
| 2331797M | ZENER DIODE HZ-5 TAPE (C1) |
| 2335042M | ZENER HZ-22 (2L TP) |
| 2339983M | ZENER HZS36-3 TA |
| 2339696 |
