Manufacturer
Hitachi
Model Number
50V500
Description

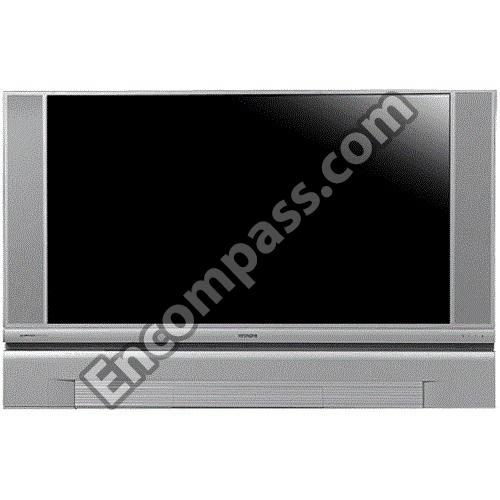

Lcd Projection Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| AN01631F | 1000PF1500VMETALLIZ POLYPROPYLENE FILM CAPA [C925] |
| AT03897M | 100KOHM 1/2W RDS50 CARBON FILM RESISTOR [R905] |
| AT03886M | 15KOHM 1/2W RDS50 CARBON FILM RESISTOR [R985] |
| AT03871M | 1KOHM 1/2W RDS50 CARBON FILM RESISTOR [RAC4] |
| KS06583 | 1ST MIRROR 50V500 |
| AT03879M | 4.7KOHM 1/2W RDS50 CARBON FILM RESISTOR [R980] |
| AT03853M | 47.0OHM 1/2W RDS50 CARBON FILM RESISTOR [R938] |
| BH01729 | 7312N TYPE COIL 47UH 1.62A [L925] |
| AT03869M | 820OHM 1/2W RDS50 CARBON FILM RESISTOR [R969] |
| KQ03321 | ACCESS LED LENS V50 |
| CP08281U | ANALOG MONOLITHIC IC NJW2137D [IM01] |
| CK37051R | ANALOG MONOLITHIC IC(BD4729G) [I002] |
| PH32971 | BOTTOM RAIL 50V500 [#300] |
| 0893232R | CAP 1608CHIP 100000PFZF25V TAPE [C013] |
| 0893239R | CAP 1608CHIP 10000PFZF 50V TAPE [C015] |
| 0893208R | CAP 1608CHIP 1000PFKB 50V TAPE [C001] |
| 0893126R | CAP 1608CHIP 100PFJCH 50V TAPE [CC11] |
| 0893115R | CAP 1608CHIP 15PFJCH 50V TAPE [CC35] |
| 0893118R | CAP 1608CHIP 27PFJCH 50V TAPE [CE04] |
| 0893217R | CAP 1608CHIP 4700PFKB 50V TAPE [CA04] |
| 0893205R | CAP 1608CHIP 560PFKB 50V TAPE [C050] |
| 0893222R | CAP 1608CHIP10000PFKB 50V TAPE [C076] |
| 0800328R | CAP. ELECTRO. 100UF-M 35V [CAA7] |
| 0890087R | CAP.-CERAMIC 1000PF-K 50V [C963] |
| 0890074 | CAP.-CERAMIC 100PF-J 50V [CM29] |
| 0244105-2 | CAP.-CERAMIC 2200PF-K 50V TAPE [C928] |
| 0890078 | CAP.-CERAMIC 220PF-K 50V [CM27] |
| 0243511R | CAP.-CERAMIC 680PF-K 500V TAPE [C943] |
| 0890085R | CAP.-CERAMIC 680PF-K 50V [C927] |
| 0800279R | CAP.-ELECTORO. 1.0UF-M(SMG) 50V [C051] |
| 0800282R | CAP.-ELECTORO. 2.2UF-M(SMG) 50V [C002] |
| 0800361N | CAP.-ELECTRO 1000UF 16V [C959] |
| 0258616 | CAP.-ELECTRO 2.2UF-M 50V [CAE3] |
| 0800337R | CAP.-ELECTRO 220UF 35V (SMG TY PE) [C922] |
| 0800346R | CAP.-ELECTRO 330UF 35V [C962] |
| 0800359R | CAP.-ELECTRO. 1000UF-M 10V [C935] |
| 0800363N | CAP.-ELECTRO. 1000UF-M 35V [C937] |
| 0800358R | CAP.-ELECTRO. 1000UF-M 6.3V [CJ05] |
| 0800325R | CAP.-ELECTRO. 100UF-M 10V [CM17] |
| 0800326R | CAP.-ELECTRO. 100UF-M 16V [C014] |
| 0800294R | CAP.-ELECTRO. 10UF-M(SMG) 50V [C004] |
| 0284638R | CAP.-ELECTRO. 10UF-SME(BP) 16V [CA01] |
| 0284824F | CAP.-ELECTRO. 2200UF 35V [CAC8] |
| 0800334R | CAP.-ELECTRO. 220UF 10V [C971] |
| 0800303R | CAP.-ELECTRO. 22UF-M 50V [C027] |
| 0800344R | CAP.-ELECTRO. 330UF-M(SMG) 16V [C547] |
| 0800318R | CAP.-ELECTRO. 47UF-M 25V [CAA1] |
| 0800319R | CAP.-ELECTRO. 47UF-M 35V [C942] |
| 0800352R | CAP.-ELECTRO.470UF 10V [C091] |
| 0800353R | CAP.-ELECTRO.470UF-M 16V [C591] |
| 0880039 | CAP.-POLYESTER 0.0047UF-KEB50V [CM04] |
| 0880042R | CAP.-POLYESTER 0.0068UF-KEB50V [C986] |
| 0880044 | CAP.-POLYESTER 0.01UF-KEB 50V [C949] |
| 0880053R | CAP.-POLYESTER 0.047UF-KEB 50V [C982] |
| 0880194R | CAP.-POLYESTER 0.1UF-J 50V [C924] |
| 0279693R | CAP.-POLYESTER FLM 0.1UF [C968] |
| 0893179R | CAP.CHIP-CERAMIC 100000PF 16V TAPE [C005] |
| AL01153S | CAP.ELECTR. 1000UF-M 35V [C945] |
| 0800338R | CAP.ELECTRO.220UF-M 50V(SMG) [C947] |
| 0880181R | CAP.METAL-POLY.FLM 0.01UF 50V [CAE1] |
| 0893213R | CAP1608CHIP 2200PFKB 50V TAPE [C023] |
| AA01111R | CERAMIC CAPACITOR(1.0UF 6.3V) [C031] |
| AA01101R | CERAMIC CAPACITOR(1UF 10V-F) [C032] |
| 0893186R | CERAMIC CAPACITOR(33000PF 16V) [CA03] |
| 0893188R | CERAMIC CAPACITOR(47000PF 16V) [CA64] |
| GX00662 | CLAMP FERRITE CORE K5B RC 16X28X9-M2(BLACK) [LCD] |
| GX00661 | CLAMP FERRITE CORE KCF-130-B(BLACK) [LPL] |
| EV01841 | COD VM0284-212-C-LM [E999] |
| BH00675R | COIL 2.2UH [LE02] |
| BH01341M | COIL FERRITE BEADS 0.8UH [L915] |
| PH33177 | CONTROL DOOR |
| PH33165 | CONTROL PANEL V500 [#100] |
| BP01311R | CSTLS16M0X [X001] |
| PH32871 | DECO PLATE ANT DP37 [#081] |
| CK37121R | DIGITAL MONOLITHIC IC (LVDS) [I701] |
| CH02001M | DIODE 1SR139-400 [D401] |
| CH02011M | DIODE 1SR153-400 [D908] |
| 2344041M | DIODE 1SS254TA/1SS270TA [D002] |
| 2337341M | DIODE 1SS270A (TP) [D916] |
| CC10721R | DIODE CHIP DA204K-TPTX [DJ01] |
| 2342061 | DIODE D3SB(A)60. [D904] |
| 2334832M | DIODE EK04V1 [D927] |
| CH01091M | DIODE EL1 (350V) [D923] |
| 2337951S | DIODE RU4Z(LF015-302) [D924] |
| CH00051 | DIODE SD-S1WB(A)60B (600V) [D902] |
| CC00003R | DIODE.CHIP 1SS355 [D609] |
| FH00171 | DOOR AND LAMP SWITCH SSCTA11900 [SS01] |
| AJ00832 | ERZV10D241 [X901] |
| UX21521 | FAN FBA09A12L-LC3X |
| 2125811N | FILT.COIL(LHL08 100UH) [L923] |
| 2125797N | FILT.COIL(LHL08 10UH) [L919] |
| 2125803N | FILT.COIL(LHL08 27UH) [L934] |
| 2125806N | FILT.COIL(LHL08 47UH) [L905] |
| BH00697R | FILTER COIL 100UH [L001] |
| 2123781R | FILTER COIL 100UH(EL0607) [L002] |
| NT03101 | FRAME ASSY |
| PH32981 | FRONT COVER 50V500 [#410] |
| PH33041 | FRONT TRIM |
| FN00472 | FUSE 51MS 040 L 125V 4A [F904] |
| FN00374 | FUSE 51MS 060 L 125V 6A [F901] |
| CS00761 | HCM001 ASY(BRIDGE MEDIA) [UBM1] |
| CK01172R | HD74HC221FPEL [I011] |
| CZ00868 | HYBRID IC (STR-F6668B) [I901] |
| CK01872R | IC BU4053BCFV-E2 [I004] |
| CK35895R | IC CAT24WC02J1 [IJ05] |
| CK35893R | IC CAT24WC16J1 [I007] |
| CK35894R | IC CAT24WC32J1 [I003] |
| CK31071R | IC CXA1875AM [I005] |
| CZ01161 | IC GP1UM281QK [HM02] |
| CZ01171 | IC GP1UM281RK [HM01] |
| CP08261U | IC H11A817B-300W [I902] |
| 2004752 | IC IAA2 (TA8200AH) |
| CK39571U | IC M306V7MH-XXXFP TV MICON [I001] |
| CK39301R | IC MM1096AFFE [I012] |
| CK38491R | IC MM74HCT245MTCX [I010] |
| CK38621R | IC NJM1160M-TE1 [IA01] |
| CK33801R | IC NJM2068F [IA02] |
| CP06541F | IC REG.(SI-3033C) [I403] |
| CP05163F | IC SI-3090F [I504] |
| CK35163R | IC SII907BCQ52 [IJ03] |
| CP08301 | IC STA821M [I909] |
| PH33511 | INDOOR PLT LC3X MC [#112] |
| EY01641 | IR MOUSE CABLE |
| UX21511 | LAMP ASSY |
| NJ08172 | LAMP DUCT ASSEMBLY |
| HA01232 | LAMP POWER UNIT [NA002] |
| X480263R | LC37 AUDIO PWB ASSY |
| UE22341 | LC37 CHASSIS ASY [A011] |
| JP06781 | LC37 DRIVE PWB ASY |
| JT24251R | LC37 DVI PWB ASY |
| JT24161 | LC37 POWER PWB ASY |
| JT24151R | LC37 TERMINAL PWB ASY [A021] |
| CH02673R | LED SM3517F6T (GREEN ) [D913] |
| UX22201DR | LIGHT ENGINE |
| BZ04581 | LINE FILTER 4.7MH 3.5A [L904] |
| BZ05691 | LINE FILTER 7.5MH [L901] |
| PH33441 | LO CABI COVER F V500 [#750] |
| QD36151 | LOW CABINET |
| QD36154 | LOW CABINET 50V500 [#100] |
| QD36551 | LOW REAR COVER 50V500 [#300] |
| JT24163R | LPOWER PWB ASY |
| GX00405 | MAG 2436-1330A CORE 13 [L999] |
| GX00403 | MAGNET FERRITE CORE [EZ10] |
| AT03179S | METAL OX. 0.47OHM 1W [R933] |
| AT03186S | METAL OX. 0.82OHM 1W [R949] |
|
|
METAL OX. 1.2OHM 1W [R950] |
| QD36143 | MIRROR COVER 50V500 [#100] |
| CK37406R | MONO IC SI-3012KS [I402] |
| CK37191R | MONO IC SI-3018LSA-TL [I705] |
| CK37193R | MONO IC SI-3033LSA-TL [I704] |
| CK37212R | MONO IC TK11125CSCL [I404] |
| CK37216R | MONO IC TK11133CSCL [I009] |
| UX22201D | OPTICAL ENGINE (WITH DRIVE AND FC4 BOARDS) |
| OG-50V500 | OWNERS MANUAL (50/60V500) |
| AN02085S | PLASTIC FILM CAP.CQ-224K251PVS-LE [C901] |
| BT02201 | POWER TRANSFORMER (LC37) [T901] |
| AZ00421M | PROTECTOR 491010T52 [E901] |
| AZ00102M | PROTECTOR(CRXT491001) [EAG1] |
| FE10402R | PUSH SWITCH SKQNAB [SM01] |
| FJ00142 | RELAY ALKS329 [S901] |
| HL01829 | REMOTE CONTROL (CLU-5729TSI) |
| 0700041 | RES.-CARBON FLM 1/16W 1.0K-JB [R940] |
| 0700043M | RES.-CARBON FLM 1/16W 1.5K-JB [R939] |
| 0700044M | RES.-CARBON FLM 1/16W 1.8K-JB [R979] |
| 0700027M | RES.-CARBON FLM 1/16W 100-JB [RAA1] |
| 0700067M | RES.-CARBON FLM 1/16W 100K-JB [RM59] |
| 0700054 | RES.-CARBON FLM 1/16W 10K-JB [R947] |
| 0700055M | RES.-CARBON FLM 1/16W 12K-JB [R941] |
| 0700029 | RES.-CARBON FLM 1/16W 150-JB [RM56] |
| 0700056M | RES.-CARBON FLM 1/16W 15K-JB [R944] |
| 0700045M | RES.-CARBON FLM 1/16W 2.2K-JB [R956] |
| 0700046 | RES.-CARBON FLM 1/16W 2.7K-JB [R958] |
| 0700032M | RES.-CARBON FLM 1/16W 220-JB [R986] |
| 0700033Q | RES.-CARBON FLM 1/16W 270-JB [RM62] |
| 0700059M | RES.-CARBON FLM 1/16W 27K-JB [RM43] |
| 0700047 | RES.-CARBON FLM 1/16W 3.3K-JB [R943] |
| 0700036M | RES.-CARBON FLM 1/16W 470-JB [R993] |
| 0700063M | RES.-CARBON FLM 1/16W 47K-JB [R963] |
| 0700064 | RES.-CARBON FLM 1/16W 56K-JB [RM23] |
| 0700052M | RES.-CARBON FLM 1/16W 6.8K-JB [R996] |
| 0700038 | RES.-CARBON FLM 1/16W 680-JB [R937] |
| 0700065M | RES.-CARBON FLM 1/16W 68K-JB [RAC2] |
| 0100041M | RES.-CARBON FLM 1/8W 100-JB [RM20] |
| 0100113M | RES.-CARBON FLM 1/8W 100K-JB [RAA6] |
| 0100065M | RES.-CARBON FLM 1/8W 1K-JB [RM04] |
| 0100121M | RES.-CARBON FLM 1/8W 220K-JB [RM57] |
| 0100123M | RES.-CARBON FLM 1/8W 270K-JB [RM25] |
| 0100059M | RES.-CARBON FLM 1/8W 560-JB [R970] |
| 0790037R | RES.CHIP 1/16W 1.0K OHM [R001] |
| 0790077R | RES.CHIP 1/16W 1.0M OHM [R134] |
| AQ00196R | RES.CHIP 1/16W 1.2K OHM TAPE [RC43] |
| 0790038R | RES.CHIP 1/16W 1.2K OHM [R127] |
| 0790039R | RES.CHIP 1/16W 1.5K OHM [RJ15] |
| 0790041R | RES.CHIP 1/16W 1.8K OHM [R301] |
| 0790011R | RES.CHIP 1/16W 10 OHM [R758] |
| 0790024R | RES.CHIP 1/16W 100 OHM [R006] |
| 0790064 | RES.CHIP 1/16W 100K OHM [R142] |
| AQ00221R | RES.CHIP 1/16W 10K OHM TAPE [RC30] |
| 0790051R | RES.CHIP 1/16W 10K OHM [R010] |
| 0790052R | RES.CHIP 1/16W 12K OHM [R305] |
| AQ00172R | RES.CHIP 1/16W 150 OHM TAPE [RJ09] |
| 0790026R | RES.CHIP 1/16W 150 OHM [RE06] |
| 0790053R | RES.CHIP 1/16W 15K OHM [R585] |
| AQ00203R | RES.CHIP 1/16W 2.2K OHM TAPE [RC29] |
| 0790042R | RES.CHIP 1/16W 2.2K OHM [R020] |
| AQ00205R | RES.CHIP 1/16W 2.7K OHM TAPE [RC22] |
| 0790043R | RES.CHIP 1/16W 2.7K OHM [R208] |
| 0790028R | RES.CHIP 1/16W 220 OHM [R083] |
| AQ00229R | RES.CHIP 1/16W 22K OHM TAPE [R406] |
| 0790055R | RES.CHIP 1/16W 22K OHM [R016] |
| 0790069R | RES.CHIP 1/16W 270K OHM [R295] |
| 0790056R | RES.CHIP 1/16W 27K OHM [R593] |
| 0790044R | RES.CHIP 1/16W 3.3K OHM [R181] |
| 0790045R | RES.CHIP 1/16W 3.9K OHM [R386] |
| 0790017R | RES.CHIP 1/16W 33 OHM [R705] |
| 0790031R | RES.CHIP 1/16W 330 OHM [R267] |
| AQ00234R | RES.CHIP 1/16W 33K OHM TAPE [R413] |
| 0790057R | RES.CHIP 1/16W 33K OHM [R187] |
| AQ00183R | RES.CHIP 1/16W 390 OHM TAPE [RJ43] |
| 0790058R | RES.CHIP 1/16W 39K OHM [R178] |
| AQ00212R | RES.CHIP 1/16W 4.7K OHM TAPE [RC23] |
| 0790046R | RES.CHIP 1/16W 4.7K OHM [R139] |
| AQ00185R | RES.CHIP 1/16W 470 OHM TAPE [RC15] |
| 0790033R | RES.CHIP 1/16W 470 OHM [R133] |
| 0790059R | RES.CHIP 1/16W 47K OHM [R002] |
| 0790047R | RES.CHIP 1/16W 5.6K OHM [R032] |
| 0790021R | RES.CHIP 1/16W 56 OHM [R277] |
| AQ00187R | RES.CHIP 1/16W 560 OHM TAPE [RC17] |
| 0790034R | RES.CHIP 1/16W 560 OHM [R072] |
| AQ00241R | RES.CHIP 1/16W 56K OHM TAPE [R404] |
| 0790061R | RES.CHIP 1/16W 56K OHM [R367] |
| 0790048R | RES.CHIP 1/16W 6.8K OHM [RC37] |
| 0790035R | RES.CHIP 1/16W 680 OHM [R310] |
| AQ00164R | RES.CHIP 1/16W 75 OHM TAPE [RJ10] |
| AQ00218R | RES.CHIP 1/16W 8.2K OHM TAPE [R405] |
| AQ00192R | RES.CHIP 1/16W 820 OHM TAPE [RC59] |
| 0790063R | RES.CHIP 1/16W 82K OHM [RA53] |
| AT03665M | RES.MTL GRAZD FLM 1/2W 1M [R942] |
| AT03672M | RES.MTL GRAZD FLM 1/2W 3.3M [R901] |
| AT03676M | RES.MTL GRAZD FLM 1/2W 6.8M [R945] |
| KR03131 | SCREEN ASSY |
| JT24141R | SIGNAL PWB ASY |
| GK00557 | SP-06X12D 12W [U402] |
| GK01221 | SP-10CM C100RB510-10 [U403] |
| GK00911 | SPEAKER |
| EU00841 | TAP-S.JACK [JM01] |
| FH00051U | THERMAL SWITCH [S001] |
| CF02771R | TRS. KTA1270 [Q018] |
| CF01421R | TRS. KTC3198 (GR) TAPE [Q902] |
| CA01261R | TRS.CHIP 2SA1980S [Q009] |
| CA01271R | TRS.CHIP 2SC5343S [Q001] |
| CA00461R | TRS.CHIP 2SD2114K 20V TAPE [QA01] |
| CA01301R | TRS.CHIP NDC7002N [I605] |
| HC00515 | TUNER F/E ENGE6106DR [U301] |
| CW00352 | U901 |
| PU00801 | ULTRAVISION BADGE [#130] |
| AT04371 | W/WRE-R62K15W AKANE [R902] |
| NJ08062 | WOOFER BAFFLE L V500 |
| NJ08061 | WOOFER BAFFLE R V500 |
| 2331809M | ZENER DIODE HZ-6 TAPE (C3) SI 500MW [D026] |
| 2339022M | ZENER DIODE HZS6B2L TAPE [D963] |
|
|
ZENER DIODE RD36E TAPE (B3) SI 500MW 36V [D960] |
| 2331771M | ZENER HZ-3A1 TAPE [DA51] |
| 2331844M | ZENER HZ12-B1 [D961] |
| 2331849M | ZENER HZ12C3 (TA) SI 500MW [D010] |
| 2331815M | ZENER HZ7-B2 [DM12] |
| 2339836M | ZENER HZS-5 B3 [D9A8] |
| 2339887 | ZENER HZS12C1 TA [D972] |
| 2339971M | ZENER HZS33-1 TA [D027] |
| 2339816M | ZENER HZS3B3 TAPE [D971] |
| 2339822M | ZENER HZS4A2 TA [D9A9] |
| 2339847M | ZENER HZS6C1 TA [D964] |
| 2339857M | ZENER HZS7C1 SI [D968] |
