Manufacturer
Hitachi
Model Number
60SDX88B
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 2997971 | 1P CONNE L=450 |
| BJ00402 | 30MHZ BAND PASS LC FILTER 87F |
| CS00192 | 3DYC-PINP UNIT ASY(HC3152) |
| ES00132 | 5PJACK |
| H312181A | 60SDX HD MODE CONVERGENGE JIG |
| H311233 | 60SDX88B DECO FRAME (AP86) |
| QR27771 | 60SDX88B-511 INST.BOOK #1 |
| ES00133 | 6PJACK |
| AL00952S | ALUMINIUM ELECTROLYTIC CAPACI |
| CK08521R | ANALOG MONOLITHIC IC (BA7657F- |
| CP05141 | ANALOG MONOLITHIC IC (PQ6RD08 |
| CP04712U | ANALOG MONOLITHIC IC (TA1276A |
| CP04232 | ANALOG MONOLITHIC IC BA033T |
| H311871 | BADGE PLATE |
| UE04516 | BLUE CRT |
| EF08791 | C0-03C-C2R5S451 VM |
| 0299973F | CAP.-POLYPROPYLENE 0.0022MF 6 |
| 0284292 | CAP.ELECTRO 330UF-M 250V(KMH) |
| 0251709 | CAP.ELECTRO 680UF 160V (KMH) |
| AN00622R | CAP.POLYESTER 0.0068UF 50V TA |
| 0299975F | CAPACITOR-POLYPROPYLENE 0.003 |
| 81003011 | CASTER |
| 4336491 | CASTER, METAL |
| H311862 | CENTER SP GRILL MESH ASSY (60 " |
| GK00291 | CENTER SPEAKER |
| 2786681 | CERAMIC OSCILLATOR 500KHZ |
| EF08811 | CO-01C-F 0R0-351-1015 |
| EF06332 | CO-03C-C5R0-122 LOCK |
| EF08461 | CO-04C-C2R5-681 LOCK |
| EF08251 | CO-04C-C5R0-122 LOCK |
| EF08281 | CO-05C-C2R5-102 LOCK |
| EF08291 | CO-06C-C2R5-122 LOCK |
| EF08301 | CO-07C-C2R5-102 LOCK |
| EF08311 | CO-08C-C2R5-102 LOCK |
| EF08321 | CO-09C-C2R5-102 LOCK |
| EF08711 | CO-11C-C2R5S102 |
| BH00675R | COIL 2.2UH |
| BH00679R | COIL 4.7UH |
| BH00681R | COIL 5.6UF |
| BH00694R | COIL 56UH |
| BH00682R | COIL 6.8UH |
| 2908881 | CONNE. 10P L=560 |
| 2908761 | CONNE. 6P L=560 |
| PH04453 | CONTROL PANEL |
| H310355 | CONVERGENCE TEMPLATE (60) |
| EY00601 | CRT SOCKET |
| CS00224 | DCU(2112) |
| CP05261U | DIGITAL MONOLITHIC IC (M62392P |
| 2344072 | DIODE ERC20M-08(800V) |
| 2348182M | DIODE MTZ-J11B |
| 2348273M | DIODE MTZ-J27CTA |
| 2348292M | DIODE MTZ-J33BTA |
| 2335981M | DIODE RM11C (V) |
| 2337361F | DIODE RU4D LF-20 |
| JT08691 | DP 86 TERMINAL PCB |
| JT08871 | DP86 AUDIO OUT PWB ASY |
| UE05111 | DP86 CHASSIS ASY |
| UE05141 | DP86 CONTROL B.ASY |
| JT08711 | DP86 CPT/VM PWB ASY(TOP END) |
| JT08671 | DP86 POWER PWB ASY(TOP END) |
| JT08661R | DP86 SIGNAL PWB ASY(TOP END) |
| JT08701 | DP86 SURROUND PWB ASY(TOP END |
| X480230 | DP86/V CONTROL PWB |
| BH00211R | FILTER COIL 56UH |
| CS00185R | FLEX CONT.UNIT ASY(HC5125) |
| UE04515 | GREEN CRT |
| BZ02582 | H. LINEARITY COIL 3UH |
| CP05571 | IC BA17805 |
| CP05572 | IC BA17809 |
| CZ01341 | IC IK04, IK05/USE SON 8- |
| CP03924F | IC SI-8120S |
| CZ00751U | IC UPC1885 |
| CP06808U | IC-MN102L35GHA1 |
| CZ00761U | LA7846N |
| 2123107M | LAL02 AXIAL COIL 22UH-K |
| BZ02583 | LINEARITY COIL 3UH |
| GX00193 | MAG-VM(C-C) 36.5 4.5U |
| AT01547S | METAL RESISTOR |
| AN01178F | METALLIZ POLYPROPYLENE FILM C |
| NA40731 | POWER PWB SUPPORT BRACKET DP86 |
| KR01572 | PROTECTIVE SCREEN |
|
|
PROTECTOR(CRXT491005) |
| QD04113 | REAR CABINET |
| UE04514 | RED CRT |
| CZ00523 | REMOTE RECEIVER |
| 0188151M | RES.-CARBON FLM 33K-J 1/2W |
| 0188165M | RES.-CARBON FLM 390K-J 1/2W |
| 0119639M | RES.-MTL FLM 1/8W 22K-FB |
| 0119653M | RES.-MTL FLM 1/8W 82K-FB |
| 0148052 | RES.-WIRE WOUND 0.68-K 3W |
| AT01118S | RES.MTL OXIDE FLM 1W 2.2K OHM |
| AT00332S | RES.MTL OXIDE FLM 3W 100 OHM |
| AT00338S | RES.MTL OXIDE FLM 3W 180 OHM |
| 0147702 | RES.WIRE WOUND 10W 0.47 OHM |
| 0113805M | RESISTOR CARBON FILM SRD1/2P-B |
| 32110063 | RIGHT SPEAKER GRILLE |
| KR00631 | SCREEN ASS'Y |
| NT00954 | SCREEN FRAME 60SDX88B |
| SM-PA0113 | SERVICE MANUAL 60SDX88B |
| FT00011 | SOLAR BATTERY(AM3011) |
| 32110064 | SPEAKER GRILL , LFT |
| HP00771 | SWITCH, ANTENNA |
| 2312282 | TRS 2SC4160(M) |
| 2312773F | TRS-2SA1546(2)M/L |
| 2326811 | TRS-2SC3468 |
| CF01881R | TRS. 2SA1283 E |
| CF01871R | TRS. 2SC3243 E |
| CF01891F | TRS. 2SC5413 |
|
|

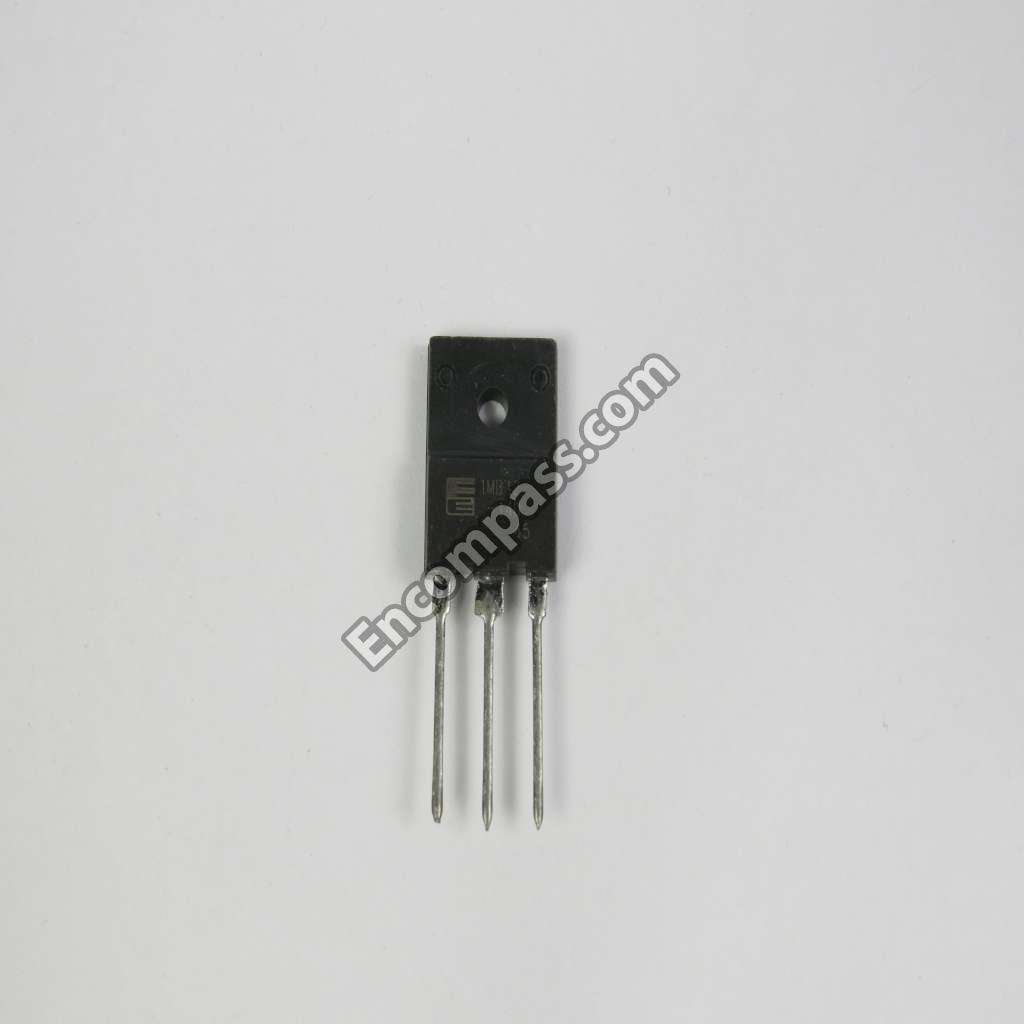

TRS. ST-1MB12-140 |
| 2327471 | TRS.2SC3950 (HIT D/E) |
| 2429691 | TUNER (V8-A68FT) |
| GK00281 | TWEETER |
| H311851 | ULTRA DIGITAL BADGE |
| PU00172 | ULTRAVISION BADGE (SILVER) |
| 2272941 | V DRIVE TRANS |
| BY01221 | YOKE ( SAME FOR ALL 3 TUBES) |
| 2348101M | ZENER MTZJ-5.1A TA |
