Model Image
Manufacturer

GE

Model Number

14788W0

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB2X9007 WB2X9007 AIR SHUTTER
WB2X9014 WB2X9014 AIR SHUTTER
WB2X7909 WB2X7909 ANTI-TIP RANGE KIT
WB49X631 WB49X631 BAFFLE
WB49X630 WB49X630 BAFFLE
WB8X5102 WB8X5102 BALLAST
WB2K5271 WB2K5271 BASE ASM
WB2X9003 WB2X9003 BKT-IGNITER
WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB63K5194 WB63K5194 BODY SIDE-TEXTURED
WB2X9389 WB2X9389 BRACKET
WB2X9155 WB2X9155 BRACKET
311689 311689 BRACKET-IGN
WB2X9272 WB2X9272 BRKT-CLOCK
WB49T10004 WB49T10004 BROIL BAFFLE
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB2X9385 WB2X9385 BUMPER **NLA*
WB53T10003 WB53T10003 BURNER BOX
WB28X88 WB28X88 BURNER-BROIL
WB28X112 WB28X112 BURNER-FRNT
WB28X89 WB28X89 BURNER-OVEN
WB2X9103 WB2X9103 BUSHING
WB2X9393 WB2X9393 BUTTON DART
WB2X9001 WB2X9001 C/PNL BKT-L
WB2X9002 WB2X9002 C/PNL BKT-R
WB2X9000 WB2X9000 CLEAT
WB19X265 WB19X265 CLOCK/CNTRL
WB62X1675 WB62X1675 COOKTOP-WH **NLA*
WB2X9401 WB2X9401 COVER LOCK
WB2X9036 WB2X9036 CUSHION-GLAS
WB50T10003 WB50T10003 DEFLECTOR FLUE ASSEMBLY
WB17X207 WB17X207 DISCONNECT
WB56X1904 WB56X1904 DOOR BAFFLE

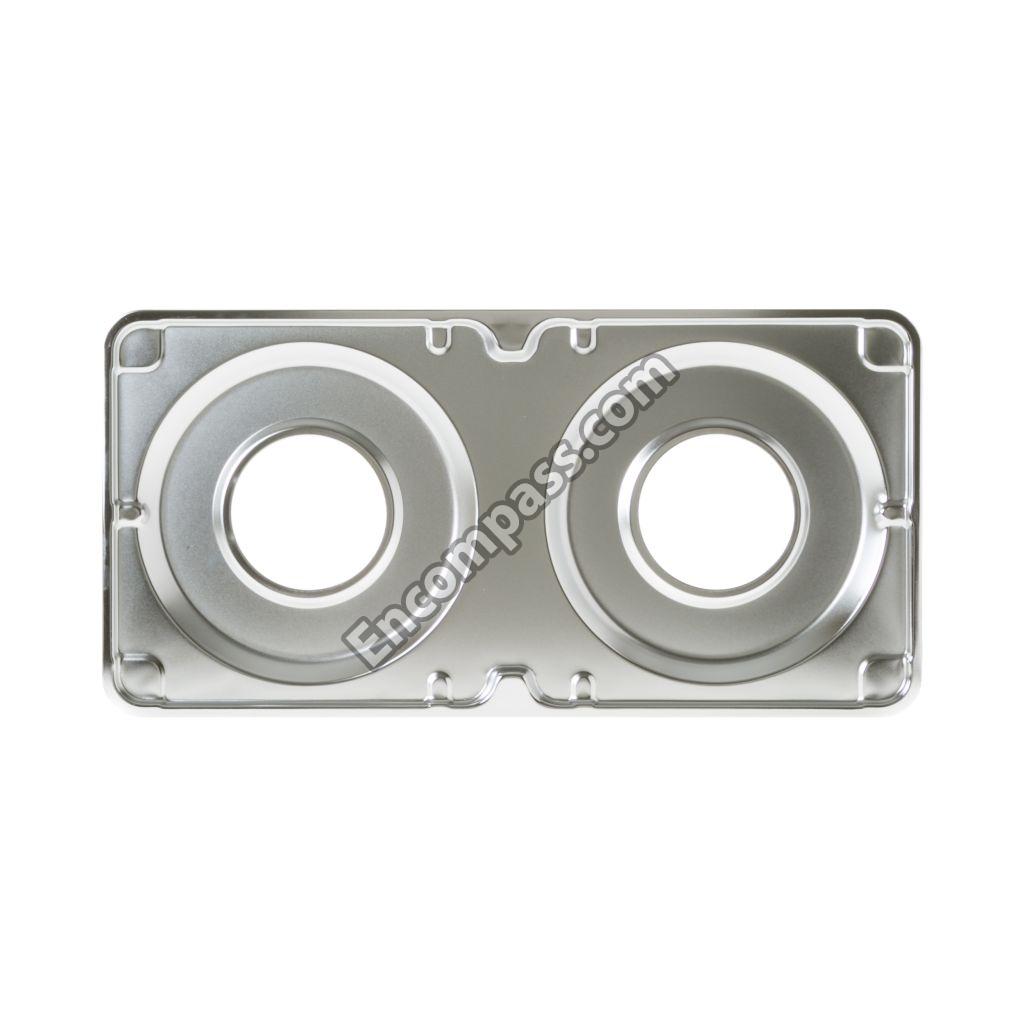

WB32X102 WB32X102 DOUBLE BURNER PAN- GAS
WB58X63 WB58X63 DRAWER
WB13M7 WB13M7 ELECTRODE IG
WB7X1639 WB7X1639 END CAP LEFT
WB7X1640 WB7X1640 END CAP RGHT
WB2X9402 WB2X9402 EXTEN-HANDLE
WB1X1138 WB1X1138 FIBER WASHER
WB2X9156 WB2X9156 FITTING
WB2X9395 WB2X9395 FLUE DEF SHD
WB2X9373 WB2X9373 GASKET
WB2X9151 WB2X9151 GASKET
WB2X9143 WB2X9143 GASKET
WB2X9008 WB2X9008 GASKET SCREW
WB2X9011 WB2X9011 GASKET-VLVE
WB56X1886 WB56X1886 GLASS-OUTER-BLACK
WB32X95 WB32X95 GRATE
WB15X281 WB15X281 HANDLE-LATCH
WB34M7 WB34M7 HEAT BAFFLE
WB10X252 WB10X252 HINGE BRACKT
WB14X103 WB14X103 HINGE-LEFT
WB14X104 WB14X104 HINGE-RIGHT
WB14X101 WB14X101 HINGE-RIGHT
WB2X9154 WB2X9154 IGNITR BR/OV
WB2X9176 WB2X9176 INS RETAINER
WB2X9405 WB2X9405 INSUL-LATCH
WB2X9430 WB2X9430 INSULATION
WB35K5113 WB35K5113 INSULATION-BACK & BTM
327856 327856 INSULATION-F
WB2X9129 WB2X9129 INSULATOR
WB3X780 WB3X780 KNOB CLOCK
WB3X781 WB3X781 KNOB-BURNER
WB14X115 WB14X115 LATCH
WB14X125 WB14X125 LATCH ASM
WB2X9025 WB2X9025 LEG-LEVEL
WB2K5303 WB2K5303 LENS LIGHT
WB36X754 WB36X754 LENS-LIGHT
WB2X9403 WB2X9403 LOCK BOX
WB3K5154 WB3K5154 LOCK KNOB BL
WB62X1676 WB62X1676 MANI TOP-ALMOND
WB24X436 WB24X436 MICRO SWITCH
WB2X9160 WB2X9160 NLA BRACKET
WB1X1117 WB1X1117 NUT-INVERTED
WB56K5066 WB56K5066 OV DR FRAME
WB57K5025 WB57K5025 OV DR HANDLE
WB2K5101 WB2K5101 OVDR INS RET
WB63X335 WB63X335 OVEN BTTM
WB63X348 WB63X348 OVEN FRAME
WB53X276 WB53X276 OVEN LINER
WB48M4 WB48M4 OVEN RACK
WB1X371D WB1X371D PACKAGE OF 12 CERAMIC WIRE NUT
WB1X1251 WB1X1251 PAL NUT
WB2X9163 WB2X9163 PLATE
WB2X9413 WB2X9413 PLUG
WB8X279 WB8X279 RECEPTACLE
WB21X465 WB21X465 REGULATOR
WB27K5072 WB27K5072 RELAY BOARD
WB2X9149 WB2X9149 RETAINER
WB1X1173 WB1X1173 RIVET
WB1X1114 WB1X1114 RIVET
WB2X9084 WB2X9084 ROD-SUPPORT
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB1X1179 WB1X1179 SCREW
WB1X1169 WB1X1169 SCREW
WB1X1116 WB1X1116 SCREW
WB1X1172 WB1X1172 SCREW
WB1X681 WB1X681 SCREW
WB1X1164 WB1X1164 SCREW
WB1X1262 WB1X1262 SCREW
WB1K5122 WB1K5122 SCREW
WB1M1 WB1M1 SCREW
WB1X1171 WB1X1171 SCREW
WB1K12 WB1K12 SCREW 10-24 X 1/4
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB1X1130 WB1X1130 SCREW-10-32
WB1X1139 WB1X1139 SCREW-10-32 **NLA*
WB1X1137 WB1X1137 SCREW-10AB
WB1X1132 WB1X1132 SCREW-6-32
WB1X1131 WB1X1131 SCREW-6-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1X1124 WB1X1124 SCREW-ADJUST
WB1X1250D WB1X1250D SCREW-PKG 12
WB1X1121 WB1X1121 SCREW-VLVE
WB21X5301 WB21X5301 SENSOR ASM
WB2X9141 WB2X9141 SHIELD
WB2X9159 WB2X9159 SHIELD
WB2X9139 WB2X9139 SHIELD
WB8X291 WB8X291 SOCKET LAMP
WB2X9158 WB2X9158 SPACER
WB1X1177 WB1X1177 SPACER
WB2X9039 WB2X9039 SPACER-GLASS
WB2X9037 WB2X9037 SPACER-HNDL
WB2X9022 WB2X9022 SPACER-TOP
WB20X107 WB20X107 SPARK MODULE
WB9X251 WB9X251 SPRING
WB2X9023 WB2X9023 SPT-SIDE-LFT
WB2X9024 WB2X9024 SPT-SIDE-RT
WB14X105 WB14X105 STRIKE
WB2X9137 WB2X9137 SUPPORT
WB56M3 WB56M3 SUPPORT DRWR
WB24X419 WB24X419 SWITCH
WB28X111 WB28X111 TOP BRNR ASM
WB2X9164 WB2X9164 TUBING
STD317375 STD317375 TUBING
332002 332002 VALVE 347
326295 326295 VALVE KIT-CO
WB21X482 WB21X482 VALVE-OFF
WB1X1201 WB1X1201 WASHER
WB1X1256 WB1X1256 WASHER
WB1X1159D WB1X1159D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
WB2X9406 WB2X9406 WIRE COVER
