Model Image
Manufacturer

GE

Model Number

3627391993

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WB2K12 WB2K12 ARM ANTI TIP
WB2K27 WB2K27 BAIL
WB8X5102 WB8X5102 BALLAST
WB08K10002 WB08K10002 BASE STARTER
WB63K7 WB63K7 BASE SUPP LF
WB63K6 WB63K6 BASE SUPP RT
WB2K32 WB2K32 BCKT SUPPORT
WB27K1 WB27K1 BOARD PC RELAY
WB53K5 WB53K5 BOTTOM OVEN
WB63K10037 WB63K10037 BOX BURNER SP
WB63K15 WB63K15 BRACE
WB37K10 WB37K10 BRACE BKGRD
WB55K5 WB55K5 BRACE SIDE L
WB55K4 WB55K4 BRACE SIDE R
WB55K3 WB55K3 BRACE TOP
WB38K2 WB38K2 BRACE VENT
WB2K41 WB2K41 BRACKET OVEN
WB2K47 WB2K47 BRACKET REGU
WB37K9 WB37K9 BRCKT TIMER
WB2K1 WB2K1 BRKT GLIDER
WB39K20 WB39K20 BRKT MTG DRW
WB2K7 WB2K7 BRKT VALVE
WB16K8 WB16K8 BRNR BROIL
WB29K25 WB29K25 BRNR HEAD LG
WB29K26 WB29K26 BRNR HEAD SM
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB16K6 WB16K6 BURNER BAKE
WB7K2 WB7K2 CAP
WB7K73 WB7K73 CAP END LEFT
WB7K79 WB7K79 CAP END LEFT
WB7K80 WB7K80 CAP END RGHT
WB7K72 WB7K72 CAP END RGHT
WB7K87 WB7K87 CAP HANDLE L
WB7K88 WB7K88 CAP HANDLE R
WB29K10 WB29K10 CAP-LG-BLK
WB29K11 WB29K11 CAP-SM-BLK
WB2K36 WB2K36 CLAMP CABLE
WB2K52 WB2K52 CLIP RNGETOP
WB2K37 WB2K37 CLIP SPACER
WB2K34 WB2K34 CLIP VENT
WB02X21679 WB02X21679 CLIP WIRE
WB2K22 WB2K22 CLIP WIRE
WB34K10007 WB34K10007 COVER LOWER BACK
WB2K24 WB2K24 COVER VALVE
WB34K5 WB34K5 COVER WIRE
WB34K18 WB34K18 CVR B PNL SP
WB34K13 WB34K13 CVR B PNL SP
WB34K6 WB34K6 CVR BACK PNL
WB63K22 WB63K22 CVR BRNR BOX
WB2K40 WB2K40 CVR DR VENT
WB7K50 WB7K50 CVR END LAMP
WB7K49 WB7K49 CVR END LAMP
WB34K14 WB34K14 CVR IGNITOR
WB34K9 WB34K9 DEFLECTOR
WB34K8 WB34K8 DEFLECTR ASM
WB02K10158 WB02K10158 DRAWER SUPPORT
WB39K21 WB39K21 DWR BODY ASM
WB28K61 WB28K61 ELBOW 90 DEG
WB28K30 WB28K30 ELBOW HI BRL
WB8X5098 WB8X5098 F LAMP SOCKT
WB63K26 WB63K26 FRM WELD ASM
WB32K5 WB32K5 GASKET OV LT
WB32K1 WB32K1 GASKET VENT
WB56K10 WB56K10 GLASS BLK DR
WB2X8248 WB2X8248 GLIDER ADJ
WB39K18 WB39K18 GLIDER DRWR

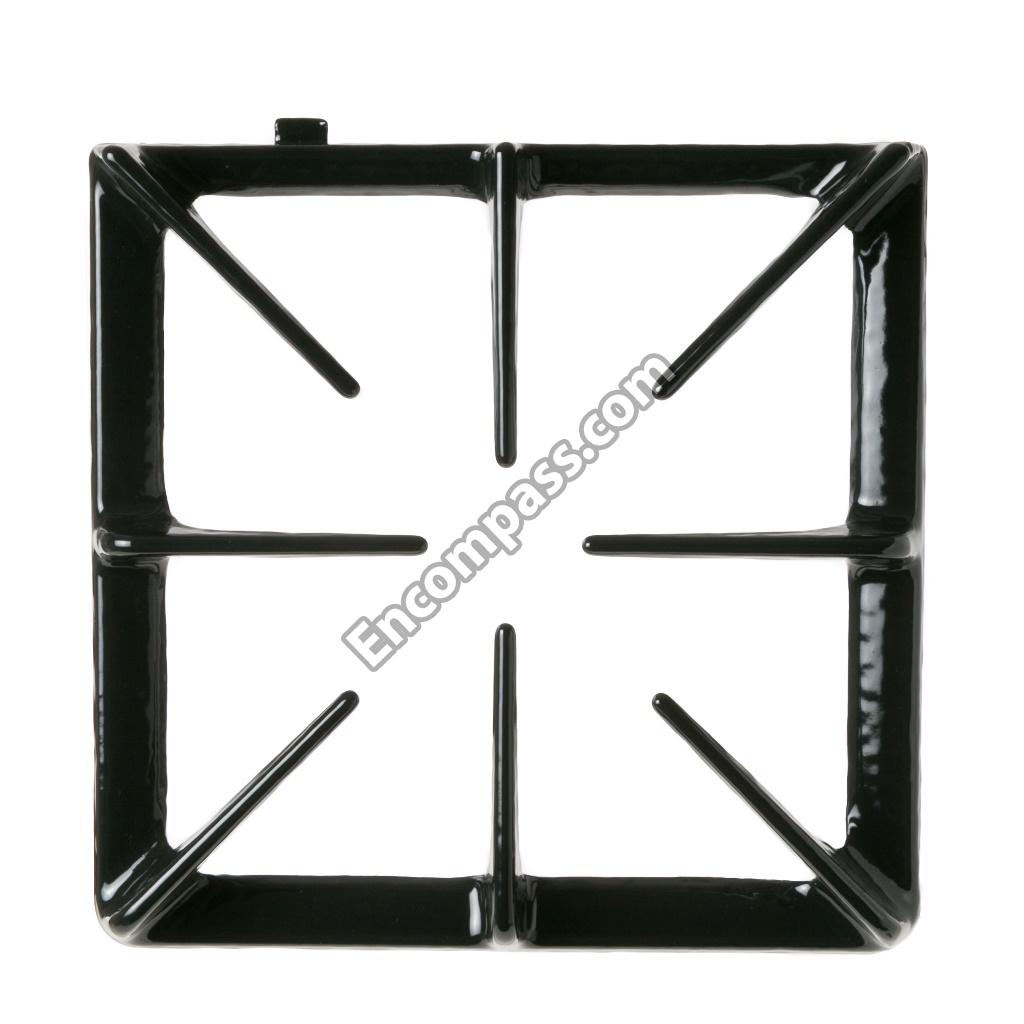

WB31K67 WB31K67 GRATE BLK
WB53K18 WB53K18 GRD TOP INSU
WB2K8 WB2K8 GROMMET
WB32K6 WB32K6 GSKT ASM DR
WB32K2 WB32K2 GSKT OV SEAL
WB63K17 WB63K17 GUARD BOT IN
WB63K16 WB63K16 GUARD BOTTOM
WB53K11 WB53K11 GUARD INS RH
WB53K12 WB53K12 GUARD INSUL
WB56K12 WB56K12 GUARD INSUL
WB53K16 WB53K16 GUARD RADIAT
WB2X1460 WB2X1460 GUIDE
WB15K10 WB15K10 HANDLE
WB15K1 WB15K1 HANDLE BROIL
WB18K6 WB18K6 HARN WIRE HV
WB2X6195 WB2X6195 HINGE PIN
WB7K53 WB7K53 HOOD LAMP
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB29K27 WB29K27 IGN SURF BRN
WB2X9154 WB2X9154 IGNITR BR/OV
WB35K8 WB35K8 INSUL OV BCK
WB35K7 WB35K7 INSUL OV WRP
WB35K10 WB35K10 INSULATION **NLA*
WB35K12 WB35K12 INSULATION **NLA*
WB3K17 WB3K17 KNOB LATCH
WB36X192 WB36X192 LAMP COV ASM
F26T8-CW-4 F26T8-CW-4 LAMP FLUORESCENT
WB2K42 WB2K42 LATCH
WB18K10036 WB18K10036 LINE CORD
WB55K7 WB55K7 LINER ASM
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB7K5 WB7K5 LWR FRT TRIM
WB28K65 WB28K65 MANIFOLD
WB13K8 WB13K8 MOD SPRK IGN
WB7X7129 WB7X7129 N/L/A 01/20/05
WB29K32 WB29K32 N/L/A 02/27/02
WB7K115 WB7K115 N/L/A 05/02/06
WB7K113 WB7K113 N/L/A 06/06/05
WB2K49 WB2K49 N/L/A 06/18/04
WB39K19 WB39K19 N/L/A 11/01/04
WB1K30 WB1K30 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB1K3 WB1K3 NUT SPEED
WB28K23 WB28K23 ORFC SPUD A
WB28K22 WB28K22 ORFC SPUD LP
WB28K38 WB28K38 ORIF HLDR LG
WB28K39 WB28K39 ORIF HLDR LG
WB28K36 WB28K36 ORIF HLDR SM
WB28K37 WB28K37 ORIF HLDR SM
WB28K86 WB28K86 ORIF SPUD NG
WB28K87 WB28K87 ORIFICE SPUD
WB53K3 WB53K3 OVEN SIDE LF
WB53K2 WB53K2 OVEN SIDE RT
WB53K14 WB53K14 OVENTOP
WB2X1222 WB2X1222 PAD
WB1K22 WB1K22 PALNUT
WB49K13 WB49K13 PAN UNIT SP
WB49K14 WB49K14 PAN UNIT SP
WB14K5 WB14K5 PIN HINGE
WB2K17 WB2K17 PIN LOCATOR
WB2K45 WB2K45 PL RELAY BOARD
WB37K12 WB37K12 PLATE END LT
WB37K11 WB37K11 PLATE END RT
WB55K13 WB55K13 PNL ASM WELD
WB39K31 WB39K31 PNL DRWR BL
WB7K231 WB7K231 PNL MANIFOLD
WB63K25 WB63K25 PNL RR BROIL
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB63K35 WB63K35 PNL SIDE BLK
WB48T10095 WB48T10095 RACK OVEN
WB39K16 WB39K16 RAIL DRAWER
WB63K21 WB63K21 RANGE BACK
WB62K14 WB62K14 RANGETOP BLK
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB38K5 WB38K5 REFLEC VENT
WB55K12 WB55K12 REFLECTOR
WB19K15 WB19K15 REG PRESURE
WB2X2030 WB2X2030 RETAINER
WB1K44 WB1K44 SCEW LATCH
WB1K45 WB1K45 SCR&WSHR ASM
WZ4X426 WZ4X426 SCREW
WB1K37 WB1K37 SCREW
WB1K25 WB1K25 SCREW
WB1X5754 WB1X5754 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1293 WB1X1293 SCREW
WB1K28 WB1K28 SCREW
WB1K5099 WB1K5099 SCREW
WB1K29 WB1K29 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1K12 WB1K12 SCREW 10-24 X 1/4
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB1K5 WB1K5 SCREW 8-18 X 1/2
WB1K41 WB1K41 SCREW B BASE
WB1K15 WB1K15 SCREW DBL LD 8-22 X 1/2 HEX
WB1X5364 WB1X5364 SCREW MTG
WB1X558D WB1X558D SCREW-PKG 12
WZ5X234D WZ5X234D SCREW-PKG 12
WB1X5731D WB1X5731D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WZ4X384D WZ4X384D SCREW-PKG 12
WB21X5301 WB21X5301 SENSOR ASM
WB34K10 WB34K10 SHIELD BROIL
WB39K22 WB39K22 SHIELD DRWR
WB7K40 WB7K40 SHIELD LAMP
WB2K29 WB2K29 SHIELD LATCH
WB34K12 WB34K12 SHIELD RADIA
WB34K2 WB34K2 SHIELD VALVE
WB2K19 WB2K19 SPACER
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB1K2 WB1K2 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB1K27 WB1K27 SPEEDNUT
WB9K5 WB9K5 SPRING DOOR
WB6K7 WB6K7 STARTER
WB2K46 WB2K46 STRAIN RELEF
WB6K1 WB6K1 SUP RANGETOP
WB10K7 WB10K7 SUP RIVET RT
WB2K53 WB2K53 SUPP POWER BOARD **NLA*
WB10K14 WB10K14 SUPT RIVET
WB3K51 WB3K51 SUR BNR KNOB
WB24K14 WB24K14 SW BRNR VLV
WB24K10 WB24K10 SWITCH
WB24K2 WB24K2 SWITCH
WB12K6 WB12K6 TIMER ERC2
WB7K78 WB7K78 TRIM TOP DR
WB28K60 WB28K60 TUBE BNR SUP
WB28K58 WB28K58 TUBE BNR SUP
WB28K55 WB28K55 TUBE BNR SUP
WB28K56 WB28K56 TUBE VLV SUP
WB19K14 WB19K14 VALVE CNTRL
WB38K1 WB38K1 VENT ASM
WB21K14 WB21K14 VLV BRBR CTL
WB21K18 WB21K18 VLV BRNR CTL
WB63K19 WB63K19 VLV GRD BOT
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
