Model Image
Manufacturer

GE

Model Number

3639550922

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR71X2615 WR71X2615 *NLA*SHELF WIRE FZ CANT
40A15 40A15 40WATT 15AMP
WR62X26536 WR62X26536 ARMATURE

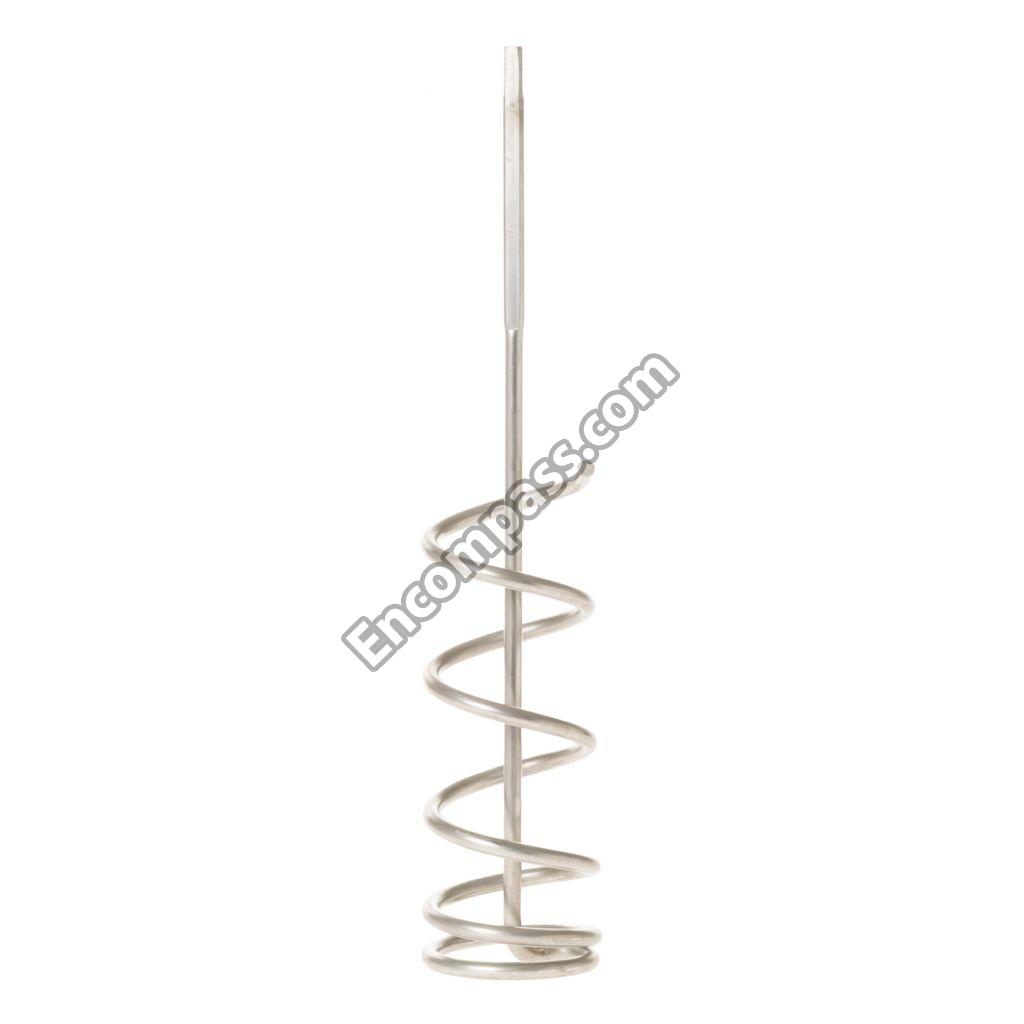

WR17X4314 WR17X4314 AUGER HELIX DISPLAY
WR1X2050 WR1X2050 AXLE WHEEL
WR71X2609 WR71X2609 BASKET WIRE SLIDEOUT
WR1X2048 WR1X2048 BEAR SLIDE
WR17X3977 WR17X3977 BEZEL CONTROL
WR71X2614 WR71X2614 BIN FZ SLIDEOUT
WR17X2216 WR17X2216 BLADE
WR60X234 WR60X234 BLADE COND
WR60X255 WR60X255 BLADE EVAP F
WR2X7783 WR2X7783 BLADE INDISP
WR2X4140 WR2X4140 BLADE REST
WR17X2058 WR17X2058 BLADE STATIONARY DISPLAY
WR17X1363 WR17X1363 BLADES MOVING DISPLAY
WR17X1362 WR17X1362 BLADES MOVING DISPLAY
WR17X1361 WR17X1361 BLADES MOVING DISPLAY
WR2X8647 WR2X8647 BRACKET HTR
WR02X10158 WR02X10158 BRACKET WATER VALVE
WR2X9319 WR2X9319 BRKT EVAP FN
WR02X10011 WR02X10011 BRKT IM MTG
WR13X699 WR13X699 BTM HINGE
WR13X701 WR13X701 BTM HINGE
WR13X695 WR13X695 BTM HINGE

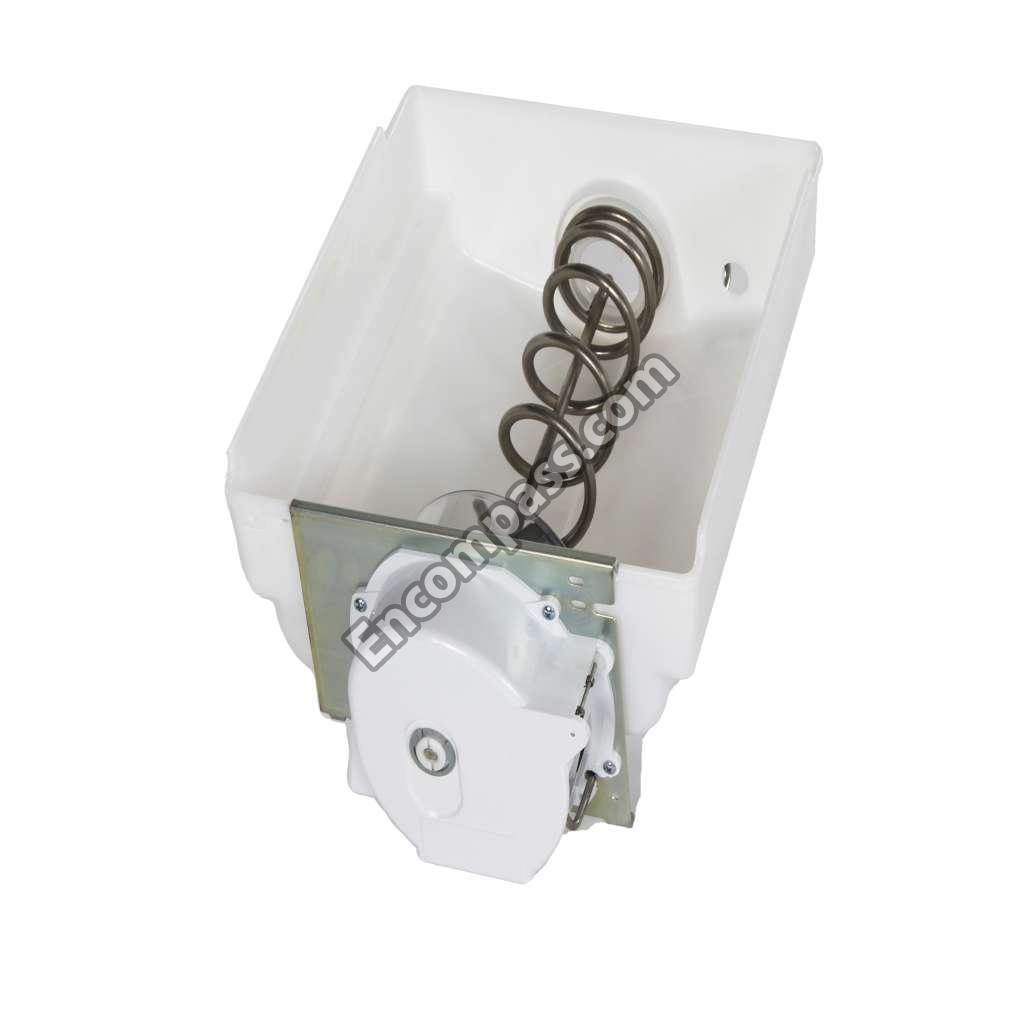

WR17X4313 WR17X4313 BUCKET & AUGER ASSEMBLY DISPLA
WR32X1435 WR32X1435 BUCKET EGG ASSEMBLY
WR30X313 WR30X313 BUCKET ICE
WR2X7905 WR2X7905 BUCKET SEAL
WR19X10005 WR19X10005 BUTTER DISH AND COVER
WR2X8819 WR2X8819 BX CTRL BTM
WR2X8820 WR2X8820 BX CTRL TOP
WR1X5278 WR1X5278 CABLE CLAMP
WR2X9246 WR2X9246 CAM CLOSURE
WR2X9249 WR2X9249 CAM CLOSURE
WR02X10411 WR02X10411 CAM CLOSURE BQ FF
WR71X2523 WR71X2523 CANTILEVER BASKET FZ
WR2X9439 WR2X9439 CAP DECORATI
WR2X9299 WR2X9299 CAP MULL DCT
WR2X7937 WR2X7937 CAP TRIM HDL
WR55X24065 WR55X24065 CAPACITOR
WR12X665 WR12X665 CHANN HDLE
WR17X3832 WR17X3832 CHUTE ICE
WR2X4754 WR2X4754 CLAMP-FILL T
WR2X8583 WR2X8583 CLIP
WR1X5722 WR1X5722 CLIP
WR87X10226 WR87X10226 COMPRESSOR KIT EGYS90
WR17X10189 WR17X10189 COND FAN HSG
WR84X206 WR84X206 CONDENSR ASM
WR02X10042 WR02X10042 CONTROL MEAT PAN ASSEMBLY
WR1X2017 WR1X2017 CORNER COVER
WR1X2016 WR1X2016 CORNER COVER
WR1X2043 WR1X2043 CORNR CVR AD
WR1X2044 WR1X2044 CORNR CVR AD
WR1X2037 WR1X2037 CORNR CVR BK
WR1X2038 WR1X2038 CORNR CVR BK
WR17X10043 WR17X10043 COVER
WR29X193 WR29X193 COVER
WR82X10050 WR82X10050 COVER ACCESS ASSEMBLY
WR17X3978 WR17X3978 COVER BUCKET ASSEMBLY
WR17X3834 WR17X3834 COVER DRAIN TROUGH
WR2X8685 WR2X8685 COVER ELECT
WR17X3835 WR17X3835 COVER EVAP
WR17X3836 WR17X3836 COVER EXTRUSION
WR32X1457 WR32X1457 COVER PAN GLASS
WR2X7834 WR2X7834 COVER RELAY
WR17X3493 WR17X3493 CRADLE ACTUATOR
WR17X3089 WR17X3089 CRANK DOOR RECESS
WR9X521 WR9X521 CTRL TEMP
WR2X7939 WR2X7939 CVR BUTTON
WR1X2018 WR1X2018 CVR IM PLUG
WR2X8826 WR2X8826 DAMPER ASM
WR9X489 WR9X489 DEF CONTROL
WR17X10282 WR17X10282 DEFLECTOR ICE BLACK
WR17X2059 WR17X2059 DEFLECTOR ICE DISPLAY
WR22X498 WR22X498 DOOR DAIRY
WR17X3838 WR17X3838 DOOR ICE STORAGE DISPLAY
WR17X11653 WR17X11653 DOOR RECESS ASM
WR77X649 WR77X649 DR INNER FZ **NLA*
WR72X240 WR72X240 DRAWER SLIDE RAIL - RIGHT
WR2X4550 WR2X4550 DRIVE CUP
WR2X8654 WR2X8654 DUCK MULLION
WR2X7476 WR2X7476 DUCT MULL
WR2X8655 WR2X8655 DUCT MULLION
WR30X10093 WR30X10093 EJECTOR
WR2X8295 WR2X8295 END CAP
WR60X114 WR60X114 FAN BLADE
WR2X8669 WR2X8669 FASTENER TUB
WR1X2035 WR1X2035 FASTENR PUSH
WR29X5179 WR29X5179 FEELER ARM

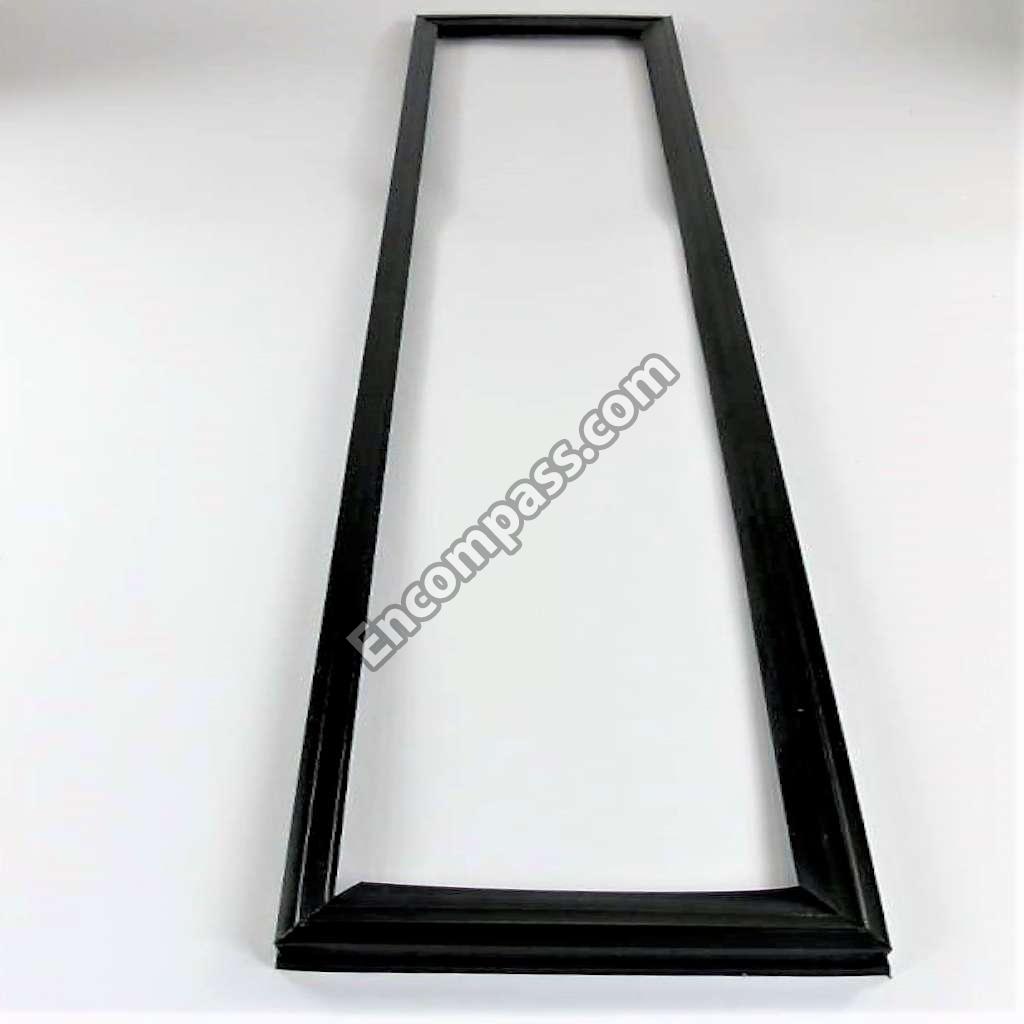

WR24X562 WR24X562 FF DR GASKET
WR78X8706 WR78X8706 FF O DOOR ALMOND
WR78X8704 WR78X8704 FF O DOOR BLACK
WR78X8702 WR78X8702 FF O DOOR WHITE
WR29X208 WR29X208 FILL CUP
WR82X10058 WR82X10058 FLOOR
WR14X460 WR14X460 FOAM STRIP
WR14X461 WR14X461 FOAM STRIP S
WR1X1585 WR1X1585 FRONT NUT
WR17X3095 WR17X3095 FUNNEL RECESS SHIELD BLACK
WR78X8705 WR78X8705 FZ O DOOR ALMOND
WR78X8703 WR78X8703 FZ O DOOR BLACK
WR78X8701 WR78X8701 FZ O DOOR WHITE
WR14X462 WR14X462 GASKET FOAM
WR14X466 WR14X466 GASKET SHLD
WR29X5153 WR29X5153 GEAR MOTOR
WR14X429 WR14X429 GKT FM BLOCK
WR14X433 WR14X433 GKT LGT SHLD
WR14X431 WR14X431 GKT PN CV FT
WR2X8829 WR2X8829 GR PINION LS
WR2X8828 WR2X8828 GR PINION RS
WR74X264 WR74X264 GRIL BASE BK
WR17X3842 WR17X3842 GRILLE AIR RETURN
WR17X3707 WR17X3707 GRILLE RECESS ALMOND
WR17X3366 WR17X3366 GRILLE RECESS BLACK
WR17X3160 WR17X3160 GRILLE RECESS WHITE
WR2X7391 WR2X7391 GROMMET
WR2X8474 WR2X8474 GROMMET
WR17X3670 WR17X3670 GROMMET & TUBE ASSEMBLY
WR2X9237 WR2X9237 GROMMET COMP
WR1X2019 WR1X2019 GROMMET COND
WR24X559 WR24X559 GSKT FZDRKIT
WR24X560 WR24X560 GSKTFFDR KIT
WR24X561 WR24X561 GSKTFZDRKIT
WR17X3891 WR17X3891 HANDLE PAN
WR17X3892 WR17X3892 HANDLE VEG PAN
WR12X951 WR12X951 HANDLE.ASMBK
WR23X422 WR23X422 HARN DR HNGE
WR23X423 WR23X423 HARN FF LT
WR23X456 WR23X456 HARN LITE&SW
WR23X463 WR23X463 HARN MTR DIS
WR23X10023 WR23X10023 HARNESS CONTROL MOD
WR23X471 WR23X471 HARNESS LOW
WR51X420 WR51X420 HEATER RECES
WR17X4207 WR17X4207 HELIX FRONT DISPLAY (1 PC)
WR13X10006 WR13X10006 HINGE BTM ADJ ASSEMBLY AL
WR2X9436 WR2X9436 HINGE COVER
WR2X9433 WR2X9433 HINGE COVER
WR2X9438 WR2X9438 HINGE COVER
WR2X9437 WR2X9437 HINGE COVER
WR2X9435 WR2X9435 HINGE COVER
WR2X9434 WR2X9434 HINGE COVER
WR13X10013 WR13X10013 HINGE TOP ASSEMBLY FF
WR13X10012 WR13X10012 HINGE TOP ASSEMBLY FZ
WR29X183 WR29X183 HOUSING
WR17X2061 WR17X2061 HOUSING CRUSHER DISPLAY
WR2X9239 WR2X9239 HOUSING LAMP
WR51X443 WR51X443 HTR/SENS HRN
WR2X4854 WR2X4854 HUB AUGER
WR30X30972 WR30X30972 ICEMAKER REPLACEMENT KIT
WR2X4046 WR2X4046 INSERT
WR12X830 WR12X830 INSERT
WR12X1010 WR12X1010 INSERT DOOR HANDLE ALMOND
WR12X1011 WR12X1011 INSERT DOOR HANDLE ALMOND
WR12X1009 WR12X1009 INSERT DOOR HANDLE BL
WR12X1008 WR12X1008 INSERT DOOR HANDLE WHITE
WR12X669 WR12X669 INSERT DR HD
WR82X359 WR82X359 INSULATION
WR17X3980 WR17X3980 INSULATION RECESS
WR29X5188 WR29X5188 INSULATOR **NLA*
WR1X1547D WR1X1547D J NUT-PKG 12
WR62X23154 WR62X23154 KIT SRV SOLENOID CUBE
WR2X9154 WR2X9154 KNOB REC DIS
WR2X8676 WR2X8676 KNOB RECESS
7C7 7C7 LAMP 7C7
WR2X8662 WR2X8662 LAMP SOCKET
WR2X9240 WR2X9240 LEG COND FAN
WR11X177 WR11X177 LEVER ASM AD
WR11X176 WR11X176 LEVER ASM AD
WR11X172 WR11X172 LEVER ASM BK
WR11X173 WR11X173 LEVER ASM BK
WR11X169 WR11X169 LEVER ASM WH
WR11X170 WR11X170 LEVER ASM WH
WR85X306 WR85X306 LO SIDE REPL ASSEMBLY
WR11X179 WR11X179 MGNT&CVR AD
WR11X180 WR11X180 MGNT&CVR BK
WR2X9241 WR2X9241 MOBILITY BRK
WR55X129 WR55X129 MOD TIME DEL
WR71X2613 WR71X2613 MODULE ASM
WR71X2612 WR71X2612 MODULE ASM
WR71X2611 WR71X2611 MODULE ASM
WR71X2610 WR71X2610 MODULE ASM
WR71X2619 WR71X2619 MODULE ASSEMBLY FZ
WR29X204 WR29X204 MOLD BODY AS
WR60X10262 WR60X10262 MOTOR CRUSHER DISP
WR60X253 WR60X253 MOTOR FAN EV
WR60X225 WR60X225 MTR COND FAN
WR13X698 WR13X698 N/L/A 02/16/07
WR13X696 WR13X696 N/L/A 11/13/08
WR17X3983 WR17X3983 NAMEPLATE RECESS ALMOND
WR17X3897 WR17X3897 NAMEPLATE RECESS ASSEMBLY
WR17X3893 WR17X3893 NAMEPLATE RECESS ASSEMBLY
WR2X8831 WR2X8831 NOZZLE FOAM
WR57X57 WR57X57 NUT
WR1X1515 WR1X1515 NUT
WR17X3846 WR17X3846 ORIFICE EVAP FAN
WR8X172 WR8X172 OVERLOAD
WR1X2021 WR1X2021 PAD
WR2X8702 WR2X8702 PAD ACTUATOR BLK
WR32X1308 WR32X1308 PAN & LABEL ASSEMBLY
WR32X1476 WR32X1476 PAN & LABEL ASSEMBLY
WR32X1474 WR32X1474 PAN & LABEL ASSEMBLY
WR32X10011 WR32X10011 PAN WATER ASSEMBLY
WR2X4143 WR2X4143 PIVOT
WR17X2062 WR17X2062 PLATE FRONT DISPLAY
WR29X5163 WR29X5163 PLATE MTG **NLA*
WR2X8678 WR2X8678 PLUG BUT ASM
WR2X8511 WR2X8511 PLUG BUTTON
WR2X8483 WR2X8483 PLUG BUTTON
WR23X10300 WR23X10300 POWER CORD
WR07X10098 WR07X10098 PTCR
WR86X25269 WR86X25269 R134 DRIER
WR17X3318 WR17X3318 RACK GEAR CONTROL L/S
WR17X3319 WR17X3319 RACK GEAR CONTROL R/S
WR17X3847 WR17X3847 RAIL MTG ASM
WR17X10191 WR17X10191 RECESS DISPLAY ALMOND
WR17X10514 WR17X10514 RECESS DISPLAY BLACK
WR17X10190 WR17X10190 RECESS DISPLAY WHITE
SR3760 SR3760 REF PARTS LIST
WR2X8686 WR2X8686 REFL LP SKT
WR2X8723 WR2X8723 REFRIGERATOR CHROME KNOB
WR2X4251 WR2X4251 RETAINER
WR2X8818 WR2X8818 RETAINER RECESS DOOR
WR1X1367D WR1X1367D RETRNG-PKG12
WR2X4141 WR2X4141 ROLL PIN
WR2X7309 WR2X7309 SADDLE SOLEN
WR01X10601 WR01X10601 SCR 10-24 TT IHXW 1.000
WR01X10610 WR01X10610 SCR 10-32 GX PNT20 1 S L
WR01X10631 WR01X10631 SCR 12-24 TT OVT .900 S
WR01X10623 WR01X10623 SCR 8-18 AB IHXW 9/16 S
WR01X10618 WR01X10618 SCR 8-18 TPT 1/4
WR1X1786 WR1X1786 SCREW
WR1X2024 WR1X2024 SCREW
WR1X2127 WR1X2127 SCREW
WR1X2023 WR1X2023 SCREW
WR1X2025 WR1X2025 SCREW
WR29X5140 WR29X5140 SCREW
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WZ4X244D WZ4X244D SCREW-PKG 12
WZ2X464D WZ2X464D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WR14X469 WR14X469 SEAL SLIDEOT
SR1087 SR1087 SEAR REF USE & CARE LABEL
WR71X2529 WR71X2529 SHELF BUCKET CANT ASSEMBLY
WR71X2559 WR71X2559 SHELF CANT SPILLPRF
WR32X1477 WR32X1477 SHELF ENCAP SLIDEOUT
WR32X1478 WR32X1478 SHELF GLASS
WR71X2616 WR71X2616 SHELF WIRE FZ CANT
WR17X3981 WR17X3981 SHIELD LIGHT ASSEMBLY
WR17X3909 WR17X3909 SHIELD LIGHT LOWER FF
WR17X3210 WR17X3210 SHIELD RECESS DISPLAY
WR17X3139 WR17X3139 SHIELD RECESS DISPLAY BLACK
WR02X10031 WR02X10031 SLEEVE VINYL
WR72X239 WR72X239 SLIDE ASM LH
WR72X241 WR72X241 SLIDE ASM LH
WR72X242 WR72X242 SLIDE ASM RH
WR72X245 WR72X245 SLIDE BIN FZ
WR72X246 WR72X246 SLIDE BIN FZ
WR72X244 WR72X244 SLIDE BSKT
WR72X243 WR72X243 SLIDE BSKT
WR17X10306 WR17X10306 SLIDE CONTROL
WR1X2079 WR1X2079 SLIDE PAN FT
WR72X211 WR72X211 SLIDE PAN LH
WR72X210 WR72X210 SLIDE PAN RH
WR2X9348 WR2X9348 SNUGGER DIV
WR2X9347 WR2X9347 SNUGGER MOD
WR2X9243 WR2X9243 SOCKET LAMP
WR2X9391 WR2X9391 SOCKET&TERM
WR62X107 WR62X107 SOLENOID ASM
WR2X4138 WR2X4138 SPACER
WR2X4139 WR2X4139 SPACER
WR29X5186 WR29X5186 SPACER **NLA*
WR2X8663 WR2X8663 SPRING
WR2X4561 WR2X4561 SPRING
WR2X4145 WR2X4145 SPRING
WR1X2027 WR1X2027 SPRING CLOSU
WR1X2028 WR1X2028 SPRING PROT
WR12X952 WR12X952 STIFFENER
WR12X1012 WR12X1012 STIFFENER ASSEMBLY ALMOND
WR2X9244 WR2X9244 STOP DOOR
WR1X2080 WR1X2080 STOP SHELF
WR49X10041 WR49X10041 STRIKE MAG KIT AD/BQ
WR49X10040 WR49X10040 STRIKE MAG KIT WHITE
WR1X1779 WR1X1779 STUD MTGCOMP
WR2X8681 WR2X8681 SUP ACT PAD
WR2X2880 WR2X2880 SUPPORT
WR2X8954 WR2X8954 SUPT FUN-GRD
WR2X8943 WR2X8943 SUPT FUNNEL
WR2X6347 WR2X6347 SUPT SHELF
WR2X7310 WR2X7310 SUPT TWIST
WR23X366 WR23X366 SW CRADL ACT
WR23X427 WR23X427 SW LIGHT FZ
WR29X5171 WR29X5171 SWITCH IM
WR23X10147 WR23X10147 SWITCHLIGHT FF
WR50X122 WR50X122 THERMO DEF
WR1X2047 WR1X2047 THIMBLE DOOR
WR1X2039 WR1X2039 THIMBLE DOOR
WR1X2030 WR1X2030 THIMBLE DOOR
WR1X2032 WR1X2032 THIMBLE DOOR
WR1X2045 WR1X2045 THIMBLE DOOR
WR1X2041 WR1X2041 THIMBLE DOOR
WR1X2132 WR1X2132 THMBL DR BK
WR1X2133 WR1X2133 THMBL DR WH
WR1X2033 WR1X2033 THRUST WASHR
WR72X10006 WR72X10006 TRACK CANT SHELF LH
WR72X10005 WR72X10005 TRACK CANT SHELF RH
WR72X249 WR72X249 TRCK CAN SHF
WR38X2164 WR38X2164 TRIM ASSEMBLY DISPLAY ALM
WR38X2122 WR38X2122 TRIM ASSEMBLY DISPLAY WHITE
WR38X1995 WR38X1995 TRIM EXTRUSION
WR38X2090 WR38X2090 TRIM SNACK PAN
WR2X9245 WR2X9245 TUBE ICEMAKR

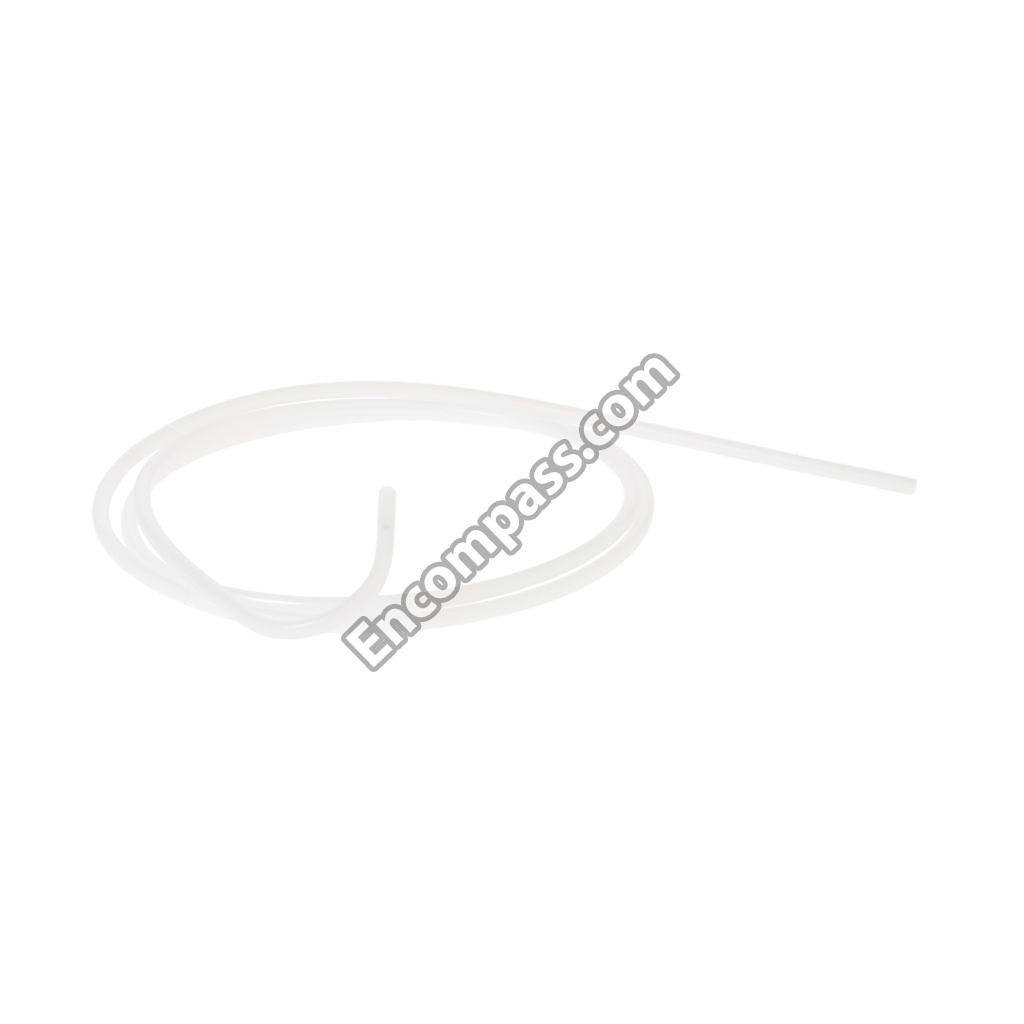

WR17X2891 WR17X2891 TUBE PLASTIC
WR2X7927 WR2X7927 TUBE WATER
WR02X11330 WR02X11330 UNION CONNECTOR
SR6166 SR6166 USER MANUAL SEARS SXS 30
WR1X1714 WR1X1714 WASHER
WR1X1366D WR1X1366D WASHR-PKG 12
WR17X4358 WR17X4358 WATER TANK DISPLAY ASSEMBLY
WR57X10051 WR57X10051 WATER VALVE KIT
WR2X8838 WR2X8838 WHL MOBILITY
WR17X3364 WR17X3364 WINE RACK
WR29X186 WR29X186 WIRE HARN
WR17X3166 WR17X3166 WR17X3166
Main Menu x
