Model Image
Manufacturer

GE

Model Number

9114532191

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP

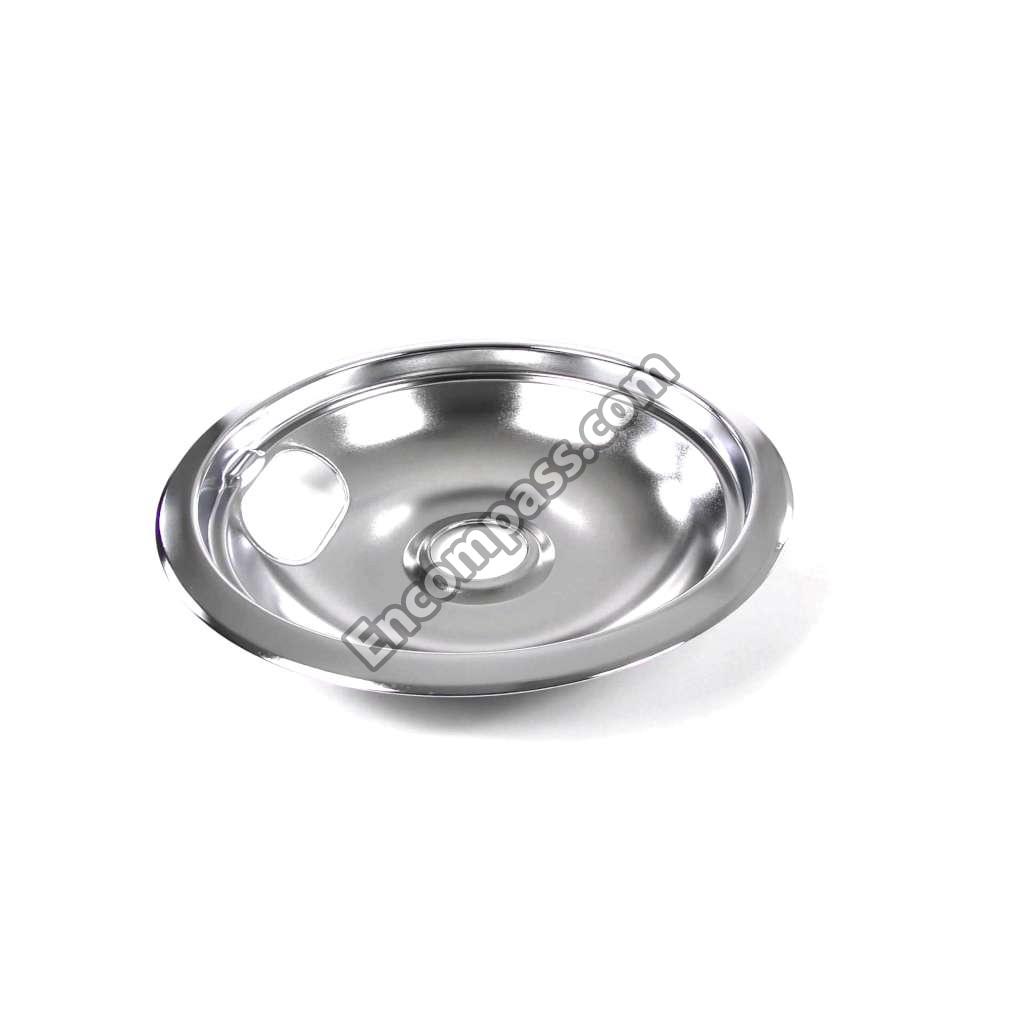

WB31M1 WB31M1 6 INCH CHROME BURNER BOWL - EL
WB31K5045 WB31K5045 6 INCH PORCELAIN GRAY BURNER B
WB31K5044 WB31K5044 6 TRIM RING

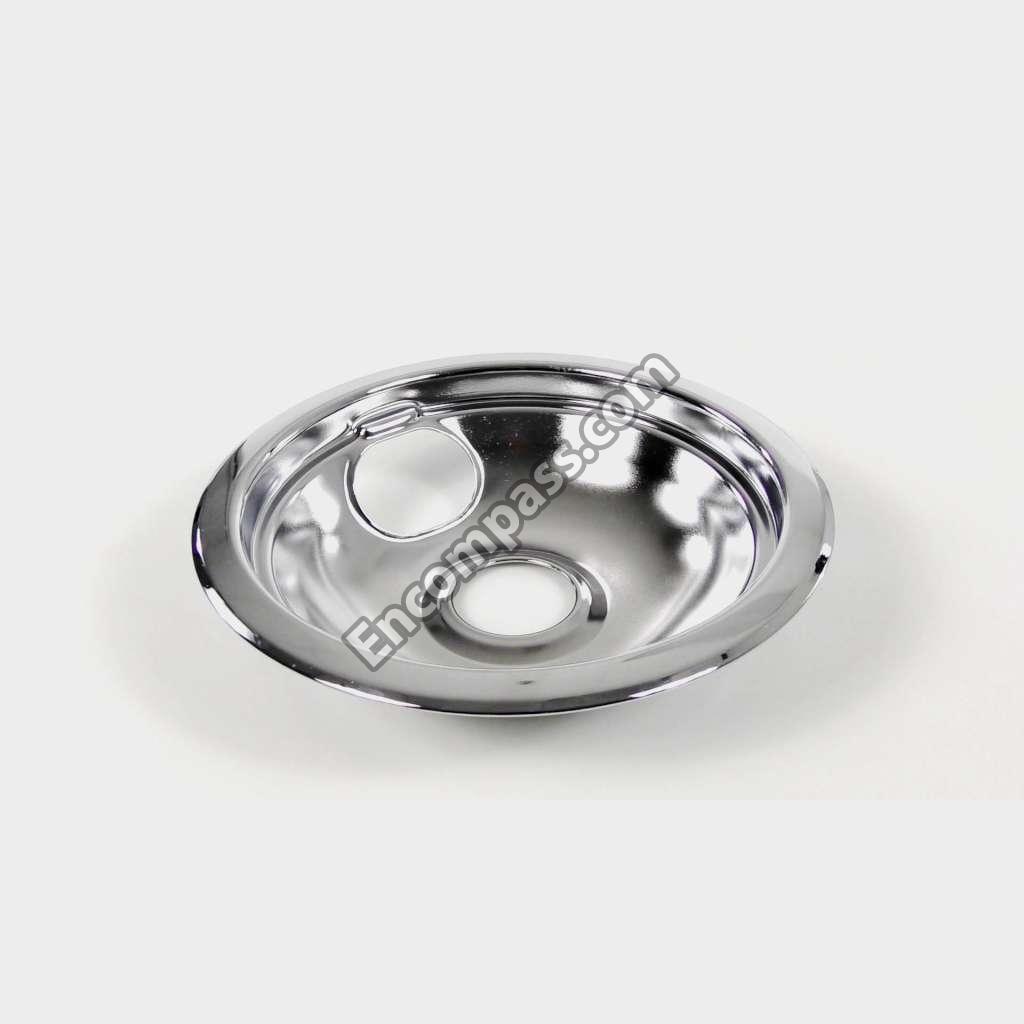

WB32X106 WB32X106 8 INCH CHROME BURNER BOWL - EL
WB31K5046 WB31K5046 8 TRIM RING
WB63K5142 WB63K5142 BACK MAIN

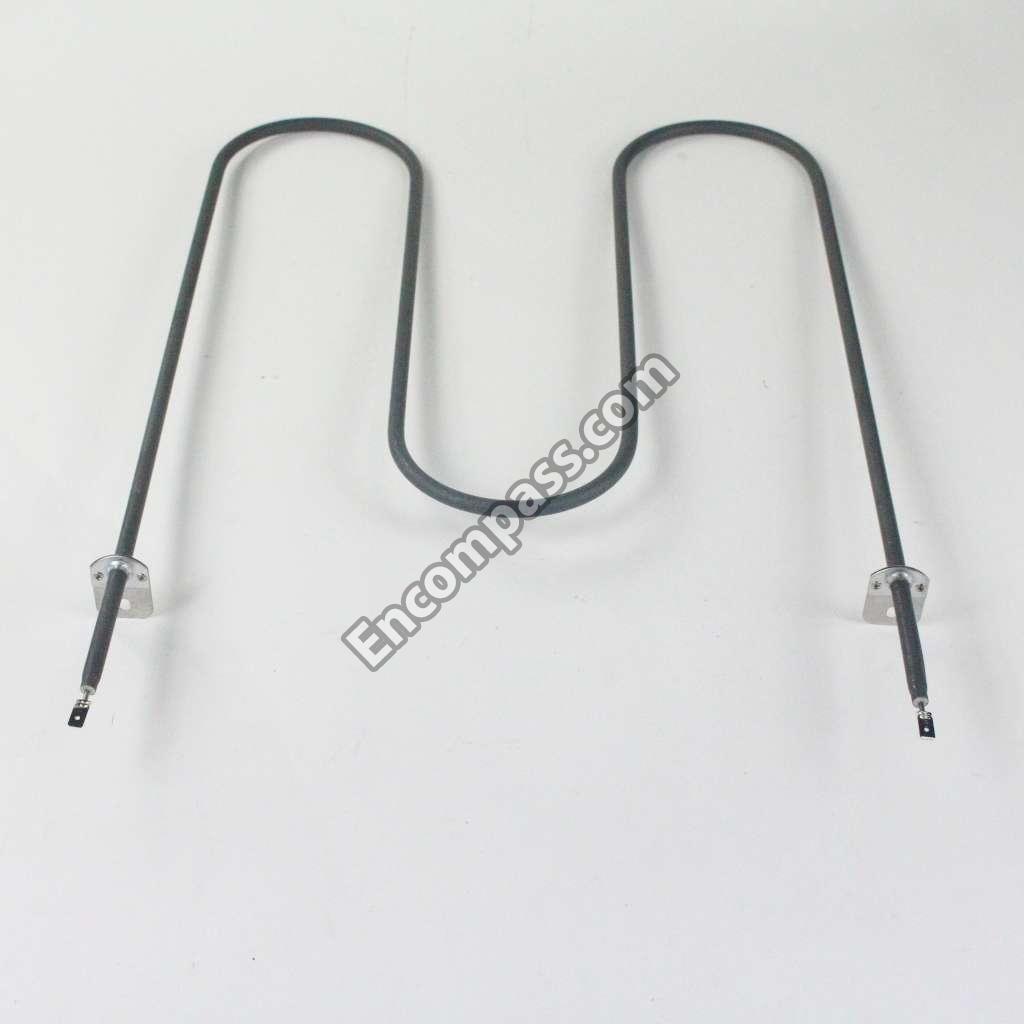

WB44K5012 WB44K5012 BAKE ELEMENT
WB35K5079 WB35K5079 BARRIER INSULATOR
WB37K5018 WB37K5018 BRACKET CAP PNL MTG RT
WB2X9568 WB2X9568 BRACKET-HNGE
WB2M86 WB2M86 BRIDGE SPACR
WB44M5 WB44M5 BROIL ELEMNT
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB2X9105 WB2X9105 CLIP
WB2X9573 WB2X9573 CLIP
WB17X211 WB17X211 CLIP-TERM BK
WB37K5019 WB37K5019 CNT PANEL MTG BRACKET-LT
WB2K5216 WB2K5216 COND MTG BKT
WB18K5368 WB18K5368 COND W HARN **NLA*
WB34K5152 WB34K5152 CONTROL COVER FILLER
WB36K5262 WB36K5262 CONTROL PANEL
WB62X1699 WB62X1699 COOKTOP-BRUSHED CHROME
WB15K5074 WB15K5074 DOOR HANDLE-BLACK
WB23M24 WB23M24 EL CTL 1500W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB36K5194 WB36K5194 END CAP-LT
WB36K5193 WB36K5193 END CAP-RT
WB63K5132 WB63K5132 EXTENSION UPPER SD
WB18M1 WB18M1 EYELET TERM
WB1K5115 WB1K5115 FELT PAD
WB1X1138 WB1X1138 FIBER WASHER
WB63X423 WB63X423 FRONT FRAME
WB56X1902 WB56X1902 GLASS-OVEN DOOR-OUTER
WB34K5168 WB34K5168 HEAT REFLECTOR
WB1X1259 WB1X1259 HEX NUT
WB10K5017 WB10K5017 HINGE ASSEMBLY-RT
WB14X136 WB14X136 HINGE-COOKTP
WB3K5069 WB3K5069 INF CTL KNOB
WB2K5122 WB2K5122 INSUL RET LO
WB2X9888 WB2X9888 INSULATION
WB2X9123 WB2X9123 INSULATION D
WB35K5073 WB35K5073 INSULATION-OV BACK
WB35K5074 WB35K5074 INSULATION-OV BODY
WB17X213 WB17X213 JUNCTION BLK

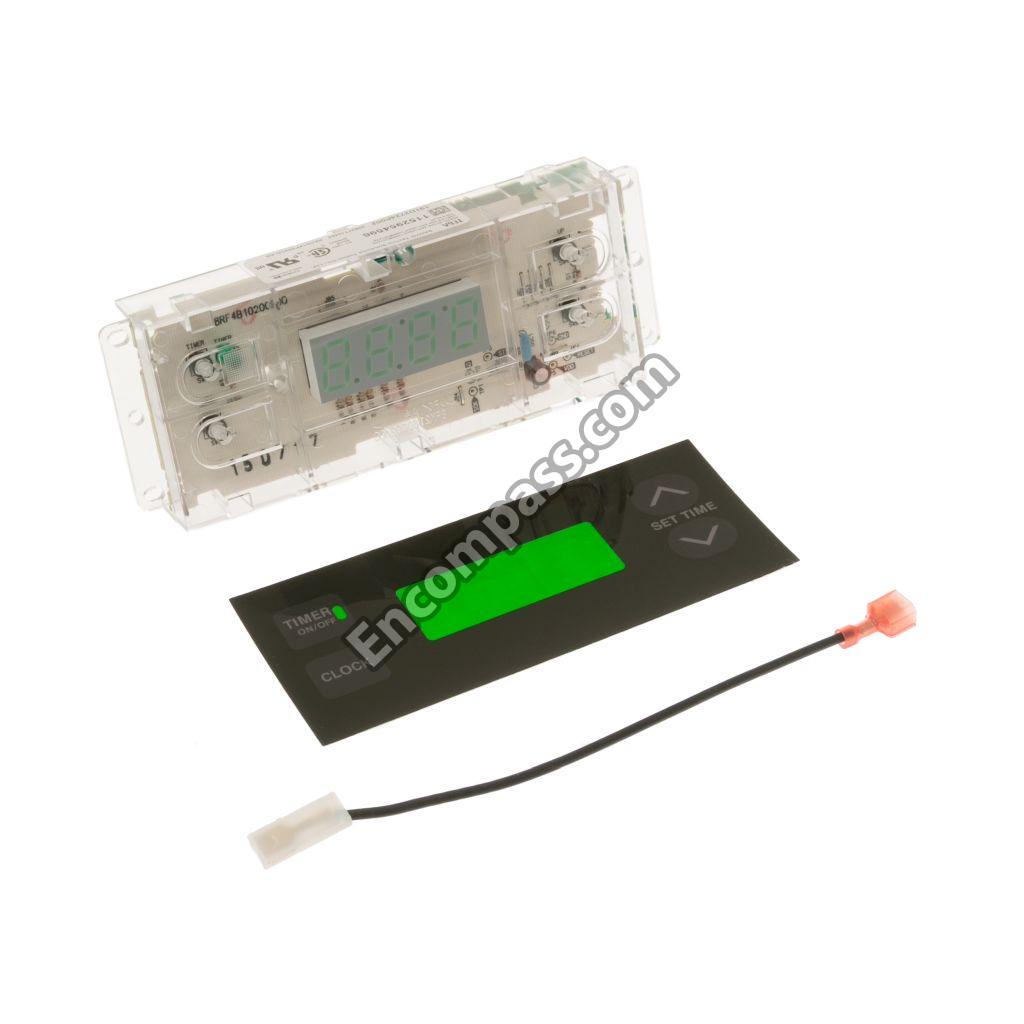

WB50T10048 WB50T10048 KIT TOD (RPR)
WB25T10042 WB25T10042 LENS
WB25T10039 WB25T10039 LIGHT INDICATOR
WB25T10040 WB25T10040 LIGHT INDICATOR
WB63K5123 WB63K5123 MAIN BOTTOM
WB62K5051 WB62K5051 MAIN TOP WHITE
WB62K5052 WB62K5052 MAIN TOP-ALMOND
WB18K5379 WB18K5379 MAIN WIRE HARNESS
WB18K5378 WB18K5378 MAINTOP WIRE HARNESS
WB56K5061 WB56K5061 N/L/A 04/20/06
WB3K5075 WB3K5075 N/L/A 05/08/06
WB56X1910 WB56X1910 OV DOOR INS RETAINER
WB56X1901 WB56X1901 OV DR INNER GLASS
WB56M2 WB56M2 OV DR LINING
WB2X9384 WB2X9384 OVDR GL RET
WB63T10002 WB63T10002 OVEN BODY
WB48M4 WB48M4 OVEN RACK
WB8K5042 WB8K5042 OVLAMP HLDR
329943 329943 PAN-LARGE
WB2X9189 WB2X9189 PLUG BUT REC
WB2X1125D WB2X1125D PLUG-PKG 12
WB11K5022 WB11K5022 POWER RESISTOR
WB2X9570 WB2X9570 REAR SHIELD
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB2X9574 WB2X9574 SCREEN-BB
WB1X1116 WB1X1116 SCREW
WB1X1164 WB1X1164 SCREW
WB1M1 WB1M1 SCREW
WB1X1178 WB1X1178 SCREW
WB1X1328 WB1X1328 SCREW
WB1X1162 WB1X1162 SCREW
WB1K5072 WB1K5072 SCREW
WB1K5116 WB1K5116 SCREW
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1424D WB1X1424D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB32K5051 WB32K5051 SEAL OV DR
WB2K5198 WB2K5198 SIDE INS RET
WB2X9575 WB2X9575 SPACER
WB2X9039 WB2X9039 SPACER-GLASS
WB2X9037 WB2X9037 SPACER-HNDL
WB1X1311 WB1X1311 SPEED NUT
WB9X277 WB9X277 SPRING-DOOR
WB31X5021 WB31X5021 STAINLESS STEEL CENTER TRIM FO
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB30X254 WB30X254 SURF UNIT 6
WB30X253 WB30X253 SURF UNIT 8
WB24X415 WB24X415 SWITCH-LITE
WB17X210 WB17X210 TERM BLK
WB20K5018 WB20K5018 THERMOSTAT
WB63X373 WB63X373 TOP-BB **NLA*
WB7X1678 WB7X1678 TRIM-LEFT
WB7X1679 WB7X1679 TRIM-RIGHT
WB38M6 WB38M6 VNT TUBE ASM
WB1K5054 WB1K5054 WASHER
WB1K5046 WB1K5046 WASHER
WB2X9569 WB2X9569 WIRE COVER
WB34K5134 WB34K5134 WIRE COVER REAR
