Model Image
Manufacturer

GE

Model Number

9119112190

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

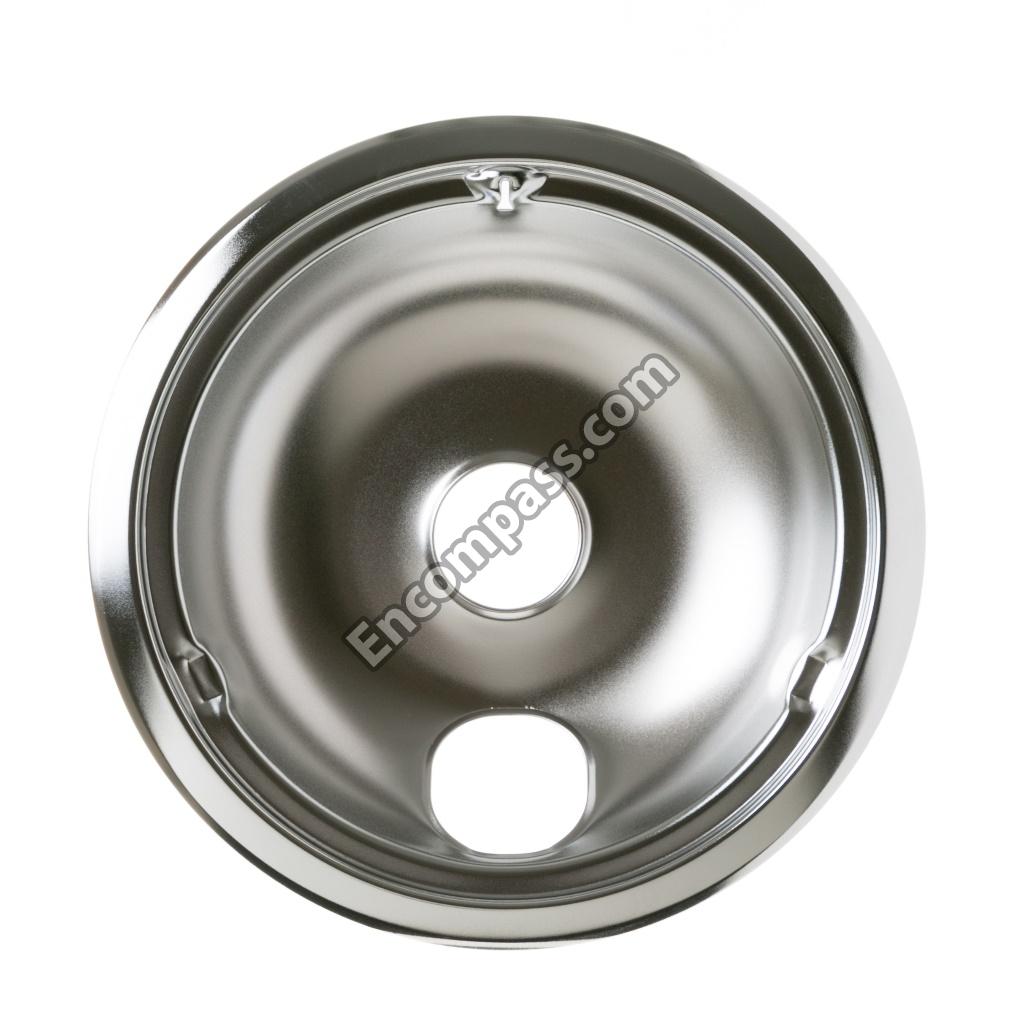

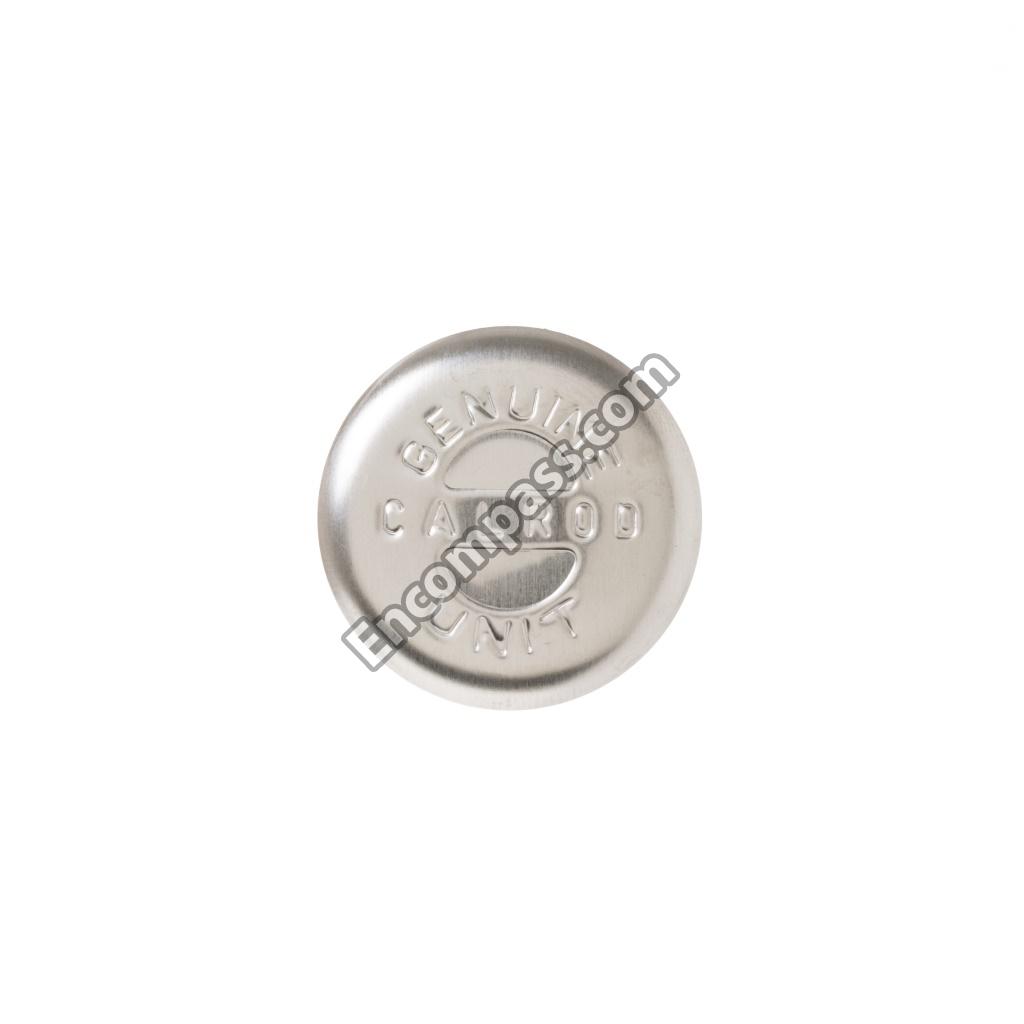

WB31K5024 WB31K5024 6 INCH CHROME BURNER BOWL - EL
WB31K5025 WB31K5025 8 INCH CHROME BURNER BOWL - EL

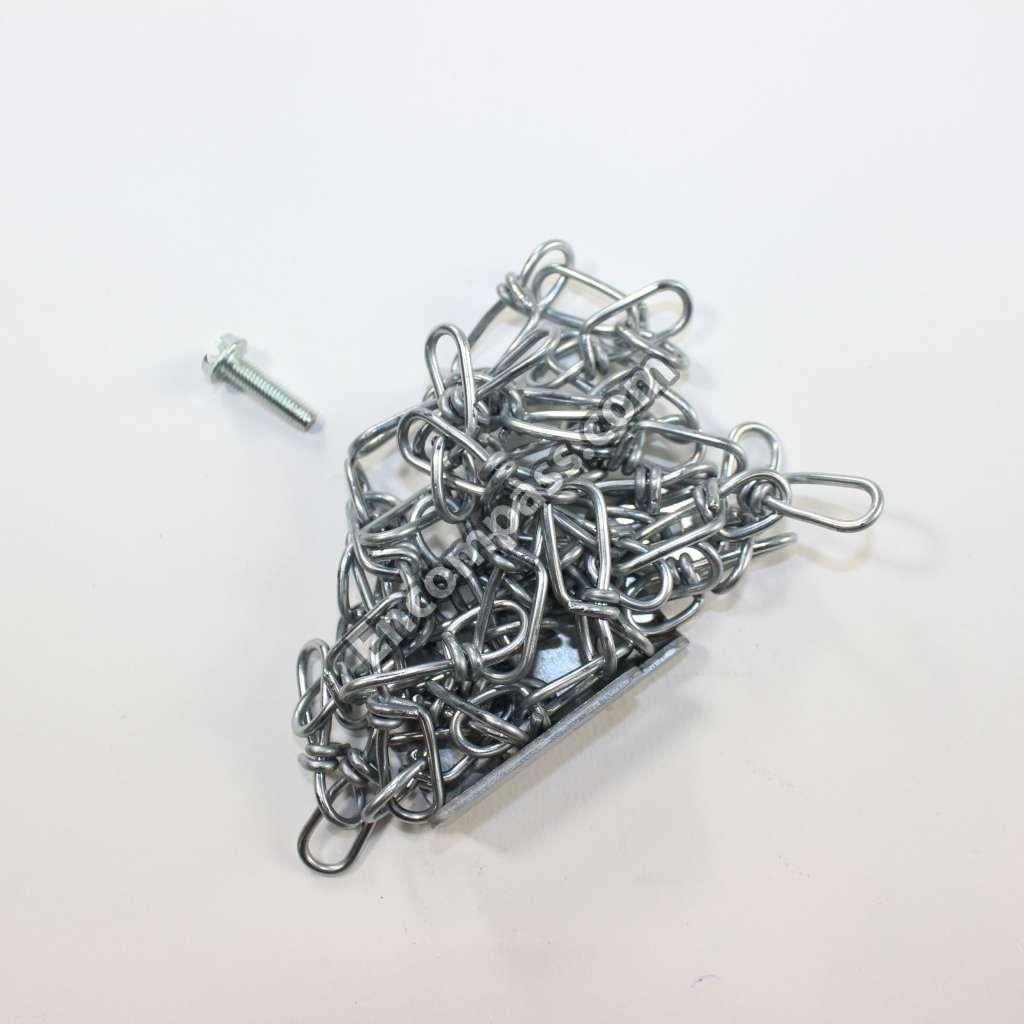

WB2X7909 WB2X7909 ANTI-TIP RANGE KIT
WB37K5030 WB37K5030 BACKGUARD BODY
WB37K5035 WB37K5035 BACKGUARD BODY

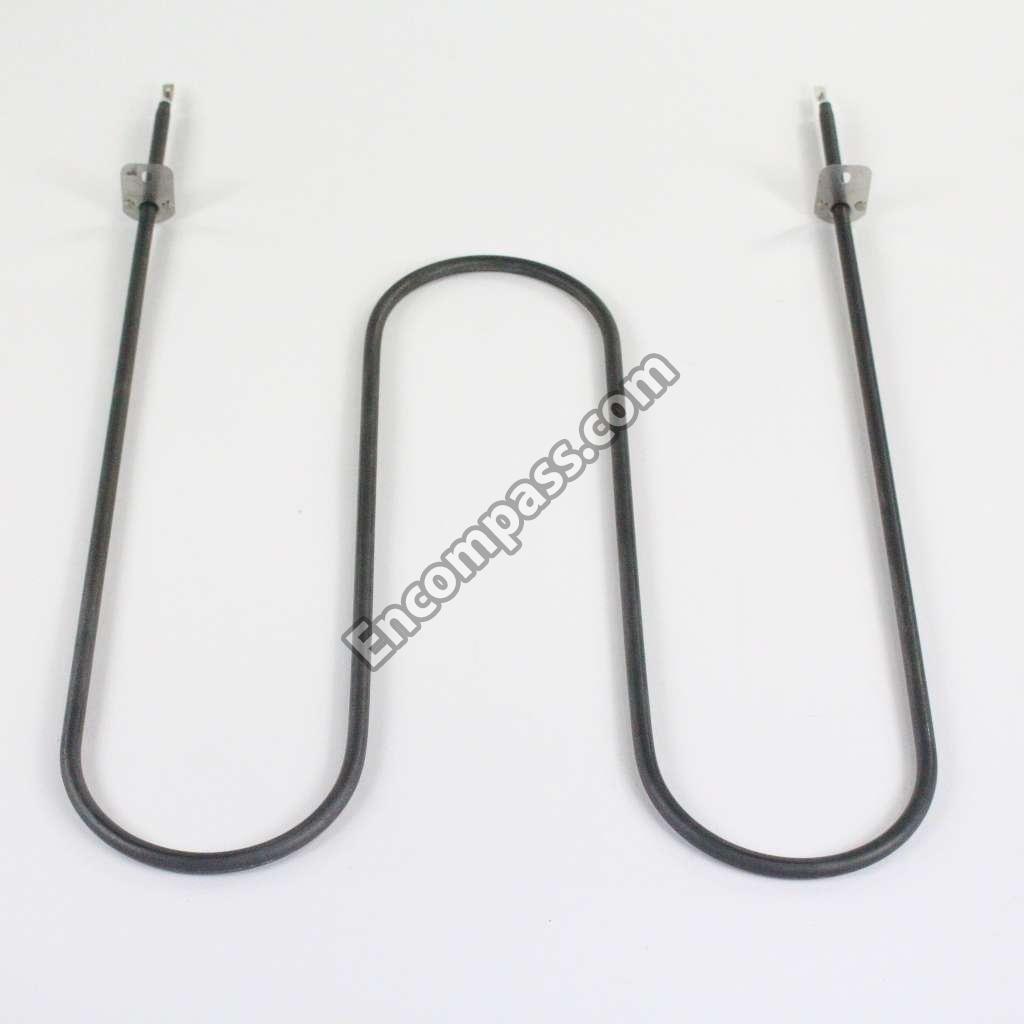

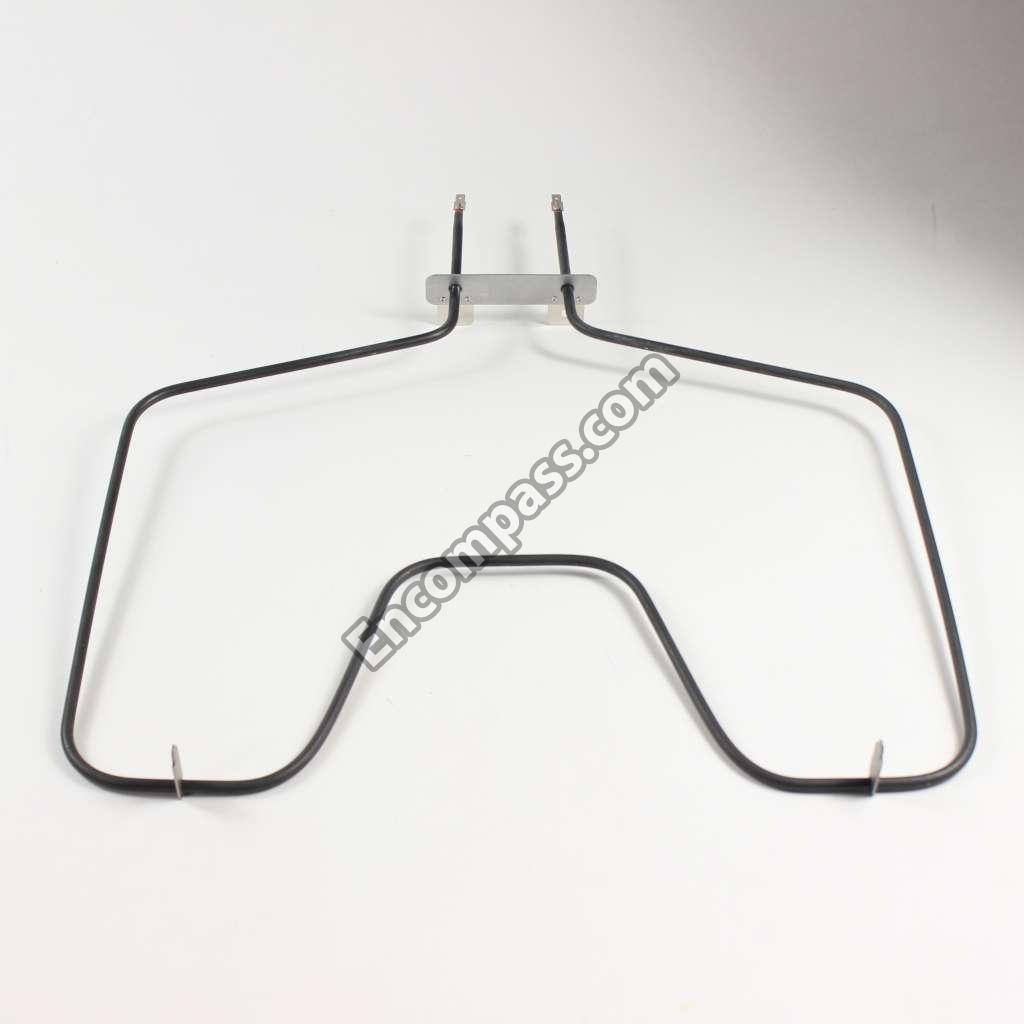

WB44K5012 WB44K5012 BAKE ELEMENT
WB2K5271 WB2K5271 BASE ASM
WB17X5095 WB17X5095 BLOCK TERMINAL POWER

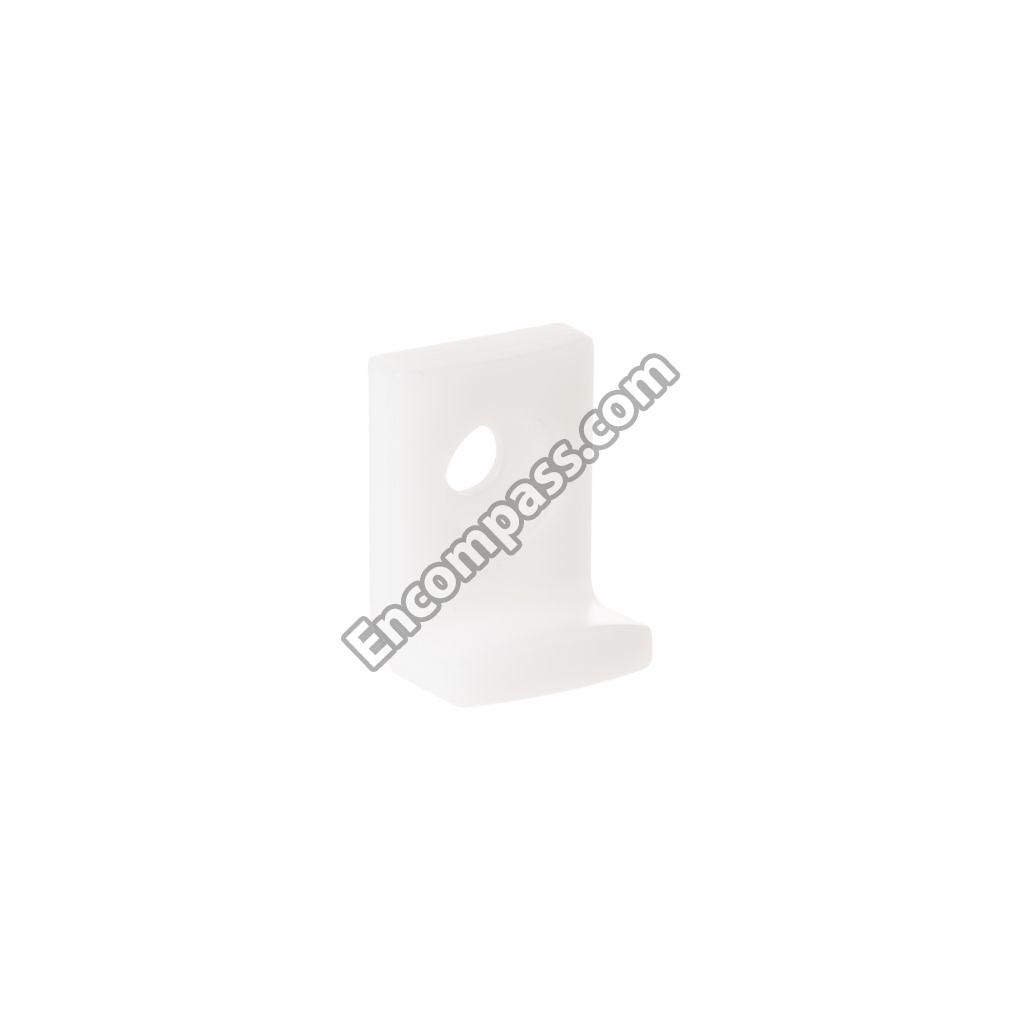

WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB63K5066 WB63K5066 BODY SIDE ALMOND
WB63K5194 WB63K5194 BODY SIDE-TEXTURED
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB44X232 WB44X232 BROILUNT 240
WB64K5097 WB64K5097 BURNER BOX BOTTOM
WB2X9420 WB2X9420 CLAMP ROD

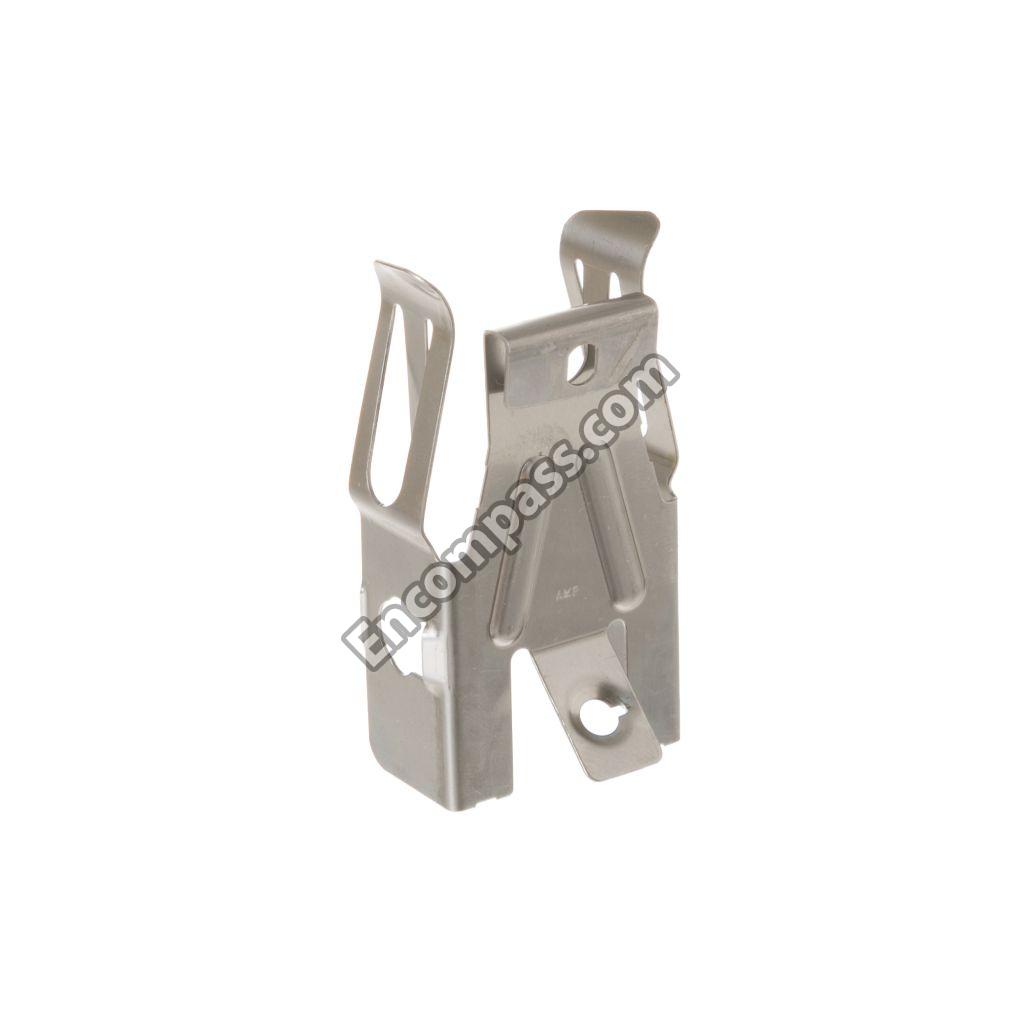

WB2X9105 WB2X9105 CLIP
WB17X211 WB17X211 CLIP-TERM BK
WB36K5209 WB36K5209 CONTROL PANEL
WB36K5311 WB36K5311 CONTROL PANEL
WB36K5197 WB36K5197 CONTROL PANEL-WHITE
WB34K5092 WB34K5092 DISCONNECT SHIELD
WB58X65 WB58X65 DRAWER

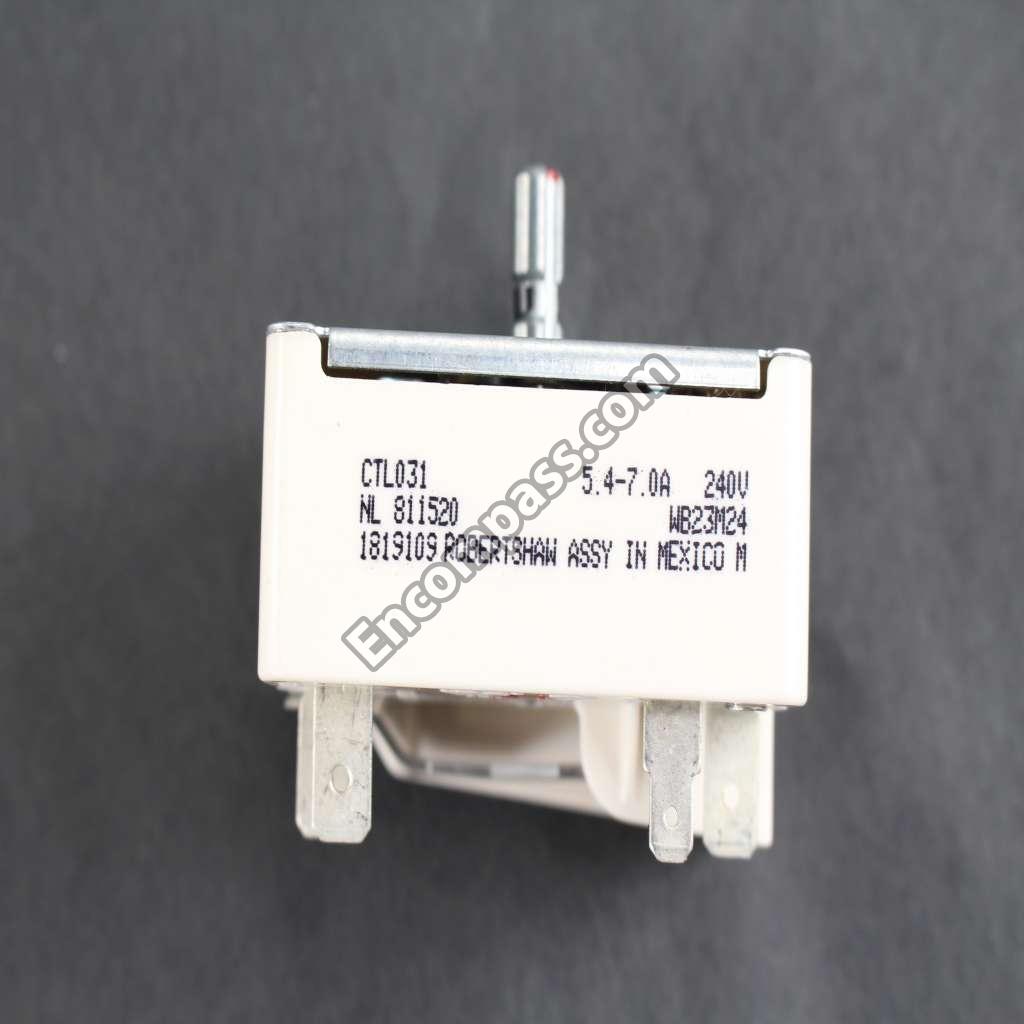

WB23M24 WB23M24 EL CTL 1500W

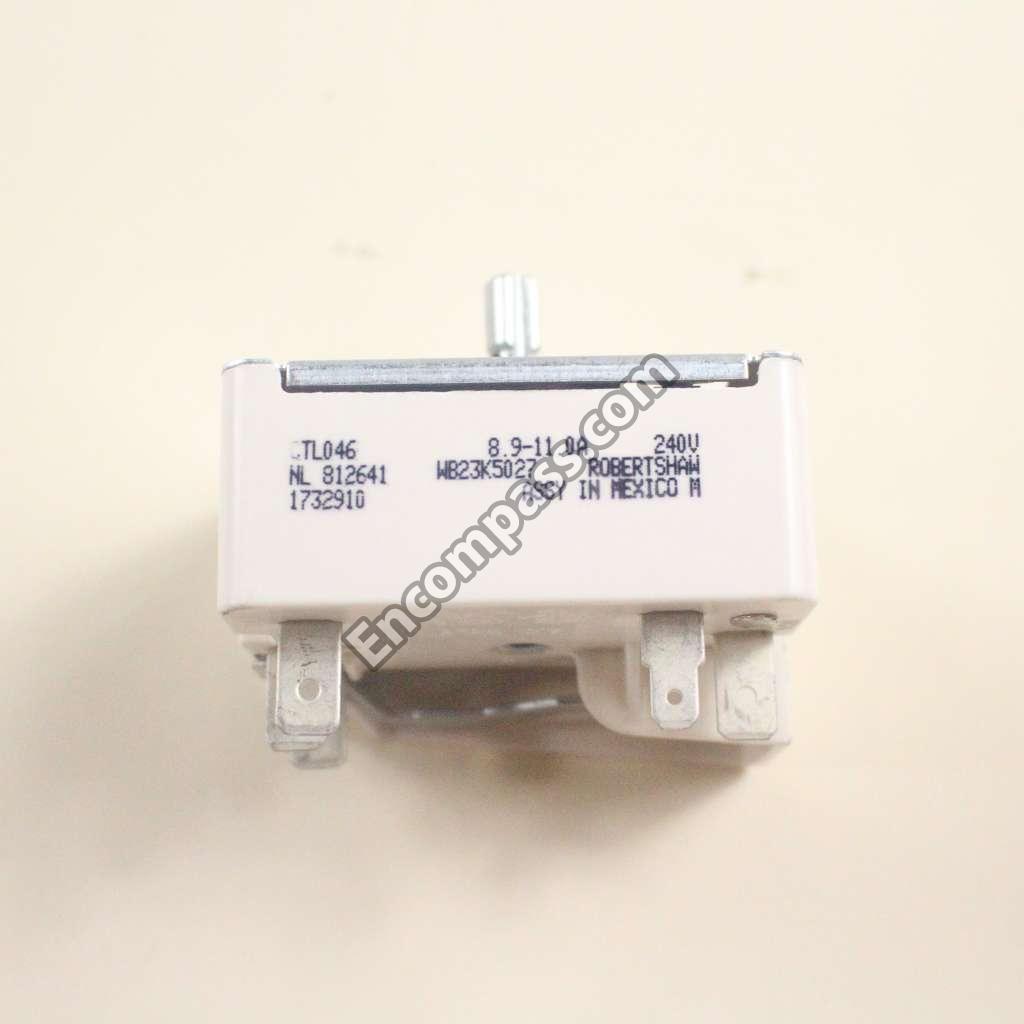

WB23K5027 WB23K5027 ELEMENT CONTROL 2350W

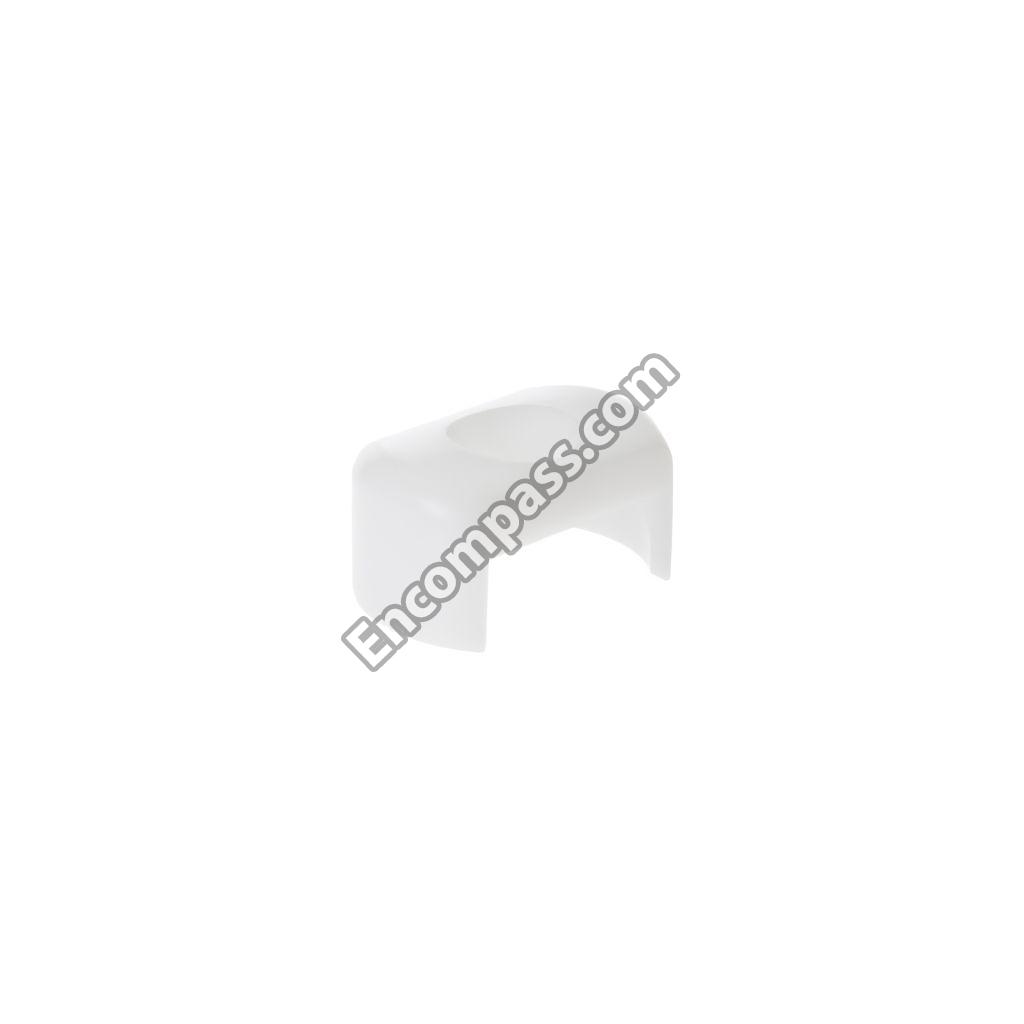

WB7X1643 WB7X1643 END CAP LEFT
WB7X1644 WB7X1644 END CAP RGHT
WB7X1649 WB7X1649 END CAP-RGHT
WB18M1 WB18M1 EYELET TERM
WB1K5114 WB1K5114 FELT PAD
WB1X1138 WB1X1138 FIBER WASHER
WB26K5067 WB26K5067 GLASS TRAY MOTOR
WB56X1886 WB56X1886 GLASS-OUTER-BLACK
WB1X1260 WB1X1260 GRUND WASHER
WB15X282 WB15X282 HANDLE DRWR

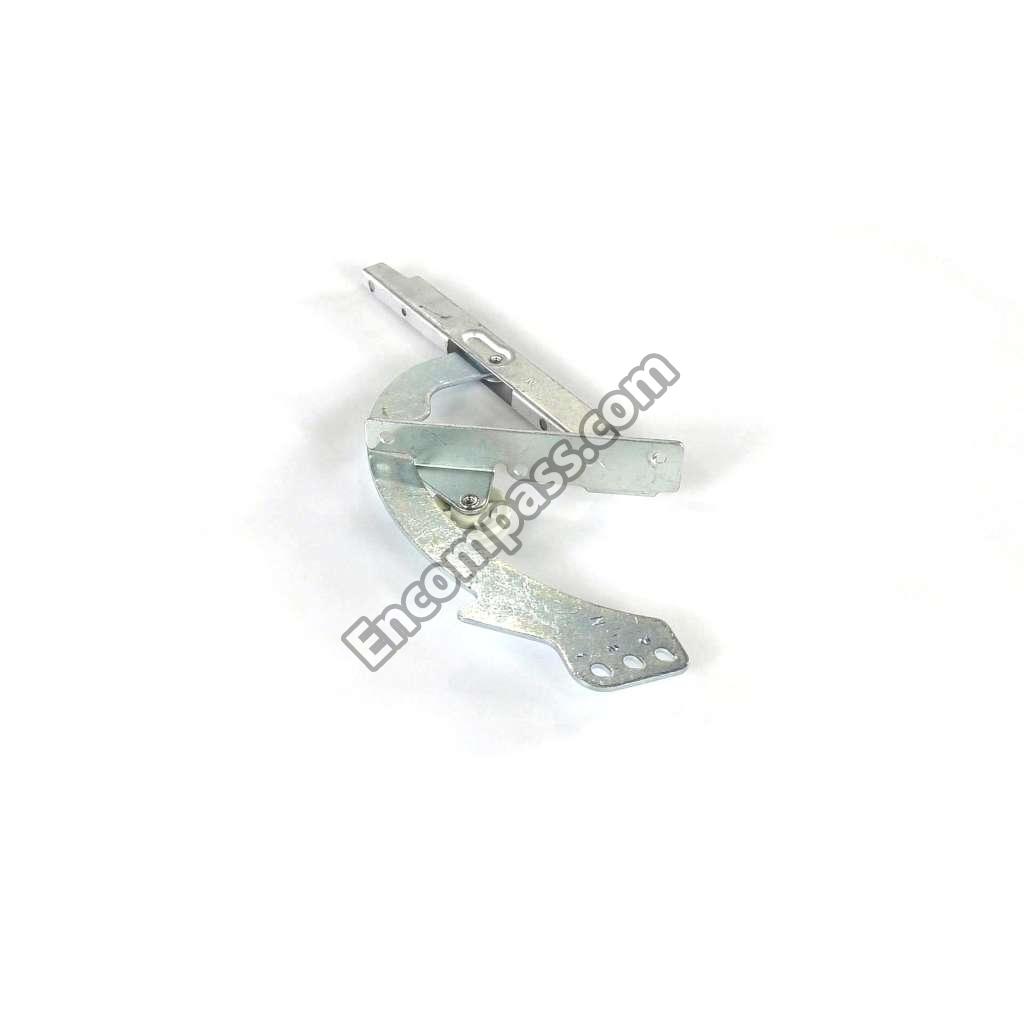

WB14X126 WB14X126 HINGE-LEFT
WB14X103 WB14X103 HINGE-LEFT

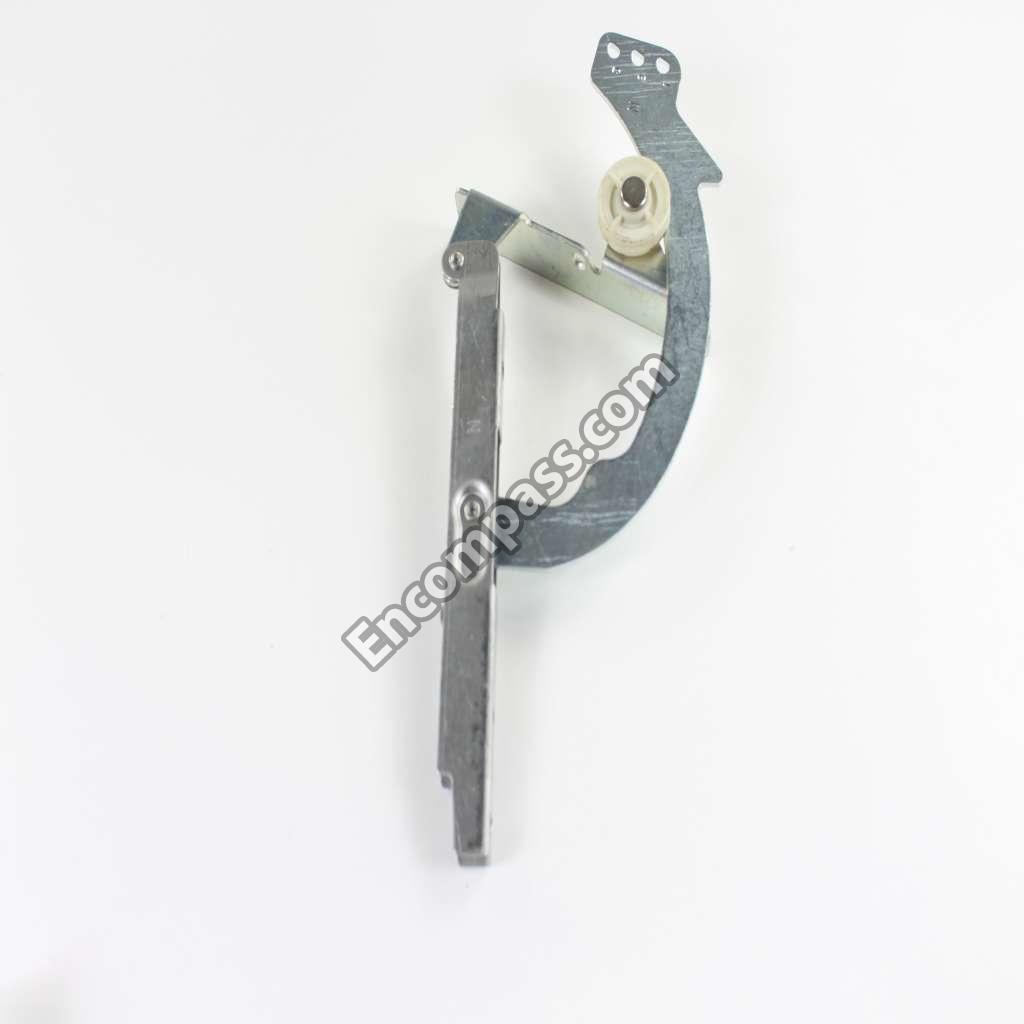

WB14X104 WB14X104 HINGE-RIGHT
WB14X127 WB14X127 HINGE-RIGHT

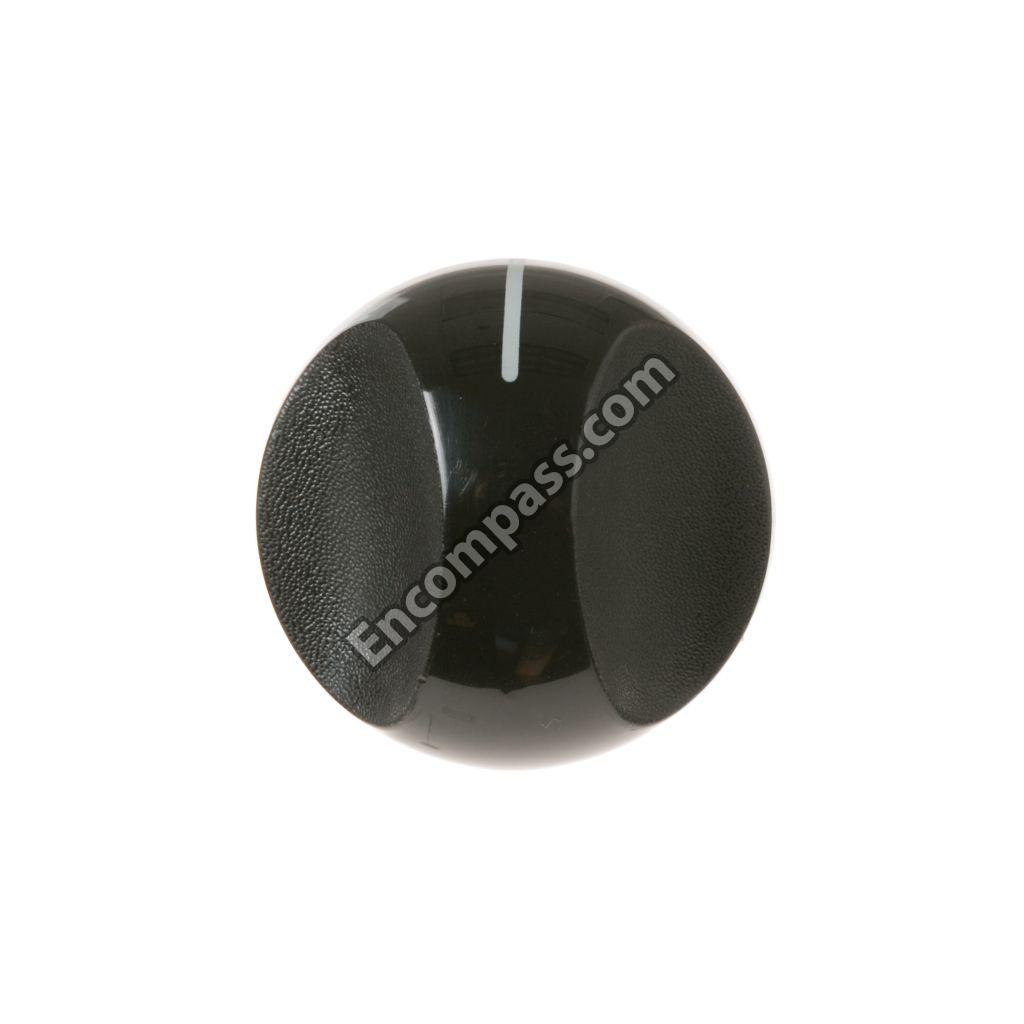

WB3K5096 WB3K5096 INF KNOB BLK
WB3K5099 WB3K5099 INF KNOB WH
WB02T10077 WB02T10077 INSLN RETAINER-LO
WB2X9123 WB2X9123 INSULATION D
WB35K5073 WB35K5073 INSULATION-OV BACK
WB35K5074 WB35K5074 INSULATION-OV BODY
WB2X9025 WB2X9025 LEG-LEVEL

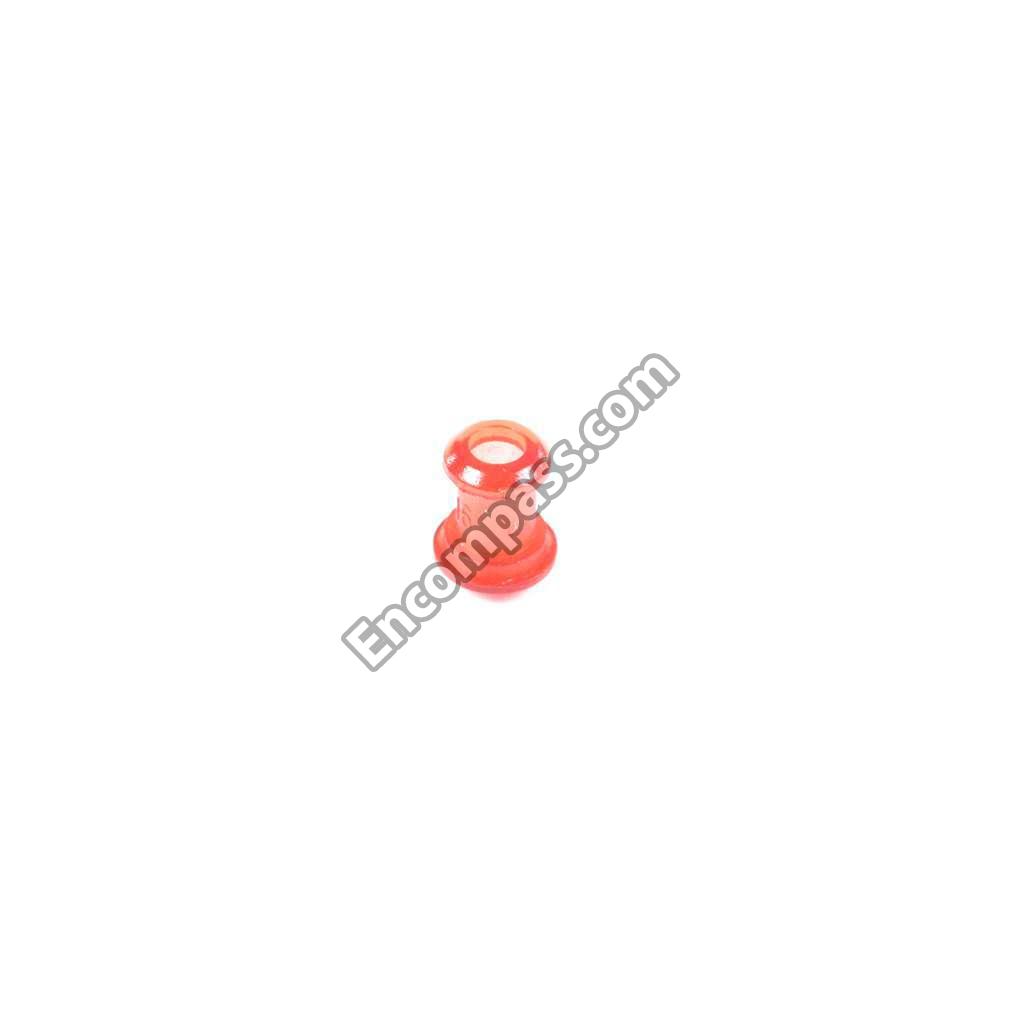

WB25T10042 WB25T10042 LENS

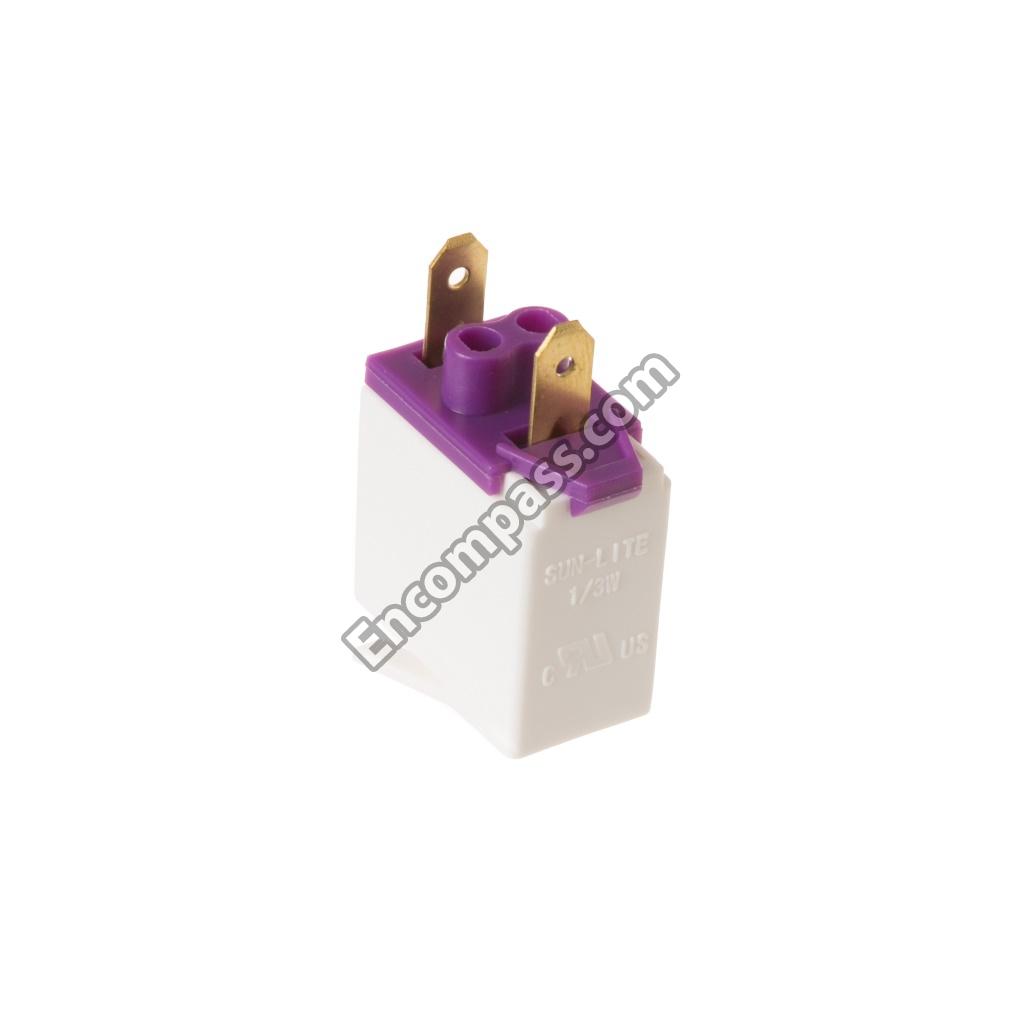

WB25T10040 WB25T10040 LIGHT INDICATOR
WB25T10039 WB25T10039 LIGHT INDICATOR
WB56X1897 WB56X1897 LOWER FRONT PANEL-ALM
WB63K5187 WB63K5187 MAIN BACK
WB62M13 WB62M13 MAIN TOP AD
WB18K5340 WB18K5340 MAIN WIRE HARNESS
WB18M65 WB18M65 MAINTOP HARN
WB62M12 WB62M12 MAINTOP WH
WB7X1648 WB7X1648 N/L/A 02/28/03
WB56K5059 WB56K5059 N/L/A 10/17/05
WB55M4 WB55M4 OV DR LIN AS
WB2X9384 WB2X9384 OVDR GL RET
WB57K5100 WB57K5100 OVDR OUT GL
WB34K5048 WB34K5048 OVEN LIGHT COVER

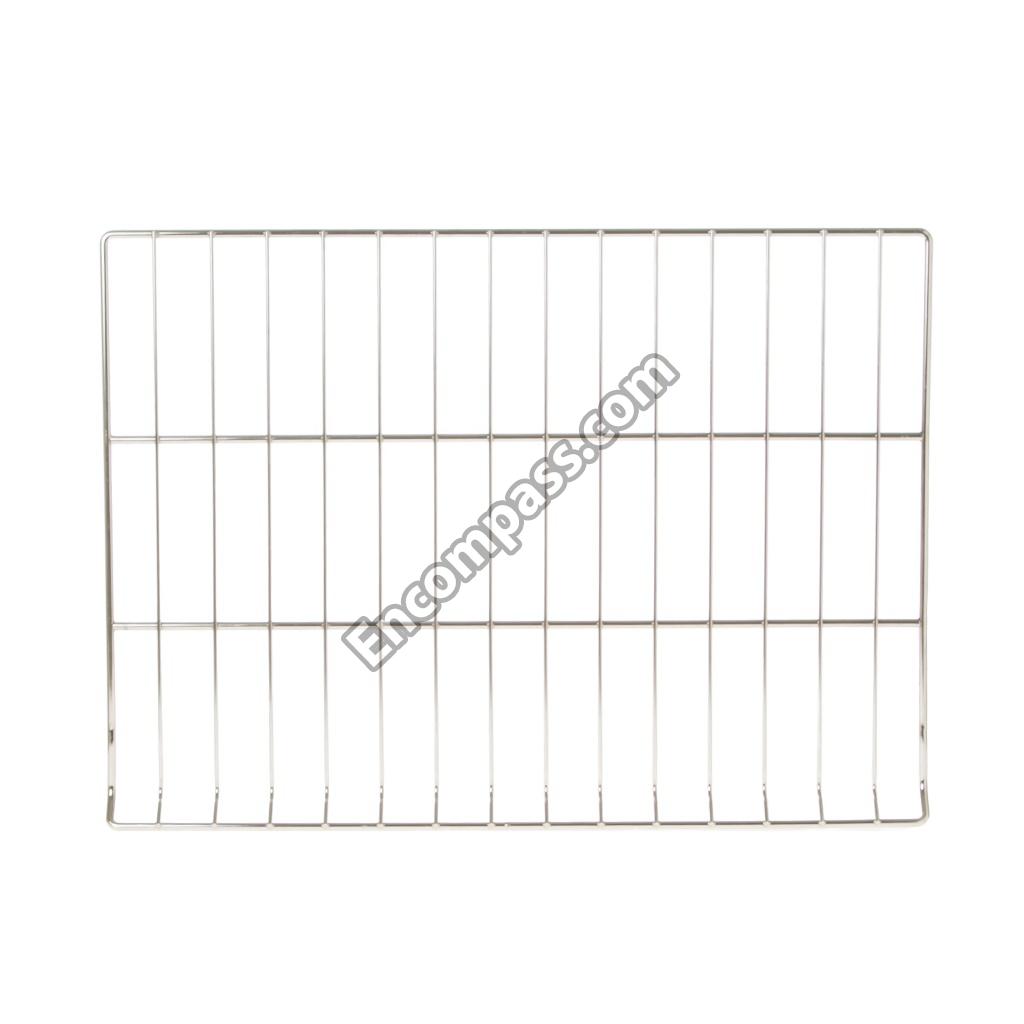

WB48M4 WB48M4 OVEN RACK

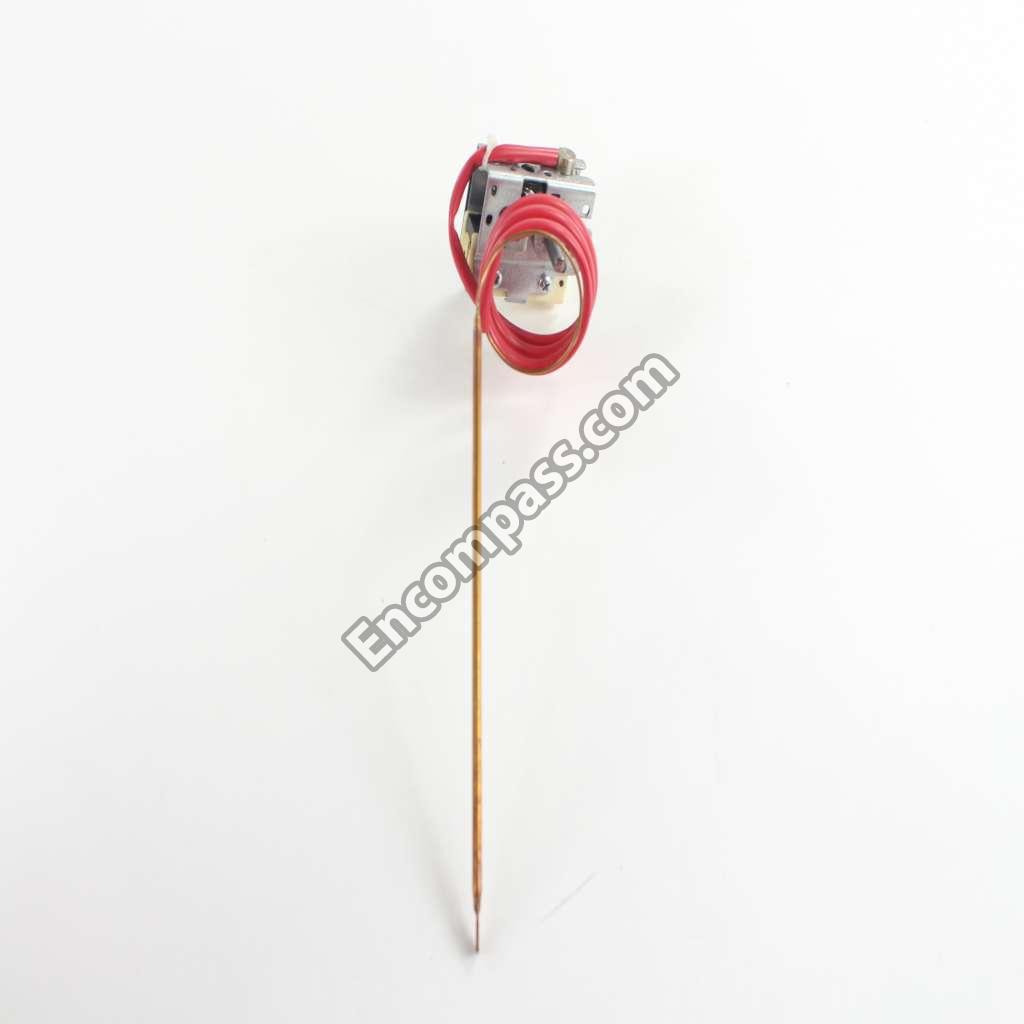

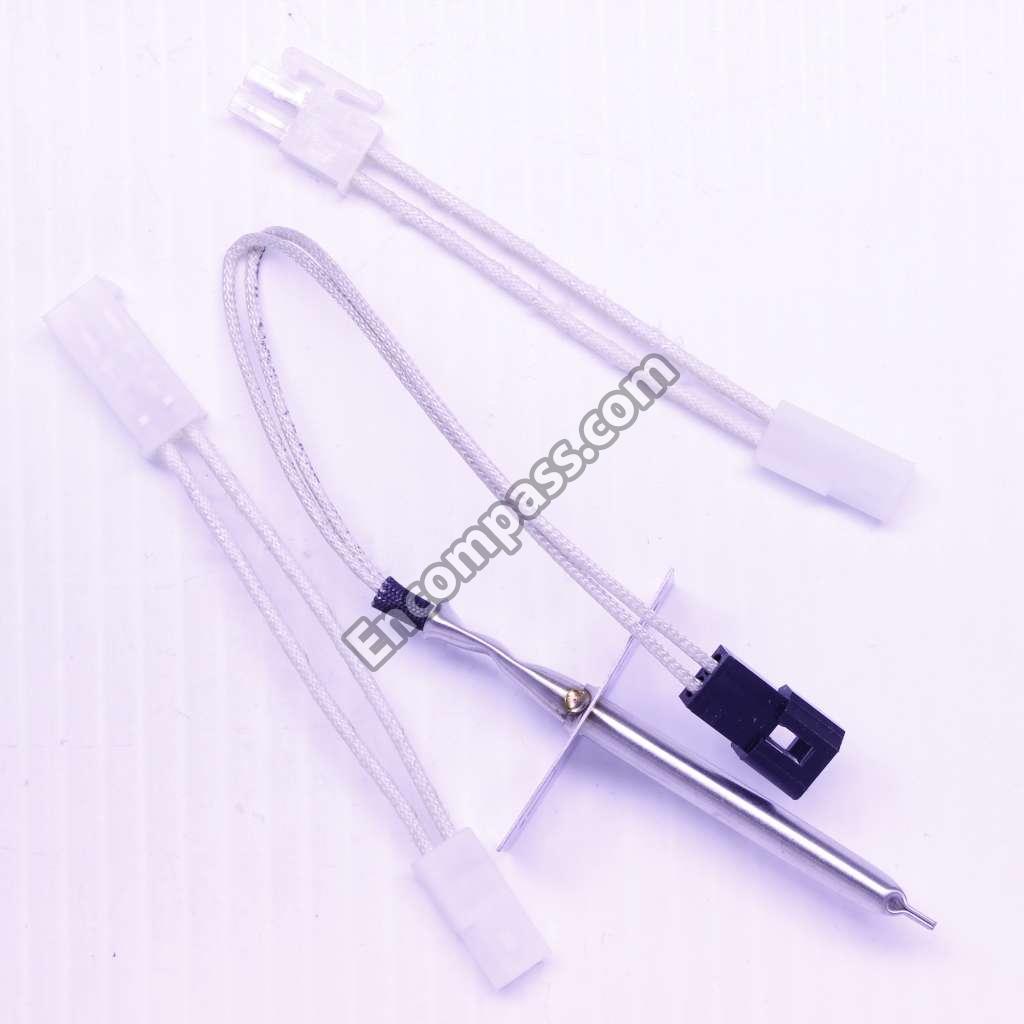

WB20K5027 WB20K5027 OVEN THERMOSTAT
WB56X1896 WB56X1896 PANEL-OVEN DOOR-WHITE
WB02T10054 WB02T10054 PLATE RANGE SERVICE M
WB2X9189 WB2X9189 PLUG BUT REC
WB2X9415 WB2X9415 RACEWAY
WB2X9416 WB2X9416 RACEWAY CVR
WB2K5316 WB2K5316 REINF PLATE
WB2X9030 WB2X9030 RETAIN-INSUL
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB1X1324 WB1X1324 SCREW
WB1X1113 WB1X1113 SCREW
WB1K5072 WB1K5072 SCREW
WB1X1258 WB1X1258 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5550 WB1X5550 SCREW
WB1K5122 WB1K5122 SCREW
WB1M1 WB1M1 SCREW
WB1X1172 WB1X1172 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1131 WB1X1131 SCREW-6-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1424D WB1X1424D SCREW-PKG 12

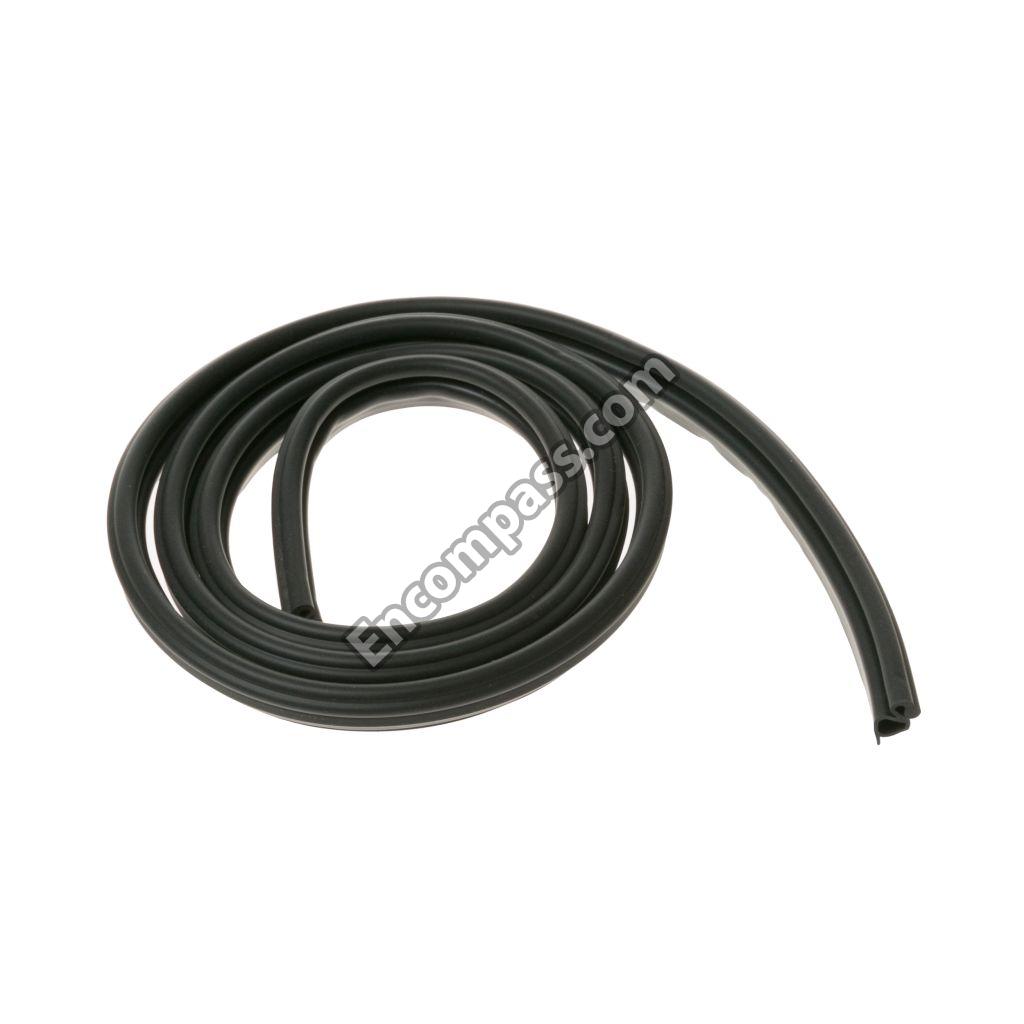

WB32K5051 WB32K5051 SEAL OV DR
WB2X9640 WB2X9640 SPACER
WB1X1177 WB1X1177 SPACER
WB2X9039 WB2X9039 SPACER-GLASS
WB2X9037 WB2X9037 SPACER-HNDL
WB9X258 WB9X258 SPRING
WB31X5021 WB31X5021 STAINLESS STEEL CENTER TRIM FO
WB14X105 WB14X105 STRIKE
WB2X9719 WB2X9719 SUPP-BROIL
WB7X1647 WB7X1647 SUPPORT
WB56M3 WB56M3 SUPPORT DRWR

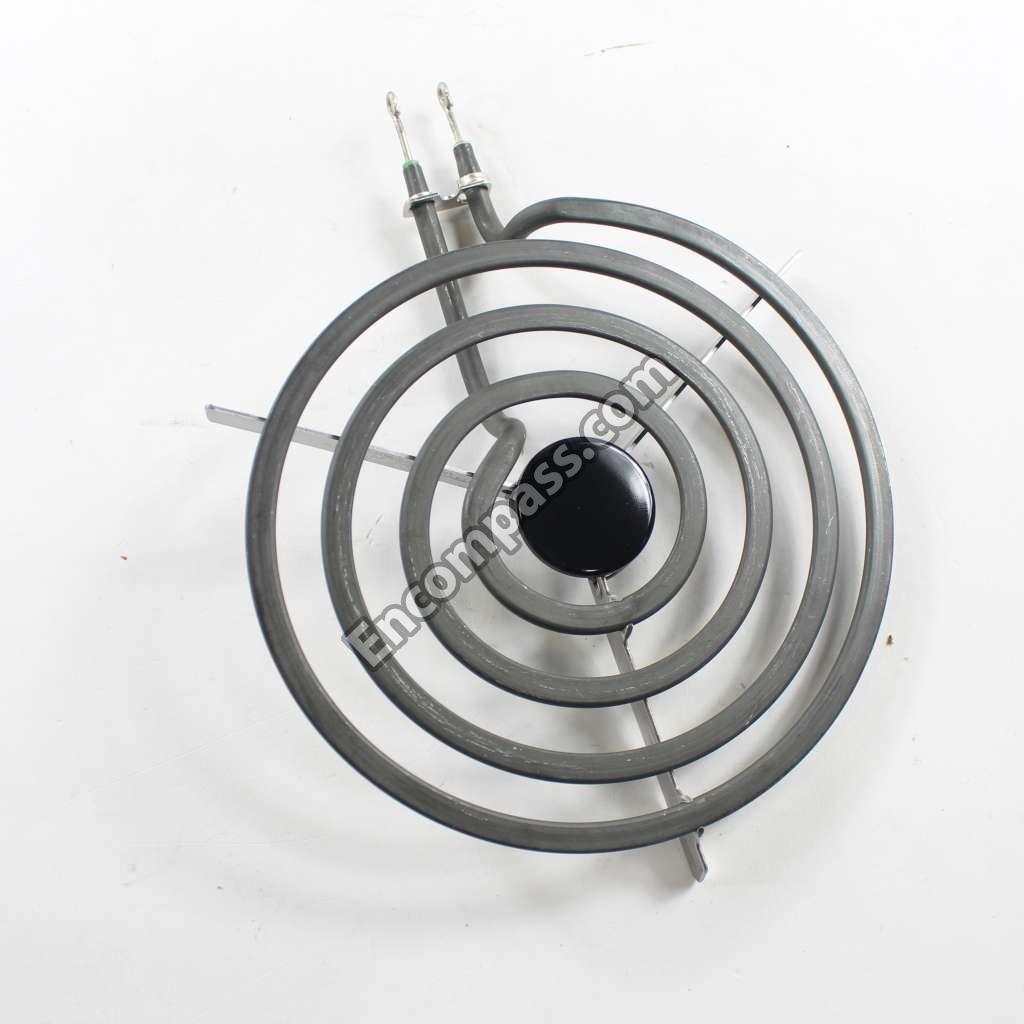

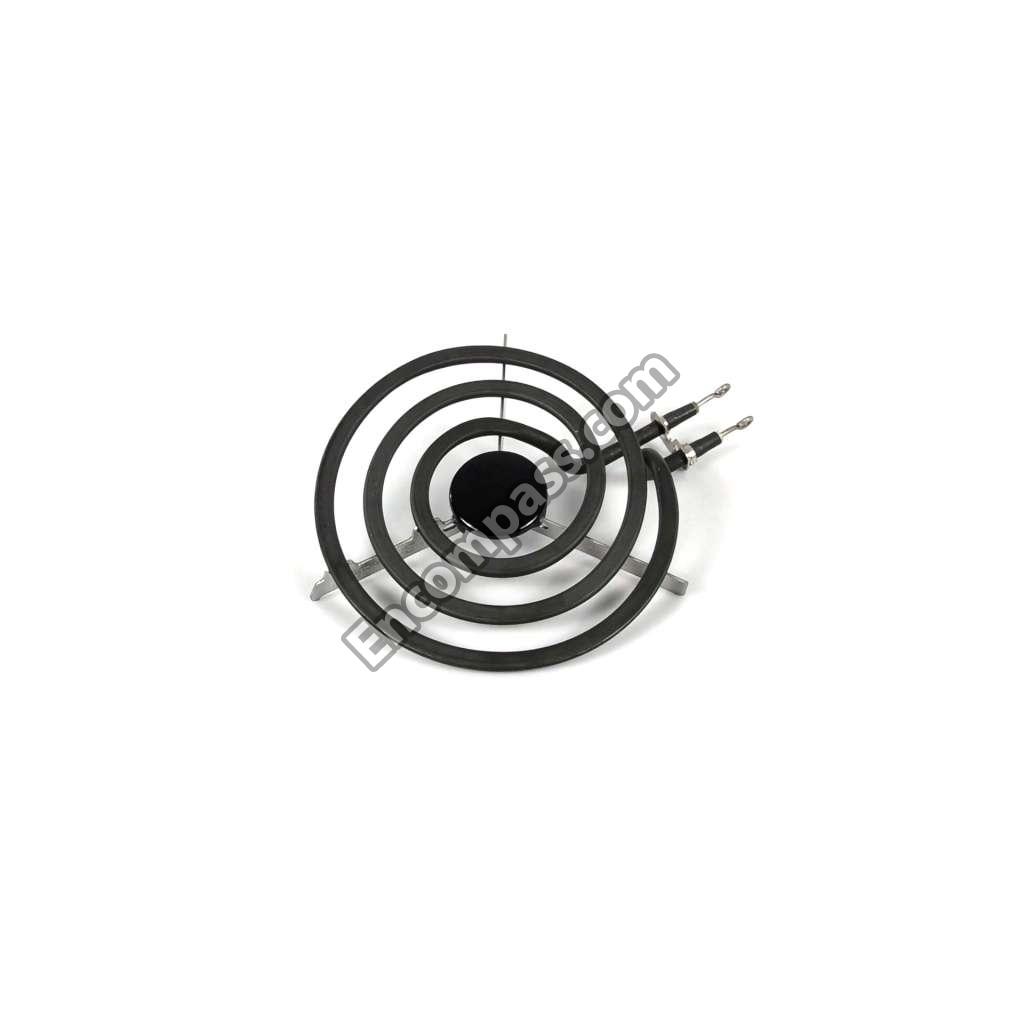

WB30X254 WB30X254 SURF UNIT 6
WB30X253 WB30X253 SURF UNIT 8
WB17X210 WB17X210 TERM BLK
WB3K5095 WB3K5095 THERM KNOB B
WB3K5105 WB3K5105 THERMOS KNOB
WB34M20 WB34M20 UP WIRE CVR
WB34K5093 WB34K5093 UPPER WIRE COVER
WB38K5020 WB38K5020 VENT TUBE **NLA*
WB55K5042 WB55K5042 W OVDR LINING **NLA*
WB1M6 WB1M6 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB63K5109 WB63K5109 WRAPPER OV CAV ASSEMBLY
