Model Image
Manufacturer

GE

Model Number

ABS300K2BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB03T10072 WB03T10072 (GE ) KNOB
WB31T10014 WB31T10014 6 INCH BLACK PORCELAIN BURNER
WB31T10015 WB31T10015 8 INCH BLACK PORCELAIN BURNER

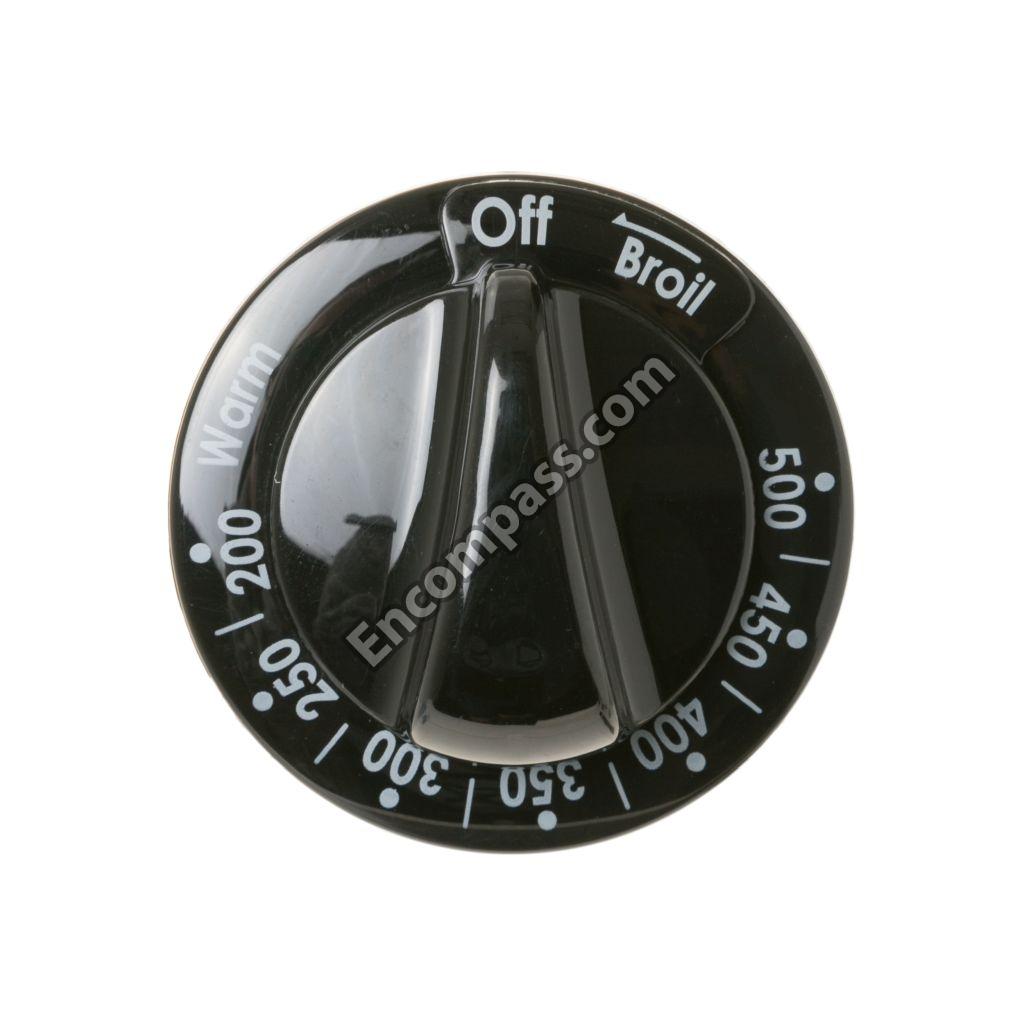

WB03K10205 WB03K10205 ASM KNOB GE THERMOSTAT
WB63K10016 WB63K10016 BACK OVEN
WB30X46987 WB30X46987 BAKE ELEMENT
WB56X31458 WB56X31458 BLACK DRAWER PANEL
WB64K10009 WB64K10009 BOX COOKTOP
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASM
WB02K10384 WB02K10384 BRACKET ASM ANTITIP
WB02K10025 WB02K10025 BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB02K10027 WB02K10027 BRACKET TIMER
WB30X46986 WB30X46986 BROIL ELEMENT
WB02K10178 WB02K10178 BUMPER
WB25K0002 WB25K0002 CAMERA LENS
WB02K0050 WB02K0050 CLIP CRYSTAL
WB2K50 WB2K50 CLIP CRYSTAL
WB02K10133 WB02K10133 CLIP RECEPTICAL
WB2X8441 WB2X8441 CLIP THERMOS
WB02X8441 WB02X8441 CLIP THERMOSTAT
WB02X8115 WB02X8115 CLIP WIRE
WB2X8115 WB2X8115 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB34K10031 WB34K10031 COVER BACK
WB34K10034 WB34K10034 COVER DRAWER
WB07K10023 WB07K10023 COVER END LT (BLACK)
WB07K10022 WB07K10022 COVER END RT (BLACK)
WB56K25 WB56K25 CRYSTAL WIND
WB56K5 WB56K5 CRYSTAL WIND
WB56K0025 WB56K0025 CRYSTAL WINDOW
WB56K0005 WB56K0005 CRYSTAL WINDOW
WB62K10086 WB62K10086 CT THERMO BL
WB34K10083 WB34K10083 DIVIDER WIRING
WB35K10114 WB35K10114 DOOR INSULATION
WB58K10007 WB58K10007 DRAWER BODY
WB02K10158 WB02K10158 DRAWER SUPPORT
WB17T10006 WB17T10006 ELEC RANGE SURFACE BURNER TERMINAL BLOCK
WB07K10004 WB07K10004 END CAP LT (BLACK)
WB07K10003 WB07K10003 END CAP RT (BLACK)
WB27K10200 WB27K10200 FACEPLATE TOD LED
WB63K10149 WB63K10149 FRAME WELD ASM.
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB04K10021 WB04K10021 GASKET FRONT FRAME
WB32K10037 WB32K10037 GASKET OVEN SEAL
WB2K66 WB2K66 GD SUPT RGTP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB56K10032 WB56K10032 GUARD INSULATION
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB34K10029 WB34K10029 GUARD TERMINAL
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K1 WB15K1 HANDLE BROIL
WB15K0001 WB15K0001 HANDLE- DOOR (CR)
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB24T10027 WB24T10027 INF SW CTN (2100W)
WB24T10022 WB24T10022 INF SWITCH CONTROL 1250W
31-10831 31-10831 INSTALL INSTRUCTIONS
WB35K10107 WB35K10107 INSULATION OVEN BACK
WB35K10108 WB35K10108 INSULATION OVEN WRAP
WB25K10002 WB25K10002 LAMP PILOT
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB55K10050 WB55K10050 LINER ASM WELD DOOR
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10245 WB63K10245 OVEN SIDE LF
WB63K10146 WB63K10146 OVEN SIDE RT
WB63K10021 WB63K10021 OVEN TOP
WB56K10043 WB56K10043 PANEL DOOR
WB56K10006 WB56K10006 PANEL DRAWER (BLACK)
WB63K10141 WB63K10141 PANEL SIDE
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB02K10075 WB02K10075 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB37K0018 WB37K0018 PLATE END LEFT
WB37K18 WB37K18 PLATE END LT
WB37K0017 WB37K0017 PLATE END RIGHT
WB37K17 WB37K17 PLATE END RT
WB02X0646 WB02X0646 PLATE-GROUND
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-21145 31-21145 PM MINI-MANUAL
49-88036 49-88036 PM USE AND CARE MANUAL
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB63K10005 WB63K10005 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K16 WB39K16 RANGE DRAWER RAIL
WB55K1 WB55K1 REFLECTOR
WB55K0001 WB55K0001 REFLECTOR LG
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB02K10026 WB02K10026 ROD SUPPORT
WB01K10078 WB01K10078 SCR 10-16 X 2 3/4
WB01K0021 WB01K0021 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5716 WB1X5716 SCREW
WB1X536 WB1X536 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K10003 WB01K10003 SCREW-MTG END CAP (BLACK)
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB63K10244 WB63K10244 SIDE OVEN
WB02K10156 WB02K10156 SPACER
WB02K10160 WB02K10160 SPACER DOOR
WB01K10020 WB01K10020 SPACER-HANDLE
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB10K10009 WB10K10009 SUPPORT ASM RIVET LF
WB10K10010 WB10K10010 SUPPORT ASM RIVET RT
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB10K10002 WB10K10002 SUPPORT HINGE CKTP LT
WB10K10001 WB10K10001 SUPPORT HINGE CKTP RT
WB30K10002 WB30K10002 SURFACE UNIT ASSEMBLY 6
WB30K10003 WB30K10003 SURFACE UNIT ASSEMBLY 8
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB20K10004 WB20K10004 THERMOSTAT TOP HEAT SP
WB27T10469 WB27T10469 TIMER TOD LED
WB36K10579 WB36K10579 TRIM & BRACKET ASM. WELD
WB38K10002 WB38K10002 TUBE-VENT
WB04K10002 WB04K10002 VENT COVER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
