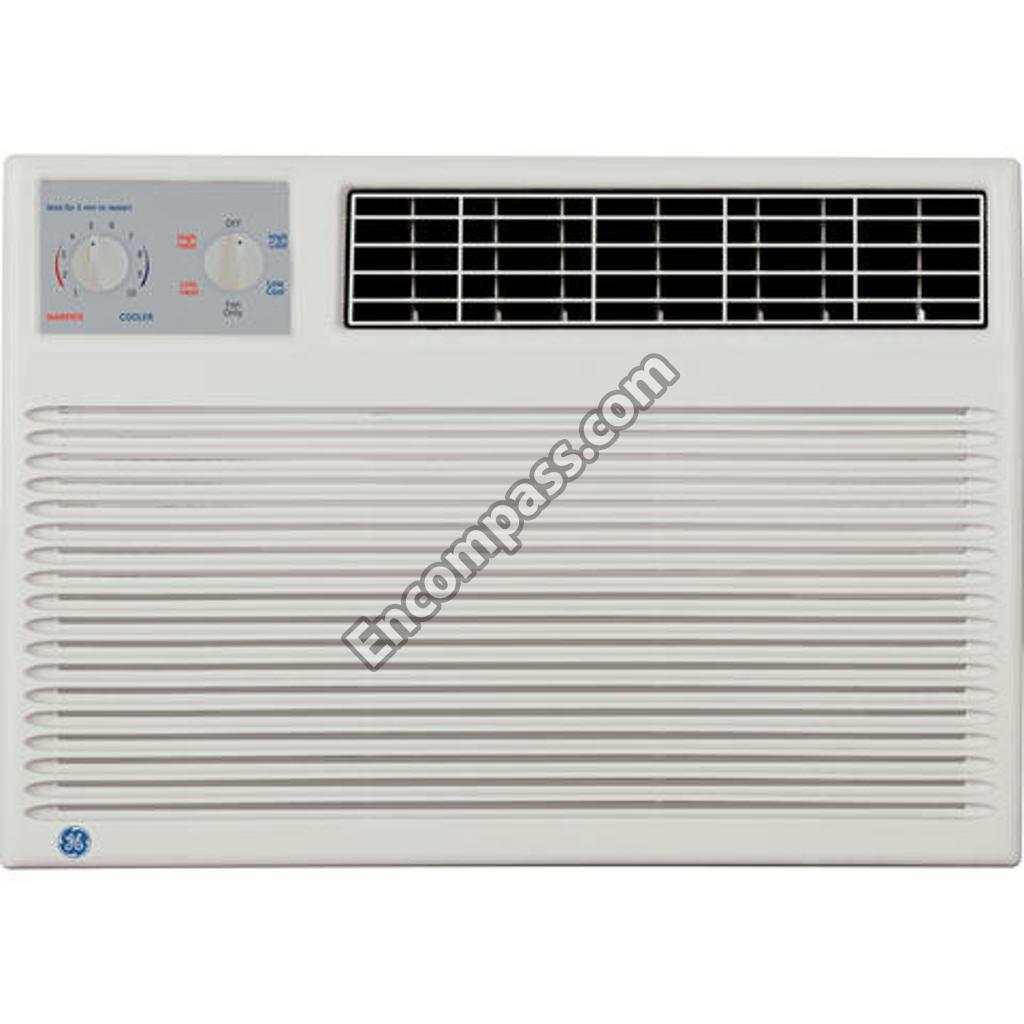

Model Image
Manufacturer

GE

Model Number

AEE08AMM1

Description

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ14X10079 WJ14X10079 AIR GUIDE LEVER
WJ73X20314 WJ73X20314 AXIAL FLOW FAN
WJ90X10108 WJ90X10108 CABINET ASM
WJ02X10032 WJ02X10032 CAPACITOR CLAMP
WJ53X10161 WJ53X10161 CAPILLARY ASM
WJ73X20320 WJ73X20320 CENTRIFUGAL FAN ASSEMBLY
WJ98X10221 WJ98X10221 COMPRESSOR
WJ20X10147 WJ20X10147 COMPRESSOR CAPACITOR
WJ20X10146 WJ20X10146 COMPRESSOR CAPACITOR
WJ23X10102 WJ23X10102 COMPRESSOR OVERLOAD
WJ88X10180 WJ88X10180 CONDENSER
WJ07X10225 WJ07X10225 CONTROL PANEL
WJ71X10572 WJ71X10572 DIRECTIONAL VENT
WJ58X10027 WJ58X10027 DRAIN VALVE
WJ70X10058 WJ70X10058 DRAINAGE PAN
WJ26X10277 WJ26X10277 ELECTRIC BOX
WJ26X10279 WJ26X10279 ELECTRIC BOX COVER
WJ87X10203 WJ87X10203 EVAPORATOR ASM
WJ95X10015 WJ95X10015 FAN MOTOR
WJ71X10571 WJ71X10571 FILTER
WJ71X10575 WJ71X10575 FLEX MOUNTED FRAME
WJ76X10254 WJ76X10254 FRONT INSULATION PLATE
WJ71X10570 WJ71X10570 FRONT PANEL
WJ71X10569 WJ71X10569 FRONT PANEL ASM
WJ70X10056 WJ70X10056 HEATER ASM
WJ12X10094 WJ12X10094 KNOB ASM
WJ76X10255 WJ76X10255 LOWER SNAIL SHELL
WJ26X10278 WJ26X10278 MAIN SWITCH
WJ45X10031 WJ45X10031 MIDDLE INSULATION PLATE
31-61509 31-61509 MINI-MANUAL
WJ01X10314 WJ01X10314 NUT WITH WASHER
WJ35X10136 WJ35X10136 POWER CORD (LCDI)
WJ76X10257 WJ76X10257 REAR INSULATION PLATE
WJ01X10311 WJ01X10311 RUBBER GROMMET
WJ03X10067 WJ03X10067 SENSOR HOLDER
WJ70X10057 WJ70X10057 SHIELD
WJ01X10310 WJ01X10310 SUPPORT OF LOUVER
WJ71X10573 WJ71X10573 SWING LOUVER 1
WJ71X10574 WJ71X10574 SWING LOUVER 2
WJ28X10052 WJ28X10052 THERMOSTAT
WJ11X10023 WJ11X10023 TOP CONNETING PLATE
WJ66X10074 WJ66X10074 TOP RAIL ASM
WJ76X10256 WJ76X10256 UPPER SNAIL SHELL
49-7611 49-7611 USE & CARE MANUAL
WJ01X10312 WJ01X10312 WASHER
WJ01X10313 WJ01X10313 WASHER
WJ66X10098 WJ66X10098 WINDOW LOCKING BRACKET
