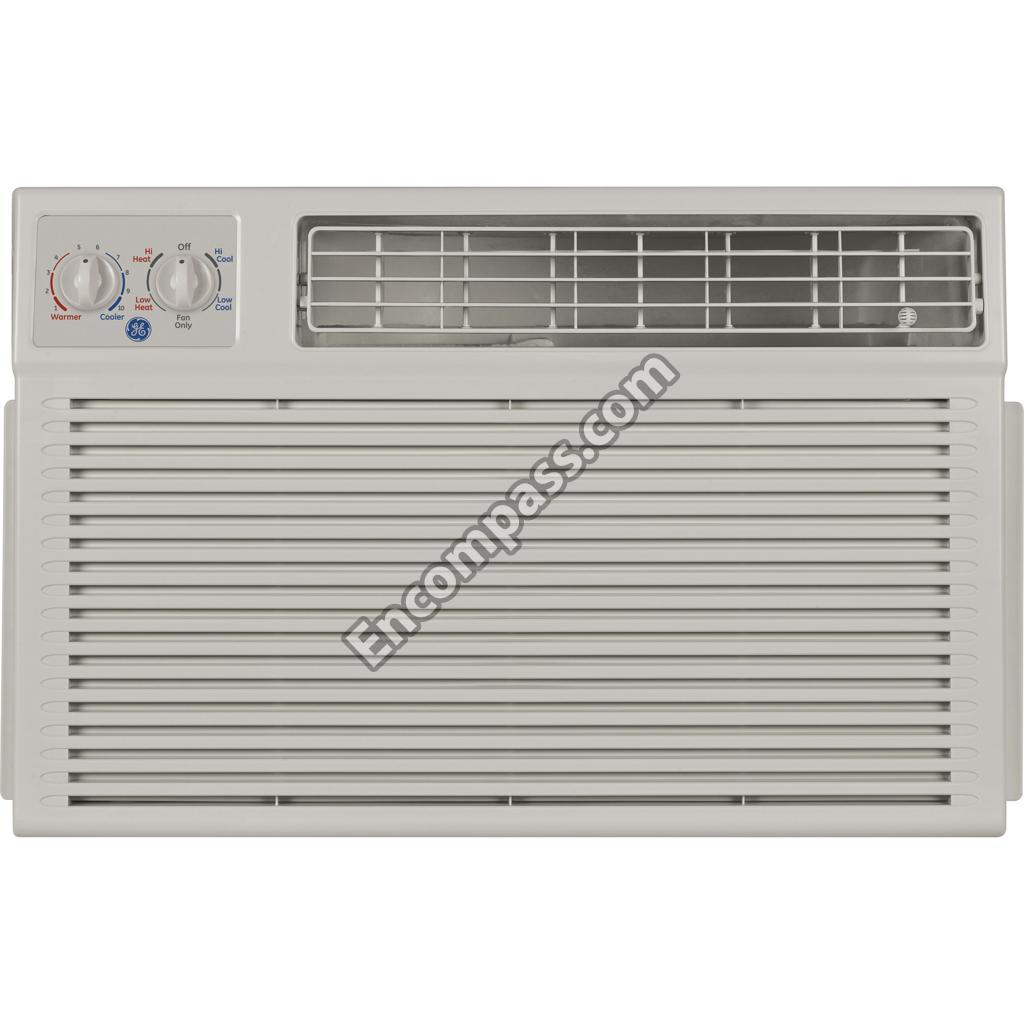

Model Image
Manufacturer

GE

Model Number

AEE12DNL1

Description

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ14X10079 WJ14X10079 AIR GUIDE LEVER
WJ73X20314 WJ73X20314 AXIAL FLOW FAN
WJ01X10360 WJ01X10360 BOLT (M8)
WJ90X10126 WJ90X10126 CABINET ASSEMBLY
WJ90X10134 WJ90X10134 CABINET ASSEMBLY
WJ20X10135 WJ20X10135 CAPACITOR
WJ66X10082 WJ66X10082 CAPACITOR CLAMP
WJ53X10228 WJ53X10228 CAPILLARY SUB ASSEMBLY
WJ73X20320 WJ73X20320 CENTRIFUGAL FAN ASSEMBLY
WJ98X10319 WJ98X10319 COMPRESSOR
WJ98X10291 WJ98X10291 COMPRESSOR
WJ20X10146 WJ20X10146 COMPRESSOR CAPACITOR
WJ20X10148 WJ20X10148 COMPRESSOR CAPACITOR
WJ20X10147 WJ20X10147 COMPRESSOR CAPACITOR
WJ23X10149 WJ23X10149 COMPRESSOR OVERLOAD
WJ87X10257 WJ87X10257 COND ASM
WJ87X10258 WJ87X10258 CONDENSER ASSEMBLY
WJ07X10225 WJ07X10225 CONTROL PANEL
WJ01X10359 WJ01X10359 CURTAIN ASM
WJ71X10572 WJ71X10572 DIRECTIONAL VENT
WJ49X10027 WJ49X10027 DISCHARGE TUBE
WJ58X10042 WJ58X10042 DRAIN VALVE
WJ70X10058 WJ70X10058 DRAINAGE PAN
WJ07X10253 WJ07X10253 ELECTRIC BOX 1
WJ07X10254 WJ07X10254 ELECTRIC BOX 2
WJ27X10117 WJ27X10117 ELECTRIC HEATER
WJ79X10218 WJ79X10218 ELECTRIC HEATER
WJ88X10237 WJ88X10237 EVAPORATOR ASSEMBLY
WJ95X10015 WJ95X10015 FAN MOTOR
WJ95X10016 WJ95X10016 FAN MOTOR

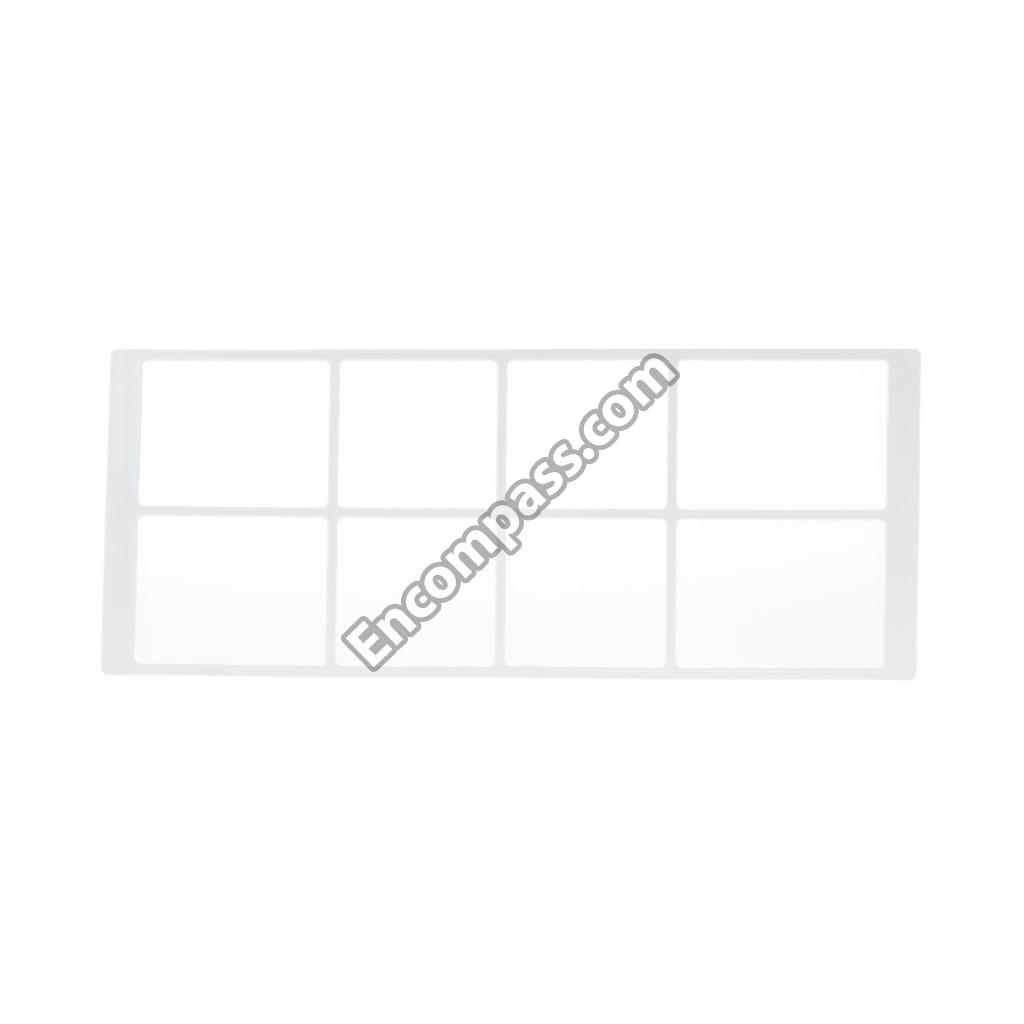

WJ71X10571 WJ71X10571 FILTER
WJ71X10575 WJ71X10575 FLEX MOUNTED FRAME
WJ71X10570 WJ71X10570 FRONT PANEL
WJ71X10670 WJ71X10670 FRONT PANEL ASSEMBLY
WJ12X10094 WJ12X10094 KNOB ASM
WJ76X10255 WJ76X10255 LOWER SNAIL SHELL

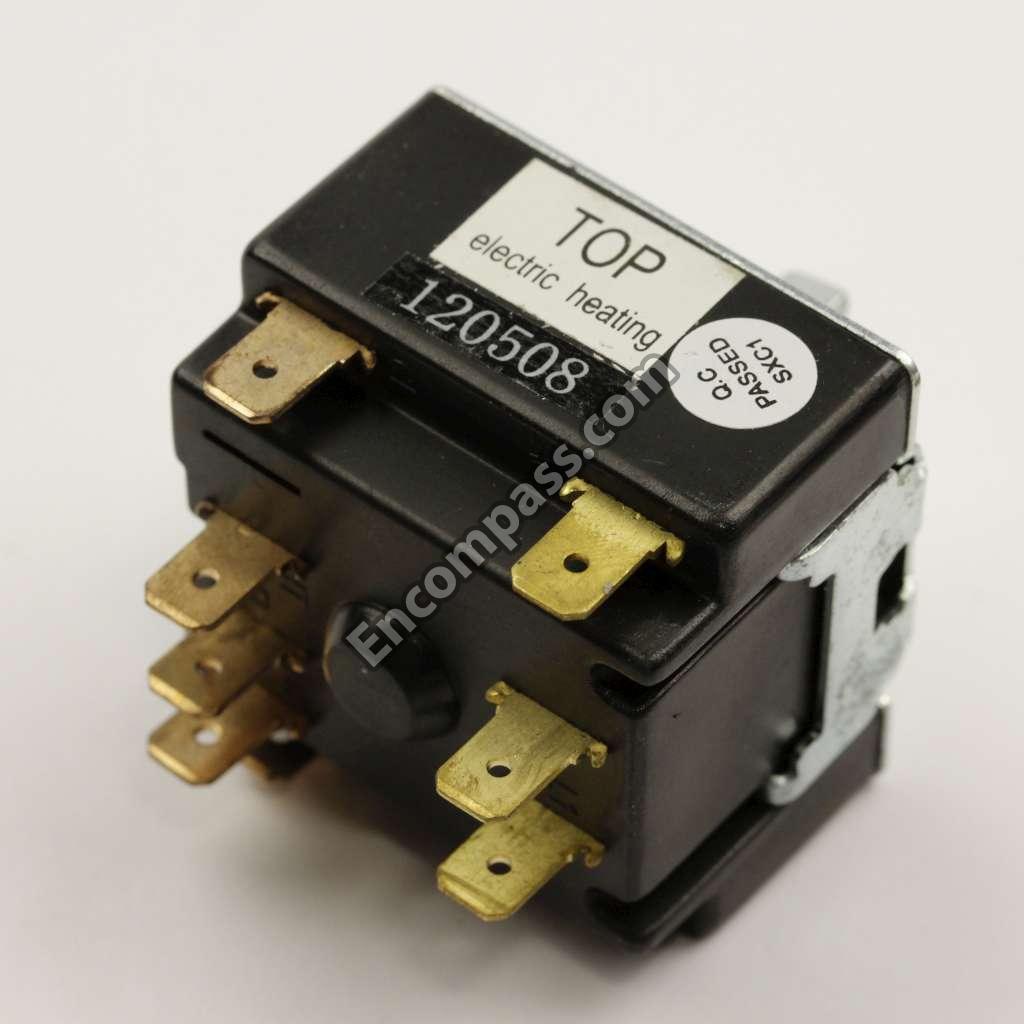

WJ26X10278 WJ26X10278 MAIN SWITCH
WJ45X10031 WJ45X10031 MIDDLE INSULATION PLATE
31-61588 31-61588 MINI MANUAL
WJ79X10209 WJ79X10209 MOUNTING RACK
WJ79X10208 WJ79X10208 MOUNTING RACK SUB ASM
WJ01X20351 WJ01X20351 NUT (M8)
WJ01X10314 WJ01X10314 NUT WITH WASHER
WJ01X10412 WJ01X10412 NUT(M4)
WJ26X10333 WJ26X10333 POWER CORD (LCDI)
WJ76X10257 WJ76X10257 REAR INSULATION PLATE
WJ01X10385 WJ01X10385 RUBBER GROMMET
WJ01X10380 WJ01X10380 RUBBER GROMMET
WJ01X20213 WJ01X20213 SCREW
WJ01X10351 WJ01X10351 SCREW
WJ01X10413 WJ01X10413 SCREW
WJ01X10352 WJ01X10352 SELF-TAPPING SCREW
WJ03X10067 WJ03X10067 SENSOR HOLDER
WJ03X10075 WJ03X10075 SPRING WASHER(DIA 8MM)
WJ57X10025 WJ57X10025 SUCTION PIPE
WJ57X10026 WJ57X10026 SUCTION PIPE
WJ71X10573 WJ71X10573 SWING LOUVER 1
WJ71X10574 WJ71X10574 SWING LOUVER 2
WJ26X10332 WJ26X10332 TCO
WJ26X10331 WJ26X10331 TCO
WJ26X10310 WJ26X10310 TERMINAL BOARD
WJ28X10052 WJ28X10052 THERMOSTAT
WJ11X10023 WJ11X10023 TOP CONNETING PLATE
WJ68X10063 WJ68X10063 TOP GUIDE SUB ASM
WJ76X10256 WJ76X10256 UPPER SNAIL SHELL
49-7625 49-7625 USE AND CARE MANUAL
WJ01X10312 WJ01X10312 WASHER
WJ01X10313 WJ01X10313 WASHER
