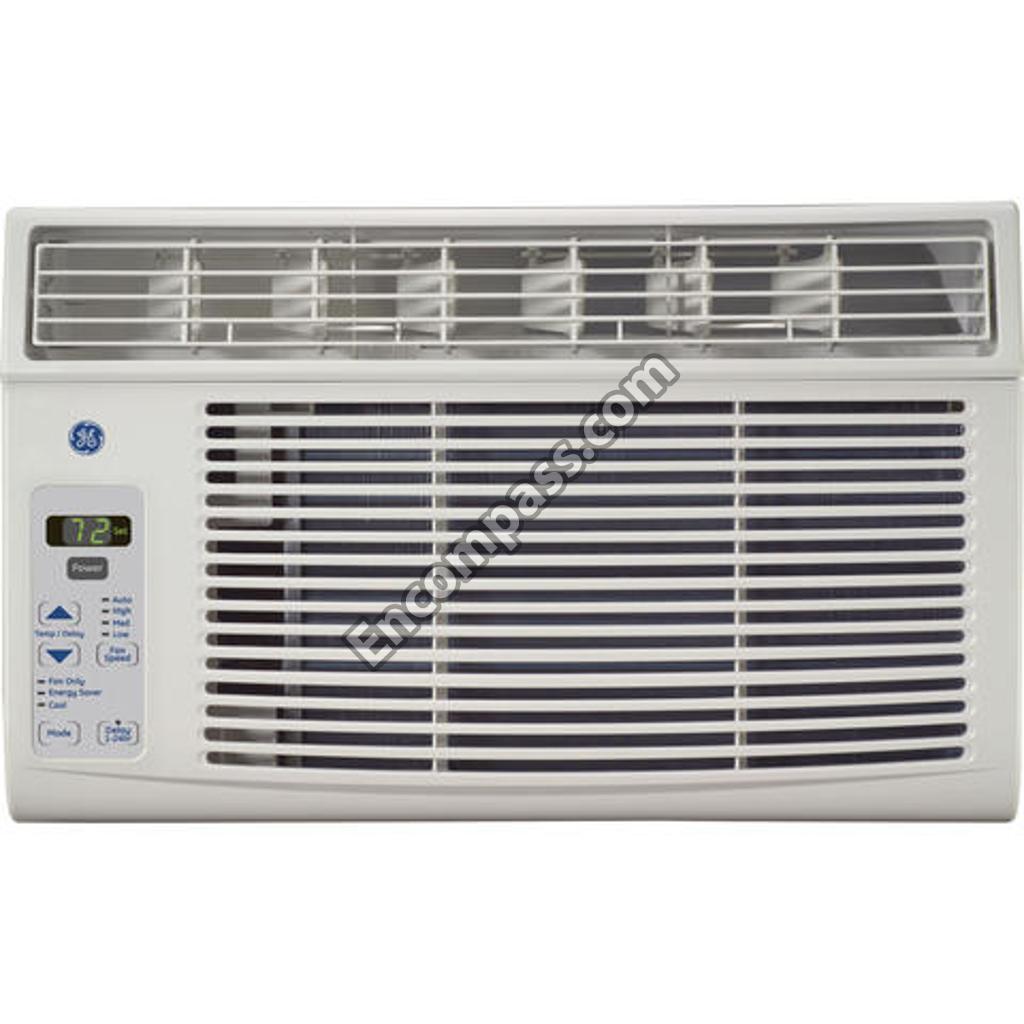

Model Image
Manufacturer

GE

Model Number

AEQ12DMG1

Description

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ14X10079 WJ14X10079 AIR GUIDE LEVER
WJ73X20314 WJ73X20314 AXIAL FLOW FAN
WJ90X10117 WJ90X10117 CABINET ASM
WJ90X10122 WJ90X10122 CABINET ASM
WJ20X10135 WJ20X10135 CAPACITOR

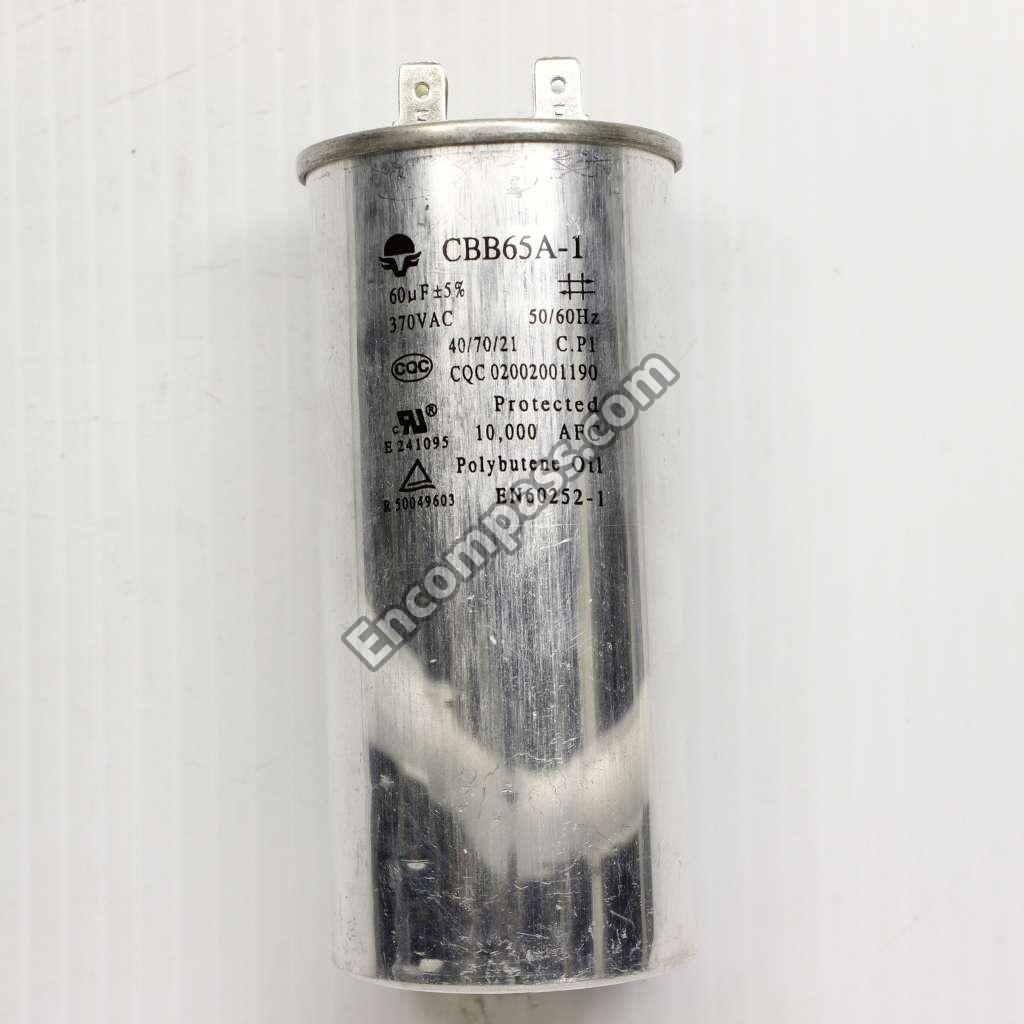

WJ20X10165 WJ20X10165 CAPACITOR 60UF
WJ53X10196 WJ53X10196 CAPILLARY ASM
WJ53X10184 WJ53X10184 CAPILLARY ASM
WJ53X10192 WJ53X10192 CAPILLARY ASM
WJ53X10193 WJ53X10193 CAPILLARY ASM
WJ73X20320 WJ73X20320 CENTRIFUGAL FAN ASSEMBLY
WJ98X10251 WJ98X10251 COMPRESSOR
WJ98X10253 WJ98X10253 COMPRESSOR
WJ98X10241 WJ98X10241 COMPRESSOR
WJ20X10146 WJ20X10146 COMPRESSOR CAPACITOR
WJ20X10148 WJ20X10148 COMPRESSOR CAPACITOR
WJ20X10149 WJ20X10149 COMPRESSOR CAPACITOR
WJ23X10121 WJ23X10121 COMPRESSOR OVERLOAD
WJ23X10122 WJ23X10122 COMPRESSOR OVERLOAD
WJ23X10123 WJ23X10123 COMPRESSOR OVERLOAD
WJ27X10109 WJ27X10109 COMPRESSOR OVERLOAD
WJ23X10103 WJ23X10103 COMPRESSOR OVERLOAD
WJ98X10240 WJ98X10240 COMPRESSOR QK173KAB
WJ88X10203 WJ88X10203 CONDENSER
WJ87X10229 WJ87X10229 CONDENSER
WJ87X10230 WJ87X10230 CONDENSER
WJ87X10232 WJ87X10232 CONDENSER
WJ07X10236 WJ07X10236 CONTROL BOX
WJ07X10235 WJ07X10235 CONTROL PANEL
WJ71X10572 WJ71X10572 DIRECTIONAL VENT
WJ26X10309 WJ26X10309 DISPLAY BOARD
WJ07X10237 WJ07X10237 ELECTRIC BOX
WJ79X10198 WJ79X10198 ELECTRIC BOX
WJ07X10239 WJ07X10239 ELECTRIC BOX
WJ07X10238 WJ07X10238 ELECTRIC BOX COVER
WJ88X10211 WJ88X10211 EVAPORATOR
WJ87X10220 WJ87X10220 EVAPORATOR
WJ95X10015 WJ95X10015 FAN MOTOR
WJ95X10016 WJ95X10016 FAN MOTOR
WJ71X10571 WJ71X10571 FILTER
WJ71X10575 WJ71X10575 FLEX MOUNTED FRAME
WJ76X10274 WJ76X10274 FRONT INSULATION PLATE
WJ87X20333 WJ87X20333 FRONT INSULATION PLATE
WJ71X10636 WJ71X10636 FRONT PANEL DOOR
WJ76X10255 WJ76X10255 LOWER SNAIL SHELL
WJ26X10307 WJ26X10307 MAIN PCB J2C913AJ
WJ26X10306 WJ26X10306 MAIN PCB J2C913CJ
31-61499 31-61499 MINI-MANUAL
WJ01X10314 WJ01X10314 NUT WITH WASHER
WJ01X10335 WJ01X10335 NUT WITH WASHER M8
WJ35X10149 WJ35X10149 POWER CORD (LCDI)
WJ35X10150 WJ35X10150 POWER CORD (LCDI)
WJ76X10257 WJ76X10257 REAR INSULATION PLATE
WJ26X20522 WJ26X20522 REMOTE CONTROL
WJ27X10122 WJ27X10122 ROOM SENSOR 15K
WJ01X10317 WJ01X10317 RUBBER GROMMET
WJ01X10341 WJ01X10341 RUBBER GROMMET
WJ03X10067 WJ03X10067 SENSOR HOLDER
WJ01X10310 WJ01X10310 SUPPORT OF LOUVER
WJ71X10573 WJ71X10573 SWING LOUVER 1
WJ71X10574 WJ71X10574 SWING LOUVER 2
WJ26X10310 WJ26X10310 TERMINAL BOARD
WJ66X10074 WJ66X10074 TOP RAIL ASM
WJ86X10169 WJ86X10169 TOP RAIL ASSEMBLY
WJ27X10072 WJ27X10072 TRANSFORMER
WJ27X10108 WJ27X10108 TRANSFORMER 41X26.5K
WJ76X10275 WJ76X10275 UPPER AIRFLOW HOUSING
49-7608 49-7608 USE & CARE MANUAL
WJ01X10312 WJ01X10312 WASHER
WJ01X10313 WJ01X10313 WASHER
WJ66X10098 WJ66X10098 WINDOW LOCKING BRACKET
WJ66X10076 WJ66X10076 WINDOW LOCKING BRACKET
