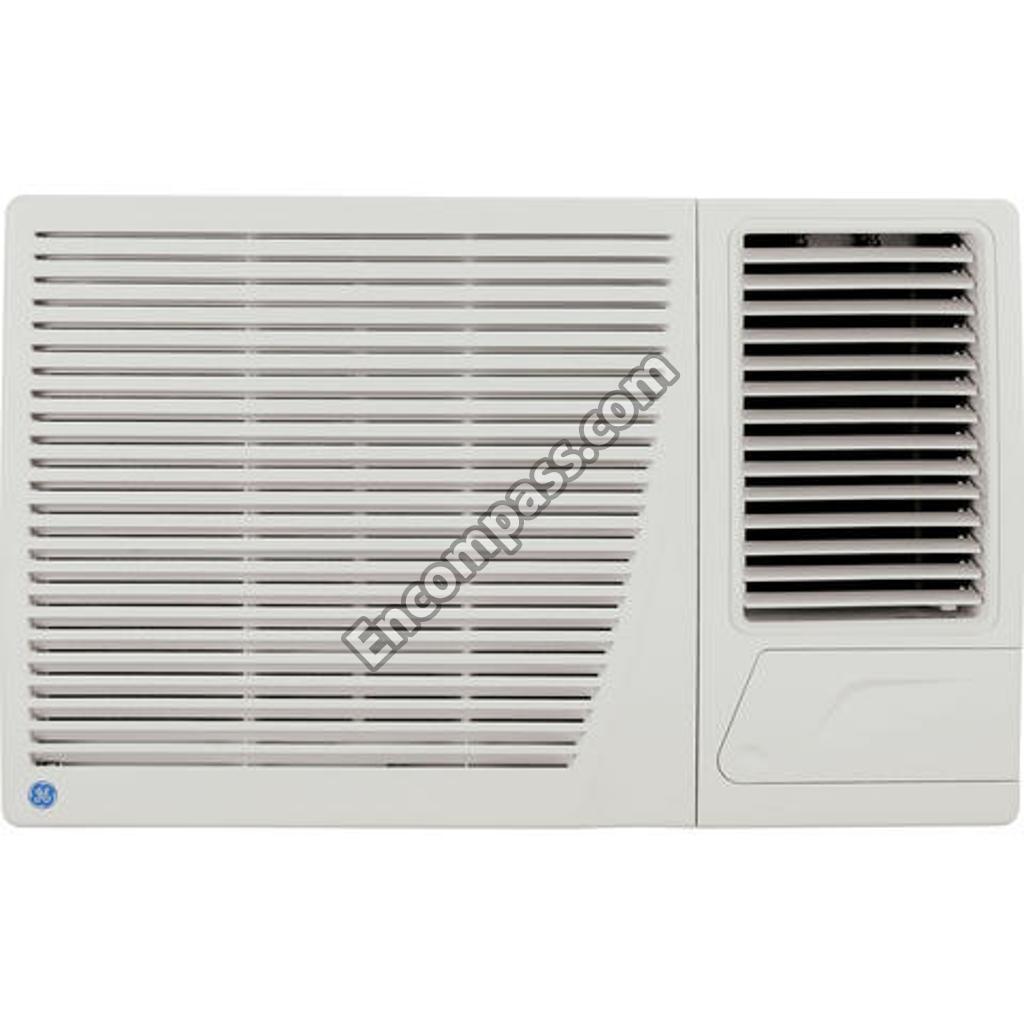

Model Image
Manufacturer

GE

Model Number

AEV24DLH1

Description

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ70X10048 WJ70X10048 AIR GUIDE
WJ44X10014 WJ44X10014 AIR OUTLET FOAM
WJ89X10055 WJ89X10055 BASE PLATE
WJ73X10145 WJ73X10145 BLOWER
WJ90X10102 WJ90X10102 CABINET ASM
WJ20X10129 WJ20X10129 CAPACITOR
WJ20X10128 WJ20X10128 CAPACITOR
WJ03X10066 WJ03X10066 CAPACITOR CLAMP
WJ53X10127 WJ53X10127 CAPILLARY ASM
WJ76X10209 WJ76X10209 CASE - COND
WJ76X10227 WJ76X10227 CASE EVAP
WJ98X10189 WJ98X10189 COMPRESSOR
WJ43X10059 WJ43X10059 COMPRESSOR GASKET
WJ88X10149 WJ88X10149 CONDENSER ASM
WJ43X10069 WJ43X10069 CONTROL DOOR ASM
WJ71X10527 WJ71X10527 CURTAIN SUPPORT ASM LT
WJ89X10056 WJ89X10056 DRAIN TRAY
WJ26X10245 WJ26X10245 ELECTRIC BOX ASM
WJ87X10179 WJ87X10179 EVAPORATOR ASM
WJ73X10144 WJ73X10144 FAN BLADE O.D.
WJ94X10213 WJ94X10213 FAN MOTOR
WJ71X10509 WJ71X10509 FILTER
WJ71X10471 WJ71X10471 FRONT CLAPBOARD
WJ71X10537 WJ71X10537 FRONT PANEL ASM
WJ71X10583 WJ71X10583 FRONT PANEL DOOR
WJ71X10531 WJ71X10531 GUIDE LOUVER
WJ65X10089 WJ65X10089 GUIDE LOUVER LINKAGE
WJ01X10268 WJ01X10268 INFLECTIONAL AXIS
WJ12X10088 WJ12X10088 KNOB ASM
WJ26X10244 WJ26X10244 MAIN SWITCH
31-61405 31-61405 MINI-MANUAL
WJ94X10239 WJ94X10239 MOTOR
WJ95X10012 WJ95X10012 MOUNT MOTOR
WJ01X10269 WJ01X10269 NUT - WASHER
WJ01X10265 WJ01X10265 NUT - WASHER
WJ24X10007 WJ24X10007 OVERLAY
WJ76X10211 WJ76X10211 PLATE CASING
WJ35X10104 WJ35X10104 POWER CORD
WJ03X10067 WJ03X10067 SENSOR HOLDER
WJ01X10302 WJ01X10302 SUPPORTER ASM
WJ01X10267 WJ01X10267 SWING LINKAGE
WJ71X10472 WJ71X10472 SWING LOUVER
WJ71X10473 WJ71X10473 SWING SUPPORT
WJ26X10246 WJ26X10246 SWITCH
WJ28X10053 WJ28X10053 THERMOSTAT
WJ11X10022 WJ11X10022 TOP CONNETING PLATE
WJ66X10072 WJ66X10072 TOP RAIL
49-7587 49-7587 USE & CARE MANUAL
WJ01X10266 WJ01X10266 WASHER
WJ01X10270 WJ01X10270 WASHER
WJ66X10098 WJ66X10098 WINDOW LOCKING BRACKET
