Model Image
Manufacturer

GE

Model Number

AGBS300PJ1WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB35K10042 WB35K10042 BOTTOM OVEN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10029 WB63K10029 BOTTOM RANGE
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB01K0043 WB01K0043 BRACKET SUPPORT
WB1K43 WB1K43 BRACKET SUPT
WB2K65 WB2K65 BRKT SAF VLV
WB39K35 WB39K35 BROIL SUP LH
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB64K10001 WB64K10001 BURNER BOX
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0050 WB02K0050 CLIP CRYSTAL
WB2K50 WB2K50 CLIP CRYSTAL
WB01X0119 WB01X0119 CONTOURED WASHER
WB62K10003 WB62K10003 COOKTOP (WH)
WB06K10002 WB06K10002 COUNTERWEIGHT
WB34K0016 WB34K0016 COVER BACK
WB34K16 WB34K16 COVER BACK
WB34K10003 WB34K10003 COVER BACK UPPER
WB07K10002 WB07K10002 COVER END LT (WH)
WB07K10001 WB07K10001 COVER END RT (WH)
WB34K10001 WB34K10001 COVER LOWER BACK
WB56K5 WB56K5 CRYSTAL WIND
WB57K18 WB57K18 CRYSTAL WIND
WB57K0018 WB57K0018 CRYSTAL WINDOW
WB56K0005 WB56K0005 CRYSTAL WINDOW
WB16K10026 WB16K10026 DOUBLE BURNER ASSEMBLY
WB07K10007 WB07K10007 END CAP LT (WH)
WB07K10005 WB07K10005 END CAP RT (WH)
WB01X0560 WB01X0560 FIBER WASHER
WB63K31 WB63K31 FRAME WELD
WB63K0031 WB63K0031 FRAME WELD ASM
WB28K10010 WB28K10010 FRONT TUBE ASSEMBLY
WB28K10009 WB28K10009 FRONT TUBE ASSEMBLY
WB28K10593 WB28K10593 GAS RANGE LP CONVERSION KIT
WB28K10376 WB28K10376 GAS RANGE ORIFICE
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB14K4 WB14K4 GD SLIDE LFT
WB14K3 WB14K3 GD SLIDE RGT
WB2K66 WB2K66 GD SUPT RGTP
WB31K10012 WB31K10012 GRATE-8 FINGER (BLK)
WB1K10 WB1K10 GROM HNDLE
WB02K0009 WB02K0009 GROMMET
WB2K8 WB2K8 GROMMET
WB01K0010 WB01K0010 GROMMET HANDLE
WB56K10032 WB56K10032 GUARD INSUL
WB56K0006 WB56K0006 GUARD INSULATION
WB14K0002 WB14K0002 GUIDE HOLDER LEFT
WB14K2 WB14K2 GUIDE HOLDER LEFT
WB14K0001 WB14K0001 GUIDE HOLDER RIGHT
WB14K1 WB14K1 GUIDE HOLDER RIGHT
WB14K0004 WB14K0004 GUIDE SLIDE LEFT
WB14K0003 WB14K0003 GUIDE SLIDE RIGHT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K1 WB15K1 HANDLE BROIL
WB15K10031 WB15K10031 HANDLE BROIL (CR)
WB15K0001 WB15K0001 HANDLE- DOOR (CR)
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB10K0011 WB10K0011 HINGE BRIOLER LEFT
WB10K0010 WB10K0010 HINGE BRIOLER RIGHT
WB10K11 WB10K11 HINGE BRO LT
WB10K10 WB10K10 HINGE BRO RT
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB35K3 WB35K3 INS DRAWER
WB35K1 WB35K1 INS OV WRAP
WB35K5 WB35K5 INSUL DOOR
WB35K16 WB35K16 INSUL OVBACK
WB35K0005 WB35K0005 INSULATION DOOR
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K0001 WB35K0001 INSULATION OVEN WRAP
WB03K10034 WB03K10034 KNOB-TOP BURNERS (WH)
WB02X10521 WB02X10521 LEG LEVELER
WB55K10021 WB55K10021 LINER ASM WELD DOOR
WB39K10014 WB39K10014 LINER DRAWER
WB28K10250 WB28K10250 MANIFOLD
WB20K10013 WB20K10013 MODULATING THERMOSTAT
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K0008 WB28K0008 ORIFICE LP GAS
WB28K10033 WB28K10033 ORIFICE NAT GAS
WB53K10016 WB53K10016 OVEN BACK
WB16K10061 WB16K10061 OVEN BURNER AND PILOT ASSEMBLY
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K0001 WB53K0001 OVEN TOP
WB53K1 WB53K1 OVEN TOP
WB02K0064 WB02K0064 PAD FELT (BK)
WB2K64 WB2K64 PAD FELT BK
WB48X10056 WB48X10056 PAN BROILER
WB63K0029 WB63K0029 PANEL BRIOLER
WB56K0018 WB56K0018 PANEL DOOR (WH)
WB56K18 WB56K18 PANEL DR WH
WB39K10015 WB39K10015 PANEL DRAWER (WHITE)
WB36K10464 WB36K10464 PANEL MANIFOLD
WB63K0001 WB63K0001 PANEL REAR BROIL
WB63K50 WB63K50 PANEL SIDE
WB63K0050 WB63K0050 PANEL SIDE (WH)
WB02K0021 WB02K0021 PILOT CAP
WB2K21 WB2K21 PILOT CAP
WB19K5 WB19K5 PILOT HARN A
WB19K0005 WB19K0005 PILOT HARNESS ASM
WB01K0011 WB01K0011 PILOT SCREW
WB1K11 WB1K11 PILOT SCREW
WB1K7 WB1K7 PIN BROILER
WB01K10035 WB01K10035 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB14K10004 WB14K10004 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB37K0015 WB37K0015 PLATE END LEFT
WB37K15 WB37K15 PLATE END LT
WB37K0014 WB37K0014 PLATE END RIGHT
WB37K14 WB37K14 PLATE END RT
31-21125 31-21125 PM MINI-MANUAL
49-85076 49-85076 PM USE & CARE MANUAL
WB63K29 WB63K29 PNL BROILER
WB63K1 WB63K1 PNL REAR BRO
WB19K26 WB19K26 PRESSURE REG
WB19K0026 WB19K0026 PRESSURE REGULATOR
WB48T10095 WB48T10095 RACK OVEN
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K0020 WB63K0020 RANGE BACK
WB63K20 WB63K20 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB6K8 WB6K8 RANGE SUPPORT BRACKET
WB10K13 WB10K13 RANGE SUPPORT RIVET

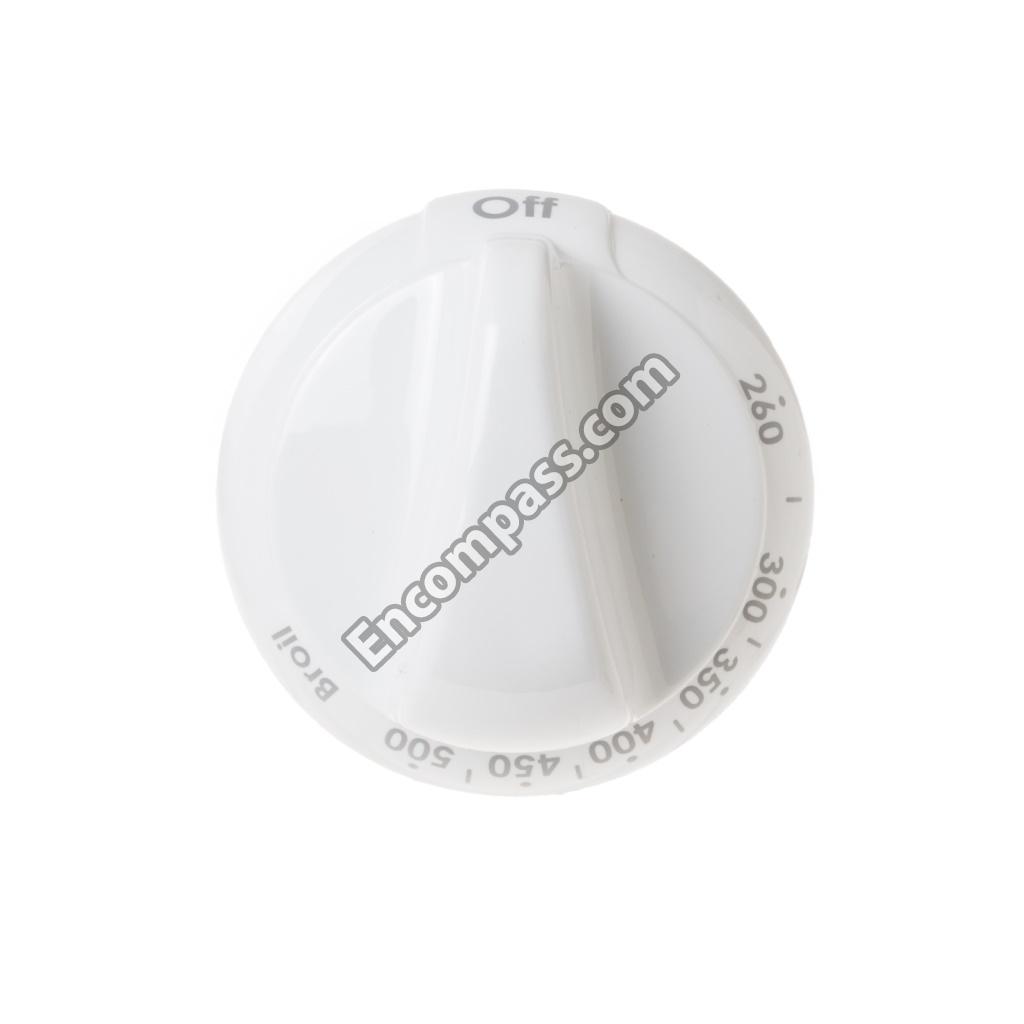

WB03K10244 WB03K10244 RANGE THERMOSTAT KNOB - WHITE
WB38K2 WB38K2 RANGE VENT BRACE
WB55K1 WB55K1 REFLECTOR
WB55K0001 WB55K0001 REFLECTOR LG
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01X5731 WB01X5731 SCREW
WB01K0001 WB01K0001 SCREW
WB01K0037 WB01K0037 SCREW
WB01K0021 WB01K0021 SCREW
WB1K37 WB1K37 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1K5062 WB1K5062 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB1K53 WB1K53 SCREW HINGE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K10031 WB01K10031 SCREW THERMOSTAT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WZ04X0423 WZ04X0423 SCREW-MTG HDL DOOR
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB1K83 WB1K83 SCREW-MTG VALVE BURNER 10-32
WB1X5731D WB1X5731D SCREW-PKG 12
WZ4X423D WZ4X423D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB02K0002 WB02K0002 SPACER
WB02K0014 WB02K0014 SPACER
WB2K14 WB2K14 SPACER
WB2K2 WB2K2 SPACER
WB02K0013 WB02K0013 SPACER DOOR
WB2K13 WB2K13 SPACER DOOR
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB39K34 WB39K34 SUP BROIL RT
WB39K0033 WB39K0033 SUPPORT
WB39K33 WB39K33 SUPPORT
WB63K10232 WB63K10232 SUPPORT BASE
WB39K0035 WB39K0035 SUPPORT BRIOLER LEFT
WB39K0034 WB39K0034 SUPPORT BRIOLER RIGHT
WB06K0008 WB06K0008 SUPPORT RANGE TOP
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET
WB36K10465 WB36K10465 TRIM & BRKT ASM WELD
WB07K0086 WB07K0086 TRIM CRYSTAL
WB7X7069 WB7X7069 TRIM CRYSTAL
WB28K10172 WB28K10172 TUBE PILOT SUPPLY
WB28K10171 WB28K10171 TUBE VALVE SUPPLY
WB28K10011 WB28K10011 TUBE-BURNER LT REAR
WB28K10012 WB28K10012 TUBE-BURNER RT REAR
WB21K10081 WB21K10081 VALVE BURNER 140
WB38K10001 WB38K10001 VENT ASM
WB01K0038 WB01K0038 WASHER
WB1K38 WB1K38 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB01K10036 WB01K10036 WASHER SPRING
WB1X119D WB1X119D WASHR-PKG 12
WB1X560D WB1X560D WASHR-PKG 12
