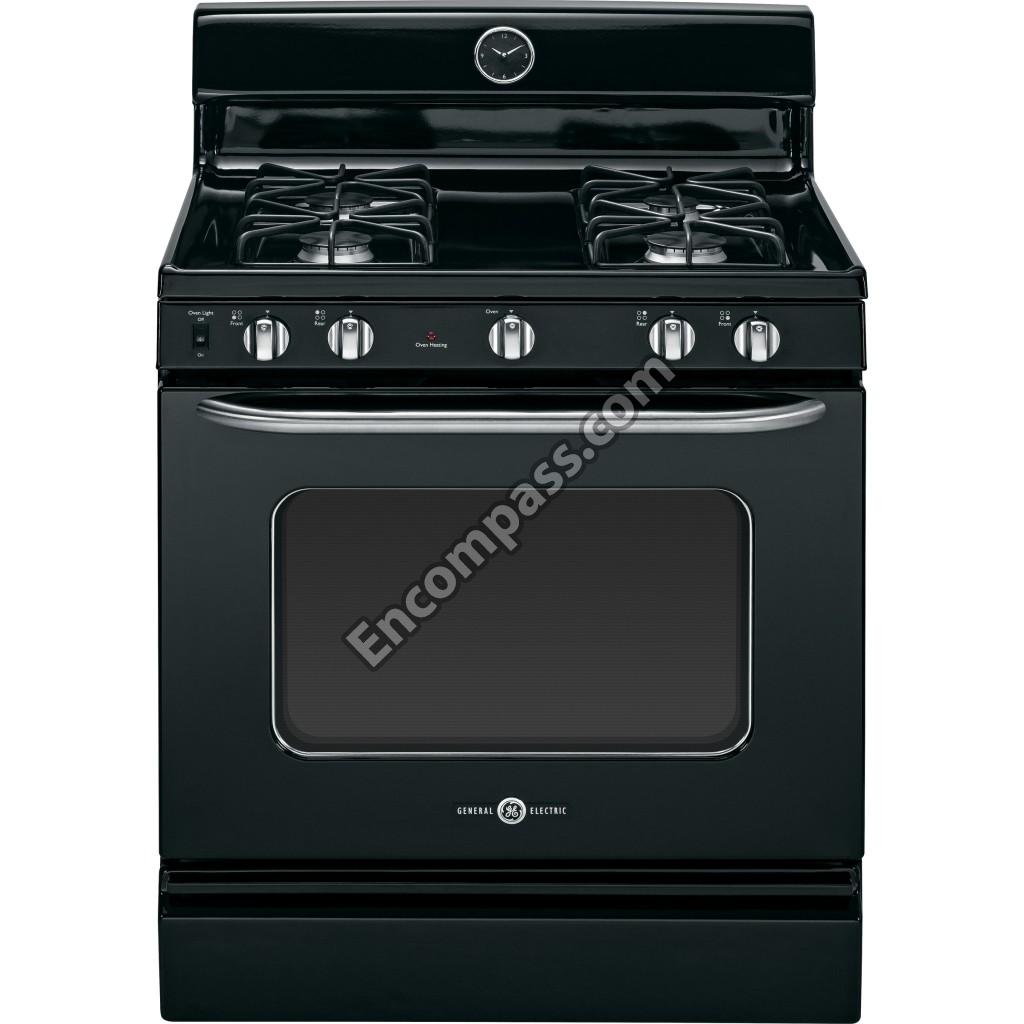

Model Image
Manufacturer

GE

Model Number

AGBS45DEF2BS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 89MM RANGE ORIFICE SPUD - NG TO LP
WB35X20681 WB35X20681 ALUMINUM FOIL
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02X20704 WB02X20704 BADGE
WB35K10147 WB35K10147 BOTTOM INSULATION DOOR
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB63K10029 WB63K10029 BOTTOM RANGE
WB63X26259 WB63X26259 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB37K10004 WB37K10004 BRACKET COOK TOP LF
WB37K10003 WB37K10003 BRACKET COOK TOP RG
WB02X22890 WB02X22890 BRACKET REGULATOR
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB2K65 WB2K65 BRKT SAF VLV
WB39K6 WB39K6 BROIL WELD A
WB02K0005 WB02K0005 BROILER STOP
WB2K5 WB2K5 BROILER STOP
WB39K0006 WB39K0006 BROILER WELD ASM
WB02K10178 WB02K10178 BUMPER
WB16X20253 WB16X20253 BURNER OVEN ASSEMBLY
WB16X28654 WB16X28654 BURNER SMALL V ASSEMBLY. CAP
WB01X24735 WB01X24735 CKT SCREW
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02X20682 WB02X20682 CLIP CRYSTAL
WB02X26569 WB02X26569 CLIP RANGETOP
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB02K0004 WB02K0004 COVER ACCESS SPRING
WB34K0021 WB34K0021 COVER BACK PANEL
WB2K6 WB2K6 COVER THERMO
WB02K0006 WB02K0006 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB56X20654 WB56X20654 CRYSTAL WINDOW
WB56X20655 WB56X20655 CRYSTAL WINDOW
WB2K4 WB2K4 CVR ACC SPRG
WB34K21 WB34K21 CVR BCK PNL
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB01K10037 WB01K10037 ECONOMIC NUT
WB18X26607 WB18X26607 ELECTRODES & HARNESS H.V.
WB49K0044 WB49K0044 FLAME SPREADER
WB35X21084 WB35X21084 FOIL DOOR
WB35X21085 WB35X21085 FOIL DOOR
WB63X20251 WB63X20251 FRAME WELD ASSEMBLY
WB28X26604 WB28X26604 FRONT ORIFICE HOLDER
WB28X26306 WB28X26306 FRONT ORIFICE HOLDER LEF
WB18K10036 WB18K10036 GAS RANGE CORD
WB31X20643 WB31X20643 GAS RANGE GRATE - BLACK
WB35X29720 WB35X29720 GASKET DOOR ASSEMBLY
WB35X21089 WB35X21089 GASKET DRAWER ASSEMBLY
WB32K2 WB32K2 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB2K8 WB2K8 GROMMET
WB02K10294 WB02K10294 GROMMET
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP

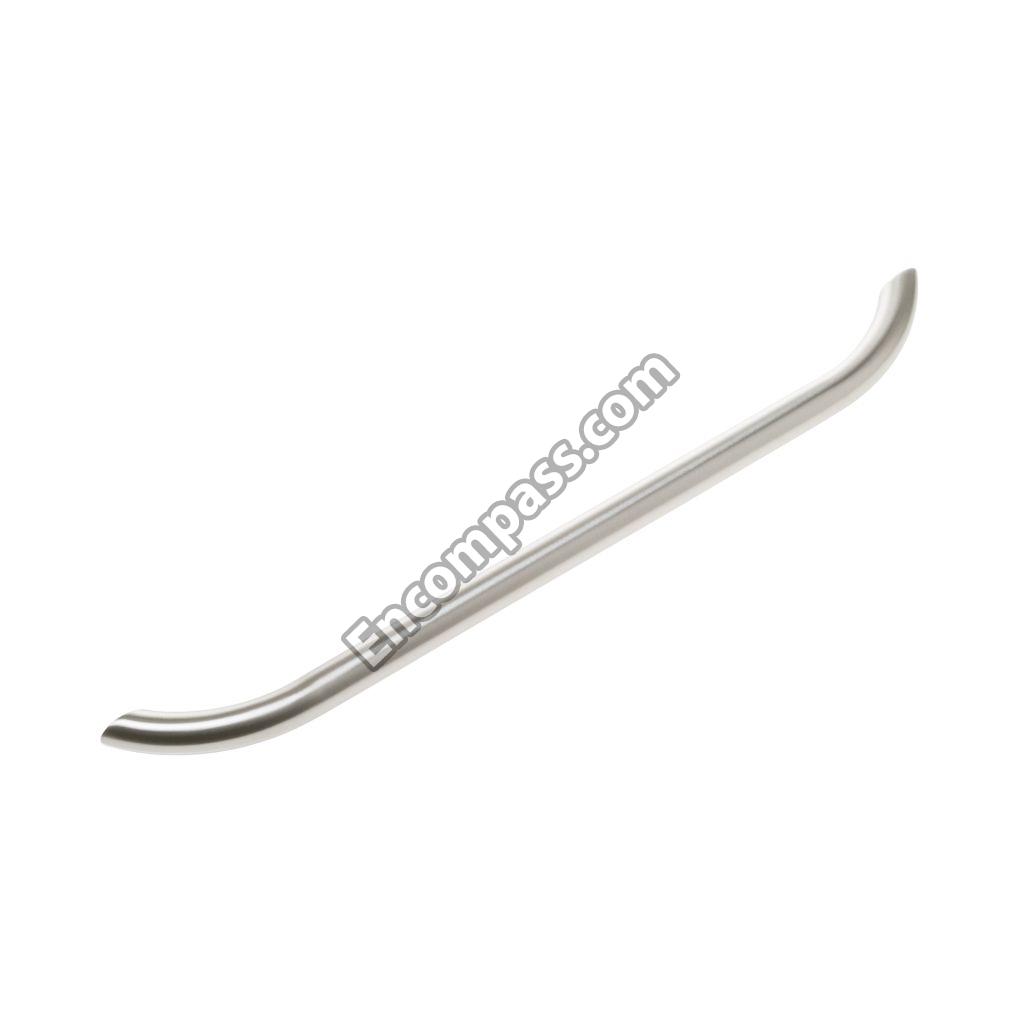

WB15X20668 WB15X20668 HANDLE
WB15K0015 WB15K0015 HANDLE BROIL (BLK)
WB18X31208 WB18X31208 HARNESS BURNER BOX
WB10K0006 WB10K0006 HINGE BROILER LEFT
WB10K0005 WB10K0005 HINGE BROILER RIGHT
WB10X21979 WB10X21979 HINGE DOOR
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB15K15 WB15K15 HNDL BROIL
WB10K6 WB10K6 HNGE BROIL L
WB10K5 WB10K5 HNGE BROIL R
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB13X25265 WB13X25265 IGNITER GLOWBAR
WB35K3 WB35K3 INS DRAWER
WB35K16 WB35K16 INSUL OVBACK
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K10157 WB35K10157 INSULATION OVEN WRAP
WB35K10148 WB35K10148 INSULATION TOP DOOR
WB35X21564 WB35X21564 INSULATION VENT
WB28X20684 WB28X20684 KIT HIGH ALTITUDE ASSEMBLY
WB16X24723 WB16X24723 LARGE V2 BURNER
WB25T10041 WB25T10041 LENS
WB39K10028 WB39K10028 LINER DRAWER
WB36X20651 WB36X20651 MANIFOLD PANEL
WB28K10427 WB28K10427 MANIFOLD PIPE
WB34X20680 WB34X20680 MANIFOLD SUPPORT
WB16X24724 WB16X24724 MEDIUM V2 BURNER
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10032 WB28K10032 ORIFICE-LP LG 99MM
WB53K4 WB53K4 OV BACK 24
WB53K0004 WB53K0004 OVEN BACK 24 INCH
WB28X21079 WB28X21079 OVEN ORIFICE SPUD LP
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K10002 WB53K10002 OVEN TOP
WB39K0010 WB39K0010 PANEL DRAWER BLK
WB63X26606 WB63X26606 PANEL REAR BROIL
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB1K7 WB1K7 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB14K10004 WB14K10004 PIN LOCATOR
49-85230 49-85230 PM GAS QUICK GUIDE
31-11029 31-11029 PM INSTALL INSTRUCTIONS
31-10905 31-10905 PM INSTALL INSTRUCTIONS
31-17238 31-17238 PM MANUAL MINI & WD ASM
WB39K10 WB39K10 PNL DRWR BLK
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB48X10056 WB48X10056 RACK BROILER PAN
WB63K0021 WB63K0021 RANGE BACK
WB63K21 WB63K21 RANGE BACK
WB34X20669 WB34X20669 RANGE BACK COVER
WB24X20667 WB24X20667 RANGE CLOCK

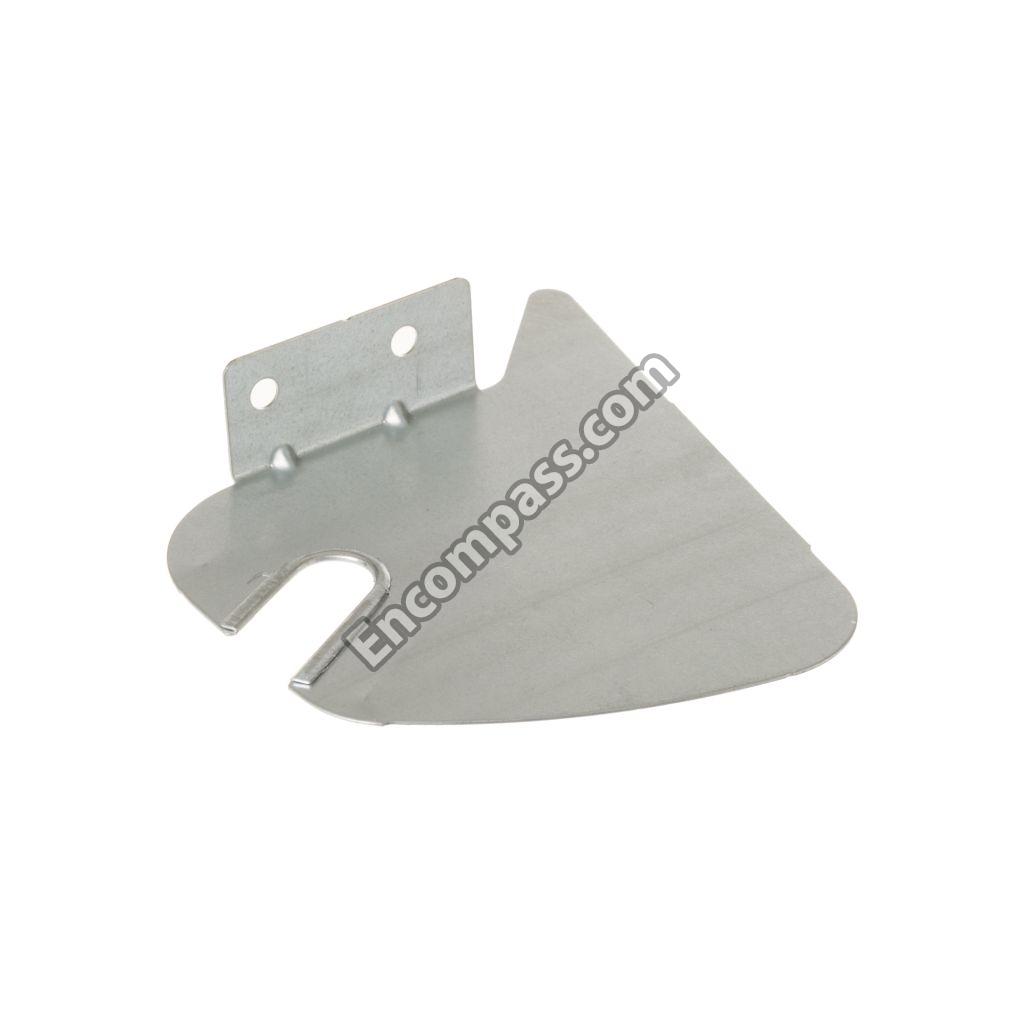

WB34X21080 WB34X21080 RANGE DEFLECTOR BACKGUARD
WB56X20206 WB56X20206 RANGE DOOR PANEL

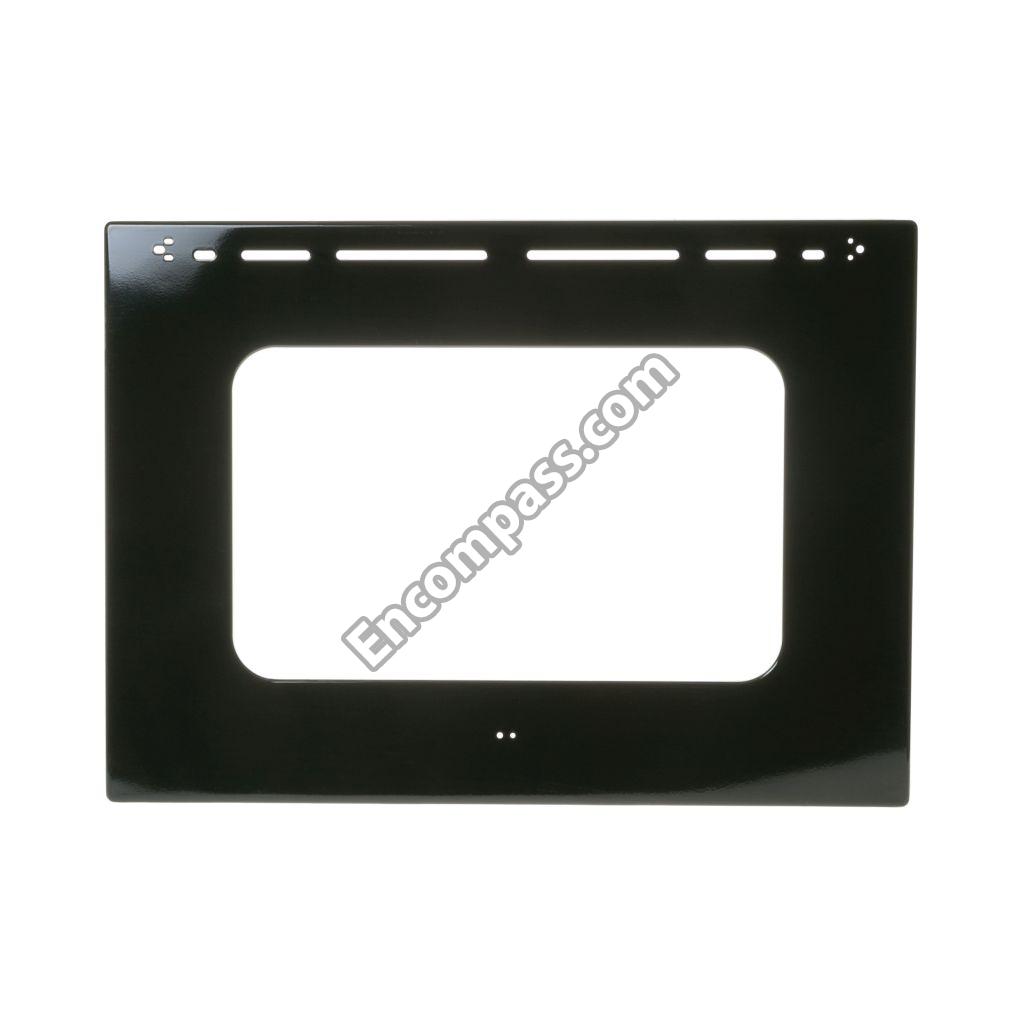

WB56X20675 WB56X20675 RANGE DOOR PANEL

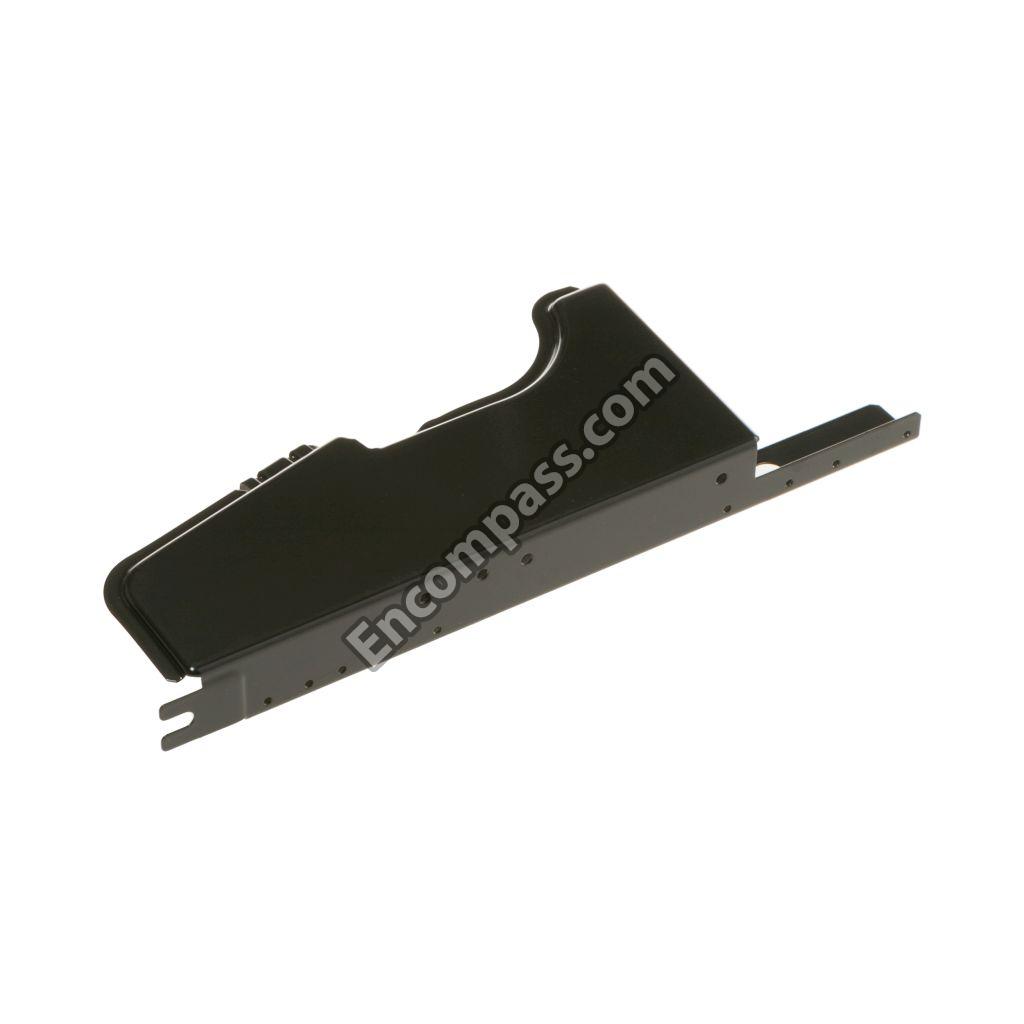

WB07X20658 WB07X20658 RANGE END SUPPORT - LEFT
WB07X20657 WB07X20657 RANGE END SUPPORT - RIGHT
WB04K10021 WB04K10021 RANGE FRONT FRAME GASKET
WB02X20705 WB02X20705 RANGE GLASS BRACKET
WB56X20683 WB56X20683 RANGE GLASS TRIM
WB10X20220 WB10X20220 RANGE HINGE RECEIVER
WB49X21392 WB49X21392 RANGE HINGE SERVICE KIT
WB02X24976 WB02X24976 RANGE IGNITER CLIP V2
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB25K10002 WB25K10002 RANGE INDICATOR LIGHT
WB02X24726 WB02X24726 RANGE INJET LARGE
WB02X24727 WB02X24727 RANGE INJET MEDIUM
WB02X24728 WB02X24728 RANGE INJET SMALL
WB56K10033 WB56K10033 RANGE INSULATION

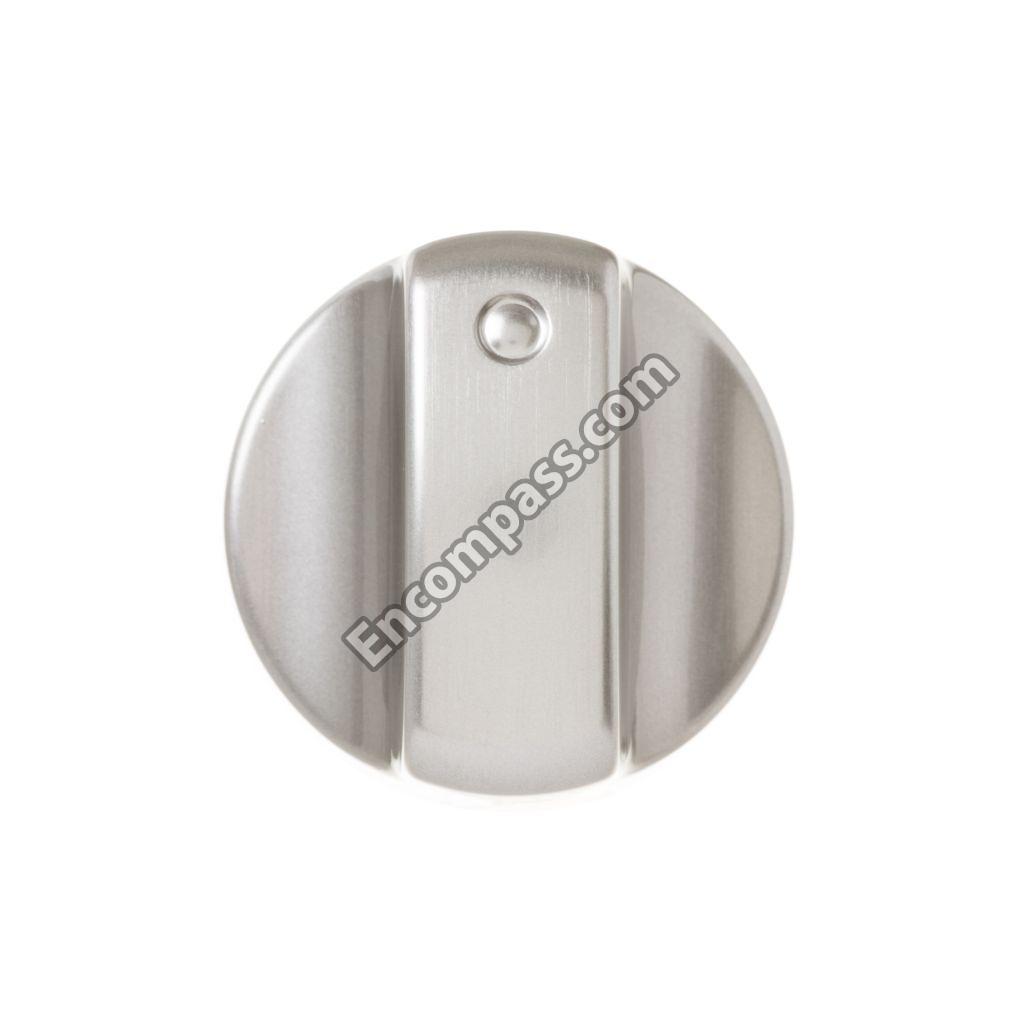

WB03X20670 WB03X20670 RANGE KNOB - STAINLESS STEEL
WB03X21086 WB03X21086 RANGE KNOB - STAINLESS STEEL
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB36X20661 WB36X20661 RANGE MANIFOLD PANEL
WB48X20249 WB48X20249 RANGE OVEN RACK
WB24X20458 WB24X20458 RANGE ROCKER SWITCH
WB56X22008 WB56X22008 RANGE SIDE PANEL
WB20K8 WB20K8 RANGE THERMOSTAT ASSEMBLY
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB62X26321 WB62X26321 RANGE TOP
WB38K2 WB38K2 RANGE VENT BRACE
WB28X26308 WB28X26308 REAR ORIFICE HOLDER LEFT
WB28X26309 WB28X26309 REAR ORIFICE HOLDER RIGH
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB02K10263 WB02K10263 ROUND VALVE BRACKET
WB28K10578 WB28K10578 ROUND VALVE BURNER 140
WB21K10170 WB21K10170 ROUND VALVE BURNER 140
WB21K10169 WB21K10169 ROUND VALVE BURNER 140
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01X5731 WB01X5731 SCREW
WB01K0001 WB01K0001 SCREW
WB01K10091 WB01K10091 SCREW
WB1X536 WB1X536 SCREW
WB1X5716 WB1X5716 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10070 WB01K10070 SCREW
WB1K5119 WB1K5119 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01K10074 WB01K10074 SCREW 10-32 TT PNT 2.05
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB02X21091 WB02X21091 SCREW COVER
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB1X5731D WB1X5731D SCREW-PKG 12
WB34K0002 WB34K0002 SHIELD VALVE
WB34K2 WB34K2 SHIELD VALVE
WB35K10146 WB35K10146 SIDE INSULATION DOOR
WB39K2 WB39K2 SLIDE BOT LF
WB39K1 WB39K1 SLIDE BOT RT
WB39K0009 WB39K0009 SLIDE BROILER
WB39K10030 WB39K10030 SLIDE BROILER PAN
WB39K10029 WB39K10029 SLIDE BROILER PAN
WB39K9 WB39K9 SLIDE BROILR
WB39K0002 WB39K0002 SLIDE RANGE BOTTOM LEFT
WB39K0001 WB39K0001 SLIDE RANGE BOTTOM RIGHT
WB16X24721 WB16X24721 SMALL V2 BURNER
WB02K0014 WB02K0014 SPACER
WB02K10161 WB02K10161 SPACER
WB2K14 WB2K14 SPACER
WB13K10029 WB13K10029 SPARK MODULE 4+0
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB9K3 WB9K3 SPRG BROIL L
WB9K2 WB9K2 SPRG BROIL R
WB09K0003 WB09K0003 SPRING BROILER LEFT
WB09K0002 WB09K0002 SPRING BROILER RIGHT
WB63X20215 WB63X20215 SUPPORT BASE
WB63X20216 WB63X20216 SUPPORT BASE
WB02K10276 WB02K10276 SUPPORT COOKTOP
WB28X25363 WB28X25363 TUBE MANIFOLD SUPPLY ASSEMBLY
WB21X26605 WB21X26605 VALVE CONTROL ASSEMBLY NOR. S
WB2K24 WB2K24 VALVE COVER
WB38K10001 WB38K10001 VENT ASSEMBLY
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
