Model Image
Manufacturer

GE

Model Number

AGJSR09DAXT1

Description

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ1X507 WJ1X507 *NLA*SCREW
WJ43X0283 WJ43X0283 1/2X1/2X56 URETHANE
WJ43X0264 WJ43X0264 3/8X1X16 ETHAFOAM WH

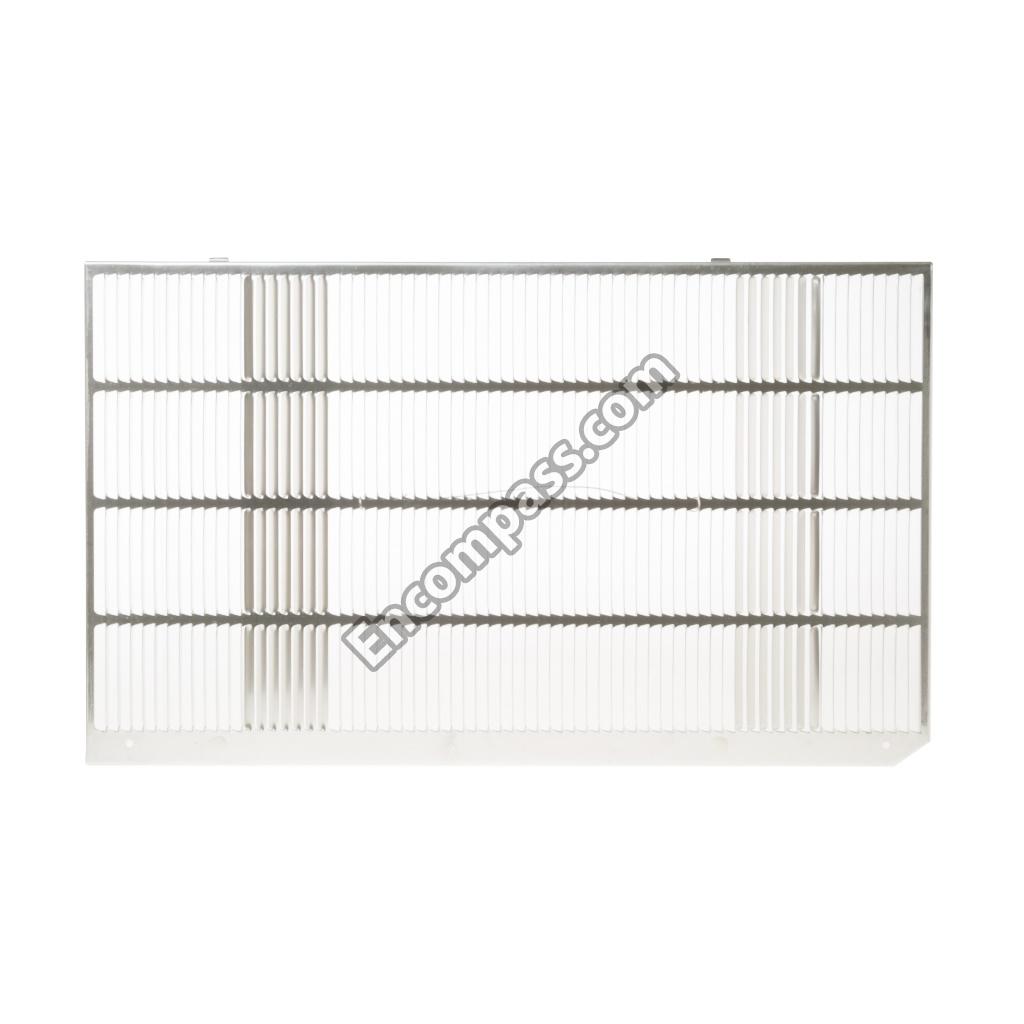

RAG13A RAG13A ALUMINUM EXTERIOR GRILLE J SER
WJ65X0247 WJ65X0247 ANGLE PANEL SUPPORT LH
WJ65X0246 WJ65X0246 ANGLE PANEL SUPPORT RH
WJ02X0148 WJ02X0148 BAND ACCUM
WJ74X0059 WJ74X0059 BLOWER
WJ74X62 WJ74X62 BLOWER WHEEL
WZ02X0524 WZ02X0524 BOLT COMPRESSOR MOUNT
WJ65X0294 WJ65X0294 BRACE
WJ65X0262 WJ65X0262 BRACE
WJ65X0261 WJ65X0261 BRACE
WJ65X0267 WJ65X0267 BRACKET EVAPORATOR
WJ66X0260 WJ66X0260 BRACKET, COMP. BARR, MOUNTING
WJ65X0264 WJ65X0264 BRACKET, SIDE OF OD COIL
WJ90X0050 WJ90X0050 CABINET ASM FINAL
WJ79X199 WJ79X199 CAP TERMINAL
WJ20X604 WJ20X604 CAPACITOR
WJ20X0108 WJ20X0108 CAPACITOR, FAN/RUN
WJ53X137 WJ53X137 CAPILLARY
WJ53X128 WJ53X128 CAPILLARY
WJ53X0128 WJ53X0128 CAPILLARY (.046 ID)
WJ53X0126 WJ53X0126 CAPLLARY .036 CUT TO 11 IN.
WJ3X215 WJ3X215 CLAMP
WJ03X0169 WJ03X0169 CLAMP POWER CORD
WJ03X0194 WJ03X0194 CLAMP, CAPACITOR
WJ03X0232 WJ03X0232 CLAMP, REVERSING VALVE
WJ2X320 WJ2X320 CLIP
WJ2X290 WJ2X290 CLIP
WJ2X246 WJ2X246 CLIP **NLA*
WJ02X0246 WJ02X0246 CLIP CLOSURE PANEL
WJ02X0231 WJ02X0231 CLIP DAMPER DOOR
WJ02X0290 WJ02X0290 CLIP GRILLE BOTTOM
WJ02X0203 WJ02X0203 CLIP GRILLE MOUNTING
WJ02X0321 WJ02X0321 CLIP, CAPILLARY CONDENSOR-
WJ02X0320 WJ02X0320 CLIP, FRONT
WJ02X0265 WJ02X0265 CLIP, STRAIN REL. 3/4 IN. ID
WZ20X0008 WZ20X0008 CLIP, STRAIN REL. 3/8 IN. ID
WJ2X203 WJ2X203 CLIP-GRILLE
WP23X14 WP23X14 COM OVERLOAD
WJ98X770 WJ98X770 COMPRESSOR **NLA*
WJ98X0295 WJ98X0295 COMPRESSOR REPL. KIT
WJ88X160 WJ88X160 COND-REPL
WJ88X0089 WJ88X0089 CONDENSER REPL. KIT
WJ28X0088 WJ28X0088 CONTROL, FROST
WJ35X92 WJ35X92 CORD POWER
WJ35X0058 WJ35X0058 CORD, POWER
WJ56X37 WJ56X37 COUPLING
WJ56X0037 WJ56X0037 COUPLING 2@1/4 TO 2@1/8
WJ70X0173 WJ70X0173 COVER DRIP TRAY
WJ79X0198 WJ79X0198 COVER TERMINAL
WJ03X0213 WJ03X0213 CUP CAPACITOR COVER
WJ70X0166 WJ70X0166 DAMPER DOOR AND SEAL
WJ65X0265 WJ65X0265 DEFLECTOR
WJ65X0266 WJ65X0266 DEFLECTOR
WJ65X0268 WJ65X0268 DEFLECTOR LOUVERED
WJ62X0303 WJ62X0303 DESUPERHEATER
WJ70X166 WJ70X166 DMP DOOR ASM
WJ70X0172 WJ70X0172 DRIP TRAY
WJ70X298 WJ70X298 DRIP TRAY **NLA*
WJ87X195 WJ87X195 EVAP **NLA*
WJ87X0096 WJ87X0096 EVAPORATOR REPL. KIT
WJ03X0215 WJ03X0215 FAN CLAMP
WJ01X0508 WJ01X0508 FAN NUT
WJ73X63 WJ73X63 FAN OD
WJ01X0507 WJ01X0507 FAN SCREW
WJ85X0041 WJ85X0041 FILTER
WJ58X0027 WJ58X0027 FRAME & COIL
WJ43X0249 WJ43X0249 GASKET
WJ43X162 WJ43X162 GASKET
WJ43X0257 WJ43X0257 GASKET 3/4X3/4X14 1/2 URTH
WJ43X0232 WJ43X0232 GASKET REVERSING VALVE
WJ43X0162 WJ43X0162 GASKET SASH GAP
WJ43X0247 WJ43X0247 GASKET SASH SEAL
WJ43X0261 WJ43X0261 GASKET, CABINET SEAL
WJ43X0262 WJ43X0262 GASKET, CABINET SEAL, TOP
WJ43X0254 WJ43X0254 GASKET, DAMPER DR.5.5X2.75
WJ71X0233 WJ71X0233 GRILLE ASM, FRONT
WJ71X795 WJ71X795 GRILLE FRAME **NLA*
WJ71X0234 WJ71X0234 GRILLE, FRONT
WJ01X0249 WJ01X0249 GROMMET
WJ01X0361 WJ01X0361 GROMMET STRAIN RELIEF
WJ01X0341 WJ01X0341 GROMMET, CAPACITOR CLAMP
WJ01X0470 WJ01X0470 GROMMET, COMP. SIDE MOUN
WJ01X0421 WJ01X0421 GROMMET, COMPRESSOR MOUN
WJ01X0340 WJ01X0340 GROMMET, REAR GRILLE, PLAS.
WJ03X0211 WJ03X0211 GUIDE DAMPER DOOR SHAFT
WJ70X0180 WJ70X0180 HEATER
WJ23X220 WJ23X220 HEATER PROT **NLA*
WJ41X136 WJ41X136 KIT ACCUM
WJ41X132 WJ41X132 KIT SEAL J
WJ12X0058 WJ12X0058 KNOB
WJ12X131 WJ12X131 KNOB THERM **NLA*
WJ12X0081 WJ12X0081 KNOB, THERMOSTAT
WJ2X187D WJ2X187D KNOBSPRNG 12
WZ02X0029 WZ02X0029 LEVELING BOLT
WJ03X0221 WJ03X0221 LINK DAMPER DOOR
WJ71X0232 WJ71X0232 LOUVER VERTICAL
WJ71X0231 WJ71X0231 LOUVER VERTICAL
WJ71X0230 WJ71X0230 LOUVER, HORIZONTAL
WJ94X504 WJ94X504 MOTOR - RES
WJ94X0504 WJ94X0504 MOTOR, FAN OUTDOOR
WJ90X50 WJ90X50 N/L/A 06/08/06
WJ71X2135 WJ71X2135 N/L/A 07/31/01
WJ76X251 WJ76X251 N/L/A 08/25/98
WJ07X0332 WJ07X0332 NAMEPLATE
WJ07X0355 WJ07X0355 NAMEPLATE, FRONT GRILLE-GE-
WJ07X0356 WJ07X0356 NAMEPLATE, THRUST -LO HI-
WJ1X445 WJ1X445 NUT
WJ1X508 WJ1X508 NUT
WZ07X0049 WZ07X0049 NUT 3/8-16 HEX
WJ01X0445 WJ01X0445 NUT MOTOR MOUNT
WJ01X0335 WJ01X0335 NUT U TYPE
WJ01X0379 WJ01X0379 NUT, #10-32 LOCK TYPE SS
WJ02X0102 WJ02X0102 NUT, SPEED 5/8 IN. TINNE
WJ76X0118 WJ76X0118 ORIFICE, ID BLOWER
WJ73X0063 WJ73X0063 OUTDOOR FAN WITH SLINGER
WJ69X0048 WJ69X0048 PANEL CLOSURE
WJ82X0054 WJ82X0054 PANEL LEFT SIDE FRONT
WJ82X0053 WJ82X0053 PANEL RIGHT SIDE FRONT
WJ01X0468 WJ01X0468 PIN, HOLDING CHASSIS TO CAB
WJ01X0449 WJ01X0449 PLUG BUTTON
WJ01X0514 WJ01X0514 PLUG, CABINET CORNER DRAIN
WJ28X0099 WJ28X0099 PROTECTOR, HEATER
WJ23X0067 WJ23X0067 PROTECTOR, OVERLOAD
WJ02X0216 WJ02X0216 PUSHON TERMINAL 1/4"" TAB
WJ71X0172 WJ71X0172 REAR GRILLE
WJ66X263 WJ66X263 RETAINER **NLA*
WJ66X0263 WJ66X0263 RETAINER FILTER
WJ01X0251 WJ01X0251 RETAINER RING
WJ02X0281 WJ02X0281 RETAINER RING
WZ04X0230 WZ04X0230 SCR 8-15 A PA 3/8 SS
WJ01X0444 WJ01X0444 SCREW
WZ05X0178 WZ05X0178 SCREW
WZ04X0313 WZ04X0313 SCREW 10 12X1/2 RND. SLO
WZ06X0041 WZ06X0041 SCREW 10 16X1/2 HEX
WZ04X0283 WZ04X0283 SCREW 10-12 X 1/2"" HEX
WZ04X0265 WZ04X0265 SCREW 10-12 X 3/4"" ROUND
WZ06X0050 WZ06X0050 SCREW 10-16 X 1/2"" HEX
WZ04X0288 WZ04X0288 SCREW 10-16 X 1/2"" HEX
WJ01X0515 WJ01X0515 SCREW 10-16 X 1/2"" PAN
WZ04X0275 WZ04X0275 SCREW 10-16 X 7/16"" HEX
WZ06X0036 WZ06X0036 SCREW 10-24 X 5/8"" HEX
WZ05X0156 WZ05X0156 SCREW 10-32X1/2 HEX SLT
WZ02X0457 WZ02X0457 SCREW 8 32X1/4 HEX
WZ04X0294 WZ04X0294 SCREW 8--18X1/2 HEX-WASH
WJ01X0455 WJ01X0455 SCREW, #10-16X1/2 CLOSUR
WZ4X338D WZ4X338D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WZ6X50D WZ6X50D SCREW-PKG 12
WZ4X69D WZ4X69D SCREW-PKG 12
WZ4X230D WZ4X230D SCREW-PKG 12
WJ76X0116 WJ76X0116 SCROLL ASSEMBLY INDOOR
WJ44X0071 WJ44X0071 SEAL CASE TO STOOL
WJ43X0240 WJ43X0240 SEAL MOTOR TO BARRIER
WJ60X0013 WJ60X0013 SEAL, TUBES THROUGH BARRIER
WJ43X0280 WJ43X0280 SEAL, TUBES THROUGH BARRIER
WJ14X76 WJ14X76 SHAFT
WJ14X0076 WJ14X0076 SHAFT DAMPER DOOR
WJ76X0117 WJ76X0117 SHROUD OUTDOOR
WJ40X0028 WJ40X0028 SLEEVE THERMOSTAT CAPIL
WJ01X0306 WJ01X0306 SPACER MOTOR MOUNTING
WJ66X125 WJ66X125 SPACER SUPT
WJ66X0125 WJ66X0125 SPACER WINDOW MTG
WJ44X0079 WJ44X0079 SPACER, FELT 1X1X1/16
WJ01X0471 WJ01X0471 SPACER, SLEEVE, COMP. MO
WJ2X397 WJ2X397 SPRING
WJ02X0277 WJ02X0277 SPRING DAMPER DOOR
WJ02X0187 WJ02X0187 SPRING KNOB
WJ02X0322 WJ02X0322 SPRING, THRUST SELECTOR
WJ66X0226 WJ66X0226 SUPPORT WINDOW MTG
WJ65X0286 WJ65X0286 SUPPORT, CONDENSER END PLATE
WJ26X67 WJ26X67 SWITCH 6 POS **NLA*
WJ26X0067 WJ26X0067 SWITCH, 6 PB
WJ03X0171 WJ03X0171 TERMINAL BLOCK
WJ79X0199 WJ79X0199 TERMINAL CAP
WJ01X0292 WJ01X0292 TERMINAL COVER NUT
WJ79X0224 WJ79X0224 TOP COVER ASSEMBLY
WJ85X110 WJ85X110 UNIV FILTER
WJ58X0022 WJ58X0022 VALVE BODY, REVERSING
WJ01X0499 WJ01X0499 WASHER
WZ10X0020 WZ10X0020 WASHER
WJ1X292 WJ1X292 WASHER NUT
WJ01X0459 WJ01X0459 WASHER, FLAT .2 IDX. 75 OD
WJ86X0129 WJ86X0129 WINDOW CLOSURE PARTS KIT
WJ02X0252 WJ02X0252 WIRE CLIP 5/8"" DIAMETER
WJ3X221 WJ3X221 WIRE LINK
