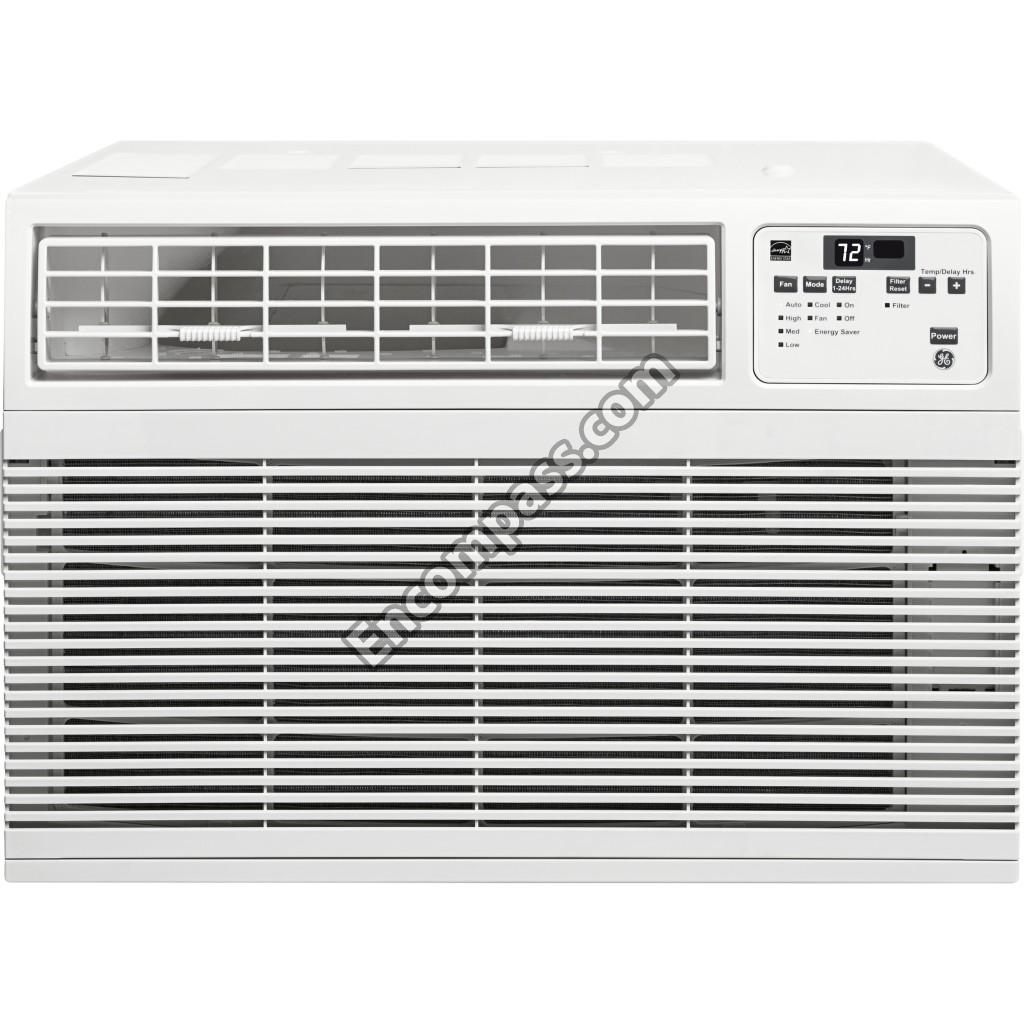

Model Image
Manufacturer

GE

Model Number

AHM24DWH1

Description

Room A/c

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WJ73X20130 WJ73X20130 AXIAL FAN
WJ76X20131 WJ76X20131 BOTTOM SCROLL CASE
WJ20X23956 WJ20X23956 CAPACITOR
WJ20X22110 WJ20X22110 CAPACITOR - RUN CAPA
WJ1X21762 WJ1X21762 CAPACITOR CLAMP
WJ53X22127 WJ53X22127 CAPILLARY TUBE
WJ03X10093 WJ03X10093 CLIP - CAPACITOR
WJ98X22128 WJ98X22128 COMPRESSOR
WJ88X22944 WJ88X22944 CONDENSER ASSEMBLY
WJ76X22114 WJ76X22114 CONDENSER COVER
WJ05X20139 WJ05X20139 CONTROL BOX
WJ71X22115 WJ71X22115 CONTROL PANEL
WJ53X24757 WJ53X24757 DISCHARGE TUBE
WJ53X22116 WJ53X22116 DISCHARGE TUBE
WJ26X22117 WJ26X22117 DISPLAY BOARD
WJ87X22945 WJ87X22945 EVAPORATOR ASSEMBLY
WJ94X22119 WJ94X22119 FAN MOTOR
WJ85X22120 WJ85X22120 FILTER
WJ71X22126 WJ71X22126 FRONT PANEL ASSEMBLY
WJ36X10023 WJ36X10023 HARNESS
WJ76X22121 WJ76X22121 INDOOR FAN BLADE
WJ43X22122 WJ43X22122 INSTALLATION PARTS
WJ26X22123 WJ26X22123 MAIN BOARD
WJ05X20150 WJ05X20150 MIDDLE SCROLL CASE
WJ65X10130 WJ65X10130 PCB SUPPORT
31-30835 31-30835 PM MINI MANUAL
49-7765 49-7765 PM USE AND CARE MANUAL
WJ35X33854 WJ35X33854 POWER CORD
WJ76X20154 WJ76X20154 REAR COVER BOARD
WJ26X20094 WJ26X20094 REMOTE
WJ26X22103 WJ26X22103 REMOTE CONTROL
WJ53X24758 WJ53X24758 SUCTION TUBE
WJ53X22124 WJ53X22124 SUCTION TUBE
WJ26X22173 WJ26X22173 THERMISTOR
WJ86X23672 WJ86X23672 TOP RAIL
WJ65X22125 WJ65X22125 TOP RAIL
WJ76X20160 WJ76X20160 TOP SCROLL CASE
