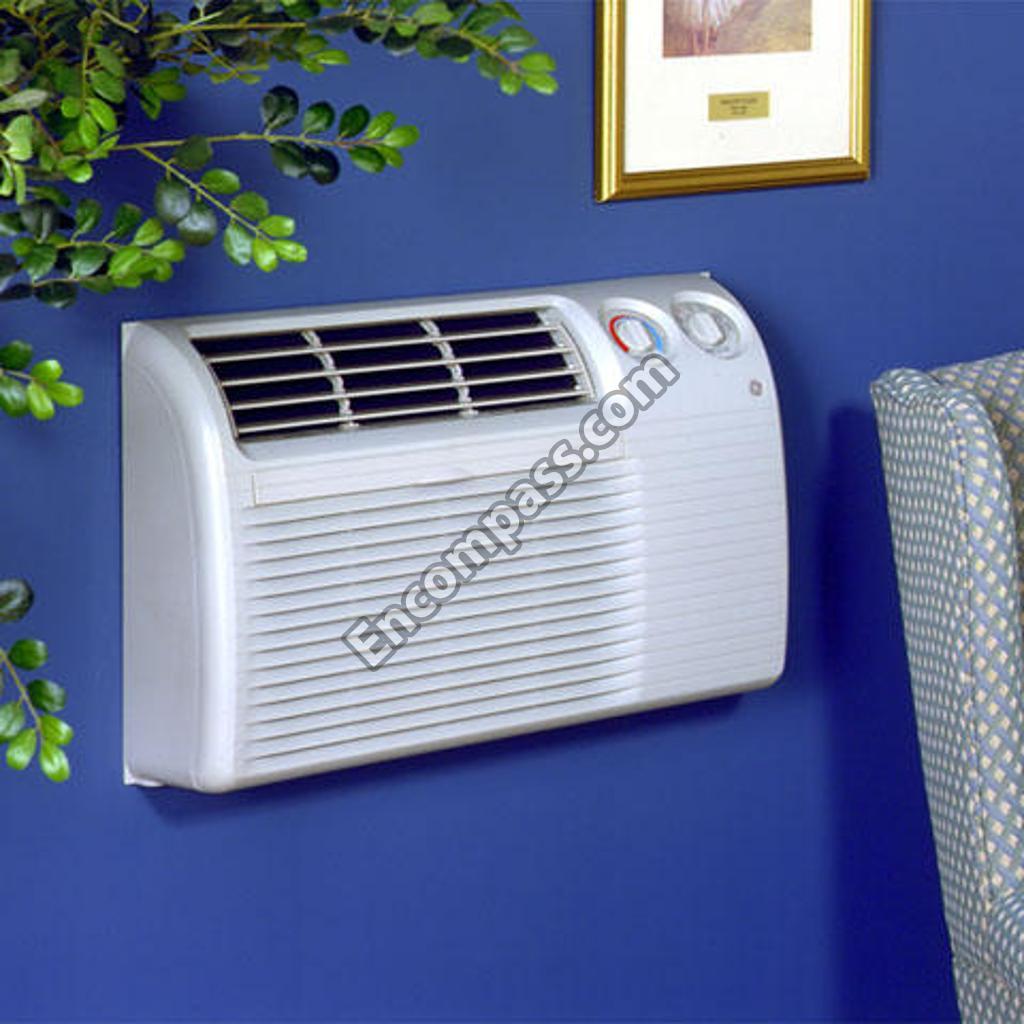

Model Image
Manufacturer

GE

Model Number

AJES08ASM1

Description

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ71X10037 WJ71X10037 AIR DIRECTION L-K

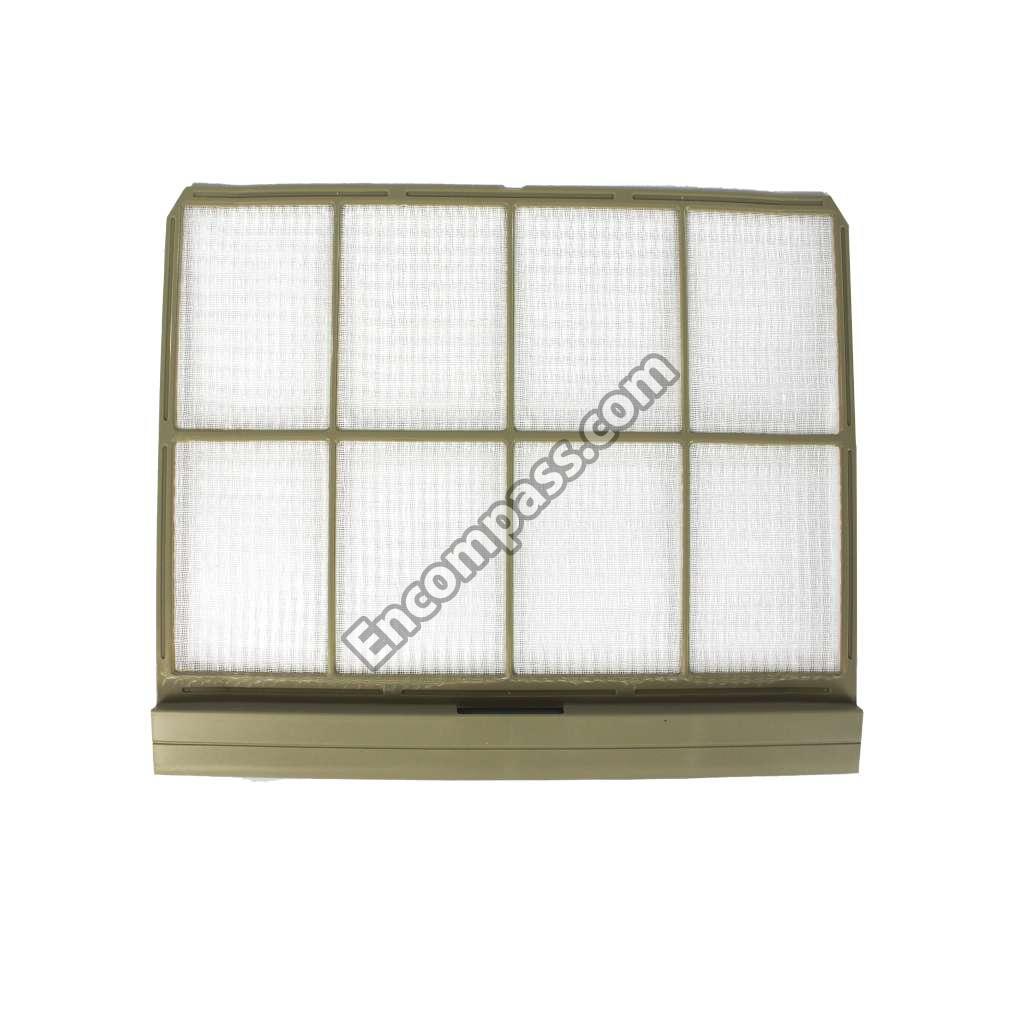

WJ85X10010 WJ85X10010 AIR FILTER
WJ89X10009 WJ89X10009 BASE PAN ASSEMBLY
WJ01X10049 WJ01X10049 BOLT
WJ02X10013 WJ02X10013 BOSS
WJ65X10003 WJ65X10003 BRACE
WJ66X10009 WJ66X10009 BRACKET
WJ05X10008 WJ05X10008 BULK-HEAD-PE-B
WJ76X10019 WJ76X10019 BULKHEAD
WJ79X10010 WJ79X10010 BULKHEAD COVER ASSEMBLY
WJ05X10007 WJ05X10007 BULKHEAD-OUTSIDE-PE
WJ01X10040 WJ01X10040 C-BOX-TRAY
WJ90X10005 WJ90X10005 CABINET ASSEMBLY
WJ03X10005 WJ03X10005 CAPACITOR CLAMP
WJ53X130 WJ53X130 CAPILLARY
WJ53X0130 WJ53X0130 CAPILLARY (.054 ID)
WJ73X10008 WJ73X10008 CENTRIFUGAL FAN
WJ02X10015 WJ02X10015 CLIP
WJ02X10016 WJ02X10016 CLIP
WJ27X10015 WJ27X10015 COMP. WIRING
WJ98X10011 WJ98X10011 COMPRESSOR
WJ01X10002 WJ01X10002 COMPRESSOR C CUSHION
WJ88X10011 WJ88X10011 CONDENSER ASSEMBLY
WJ76X10016 WJ76X10016 CONDENSER SHROUD
WJ76X10017 WJ76X10017 CONTROL BOX
WJ79X10011 WJ79X10011 CONTROL BOX COVER
WJ12X10009 WJ12X10009 CONTROL KNOB A SS'Y
WJ70X10010 WJ70X10010 DAMPER FRAME
WJ14X10006 WJ14X10006 DAMPER LEVER
WJ79X10012 WJ79X10012 DRAIN COVER
WJ70X10009 WJ70X10009 DRAIN TRAY
WJ01X10039 WJ01X10039 DRAIN-COVER-B
WJ05X10006 WJ05X10006 DUMPER ROLLER
WJ87X10017 WJ87X10017 EVAPORATOR ASSEMBLY
WJ94X10017 WJ94X10017 FAN MOTOR
WJ94X10018 WJ94X10018 FAN MOTOR
WJ05X10009 WJ05X10009 FILTER GUIDE
WJ23X10008 WJ23X10008 FUSE
WJ43X10004 WJ43X10004 GASKET
WJ01X10003 WJ01X10003 GASKET WAS HER
WJ07X10007 WJ07X10007 GE LABEL
WJ69X10004 WJ69X10004 HARD BOARD
WJ70X10007 WJ70X10007 HEATER ASSEMBLY
WJ71X10042 WJ71X10042 HORIZONTAL LOUVER A
WJ71X10043 WJ71X10043 HORIZONTAL LOUVER B
WJ71X10040 WJ71X10040 HORIZONTAL LOUVER S
WJ65X10002 WJ65X10002 IN DOOR MOTOR MOUNT
WJ01X10033 WJ01X10033 IN MOTOR RUBBER
WJ40X10002 WJ40X10002 INSULATOR
WJ40X10003 WJ40X10003 INSULATOR
WJ40X10004 WJ40X10004 INSULATOR
WJ40X10005 WJ40X10005 INSULATOR
WJ11X10002 WJ11X10002 KNOB BASE-K
WJ37X10004 WJ37X10004 LEAD WIRE
WJ37X10001 WJ37X10001 LEAD WIRE
WJ37X10003 WJ37X10003 LEAD WIRE
WJ27X10001 WJ27X10001 LEAD WIRE
WJ71X10041 WJ71X10041 LOUVER LINK
WJ26X10006 WJ26X10006 MAIN PCB
WP29X10001 WP29X10001 MAIN SWITCH ASM.
WJ01X10034 WJ01X10034 MOTOR CUSHION ON
NCN NCN NLA PART
WJ71X10039 WJ71X10039 NOTCH PLATE
WJ02X10010 WJ02X10010 NOTCH SPRING
WJ01X10050 WJ01X10050 NUT
WJ1X982 WJ1X982 NUT SPECIAL
WJ01X0982 WJ01X0982 NUT, SPECIAL
WJ23X370 WJ23X370 O/L COMPRESS
WJ78X10002 WJ78X10002 ORIFICE
WJ65X10005 WJ65X10005 OUT MOTOR ANGLE
WJ35X10008 WJ35X10008 POWER SUPPLY CORD
WJ73X10037 WJ73X10037 PROPELLER - FAN
WJ02X10001 WJ02X10001 PROTECTO R SPRING
WJ23X0370 WJ23X0370 PROTECTOR
WJ02X10014 WJ02X10014 READ SPRING
WJ82X10001 WJ82X10001 REAR GARD
RAF622 RAF622 REPL ROOM FRONT (ROUNDED J SER
WJ20X10007 WJ20X10007 RUNNING CAPACITOR
WJ76X10018 WJ76X10018 SCROLL
WJ66X10010 WJ66X10010 SIDE ANGLE L
WJ66X10011 WJ66X10011 SIDE ANGLE R
WJ01X10043 WJ01X10043 SPACER
WJ01X10044 WJ01X10044 SPACER
WJ05X10010 WJ05X10010 SPACER
WJ01X10041 WJ01X10041 SPECIAL NUT
WJ01X10042 WJ01X10042 SPECIAL NUT
WJ01X10010 WJ01X10010 SPECIAL NUT T
WJ01X10035 WJ01X10035 SPECIAL SC REW
WJ01X10037 WJ01X10037 SPECIAL SCREW
WJ01X10052 WJ01X10052 SPECIAL SCREW
WJ01X10036 WJ01X10036 SPECIAL SCREW
WJ01X10012 WJ01X10012 SPECIAL SCREW
WJ01X10032 WJ01X10032 SPECIAL SCREW
WJ01X10048 WJ01X10048 SPECIAL SCREW
WJ02X10011 WJ02X10011 SPRING
WJ66X10007 WJ66X10007 STOPPER
WJ66X10008 WJ66X10008 STOPPER-B
WJ01X10045 WJ01X10045 STUD BOLT
WJ65X10004 WJ65X10004 SUPPORT
WJ01X10047 WJ01X10047 TAPPING SCREW
WJ28X10010 WJ28X10010 TEMP CONTROL COV ER
WJ23X10007 WJ23X10007 TEMP FUSE
WJ79X10003 WJ79X10003 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WP27X10003 WP27X10003 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER
WJ27X10009 WJ27X10009 TRANSFORMER
49-7361 49-7361 USE AND CARE MANUAL
WJ27X10008 WJ27X10008 VARISTOR
WJ01X10051 WJ01X10051 WASHER
WJ03X10008 WJ03X10008 WIRE FIXING BAND
WJ03X10007 WJ03X10007 WIRE HOLDER
WJ03X10010 WJ03X10010 WIRE HOLDER
WJ71X10036 WJ71X10036 WIRE NETTING
WJ23X10003 WJ23X10003 WIRE NETTING
