Model Image
Manufacturer

GE

Model Number

AJES10DSCM3

Description

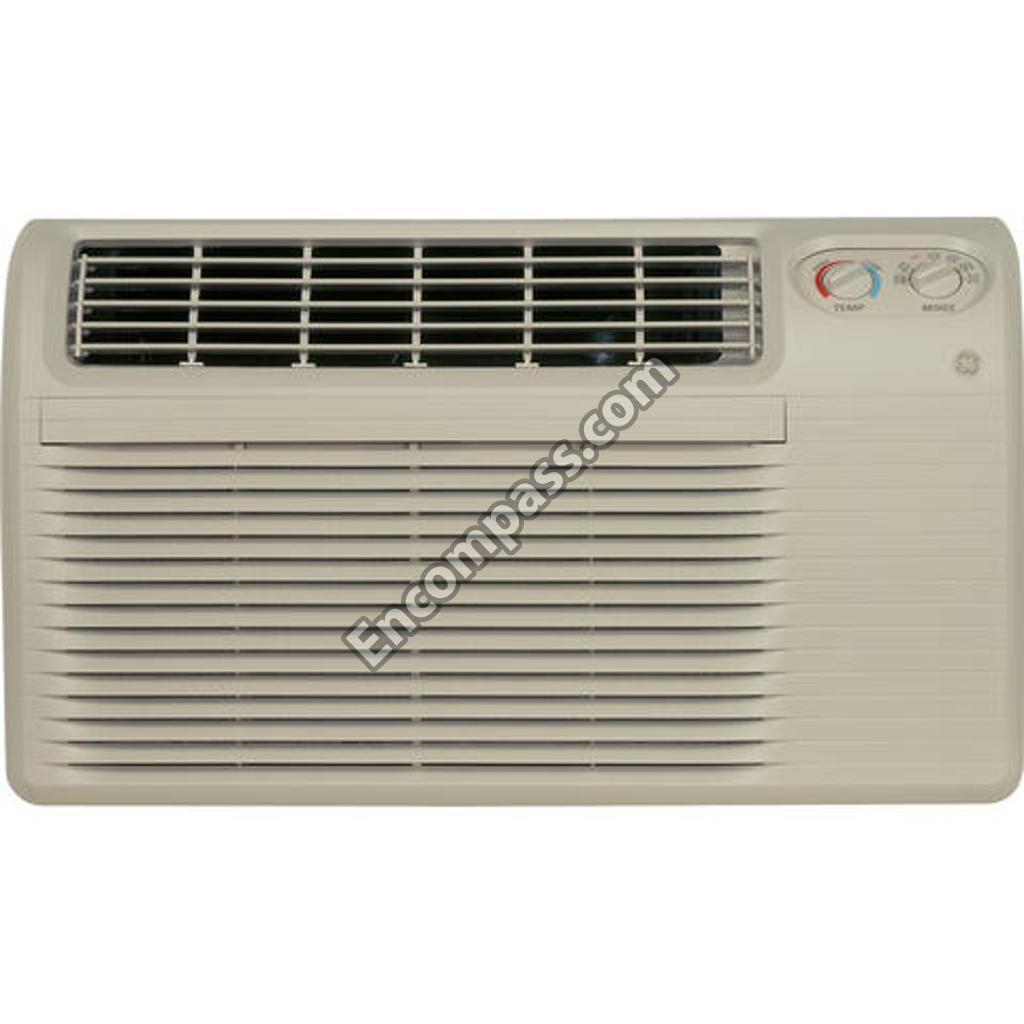

Room Air Conditioner Built In

Interactive Exploded View

Parts List

Part Number Description
WJ85X10041 WJ85X10041 AIR FILTER
WJ01X10281 WJ01X10281 BOLT
WJ02X10013 WJ02X10013 BOSS
WJ65X10097 WJ65X10097 BRACE (CP)
WJ66X10009 WJ66X10009 BRACKET
WJ76X10235 WJ76X10235 BULKHEAD PLATE
WJ90X10005 WJ90X10005 CABINET ASSEMBLY
WJ82X10041 WJ82X10041 CABINET-PE
WJ82X10040 WJ82X10040 CABINET-PE
WJ03X10027 WJ03X10027 CAPACITOR CLAMP
WJ73X10159 WJ73X10159 CENTRIFUGAL FAN
WJ01X10159 WJ01X10159 CLAMP
WJ02X10015 WJ02X10015 CLIP
WJ02X10016 WJ02X10016 CLIP
WJ27X10074 WJ27X10074 COMP. WIRING
WJ98X10150 WJ98X10150 COMPRESSOR
WJ01X10046 WJ01X10046 COMPRESSOR CUSHION N
WJ88X10165 WJ88X10165 CONDENSER ASM
WJ79X10158 WJ79X10158 CONDENSER PLATE
WJ76X10234 WJ76X10234 CONDENSER SHROUD
WJ76X10232 WJ76X10232 CONTROL BOX
WJ12X10072 WJ12X10072 CONTROL KNOB ASM
WJ28X10049 WJ28X10049 CONTROL UNIT
WJ01X10291 WJ01X10291 DAMPER FRAME
WJ79X10157 WJ79X10157 DRAIN COVER
WJ70X10052 WJ70X10052 DRAIN TRAY
WJ58X10041 WJ58X10041 DRAIN VALVE
WJ87X10218 WJ87X10218 EVAPORATOR ASM
WJ20X10116 WJ20X10116 FAN MTR CAPACITOR
WJ71X10224 WJ71X10224 FRONT PANEL
WJ71X10395 WJ71X10395 FRONT PANEL ASM
WP23X10003 WP23X10003 FUSE
WJ43X10004 WJ43X10004 GASKET
WJ01X10003 WJ01X10003 GASKET WAS HER
WJ69X10004 WJ69X10004 HARD BOARD
WJ70X10053 WJ70X10053 HEATER ASM 230/208V
WJ71X10226 WJ71X10226 HORIZONTAL LOUVER A
WJ94X10257 WJ94X10257 I/D FAN MOTOR (CP)
WJ45X10016 WJ45X10016 INSULATOR
WJ40X10002 WJ40X10002 INSULATOR
WJ40X10003 WJ40X10003 INSULATOR
WJ40X10004 WJ40X10004 INSULATOR
WJ40X10005 WJ40X10005 INSULATOR
WJ11X10018 WJ11X10018 KNOB BASE
WJ11X10021 WJ11X10021 L-BASE-PLATE-PE
WJ37X10001 WJ37X10001 LEAD WIRE
WJ37X10021 WJ37X10021 LEAD WIRE
WJ27X10001 WJ27X10001 LEAD WIRE
WJ71X10454 WJ71X10454 LOUVER
WJ71X10523 WJ71X10523 LOUVER
WJ01X10142 WJ01X10142 LOUVER HOLDER-A
WJ01X10143 WJ01X10143 LOUVER HOLDER-B
WJ71X10225 WJ71X10225 LOUVER LINK
WJ29X10014 WJ29X10014 MAIN SWT ASM
31-61475 31-61475 MINI-MANUAL
WJ65X10104 WJ65X10104 MOTOR ANGLE
WJ01X10034 WJ01X10034 MOTOR CUSHION ON
WJ71X10039 WJ71X10039 NOTCH PLATE
WJ02X10025 WJ02X10025 NOTCH SPRING
WJ78X10057 WJ78X10057 ORIFICE
WJ23X10101 WJ23X10101 OVERLOAD PRTR
WJ35X10142 WJ35X10142 POWER CORD
WJ73X10157 WJ73X10157 PROPELLER FAN O/D
WJ02X10001 WJ02X10001 PROTECTO R SPRING
WP28X10005 WP28X10005 PROTECTOR
WP28X10013 WP28X10013 PROTECTOR
WJ01X10139 WJ01X10139 PWB HOLDER
WJ02X10014 WJ02X10014 READ SPRING
WJ82X10001 WJ82X10001 REAR GARD
WJ20X10110 WJ20X10110 RUN CAPACITOR
WJ01X10297 WJ01X10297 SEAL MOTOR
WJ66X10041 WJ66X10041 SIDE ANGLE L
WJ66X10042 WJ66X10042 SIDE ANGLE R
WJ05X10035 WJ05X10035 SPACER
WJ01X10284 WJ01X10284 SPECIAL NUT
WJ01X10041 WJ01X10041 SPECIAL NUT
WJ01X10285 WJ01X10285 SPECIAL NUT
WP01X10015 WP01X10015 SPECIAL NUT
WJ01X10035 WJ01X10035 SPECIAL SC REW
WJ01X10296 WJ01X10296 SPECIAL SCREW
WJ01X10052 WJ01X10052 SPECIAL SCREW
WP01X10021 WP01X10021 SPECIAL SCREW
WJ01X10012 WJ01X10012 SPECIAL SCREW
WJ01X10279 WJ01X10279 SPECIAL SCREW
WJ01X10280 WJ01X10280 SPECIAL SCREW
WJ01X10037 WJ01X10037 SPECIAL SCREW
WJ01X10287 WJ01X10287 SPECIAL WASHER
WJ66X10040 WJ66X10040 STOPPER
WJ01X10031 WJ01X10031 STUD BOLT

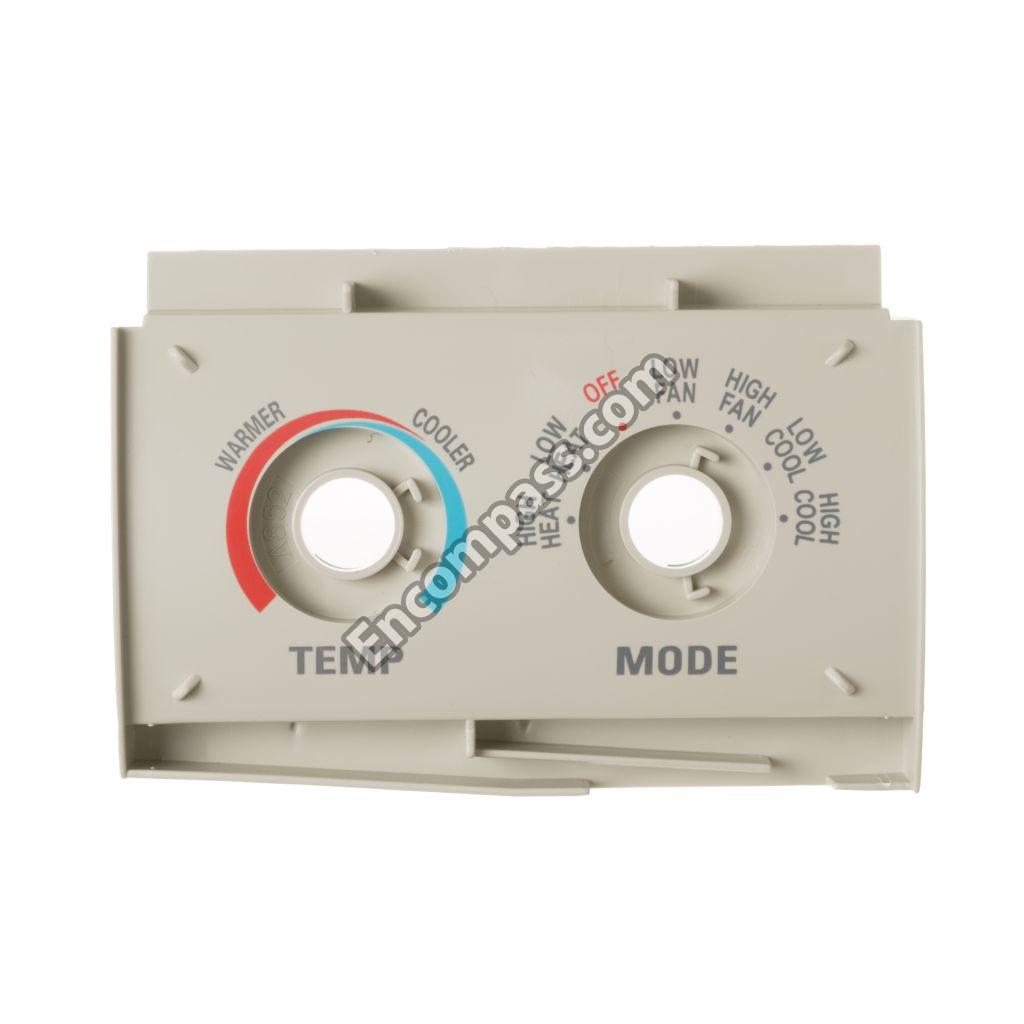

WJ28X10022 WJ28X10022 TEMP CONTROL COVER
WJ79X10013 WJ79X10013 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WJ27X10056 WJ27X10056 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER
49-7572 49-7572 USE & CARE MANUAL
WP27X10002 WP27X10002 VARISTO R
WJ03X10001 WJ03X10001 WIRE HOLDER
WJ71X10227 WJ71X10227 ZONELINE HORIZONTAL LOUVER B
