Manufacturer
GE
Model Number
AVX10ACF1
Description

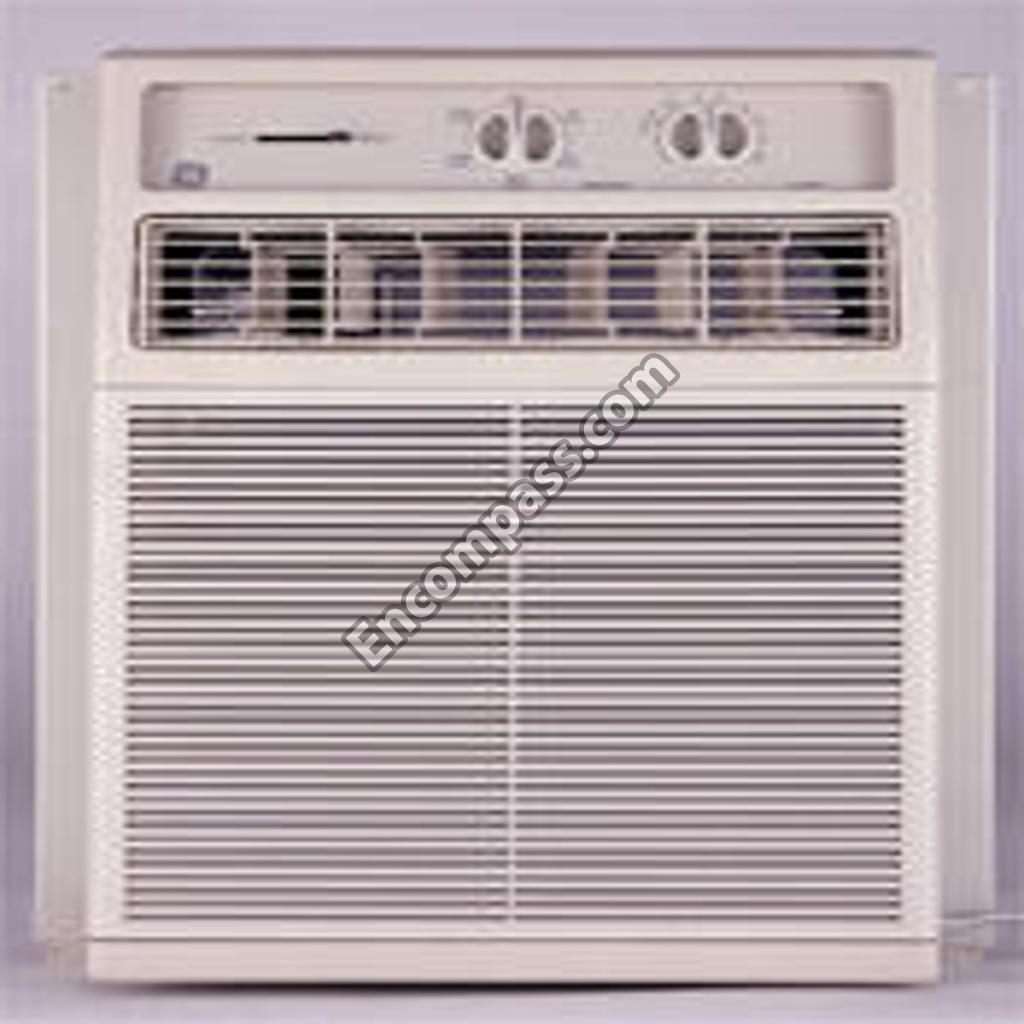

Room Air Conditioner Built In
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACTUATOR,DAMPER DOOR |
|
|
AIR FILTER |
|
|
BLOWER WHEEL |
|
|
BLOWER WHEEL |
|
|
BULKHEAD |
|
|
CABINET ASSEMBLY |
|
|
CAPILLARY |
|
|
CAPILLARY .042 CUT TO 14 |
|
|
CLIP,3/8 |
|
|
COMPRESSOR |
|
|
CONDENSER |
|
|
DAMPER DOOR |
|
|
DRIP TRAY |
|
|
DUAL CAPACITOR |
|
|
ESCUTCHEON |
|
|
EVAPORATOR |
|
|
FAN |
|
|
FAN OUTDOOR |
|
|
FOAM,ESCUTCHEON |
|
|
FRONT GRILLE ASM. |
|
|
GASKET,TERMINAL COVER |
|
|
GRILLE REAR |
|
|
GROMMET, TOP |
|
|
HARDWARE PACKAGE |
|
|
INSERT-DEC FRONT |
|
|
ISOLATOR GROM., BOTTOM |
|
|
KNOB ASM.-SOFT GREY |
|
|
MINI-MANUAL |
|
|
MOTOR, FAN |
|
|
NAMEPLATE REAR |
|
|
NAMEPLATE RR |
|
|
NUT,1/4-28 TERMINAL COV. |
|
|
OVERLOAD, COMPR. |
|
|
PALNUT |
|
|
PALNUT |
|
|
PANEL, FILLER |
|
|
PANEL-CONTROL, BASE |
|
|
PANEL-CONTROL,TOP |
|
|
PLATE, MOTOR MOUNTING |
|
|
POWER CORD |
|
|
RETAINER TOP |
|
|
RETAINER, FILLER PANEL |
|
|
RETAINER, SIDE |
|
|
RETAINER, TOP |
|
|
ROTARY SWITCH |
|
|
SHROUD, CONDENSER |
|
|
SIDE RETAINER |
|
|
SILL PLATE |
|
|
SLEEVE, .344IDX1.781" |
|
|
SNUBBER |
|
|
SNUBBER, TUBE 1/2 ID |
|
|
STAINER |
|
|
START ASSIST |
|
|
STRAINER |
|
|
STRAP,CAPACITOR |
|
|
SUPPORT ANGLE |
|
|
SUPPORT PLATFORM |
|
|
TERMINAL COVER |
|
|
THERMO KIT |
|
|
THERMOSTAT KIT |
|
|
TIE BRACKET |
|
|
USE& CARE MANUAL |
|
|
VENTURI |
|
|
WASHER .344IDX1.0ODX.067 |
