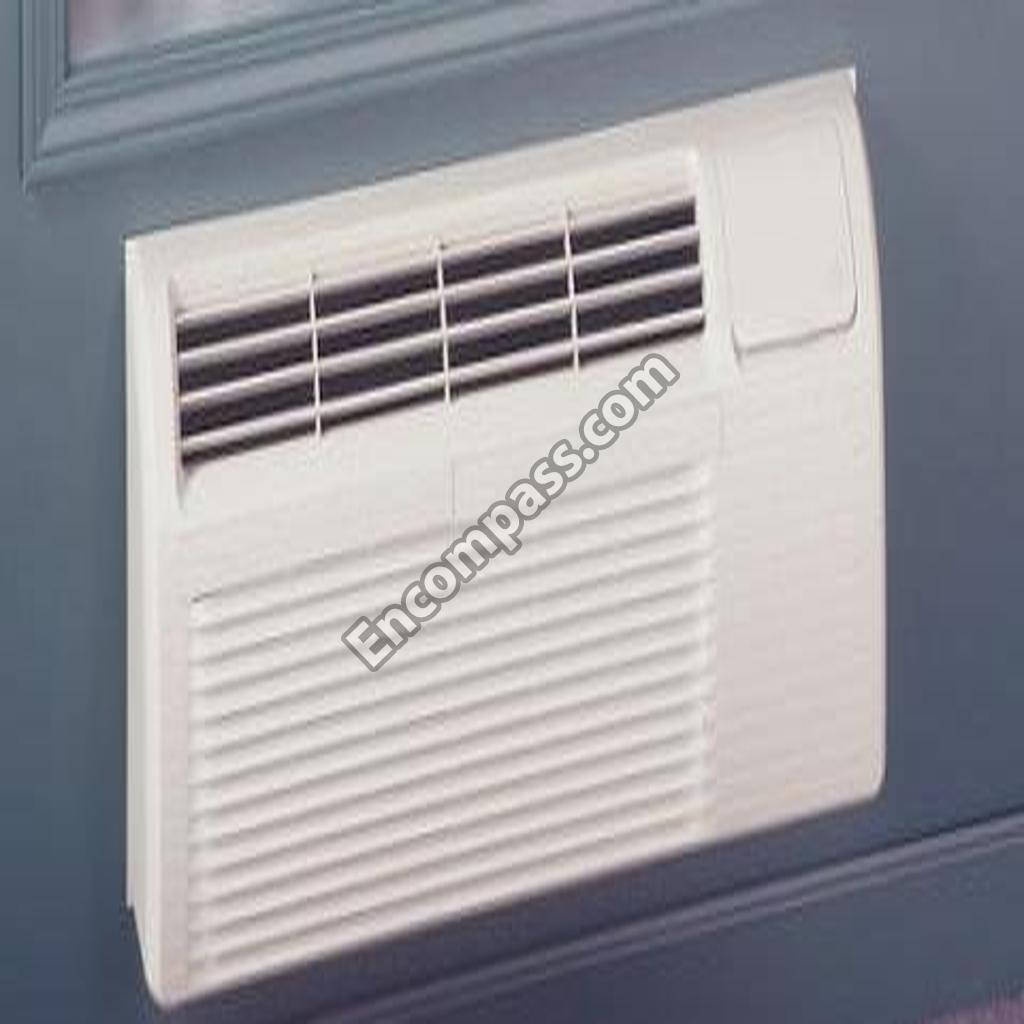

Model Image
Manufacturer

GE

Model Number

AZ22E07D3CM1

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description
WP85X10001 WP85X10001 AIR FILTER L
WP85X10002 WP85X10002 AIR FILTER R
WP76X10016 WP76X10016 AUX COVER K
WP26X10009 WP26X10009 AUX UNIT
WJ89X10016 WJ89X10016 BASE PAN ASS'Y
WJ89X10017 WJ89X10017 BASE PAN ASSEMBLY
WP65X10001 WP65X10001 BRACE
WP56X10001 WP56X10001 BRACE
WP76X10012 WP76X10012 BULKHEAD
WP76X10019 WP76X10019 BULKHEAD
WP79X10009 WP79X10009 BULKHEAD COVER ASS'Y
WP79X10002 WP79X10002 BULKHEAD COVER ASSEMBLY Y
WJ40X10007 WJ40X10007 BULKHEAD INSULATOR
WJ40X10006 WJ40X10006 BULKHEAD INSULATOR
WJ82X10003 WJ82X10003 CAB. ANGLE ASSAY
WJ82X10002 WJ82X10002 CAB. ANGLE ASSAY
WP03X10001 WP03X10001 CAPACITOR CLAMP
WJ53X129 WJ53X129 CAPILLARY
WJ53X128 WJ53X128 CAPILLARY
WJ53X0128 WJ53X0128 CAPILLARY (.046 ID)
WJ53X0129 WJ53X0129 CAPILLARY (.049 ID)
WP73X10004 WP73X10004 CENTRIFUGAL FAN
WJ36X10001 WJ36X10001 COMP. WIRING
WJ98X10022 WJ98X10022 COMPRESSOR
WJ01X10002 WJ01X10002 COMPRESSOR CUSHION
WP88X10009 WP88X10009 CONDENSER ASS'Y
WP88X10006 WP88X10006 CONDENSER ASSEMBLY
WP76X10001 WP76X10001 CONDENSER SHROUD
WP76X10018 WP76X10018 CONTROL BOX ASS'Y
WP76X10005 WP76X10005 CONTROL BOX F
WP76X10014 WP76X10014 CONTROL BOX S
WP71X10004 WP71X10004 CONTROL COVER
WJ12X10009 WJ12X10009 CONTROL KNOB A SS'Y
WP26X10008 WP26X10008 CONTROL UNIT
WP01X10009 WP01X10009 CORD HOLDER L
WP70X10014 WP70X10014 DAMPER
WP70X10018 WP70X10018 DAMPER
WP70X10017 WP70X10017 DAMPER ASS'Y
WP70X10013 WP70X10013 DAMPER ASSEMBLY
WJ80X10002 WJ80X10002 DAMPER COVER
WJ05X10014 WJ05X10014 DAMPER HOLDER
WJ14X10008 WJ14X10008 DAMPER LEVER
WP01X10003 WP01X10003 DAMPER WIRE
WP79X10008 WP79X10008 DRAIN COVER
WP70X10016 WP70X10016 DRAIN TRAY
WP02X10002 WP02X10002 E RING
WJ82X10011 WJ82X10011 END. PLATE LS
WP87X10006 WP87X10006 EVAPORATOR ASS'Y
WP73X10009 WP73X10009 FAN
WP94X10039 WP94X10039 FAN MOTOR
WP94X10040 WP94X10040 FAN MOTOR
WP94X10021 WP94X10021 FAN MOTOR
WJ20X10017 WJ20X10017 FAN MOTOR CAPACITOR
WJ05X10013 WJ05X10013 FILTER GUIDE
WP76X10002 WP76X10002 FRAME
WP71X10002 WP71X10002 FRONT PANEL
WP71X10001 WP71X10001 FRONT PANEL ASS'Y
WP23X10003 WP23X10003 FUSE
WJ01X10003 WJ01X10003 GASKET WASHER
WP70X10004 WP70X10004 HEATER ASS'Y
WP70X10007 WP70X10007 HEATER ASSEMBLY
WJ40X10010 WJ40X10010 HEATER INSULATOR
WJ82X10012 WJ82X10012 IN MOTOR ANGLE
WJ01X10033 WJ01X10033 IN MOTOR RUBBER
WP07X10003 WP07X10003 KNOB BASE
WJ37X10004 WJ37X10004 LEAD WIRE
WJ37X10006 WJ37X10006 LEAD WIRE
WJ37X10001 WJ37X10001 LEAD WIRE
WJ27X10001 WJ27X10001 LEAR WIRE
WP01X10001 WP01X10001 MAGNET
WP01X10002 WP01X10002 MAGNET SEAL
WJ01X10034 WJ01X10034 MOTOR CUSHION
NCN NCN NLA PART
WP26X10006 WP26X10006 OPERATION UNIT
WP78X10001 WP78X10001 ORIFICE
WJ65X10005 WJ65X10005 OUT MOTOR ANGLE
WP71X10007 WP71X10007 PLATE ASS'Y
WJ82X10010 WJ82X10010 PLATE L
WJ82X10009 WJ82X10009 PLATE R
31-60224 31-60224 PM GUIDE OWNERS
WJ35X10005 WJ35X10005 POWER SUPPLY CORD
WJ73X10037 WJ73X10037 PROPELLER FAN
WP23X10007 WP23X10007 PROTECTOR
WP28X10013 WP28X10013 PROTECTOR
WP28X10005 WP28X10005 PROTECTOR
WJ02X10001 WJ02X10001 PROTECTOR SPRING
WP71X10012 WP71X10012 R. LOUVER
WP01X10005 WP01X10005 RUBBER WASHER
WP20X10002 WP20X10002 RUNNING CAPACITOR
WP76X10017 WP76X10017 SCROLL ASS'Y
WP01X10010 WP01X10010 SPACER
WJ01X10044 WJ01X10044 SPACER
WJ01X10043 WJ01X10043 SPACER
WJ01X10042 WJ01X10042 SPECIAL NUT
WJ01X10010 WJ01X10010 SPECIAL NUT
WJ01X10041 WJ01X10041 SPECIAL NUT
WJ01X10032 WJ01X10032 SPECIAL SCREW
WJ01X10059 WJ01X10059 SPECIAL SCREW
WJ01X10012 WJ01X10012 SPECIAL SCREW
WJ01X10037 WJ01X10037 SPECIAL SCREW
WJ01X10056 WJ01X10056 SPECIAL SCREW
WJ01X10035 WJ01X10035 SPECIAL SCREW
WP01X10004 WP01X10004 SPECIAL SCREW
WP02X10001 WP02X10001 SPRING
WJ01X10045 WJ01X10045 STUD BOLT
WJ82X10007 WJ82X10007 SUB ANGLE
WJ82X10013 WJ82X10013 SUB ANGLE
WJ01X10057 WJ01X10057 TAPPING SCREW
WJ01X10038 WJ01X10038 TAPPING SCREW
WJ28X10010 WJ28X10010 TEMP. CONTROL COVER
WJ79X10003 WJ79X10003 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WP27X10014 WP27X10014 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER
WP27X10006 WP27X10006 TRANSFORMER
49-7358 49-7358 USE&CARE MANUAL
WP27X10002 WP27X10002 VARISTOR
WJ82X10005 WJ82X10005 WIRE ANGLE
WJ03X10008 WJ03X10008 WIRE FIXING BAND
WJ03X10006 WJ03X10006 WIRE HOLDER
WJ03X10007 WJ03X10007 WIRE HOLDER
WP71X10006 WP71X10006 WIRE NETTING
