Model Image
Manufacturer

GE

Model Number

AZ22E12E3CM3

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description
WP85X10001 WP85X10001 AIR FILTER L
WP85X10002 WP85X10002 AIR FILTER R
WP76X10016 WP76X10016 AUX COVER K
WP26X10009 WP26X10009 AUX UNIT
WJ89X10018 WJ89X10018 BASE PAN ASS'Y
WP56X10001 WP56X10001 BRACE
WP76X10019 WP76X10019 BULKHEAD
WP79X10009 WP79X10009 BULKHEAD COVER ASS'Y
WJ40X10007 WJ40X10007 BULKHEAD INSULATOR
WJ40X10006 WJ40X10006 BULKHEAD INSULATOR
WJ82X10003 WJ82X10003 CAB. ANGLE ASSAY
WJ82X10002 WJ82X10002 CAB. ANGLE ASSAY
WP03X10001 WP03X10001 CAPACITOR CLAMP
WJ53X128 WJ53X128 CAPILLARY
WJ53X0128 WJ53X0128 CAPILLARY (.046 ID)

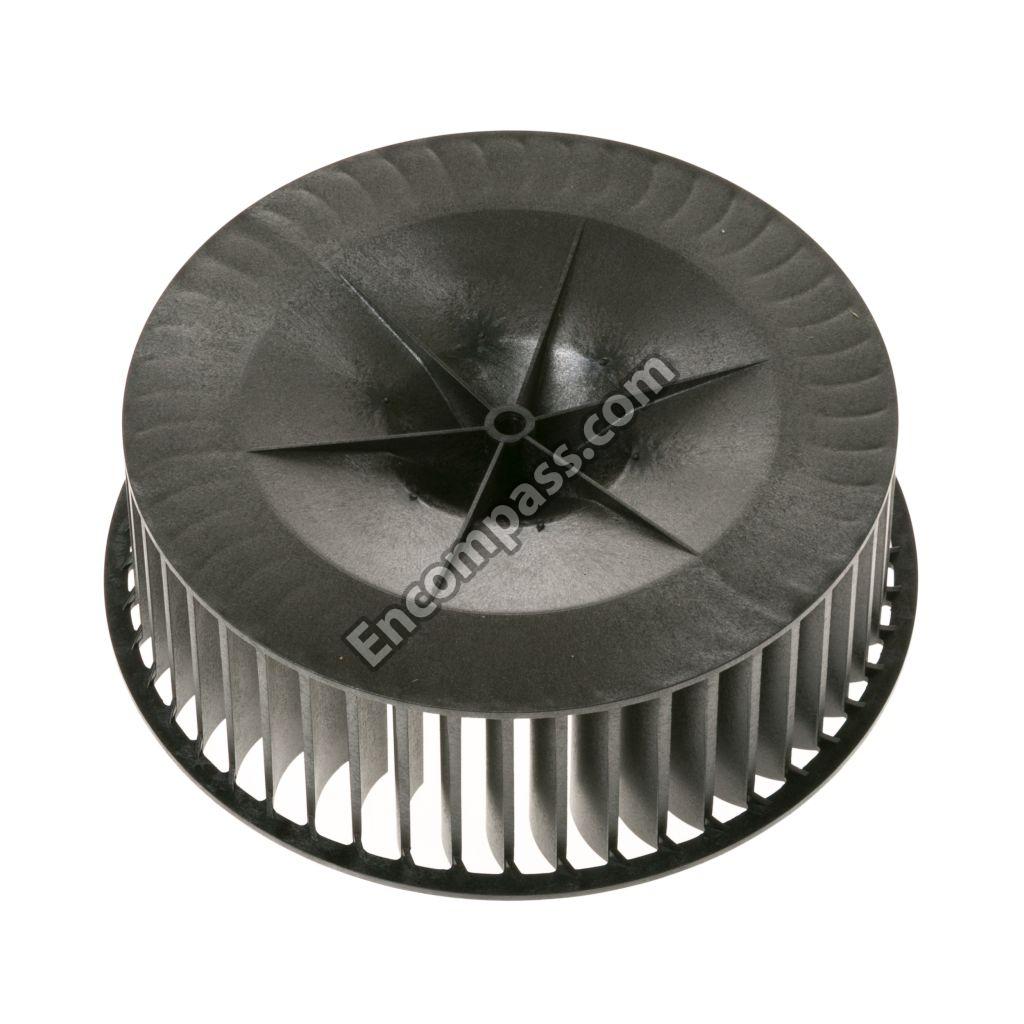

WP73X10005 WP73X10005 CENTRIGUGAL FAN
WJ36X10001 WJ36X10001 COMP. WIRING
WJ98X10027 WJ98X10027 COMPRESSOR

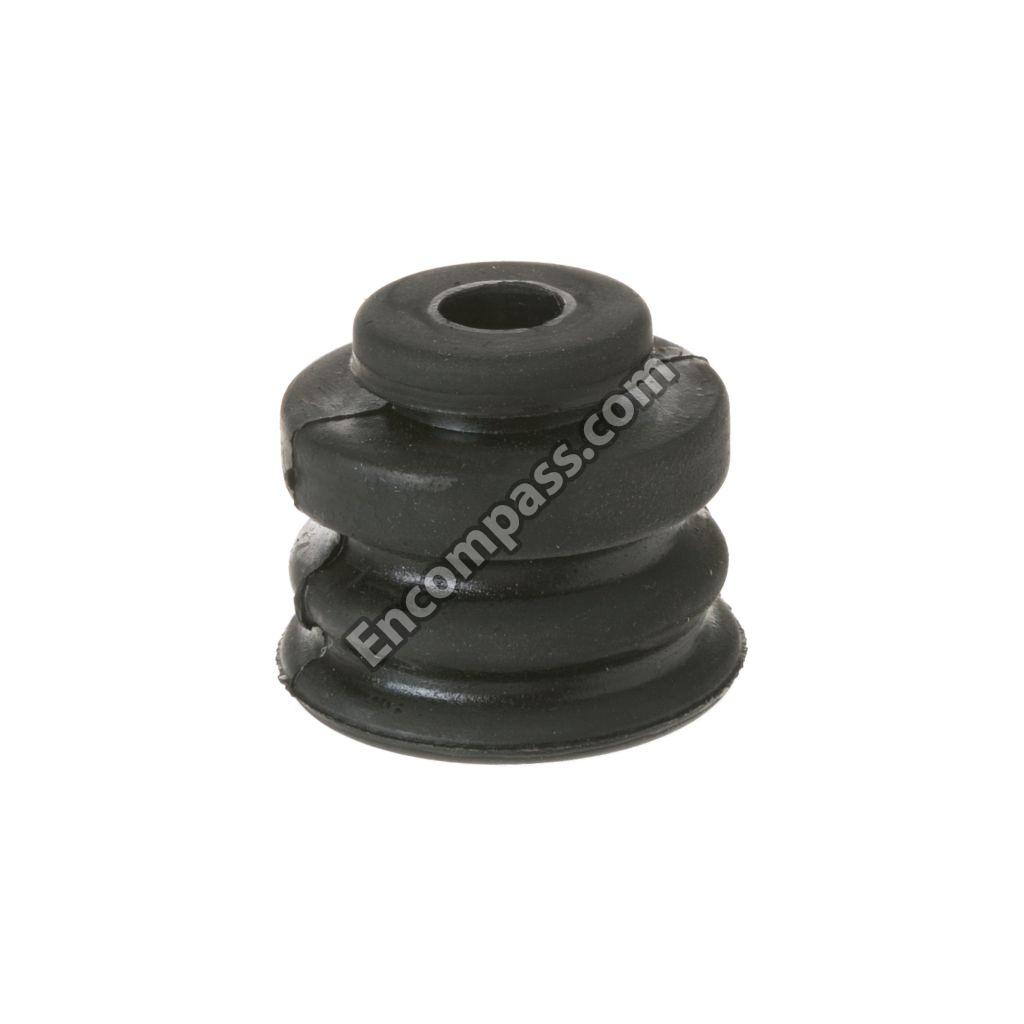

WJ01X10046 WJ01X10046 COMPRESSOR CUSHION
WP88X10020 WP88X10020 CONDENSER ASM
WP76X10001 WP76X10001 CONDENSER SHROUD
WP76X10018 WP76X10018 CONTROL BOX ASS'Y
WP76X10005 WP76X10005 CONTROL BOX F
WP76X10014 WP76X10014 CONTROL BOX S
WP71X10004 WP71X10004 CONTROL COVER
WJ12X10009 WJ12X10009 CONTROL KNOB ASS'Y
WP26X10015 WP26X10015 CONTROL UNIT
WP01X10009 WP01X10009 CORD HOLDER L
WP70X10018 WP70X10018 DAMPER
WP70X10017 WP70X10017 DAMPER ASS'Y
WJ80X10002 WJ80X10002 DAMPER COVER
WJ05X10014 WJ05X10014 DAMPER HOLDER
WJ14X10008 WJ14X10008 DAMPER LEVER
WP01X10003 WP01X10003 DAMPER WIRE
WP79X10008 WP79X10008 DRAIN COVER
WP70X10016 WP70X10016 DRAIN TRAY
WP02X10002 WP02X10002 E RING
WJ82X10011 WJ82X10011 END. PLATE LS
WP87X10012 WP87X10012 EVAPORATOR ASM

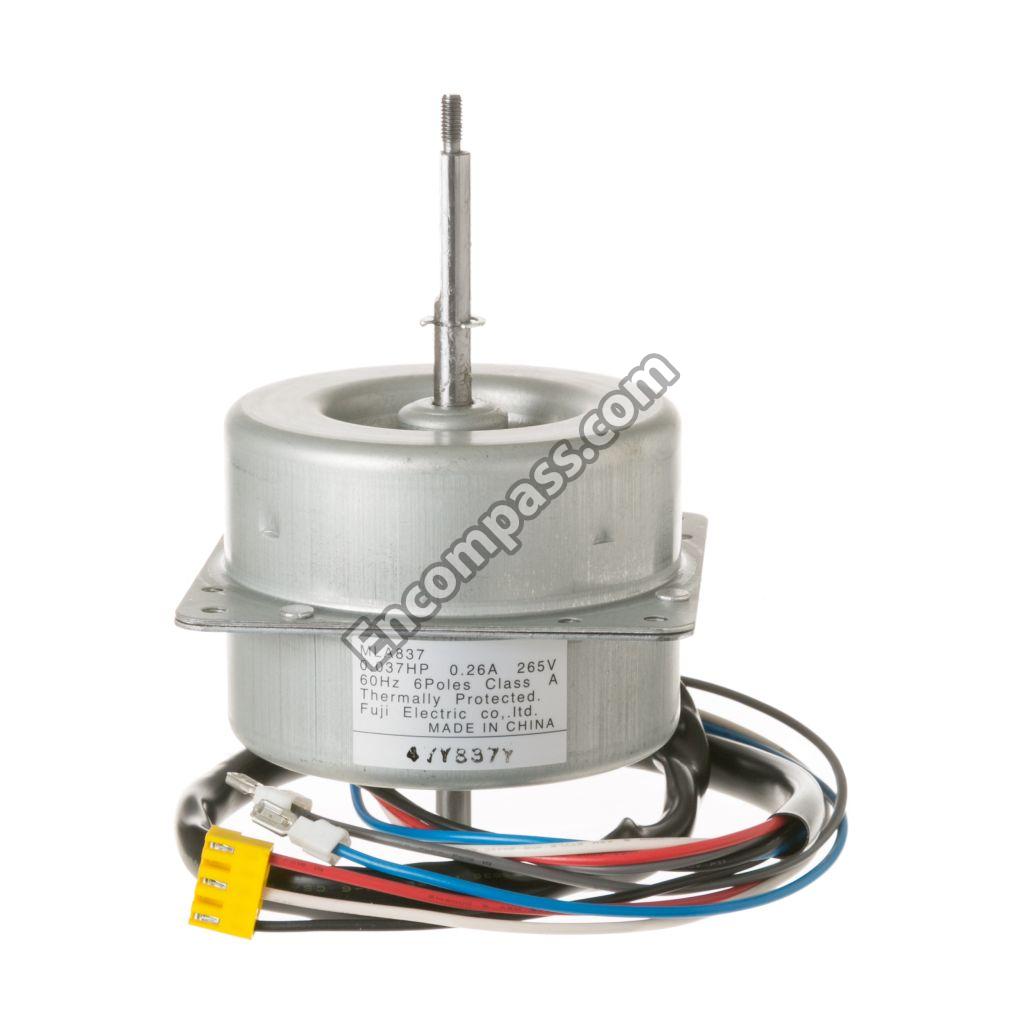

WP94X10079 WP94X10079 FAN MOTOR - INDOOR
WP94X10244 WP94X10244 FAN MOTOR - OUTDOOR
WP20X10014 WP20X10014 FAN MOTOR CAPACITOR
WJ05X10013 WJ05X10013 FILTER GUIDE
WP76X10002 WP76X10002 FRAME
WP71X10002 WP71X10002 FRONT PANEL
WP71X10001 WP71X10001 FRONT PANEL ASS'Y
WP23X10009 WP23X10009 FUSE
WJ01X10003 WJ01X10003 GASKET WASHER
WP70X10010 WP70X10010 HEATER ASS'Y
WJ40X10010 WJ40X10010 HEATER INSULATOR
WJ82X10012 WJ82X10012 IN MOTOR ANGLE
WJ01X10033 WJ01X10033 IN MOTOR RUBBER
WP79X10007 WP79X10007 J BOX COVER
WP76X10011 WP76X10011 J-BOX
WP07X10003 WP07X10003 KNOB BASE
WJ37X10004 WJ37X10004 LEAD WIRE
WJ37X10006 WJ37X10006 LEAD WIRE
WJ37X10001 WJ37X10001 LEAD WIRE
WJ27X10001 WJ27X10001 LEAR WIRE
WP01X10001 WP01X10001 MAGNET
WP01X10002 WP01X10002 MAGNET SEAL
31-60558 31-60558 MINI-MANUAL
WJ01X10034 WJ01X10034 MOTOR CUSHION
WP26X10006 WP26X10006 OPERATION UNIT
WP78X10002 WP78X10002 ORIFICE
WJ65X10005 WJ65X10005 OUT MOTOR ANGLE
WP71X10008 WP71X10008 PLATE ASM
WJ82X10010 WJ82X10010 PLATE L
WJ82X10009 WJ82X10009 PLATE R
WJ35X10016 WJ35X10016 POWER SUPPLY CORD
WJ73X10037 WJ73X10037 PROPELLER FAN
WP23X10012 WP23X10012 PROTECTOR
WP28X10013 WP28X10013 PROTECTOR
WP28X10005 WP28X10005 PROTECTOR
WJ02X10001 WJ02X10001 PROTECTOR SPRING
WP71X10012 WP71X10012 R. LOUVER
WP01X10005 WP01X10005 RUBBER WASHER
WP20X10015 WP20X10015 RUNNING CAPACITOR
WP76X10020 WP76X10020 SCROLL ASM.
WP01X10010 WP01X10010 SPACER
WJ01X10044 WJ01X10044 SPACER
WJ01X10043 WJ01X10043 SPACER
WJ01X10042 WJ01X10042 SPECIAL NUT
WJ01X10010 WJ01X10010 SPECIAL NUT
WJ01X10041 WJ01X10041 SPECIAL NUT
WJ01X10032 WJ01X10032 SPECIAL SCREW
WJ01X10059 WJ01X10059 SPECIAL SCREW
WJ01X10012 WJ01X10012 SPECIAL SCREW
WJ01X10037 WJ01X10037 SPECIAL SCREW
WJ01X10035 WJ01X10035 SPECIAL SCREW
WP01X10004 WP01X10004 SPECIAL SCREW
WP02X10001 WP02X10001 SPRING

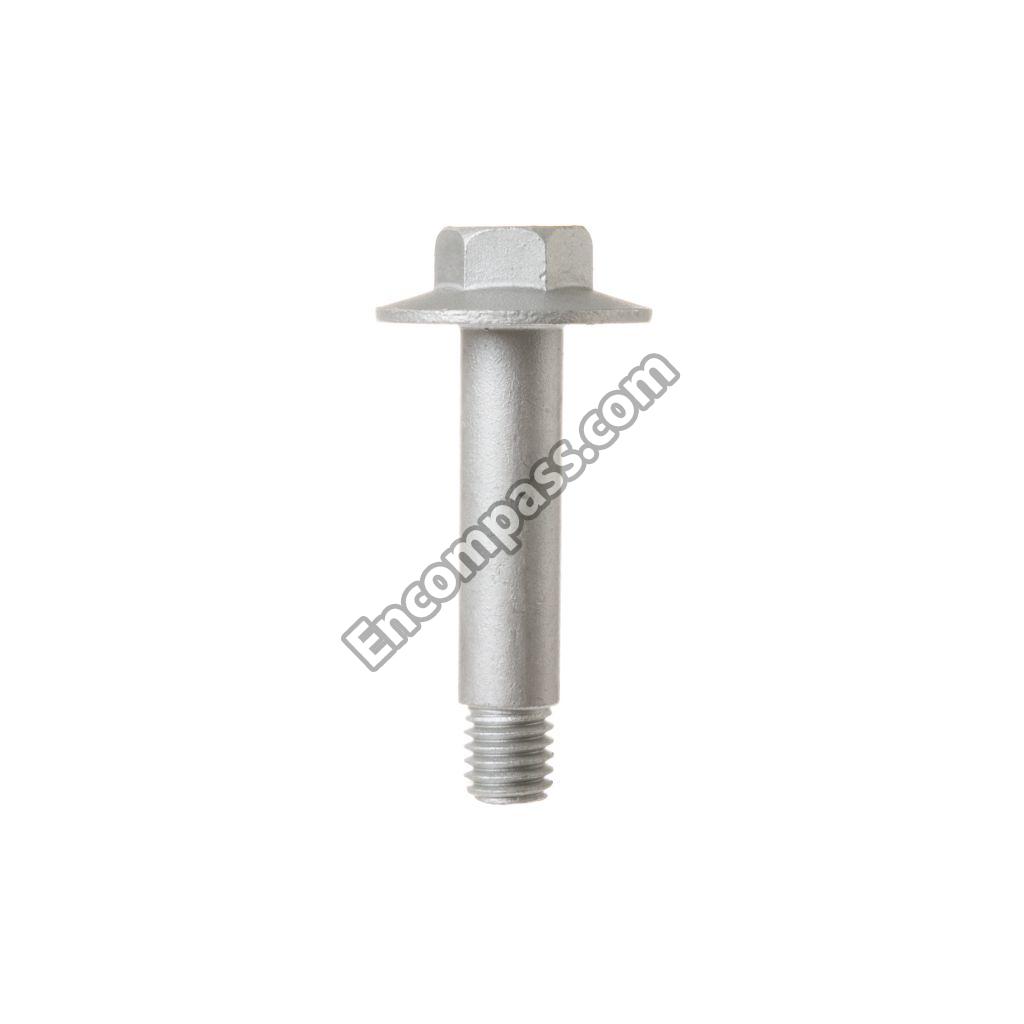

WJ01X10031 WJ01X10031 STUD BOLT
WJ82X10013 WJ82X10013 SUB ANGLE
WJ01X10057 WJ01X10057 TAPPING SCREW
WJ01X10038 WJ01X10038 TAPPING SCREW
WJ28X10010 WJ28X10010 TEMP. CONTROL COVER
WJ79X10013 WJ79X10013 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WP27X10014 WP27X10014 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER
WP27X10016 WP27X10016 TRANSFORMER
49-7358 49-7358 USE&CARE MANUAL
WP27X10015 WP27X10015 VARISTOR
WJ82X10005 WJ82X10005 WIRE ANGLE
WJ03X10008 WJ03X10008 WIRE FIXING BAND
WJ03X10001 WJ03X10001 WIRE HOLDER
WJ03X10007 WJ03X10007 WIRE HOLDER
WP71X10006 WP71X10006 WIRE NETTING
