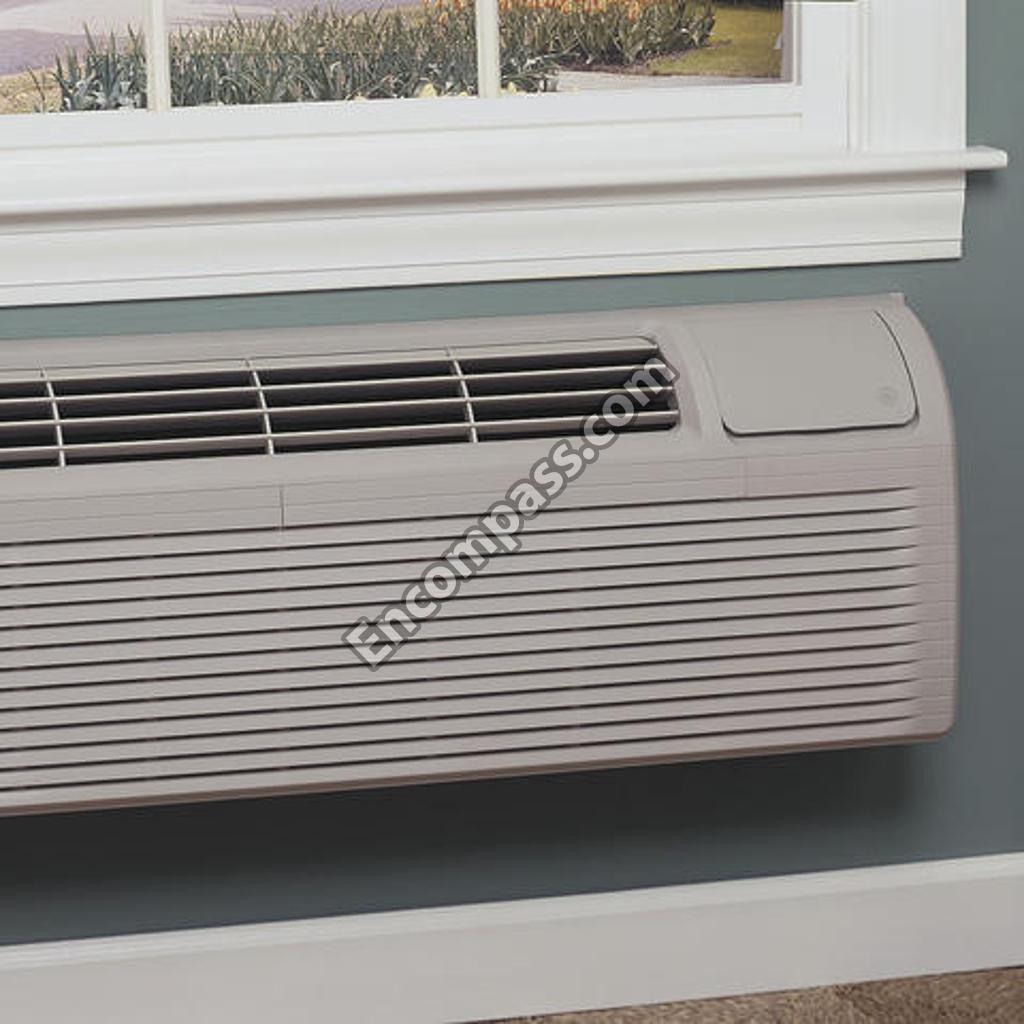

Model Image
Manufacturer

GE

Model Number

AZ25E07E4PM1

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description
WP85X10003 WP85X10003 AIR FILTER L
WP85X10004 WP85X10004 AIR FILTER R
WJ89X10016 WJ89X10016 BASE PAN ASS'Y
WJ89X10017 WJ89X10017 BASE PAN ASSEMBLY
WP56X10001 WP56X10001 BRACE
WP65X10001 WP65X10001 BRACE
WP79X10015 WP79X10015 BULKHEAD COVER ASS'Y
WP79X10011 WP79X10011 BULKHEAD COVER ASSEMBLY
WJ40X10014 WJ40X10014 BULKHEAD INSULATOR
WJ40X10015 WJ40X10015 BULKHEAD INSULATOR
WJ82X10023 WJ82X10023 CAB. ANGLE ASS'Y
WJ82X10024 WJ82X10024 CAB. ANGLE ASS'Y LH
WP03X10004 WP03X10004 CAPACITOR CLAMP
WP78X10004 WP78X10004 CASING TARY
WP73X10005 WP73X10005 CENTRIGUGAL FAN
WJ01X10159 WJ01X10159 CLAMP
WJ36X10008 WJ36X10008 COMP. WIRING
WJ98X10025 WJ98X10025 COMPRESSOR
WJ01X10002 WJ01X10002 COMPRESSOR CUSHION
WP88X10028 WP88X10028 CONDENSER ASS'Y
WP88X10033 WP88X10033 CONDENSER ASSEMBLY
WP76X10023 WP76X10023 CONDNSER SHROUD
WP76X10025 WP76X10025 CONTROL BOX
WP79X10012 WP79X10012 CONTROL BOX F
WP71X10004 WP71X10004 CONTROL COVER
WJ12X10009 WJ12X10009 CONTROL KNOB A SS'Y
WP70X10023 WP70X10023 DAMPER ASS'Y
WJ05X10014 WJ05X10014 DAMPER HOLDER
WJ14X10008 WJ14X10008 DAMPER LEVER
WP01X10003 WP01X10003 DAMPER WIRE
WP70X10024 WP70X10024 DRAIN TRAY
WP26X10024 WP26X10024 DRIVE PWB
WJ82X10011 WJ82X10011 END PLATE LS
WP87X10016 WP87X10016 EVAPORATOR
WP73X10006 WP73X10006 FAN
WP94X10127 WP94X10127 FAN MOTOR
WP94X10128 WP94X10128 FAN MOTOR
WP94X10095 WP94X10095 FAN MOTOR
WP20X10014 WP20X10014 FAN MOTOR CAPACITOR IN
WP20X10013 WP20X10013 FAN MOTOR CAPACITOR OUT
WP76X10002 WP76X10002 FRAME
WP71X10009 WP71X10009 FRONT PANEL
WP23X10009 WP23X10009 FUSE,TRANSFORMER PRIMARY
WJ01X10003 WJ01X10003 GASKET WASHER
WP87X10010 WP87X10010 HEAT PIPE ASSEMBLY
WP70X10025 WP70X10025 HEATER ASSEMBLY
WJ70X10021 WJ70X10021 HEATER ASSY
WJ01X10033 WJ01X10033 IN MOTOR RUBBER
WP07X10005 WP07X10005 KNOB BASE HOLDER
WP07X10004 WP07X10004 KNOB BASE K
WJ37X10001 WJ37X10001 LEAD WIRE
WJ27X10001 WJ27X10001 LEAD WIRE
WP01X10001 WP01X10001 MAGNET
WP01X10011 WP01X10011 MAGNET PLATE
31-60757 31-60757 MINI MANUAL
WP26X10016 WP26X10016 MODE & T-START PWB
WJ65X10047 WJ65X10047 MOTOR ANGLE
WJ65X10035 WJ65X10035 MOTOR ANGLE
WJ01X10034 WJ01X10034 MOTOR CUSHION
WP94X10115 WP94X10115 MOTOR FAN
WJ1X982 WJ1X982 NUT SPECIAL
WJ01X0982 WJ01X0982 NUT, SPECIAL
WP78X10003 WP78X10003 ORIFICE
WJ65X10048 WJ65X10048 OUT MOTOR ANGLE
WP23X10010 WP23X10010 OVERLOAD COMPRESSOR
WP23X10007 WP23X10007 OVERLOAD, COMPRESSOR
WP71X10011 WP71X10011 PLATE ASS'Y SK
WJ35X10052 WJ35X10052 POWER SUPPLY CORD
WJ73X10047 WJ73X10047 PROPELLER FAN
WP28X10013 WP28X10013 PROTECTER
WP28X10005 WP28X10005 PROTECTOR
WJ02X10001 WJ02X10001 PROTECTOR SPRING
WP02X10003 WP02X10003 PUSH NUT
WP71X10012 WP71X10012 R. LOUVER
WP01X10005 WP01X10005 RUBBER WASHER
WP20X10011 WP20X10011 RUNNING CAPACITOR
WP01X10010 WP01X10010 SPACER
WJ01X10157 WJ01X10157 SPACER
WJ01X10155 WJ01X10155 SPACER
WJ01X10043 WJ01X10043 SPACER
WJ01X10041 WJ01X10041 SPECIAL NUT
WJ01X10010 WJ01X10010 SPECIAL NUT
WJ01X10042 WJ01X10042 SPECIAL NUT
WP01X10004 WP01X10004 SPECIAL SCREW
WJ01X10035 WJ01X10035 SPECIAL SCREW
WJ01X10037 WJ01X10037 SPECIAL SCREW
WJ01X10012 WJ01X10012 SPECIAL SCREW
WJ01X10059 WJ01X10059 SPECIAL SCREW
WJ01X10110 WJ01X10110 SPECIAL SCREW
WP02X10001 WP02X10001 SPRING
WJ01X10160 WJ01X10160 STUD BOLT
WJ01X10038 WJ01X10038 TAPPING SCREW
WJ01X10158 WJ01X10158 TAPPING SCREW
WJ79X10003 WJ79X10003 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WP27X10024 WP27X10024 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER
WP27X10029 WP27X10029 TRANSFORMER
49-7415 49-7415 USE & CARE MANUAL
WP27X10015 WP27X10015 VARISTOR
WJ82X10026 WJ82X10026 WIRE ANGLE
WJ03X10006 WJ03X10006 WIRE HOLDER
