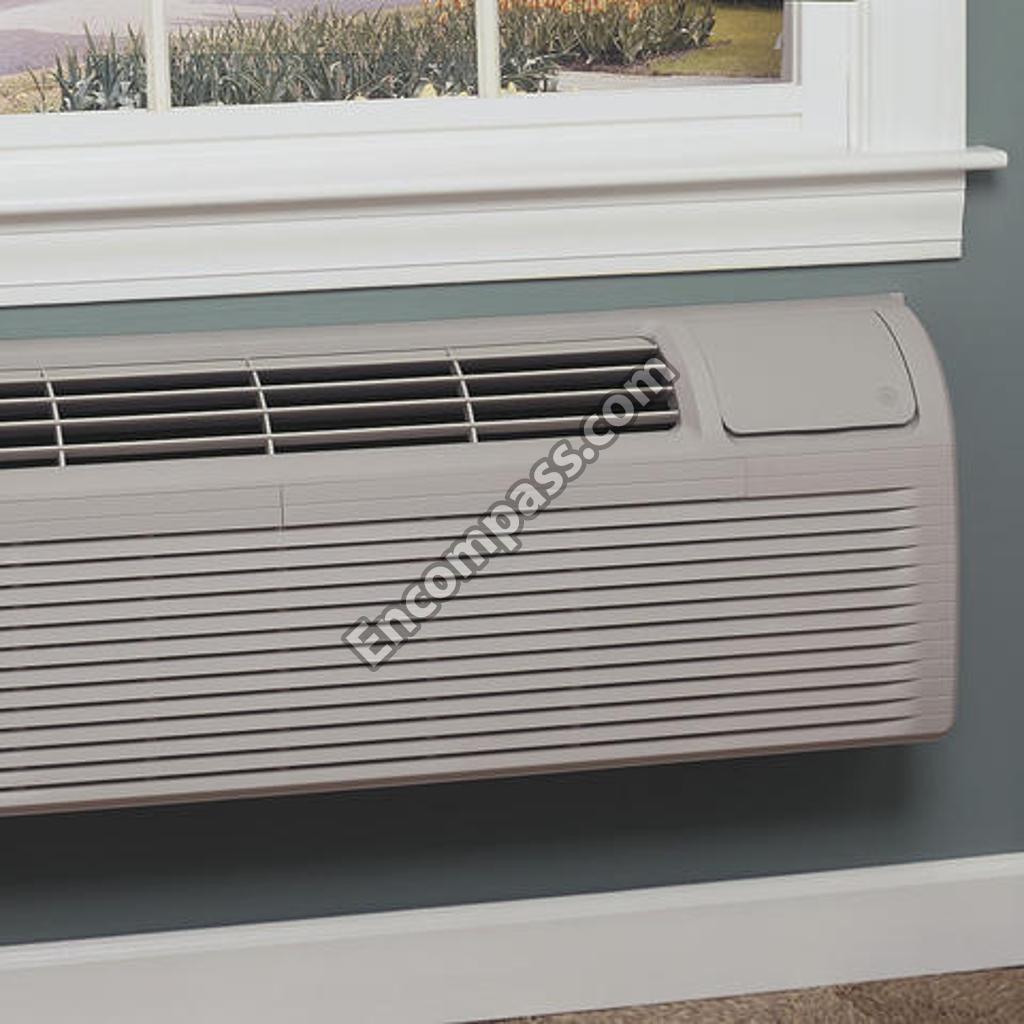

Model Image
Manufacturer

GE

Model Number

AZ35H15E3DM1

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description
WP85X10003 WP85X10003 GE AIR FILTER L
WP85X10004 WP85X10004 GE AIR FILTER R
WJ89X10021 WJ89X10021 GE BASE PAN ASS'Y
WP65X10001 WP65X10001 GE BRACE
WP79X10011 WP79X10011 GE BULKHEAD COVER ASS'Y
WJ40X10015 WJ40X10015 GE BULKHEAD INSULATOR
WJ40X10014 WJ40X10014 GE BULKHEAD INSULATOR
WJ82X10023 WJ82X10023 GE CAB. ANGLE ASS'Y
WJ82X10024 WJ82X10024 GE CAB. ANGLE ASS'Y LH
WP03X10004 WP03X10004 GE CAPACITOR CLAMP
WP78X10004 WP78X10004 GE CASING TARY
WP73X10005 WP73X10005 GE CENTRIGUGAL FAN
WJ01X10159 WJ01X10159 GE CLAMP
WJ31X10010 WJ31X10010 GE COIL
WJ36X10007 WJ36X10007 GE COMP. WIRING
WJ98X10028 WJ98X10028 GE COMPRESSOR
WJ79X10072 WJ79X10072 GE COMPRESSOR COVER
WJ01X10046 WJ01X10046 GE COMPRESSOR CUSHION
WP88X10025 WP88X10025 GE CONDENSER ASS'Y
WP76X10023 WP76X10023 GE CONDNSER SHROUD
WP76X10027 WP76X10027 GE CONTROL BOX
WP79X10012 WP79X10012 GE CONTROL BOX F
WP71X10004 WP71X10004 GE CONTROL COVER
WJ12X10009 WJ12X10009 GE CONTROL KNOB A SS'Y
WP70X10023 WP70X10023 GE DAMPER ASS'Y
WJ05X10014 WJ05X10014 GE DAMPER HOLDER
WJ14X10008 WJ14X10008 GE DAMPER LEVER
WP01X10003 WP01X10003 GE DAMPER WIRE
WP70X10024 WP70X10024 GE DRAIN TRAY
WJ58X10041 WJ58X10041 GE DRAIN VALVE
WJ05X10018 WJ05X10018 GE DRIBBLER L
WJ05X10019 WJ05X10019 GE DRIBBLER R
WJ05X10017 WJ05X10017 GE DRIBBLER S
WP26X10022 WP26X10022 GE DRIVE PWB-K
WP87X10025 WP87X10025 GE EVAPORATOR ASS'Y
WP73X10006 WP73X10006 GE FAN
WP73X10002 WP73X10002 GE FAN
WP94X10091 WP94X10091 GE FAN MOTOR
WP94X10092 WP94X10092 GE FAN MOTOR
WP20X10014 WP20X10014 GE FAN MOTOR CAPACITOR IN
WP20X10017 WP20X10017 GE FAN MOTOR CAPACITOR OUT
WP76X10002 WP76X10002 GE FRAME
WP71X10009 WP71X10009 GE FRONT PANEL
WP23X10009 WP23X10009 GE FUSE,TRANSFORMER PRIMARY
WJ01X10003 WJ01X10003 GE GASKET WASHER
WP70X10027 WP70X10027 GE HEATER ASS'Y
WP70X10025 WP70X10025 GE HEATER ASSEMBLY
WP70X10028 WP70X10028 GE HEATER ASSEMBLY
WJ37X10025 WJ37X10025 GE ICR LEAD WIRE
WP94X10027 WP94X10027 GE ICR PUMP MOTOR
WP20X10020 WP20X10020 GE ICR-PWB-K
WJ01X10033 WJ01X10033 GE IN MOTOR RUBBER
WP76X10024 WP76X10024 GE J-BOX
WP79X10013 WP79X10013 GE J-BOX COVER
WP07X10005 WP07X10005 GE KNOB BASE HOLDER
WP07X10004 WP07X10004 GE KNOB BASE K
WJ37X10001 WJ37X10001 GE LEAD WIRE
WJ27X10001 WJ27X10001 GE LEAD WIRE
WP01X10001 WP01X10001 GE MAGNET
WP01X10011 WP01X10011 GE MAGNET PLATE
31-60785 31-60785 GE MINI MANUAL
WP26X10016 WP26X10016 GE MODE & T-START PWB
WJ65X10035 WJ65X10035 GE MOTOR ANGLE
WJ01X10034 WJ01X10034 GE MOTOR CUSHION
WJ1X982 WJ1X982 GE NUT SPECIAL
WJ01X0982 WJ01X0982 GE NUT, SPECIAL
WJ05X10016 WJ05X10016 GE O RING L
WJ05X10015 WJ05X10015 GE O RING S
WP78X10003 WP78X10003 GE ORIFICE
WJ65X10048 WJ65X10048 GE OUT DOOR MOTOR MOUNT
WP23X10020 WP23X10020 GE OVERLOAD PROT
WP76X10009 WP76X10009 GE P. FAN HOUSING
WP76X10010 WP76X10010 GE P. FAN HOUSING
WP71X10011 WP71X10011 GE PLATE ASS'Y SK
WJ35X10053 WJ35X10053 GE POWER SUPPLY CORD
WJ35X10054 WJ35X10054 GE POWER SUPPLY CORD
WJ35X10052 WJ35X10052 GE POWER SUPPLY CORD
WJ73X10047 WJ73X10047 GE PROPELLER FAN
WP28X10013 WP28X10013 GE PROTECTER
WP28X10005 WP28X10005 GE PROTECTOR
WP23X10013 WP23X10013 GE PROTECTOR
WJ02X10001 WJ02X10001 GE PROTECTOR SPRING
WP79X10006 WP79X10006 GE PUMP COVER
WP79X10005 WP79X10005 GE PUMP COVER B
WJ40X10008 WJ40X10008 GE PUMP INSULATOR
WP02X10003 WP02X10003 GE PUSH NUT
WP71X10012 WP71X10012 GE R. LOUVER
WJ46X10002 WJ46X10002 GE RECEIVER TANK
WJ58X10016 WJ58X10016 GE REVERSING VALVE BODY
WP03X10002 WP03X10002 GE RUBBER CLAMP
WP01X10005 WP01X10005 GE RUBBER WASHER
WP20X10016 WP20X10016 GE RUNNING CAPACITOR
WP60X10001 WP60X10001 GE SEAL
WP01X10010 WP01X10010 GE SPACER
WJ01X10157 WJ01X10157 GE SPACER
WJ01X10155 WJ01X10155 GE SPACER
WJ01X10043 WJ01X10043 GE SPACER
WJ01X0981 WJ01X0981 GE SPECIAL NUT
WJ01X10041 WJ01X10041 GE SPECIAL NUT
WJ01X10010 WJ01X10010 GE SPECIAL NUT
WJ01X10042 WJ01X10042 GE SPECIAL NUT
WP01X10004 WP01X10004 GE SPECIAL SCREW
WJ01X10035 WJ01X10035 GE SPECIAL SCREW
WJ01X10037 WJ01X10037 GE SPECIAL SCREW
WJ01X10012 WJ01X10012 GE SPECIAL SCREW
WJ01X10059 WJ01X10059 GE SPECIAL SCREW
WJ01X10110 WJ01X10110 GE SPECIAL SCREW
WP02X10001 WP02X10001 GE SPRING
WJ01X10031 WJ01X10031 GE STUD BOLT
WJ57X10002 WJ57X10002 GE SUCTION PIPE K1
WJ01X10038 WJ01X10038 GE TAPPING SCREW
WJ01X10158 WJ01X10158 GE TAPPING SCREW
WJ79X10013 WJ79X10013 GE TERMINAL COVER
WJ43X10003 WJ43X10003 GE TERMINAL GASKET
WP27X10026 WP27X10026 GE THERMISTOR
WJ03X10011 WJ03X10011 GE THERMISTOR HOLDER
WP27X10029 WP27X10029 GE TRANSFORMER
WJ40X10017 WJ40X10017 GE TUBE K
WJ57X10009 WJ57X10009 GE TUBE K2
WJ57X10010 WJ57X10010 GE TUBE K3
49-7415 49-7415 GE USE & CARE MANUAL
WP27X10015 WP27X10015 GE VARISTOR
WJ82X10026 WJ82X10026 GE WIRE ANGLE
WJ03X10006 WJ03X10006 GE WIRE HOLDER
