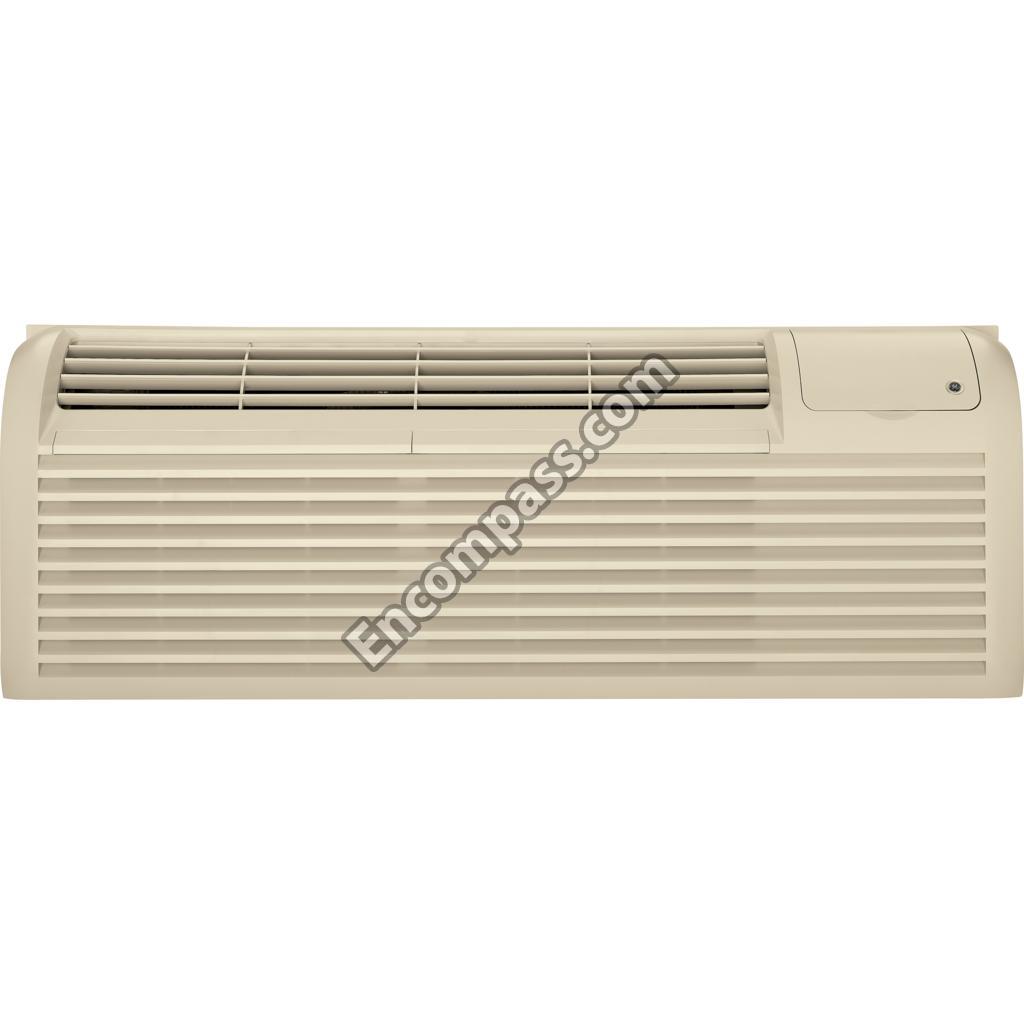

Model Image
Manufacturer

GE

Model Number

AZ41E09DAPW1

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description
WP94X10309 WP94X10309 AC IN FAN MOTOR
WP66X10010 WP66X10010 AC IN MOTOR ANG SPOT
WP85X10008 WP85X10008 AIR FILTER
WP65X10014 WP65X10014 BACK PLATE L
WJ07X10246 WJ07X10246 BADGE
WP76X10006 WP76X10006 BEARING ASM
WP03X10015 WP03X10015 BEARING HOLDER
WP65X10013 WP65X10013 BRACE
WP76X10041 WP76X10041 BULKHEAD K
WP03X10013 WP03X10013 CAB. ANGLE LH
WP03X10012 WP03X10012 CAB. ANGLE RH
WP03X10031 WP03X10031 CAPACITOR CLAMP
WP56X10037 WP56X10037 CAPILLALY TUBE
WP56X10038 WP56X10038 CAPILLART TUBE
WP56X10036 WP56X10036 CAPILLARY TUBE
WP73X10013 WP73X10013 CLOSS FAN
WP27X10070 WP27X10070 COMP WIRINGRECHI
WP98X10035 WP98X10035 COMPRESSOR
WJ01X10046 WJ01X10046 COMPRESSOR CUSHION
WP88X10095 WP88X10095 CONDENSER ASM
WP88X10093 WP88X10093 CONDENSER ASSEMBLY
WJ79X10134 WJ79X10134 CONDENSER PLATE
WP76X10033 WP76X10033 CONDENSER SHROUD
WP03X10024 WP03X10024 CONNECTOR
WP07X10013 WP07X10013 CONTROL BASE ASM
WP71X10033 WP71X10033 CONTROL COVER W/LOGO
WP07X10008 WP07X10008 CONTROL SHEET
WP01X10037 WP01X10037 COVER
WP01X10038 WP01X10038 COVER
WP01X10039 WP01X10039 COVER RUBBER B
WP79X10029 WP79X10029 COVER, TRIAC
WP66X10007 WP66X10007 DAMPER ASSEMBLY
WP70X10031 WP70X10031 DAMPER LEVER
WP01X10058 WP01X10058 DAMPER LEVER COVER
WP89X10023 WP89X10023 DRAIN TRAY
WP29X10021 WP29X10021 DRIVE PWB
WP87X10049 WP87X10049 EVAPORATOR ASM
WP87X10048 WP87X10048 EVAPORATOR ASSEMBLY
WP03X10019 WP03X10019 FAN HOUSING COVER L
WP03X10020 WP03X10020 FAN HOUSING COVER R
WJ20X10116 WJ20X10116 FAN MTR CAPACITOR
WP20X10022 WP20X10022 FAN MTR CAPACITOR O.D.
WJ56X10009 WJ56X10009 FILTER DRIER
WP71X10030 WP71X10030 FRONT PANEL
WP71X10029 WP71X10029 FRONT PANEL ASM
WP23X10026 WP23X10026 FUSE
WP23X10028 WP23X10028 FUSE
WP23X10003 WP23X10003 FUSE (250V,4A)
WP23X10042 WP23X10042 FUSE INLINE
WJ01X10288 WJ01X10288 GASKET WASHER
WP70X20720 WP70X20720 HEATER
WP56X20700 WP56X20700 HEATPIPE ASSEMBLY
WP03X10016 WP03X10016 HOLDER
WP03X10017 WP03X10017 HOLDER ANG L TOP
WP56X10011 WP56X10011 LEAD TUBE
WP56X10034 WP56X10034 LEAD TUBE
WP71X10031 WP71X10031 LOUVER
WP71X10012 WP71X10012 LOUVER ASM
WP71X10032 WP71X10032 LOUVER ASM
WP01X10001 WP01X10001 MAGNET
WP01X10002 WP01X10002 MAGNET SEAL
31-61547-2 31-61547-2 MINI MANUAL
WP94X10253 WP94X10253 OUT DOOR FAN MOTOR (CP)
WP66X10009 WP66X10009 OUT DOOR MOTOR ANGLE
WJ73X10047 WJ73X10047 PROPELLER FAN
WP23X10033 WP23X10033 PROTECTOR
WP01X10059 WP01X10059 PROTECTOR COVER
WP27X10067 WP27X10067 PROTECTOR F
WP03X10030 WP03X10030 PROTECTOR HOLDER
WJ02X10031 WJ02X10031 PROTECTOR SPRING
WP02X10003 WP02X10003 PUSH NUT
WP29X21383 WP29X21383 PWB MAIN ASM
WP01X10034 WP01X10034 RUBBER BUSH
WP65X10012 WP65X10012 RUBBER BUSH ANGLE
WP01X10005 WP01X10005 RUBBER WASHER
WP20X10033 WP20X10033 RUNNING CAPACITOR
WP03X10022 WP03X10022 SPACER
WJ01X10286 WJ01X10286 SPECIAL NUT
WJ01X10041 WJ01X10041 SPECIAL NUT
WJ01X10283 WJ01X10283 SPECIAL NUT
WP01X10021 WP01X10021 SPECIAL SCREW
WP01X10024 WP01X10024 SPECIAL SCREW
WJ01X10392 WJ01X10392 SPECIAL SCREW
WP02X10001 WP02X10001 SPRING
WJ01X10045 WJ01X10045 STUD BOLT
WP01X10036 WP01X10036 SUPPORTER
WP01X10026 WP01X10026 TAP TIGHT SCREW
WP29X10014 WP29X10014 TERMINAL BOARD
WP03X10021 WP03X10021 TERMINAL BOX COVER
WJ79X10204 WJ79X10204 TERMINAL COVER
WJ43X10061 WJ43X10061 TERMINAL GASKET
WP27X10072 WP27X10072 THERMISTOR
WP01X10007 WP01X10007 THERMO CUSHION
WP27X10066 WP27X10066 THERMOSTAT
WP27X10068 WP27X10068 TRANSFORMER
WP26X10086 WP26X10086 TRIAC PWB ASM
49-7612-2 49-7612-2 USE & CARE
WP28X10019 WP28X10019 VARISTOR
WP03X10029 WP03X10029 WIRE HOLDER
WP56X10004 WP56X10004 WIRE NETTING 61
