Model Image
Manufacturer

GE

Model Number

AZ55H12DACM1

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description

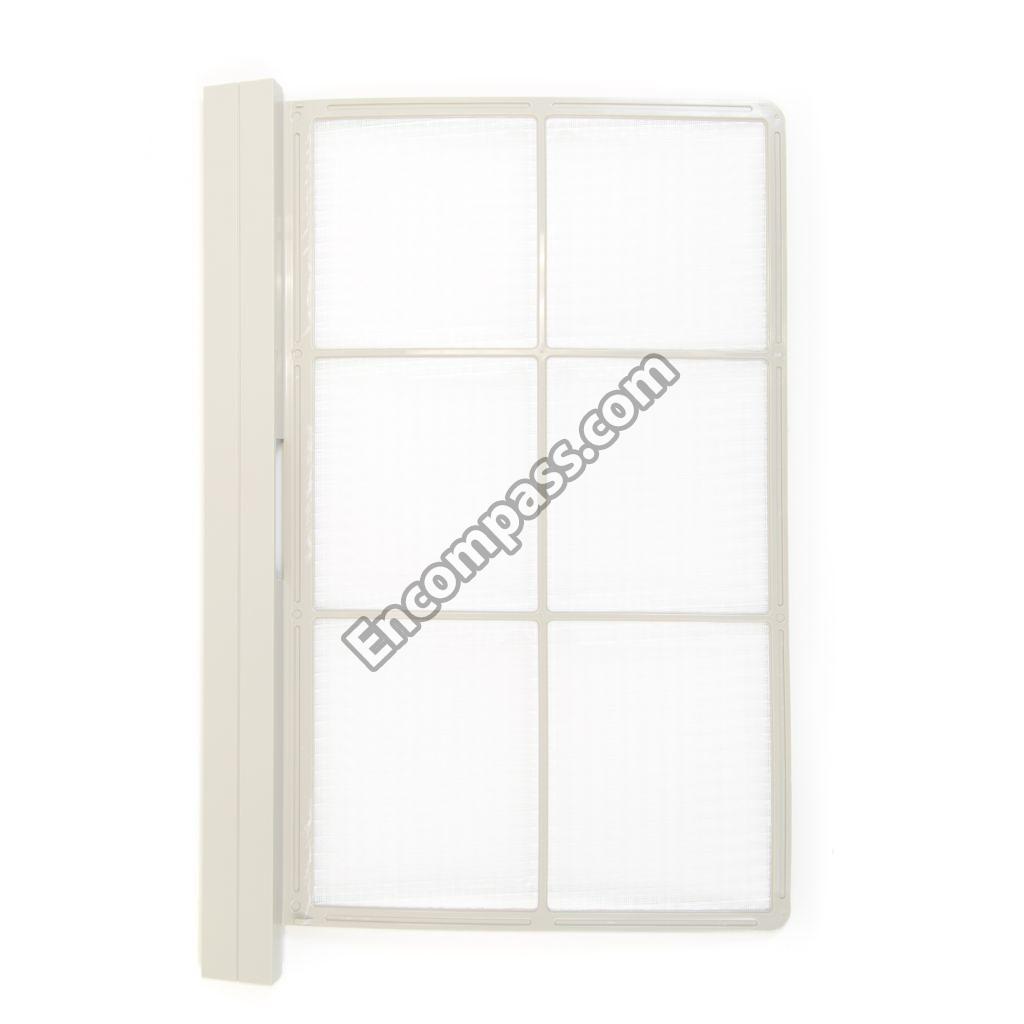

WP85X10003 WP85X10003 AIR FILTER L
WP85X10004 WP85X10004 AIR FILTER R
WP79X10010 WP79X10010 AUX COVER
WJ89X10060 WJ89X10060 BASE PAN ASM

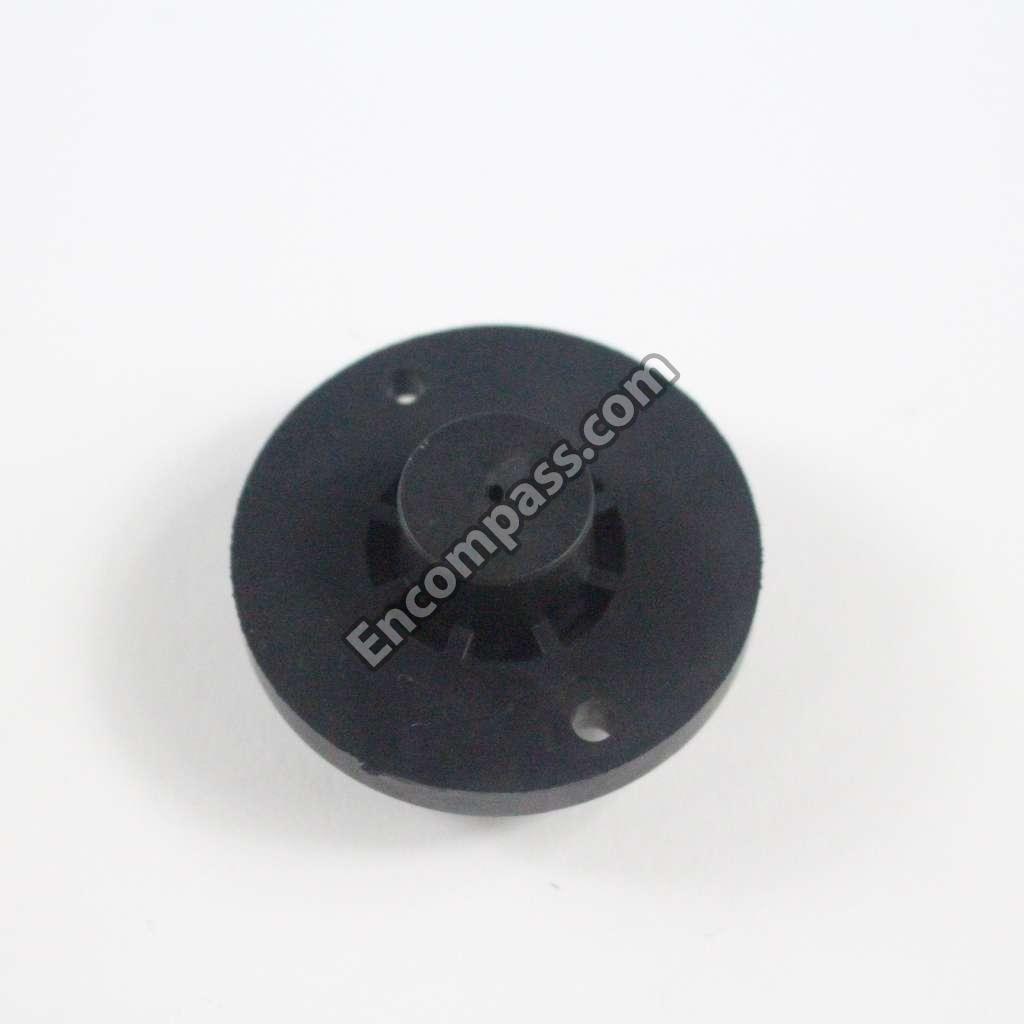

WP76X10006 WP76X10006 BEARING ASM
WJ11X10005 WJ11X10005 BEARING PLATE
WJ82X10004 WJ82X10004 BLOWER ANGLE
WJ82X10025 WJ82X10025 BLOWER ANGLE-L
WP56X10001 WP56X10001 BRACE
WP76X10039 WP76X10039 BULKHEAD
WP79X10009 WP79X10009 BULKHEAD COVER ASM
WJ40X10007 WJ40X10007 BULKHEAD INSULATOR
WJ40X10006 WJ40X10006 BULKHEAD INSULATOR
WJ82X10023 WJ82X10023 CAB. ANGLE ASM
WJ82X10024 WJ82X10024 CAB. ANGLE ASM LH
WP03X10001 WP03X10001 CAPACITOR CLAMP
WJ20X748 WJ20X748 CAPACITOR RN
WJ36X10006 WJ36X10006 COMP. WIRING
WJ98X10006 WJ98X10006 COMPRESSOR
WJ79X10017 WJ79X10017 COMPRESSOR COVER
WJ01X10046 WJ01X10046 COMPRESSOR CUSHION
WJ40X10016 WJ40X10016 CON. INSULATOR
WP88X10049 WP88X10049 CONDENSER ASM
WP76X10001 WP76X10001 CONDENSER SHROUD
WP27X10027 WP27X10027 CONNECTOR ASM
WP07X10002 WP07X10002 CONTROL BASE
WP76X10026 WP76X10026 CONTROL BOX
WP76X10005 WP76X10005 CONTROL BOX F
WP76X10021 WP76X10021 CONTROL BOX S
WP71X10004 WP71X10004 CONTROL COVER
WP07X10001 WP07X10001 CONTROL SHEET

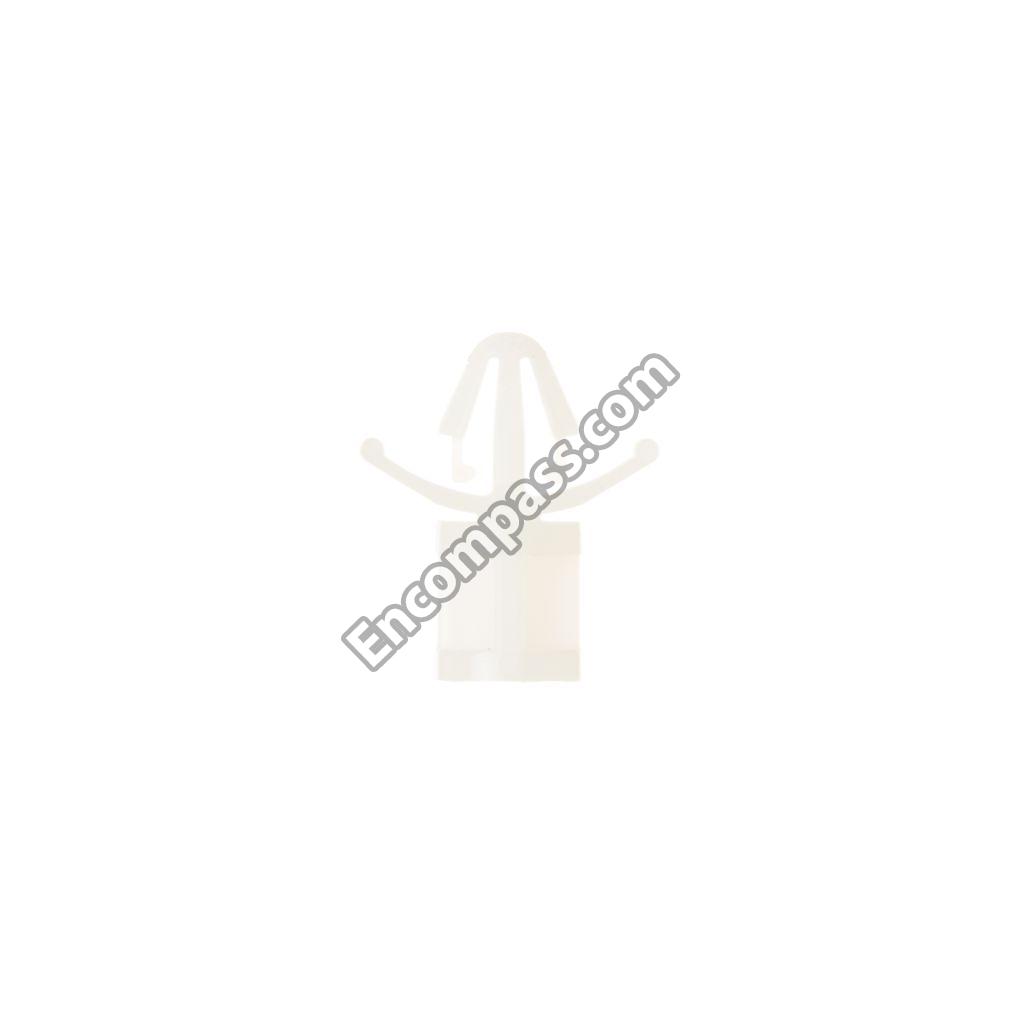

WP01X10009 WP01X10009 CORD HOLDER L

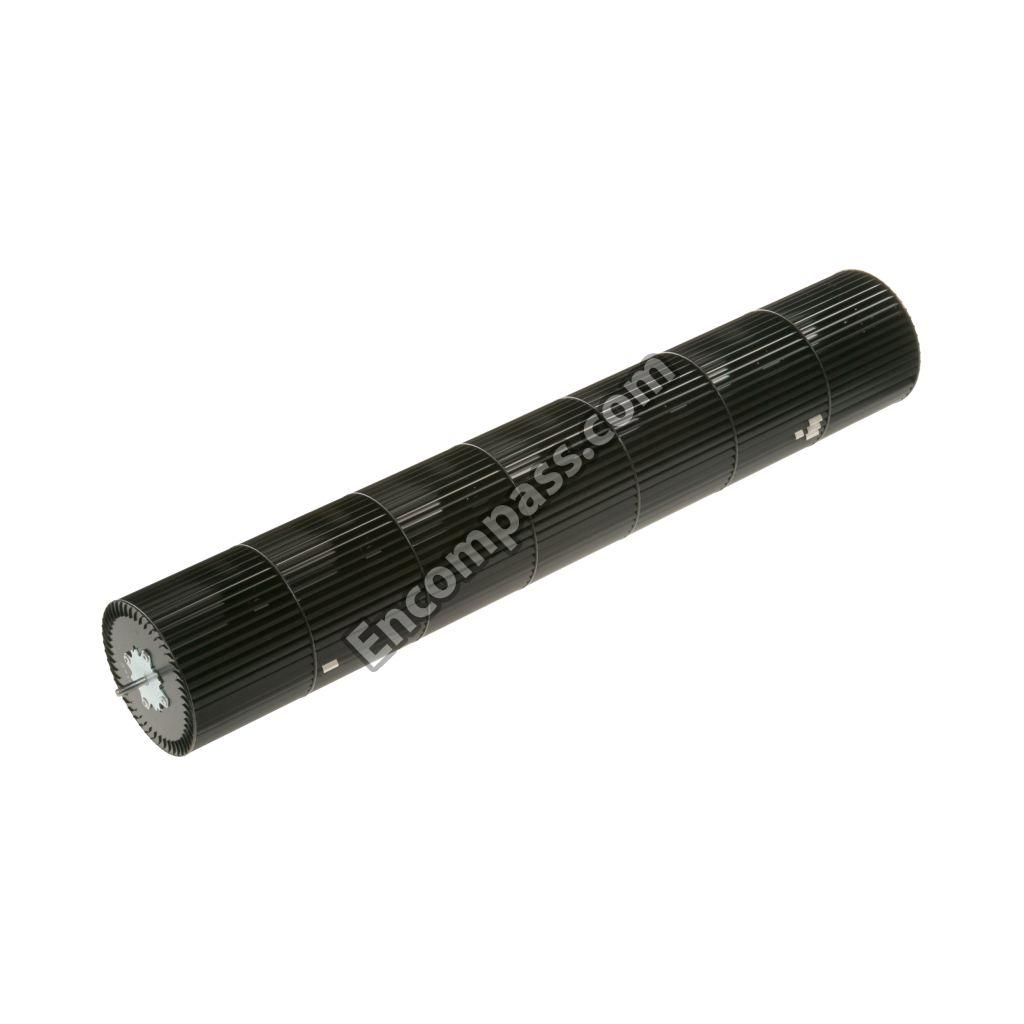

WP73X10001 WP73X10001 CROSS FLOW FAN
WP70X10018 WP70X10018 DAMPER
WP70X10044 WP70X10044 DAMPER ASM
WJ80X10002 WJ80X10002 DAMPER COVER
WJ05X10014 WJ05X10014 DAMPER HOLDER
WJ14X10008 WJ14X10008 DAMPER LEVER
WP01X10003 WP01X10003 DAMPER WIRE
WP79X10001 WP79X10001 DRAIN COVER
WP79X10003 WP79X10003 DRAIN COVER B
WP70X10015 WP70X10015 DRAIN TRAY

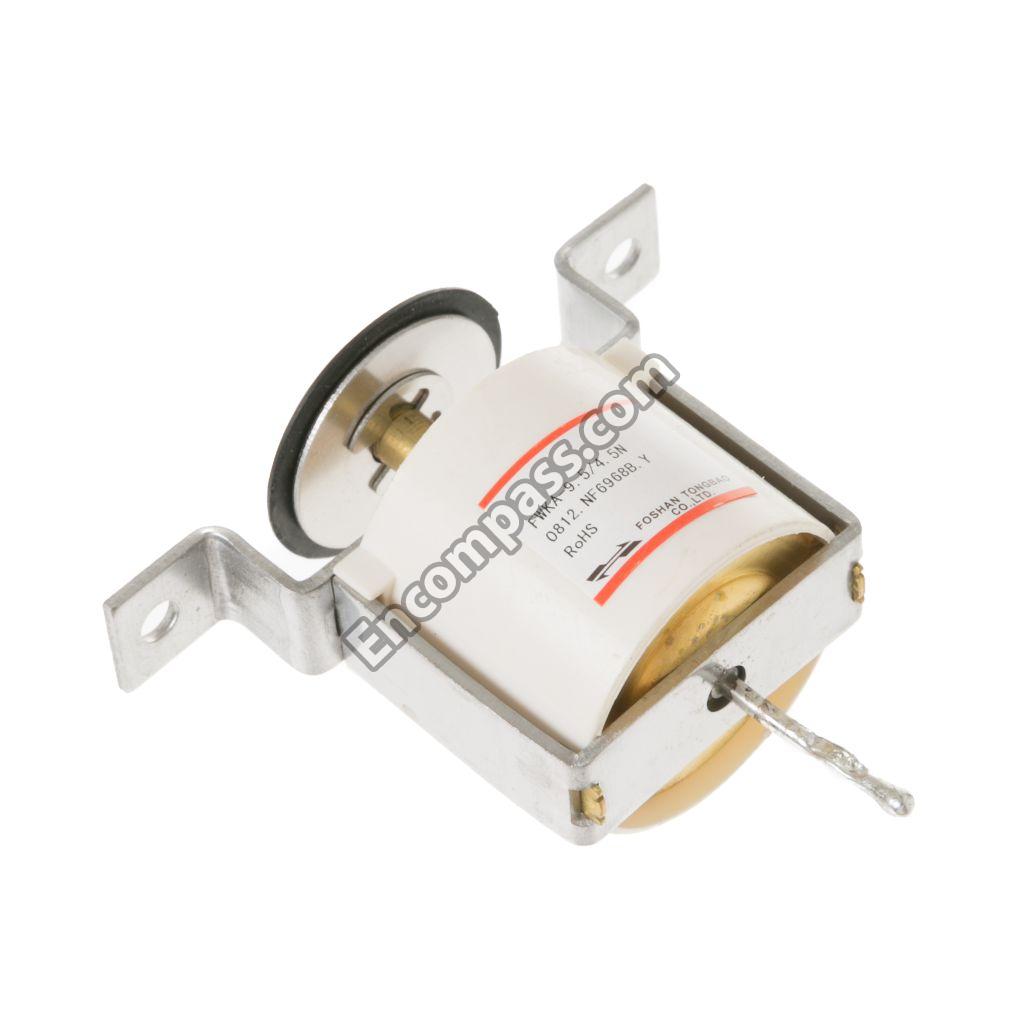

WJ58X10041 WJ58X10041 DRAIN VALVE
WP26X10019 WP26X10019 DRIVE PWB
WP87X10018 WP87X10018 EVAPORATOR ASM

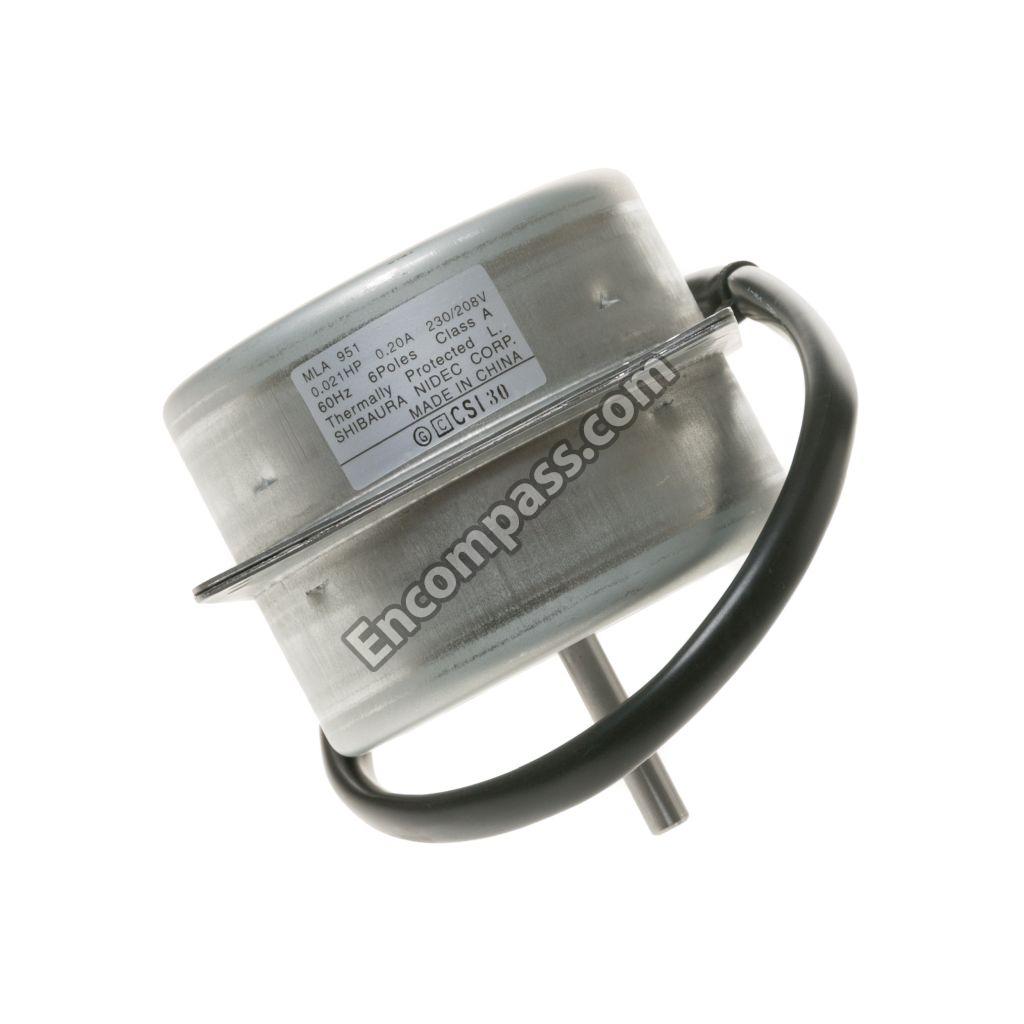

WP94X10107 WP94X10107 FAN MOTOR
WP20X10003 WP20X10003 FAN MOTOR CAPACITOR
WP76X10002 WP76X10002 FRAME

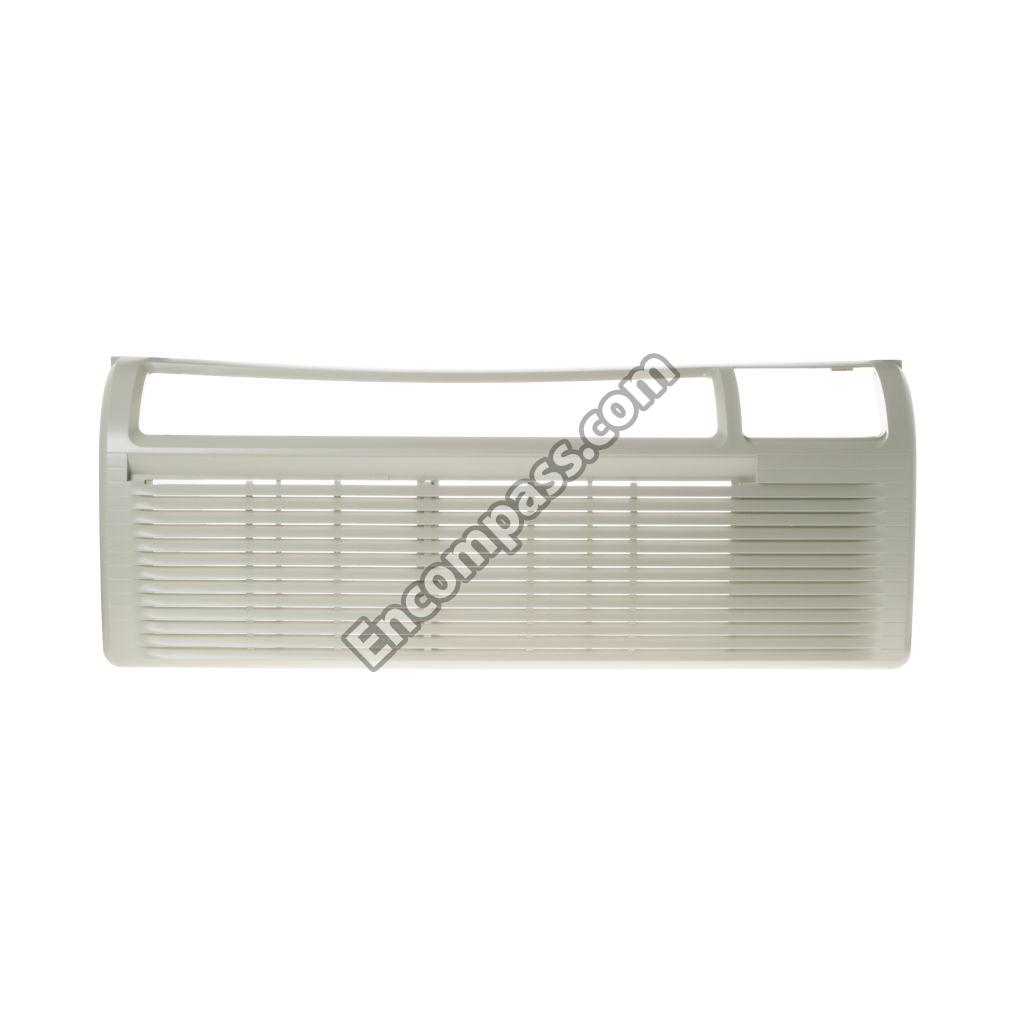

WP71X10009 WP71X10009 FRONT PANEL
WP23X10003 WP23X10003 FUSE
WJ01X10003 WJ01X10003 GASKET WASHER
WP70X10006 WP70X10006 HEATER ASM
WP01X10008 WP01X10008 HEATER READ COVER
WJ37X10024 WJ37X10024 HEATER WIRE ASM
WJ82X10006 WJ82X10006 IN MOTOR ANG. ASM
WJ27X10001 WJ27X10001 LEAR WIRE
WP01X10001 WP01X10001 MAGNET
WP01X10002 WP01X10002 MAGNET SEAL
WP26X10020 WP26X10020 MAIN PWB-K
31-61242 31-61242 MINI MANUAL
WJ01X10034 WJ01X10034 MOTOR CUSHION
WP94X10086 WP94X10086 MOTOR-FAN O.D.
WP20X10005 WP20X10005 OD FAN MOTOR CAPACITOR
WP26X10021 WP26X10021 OPERATION PWB-K
WJ65X10048 WJ65X10048 OUT MOTOR ANGLE

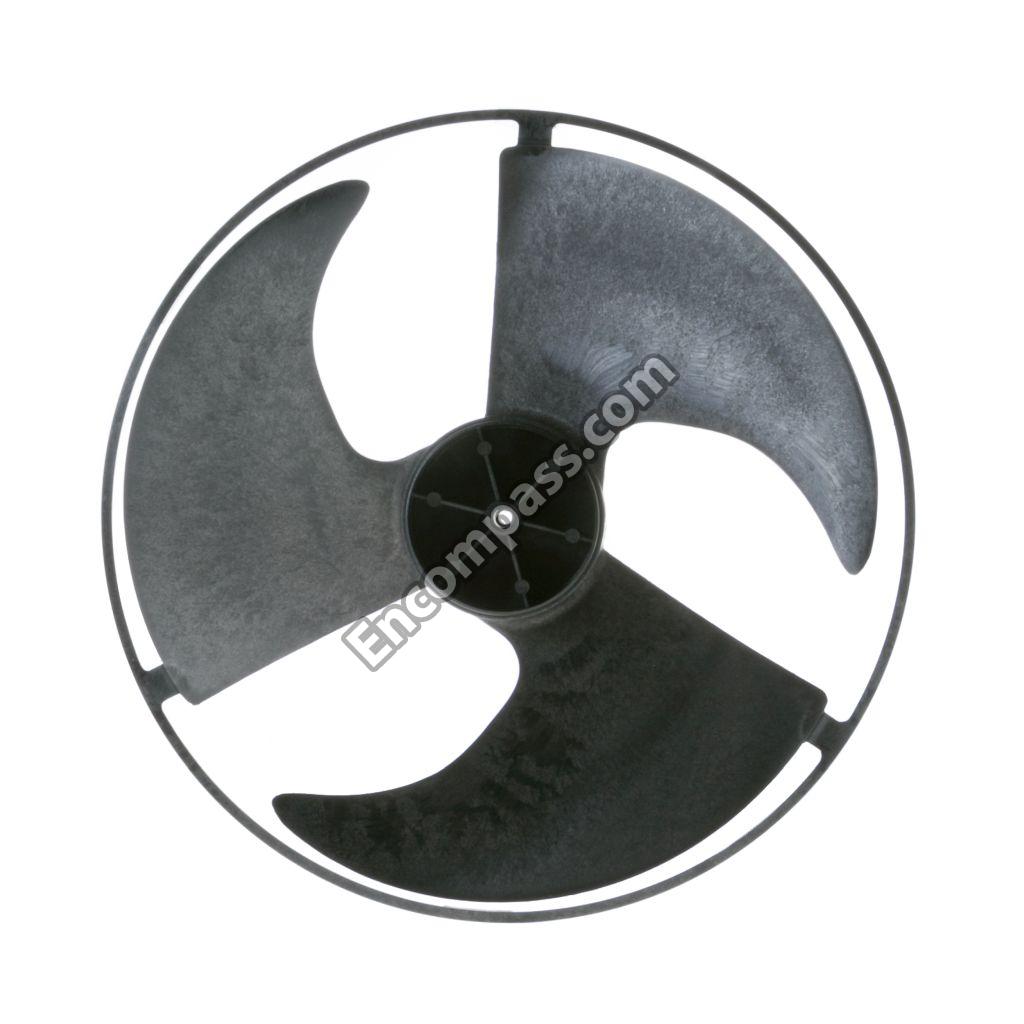

WJ73X10047 WJ73X10047 PROPELLER FAN

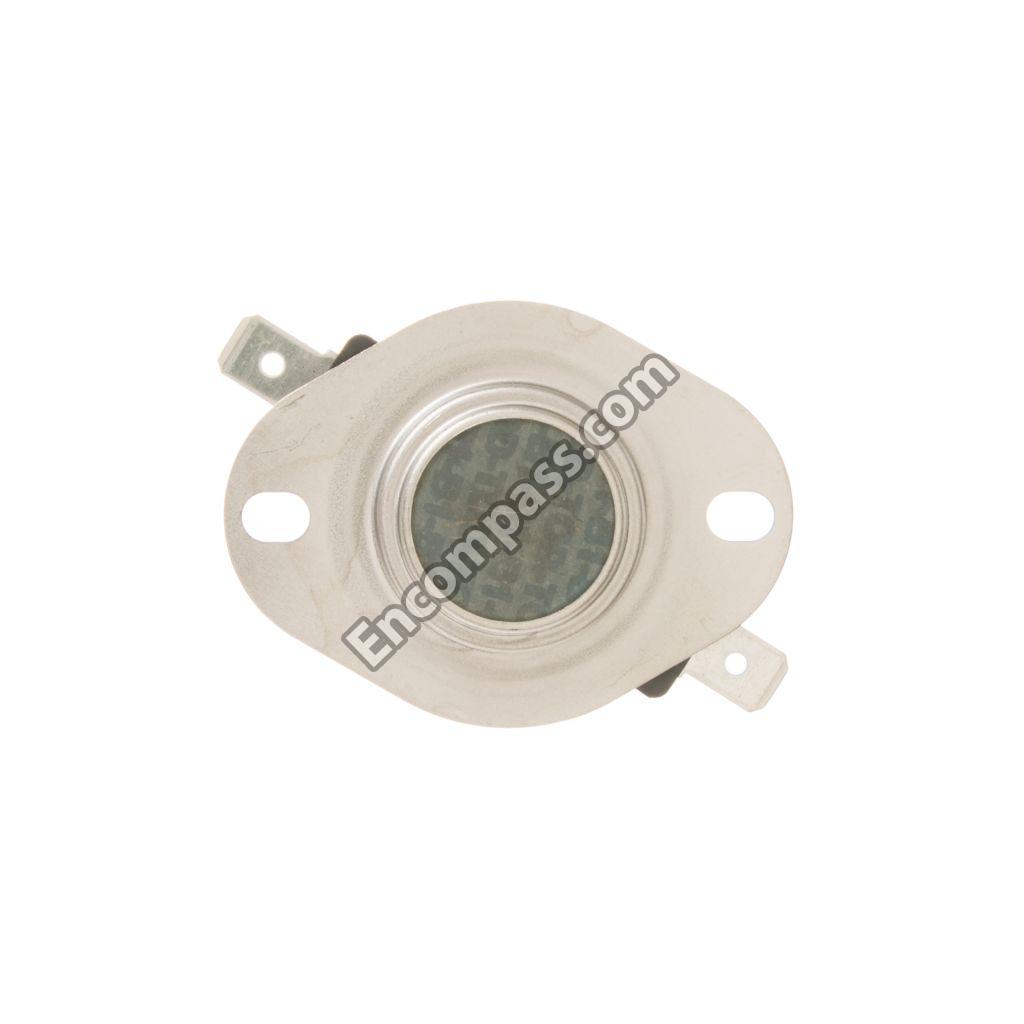

WP23X10015 WP23X10015 PROTECTOR

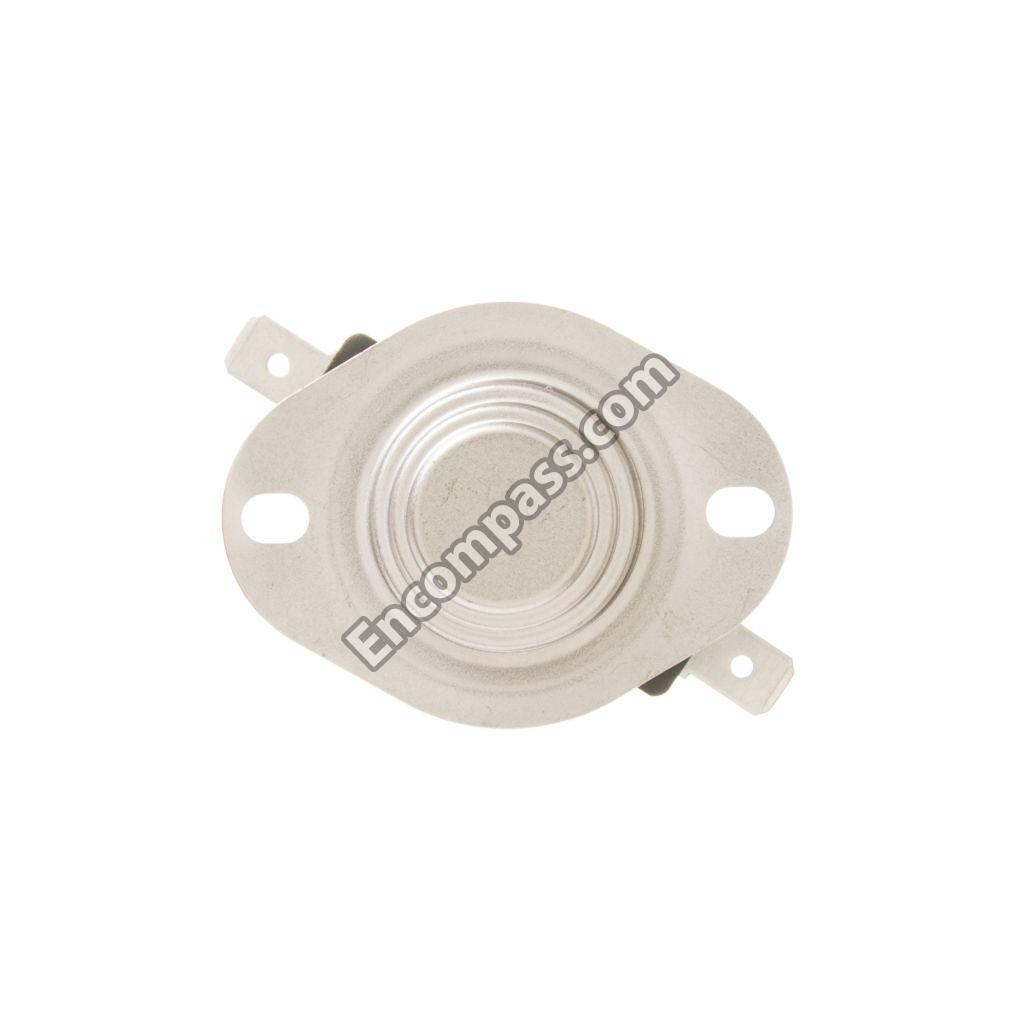

WP23X10014 WP23X10014 PROTECTOR
WJ02X10001 WJ02X10001 PROTECTOR SPRING
WP23X10005 WP23X10005 PROTECTOR, COMPRESSOR
WP71X10012 WP71X10012 R. LOUVER
WJ58X10016 WJ58X10016 REVERSING VALVE BODY
WJ58X10015 WJ58X10015 REVERSING VALVE COIL
WP01X10005 WP01X10005 RUBBER WASHER
WJ20X0748 WJ20X0748 RUNNING CAPA CITOR
WJ01X10156 WJ01X10156 SPACER
WP01X10010 WP01X10010 SPACER
WJ01X10155 WJ01X10155 SPACER
WJ01X10043 WJ01X10043 SPACER
WJ01X10010 WJ01X10010 SPECIAL NUT
WJ01X10041 WJ01X10041 SPECIAL NUT
WP01X10018 WP01X10018 SPECIAL SCREW
WJ01X10059 WJ01X10059 SPECIAL SCREW
WJ01X10012 WJ01X10012 SPECIAL SCREW
WJ01X10037 WJ01X10037 SPECIAL SCREW
WJ01X10035 WJ01X10035 SPECIAL SCREW
WP01X10004 WP01X10004 SPECIAL SCREW
WP02X10001 WP02X10001 SPRING
WP71X10010 WP71X10010 STABI ASM
WJ01X10031 WJ01X10031 STUD BOLT
WJ82X10013 WJ82X10013 SUB ANGLE
WP01X10006 WP01X10006 SUPPORTER
WJ79X10013 WJ79X10013 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WP27X10028 WP27X10028 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER

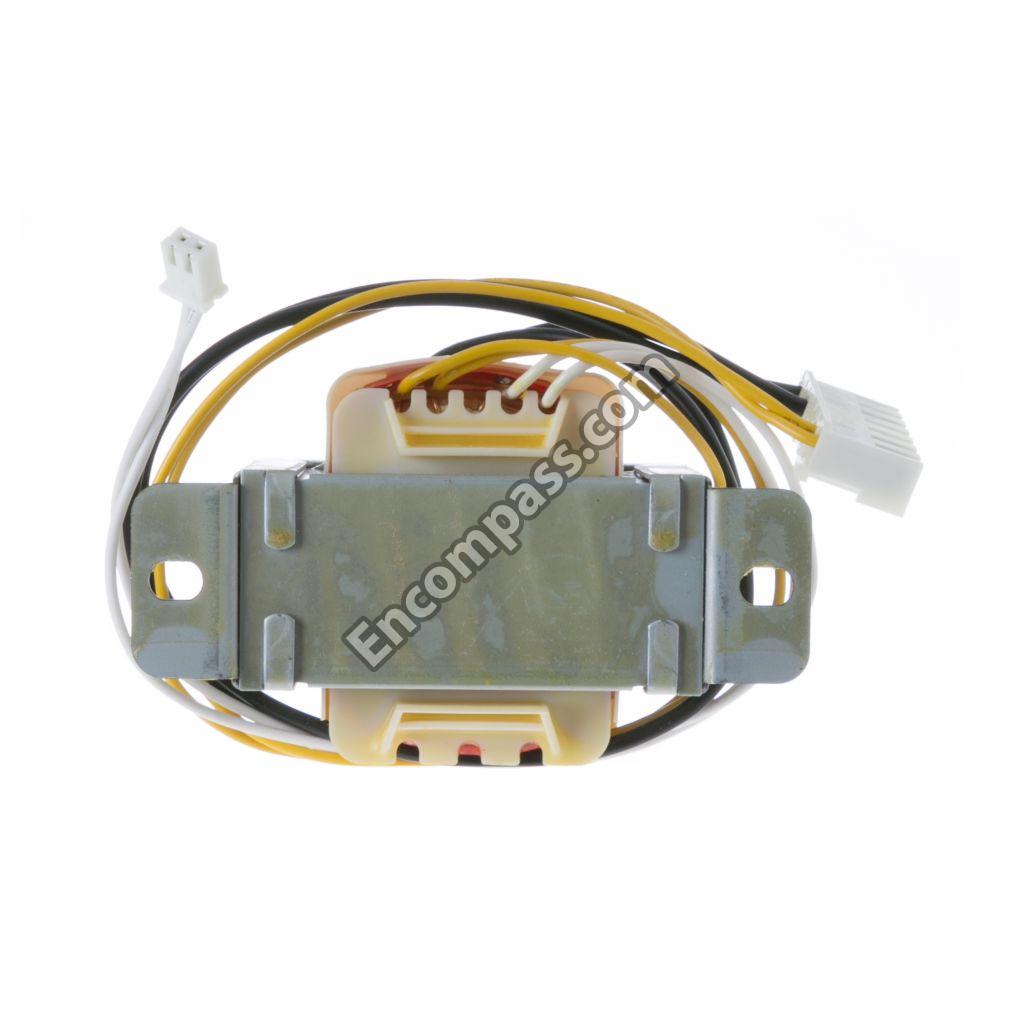

WP27X10023 WP27X10023 TRANSFORMER
49-7416-1 49-7416-1 USE & CARE MANUAL
WP27X10002 WP27X10002 VARISTOR
WJ82X10005 WJ82X10005 WIRE ANGLE
WJ03X10007 WJ03X10007 WIRE HOLDER
WP71X10006 WP71X10006 WIRE NETTING
