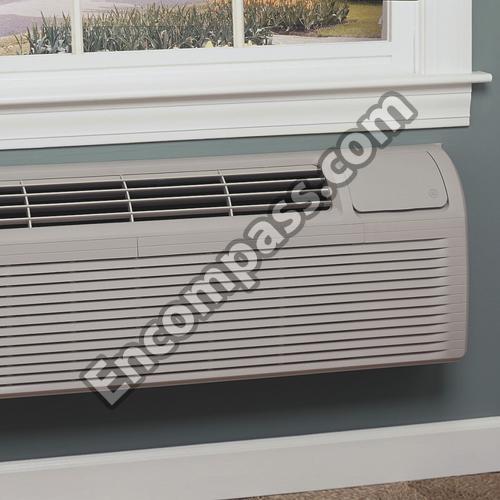

Model Image
Manufacturer

GE

Model Number

AZ55H15EABM1

Description

Zoneline

Interactive Exploded View

Parts List

Part Number Description
WP85X10003 WP85X10003 GE AIR FILTER L
WP85X10004 WP85X10004 GE AIR FILTER R
WP79X10010 WP79X10010 GE AUX COVER
WJ89X10038 WJ89X10038 GE BASE PAN ASS'Y
WP76X10006 WP76X10006 GE BEARING ASS'Y
WJ11X10005 WJ11X10005 GE BEARING PLATE
WJ82X10004 WJ82X10004 GE BLOWER ANGLE
WJ82X10025 WJ82X10025 GE BLOWER ANGLE-L
WP65X10001 WP65X10001 GE BRACE
WP76X10003 WP76X10003 GE BULKHEAD
WP79X10002 WP79X10002 GE BULKHEAD COVER ASS'Y
WJ40X10006 WJ40X10006 GE BULKHEAD INSULATOR
WJ40X10007 WJ40X10007 GE BULKHEAD INSULATOR
WJ82X10023 WJ82X10023 GE CAB. ANGLE ASS'Y
WJ82X10024 WJ82X10024 GE CAB. ANGLE ASS'Y LH
WP03X10001 WP03X10001 GE CAPACITOR CLAMP
WJ31X10010 WJ31X10010 GE COIL
WJ36X10006 WJ36X10006 GE COMP. WIRING
WJ98X10028 WJ98X10028 GE COMPRESSOR
WJ98X10023 WJ98X10023 GE COMPRESSOR
WJ79X10072 WJ79X10072 GE COMPRESSOR COVER
WJ01X10046 WJ01X10046 GE COMPRESSOR CUSHION
WP88X10025 WP88X10025 GE CONDENSER ASS'Y
WP76X10023 WP76X10023 GE CONDNSER SHROUD
WP27X10027 WP27X10027 GE CONNECTOR ASSEMBLY
WP07X10002 WP07X10002 GE CONTROL BASE
WP76X10026 WP76X10026 GE CONTROL BOX
WP76X10005 WP76X10005 GE CONTROL BOX F
WP76X10021 WP76X10021 GE CONTROL BOX S
WP71X10004 WP71X10004 GE CONTROL COVER
WP07X10001 WP07X10001 GE CONTROL SHEET
WP01X10009 WP01X10009 GE CORD HOLDER L
WP73X10001 WP73X10001 GE CROSS FLOW FAN
WP70X10014 WP70X10014 GE DAMPER
WP70X10013 WP70X10013 GE DAMPER ASS'Y
WJ80X10002 WJ80X10002 GE DAMPER COVER
WJ05X10014 WJ05X10014 GE DAMPER HOLDER
WJ14X10008 WJ14X10008 GE DAMPER LEVER
WP01X10003 WP01X10003 GE DAMPER WIRE
WP79X10001 WP79X10001 GE DRAIN COVER
WP79X10003 WP79X10003 GE DRAIN COVER B
WP70X10015 WP70X10015 GE DRAIN TRAY
WJ58X10041 WJ58X10041 GE DRAIN VALVE
WP26X10023 WP26X10023 GE DRIVE PWB
WP26X10019 WP26X10019 GE DRIVE PWB
WP87X10018 WP87X10018 GE EVAPORATOR ASS'Y

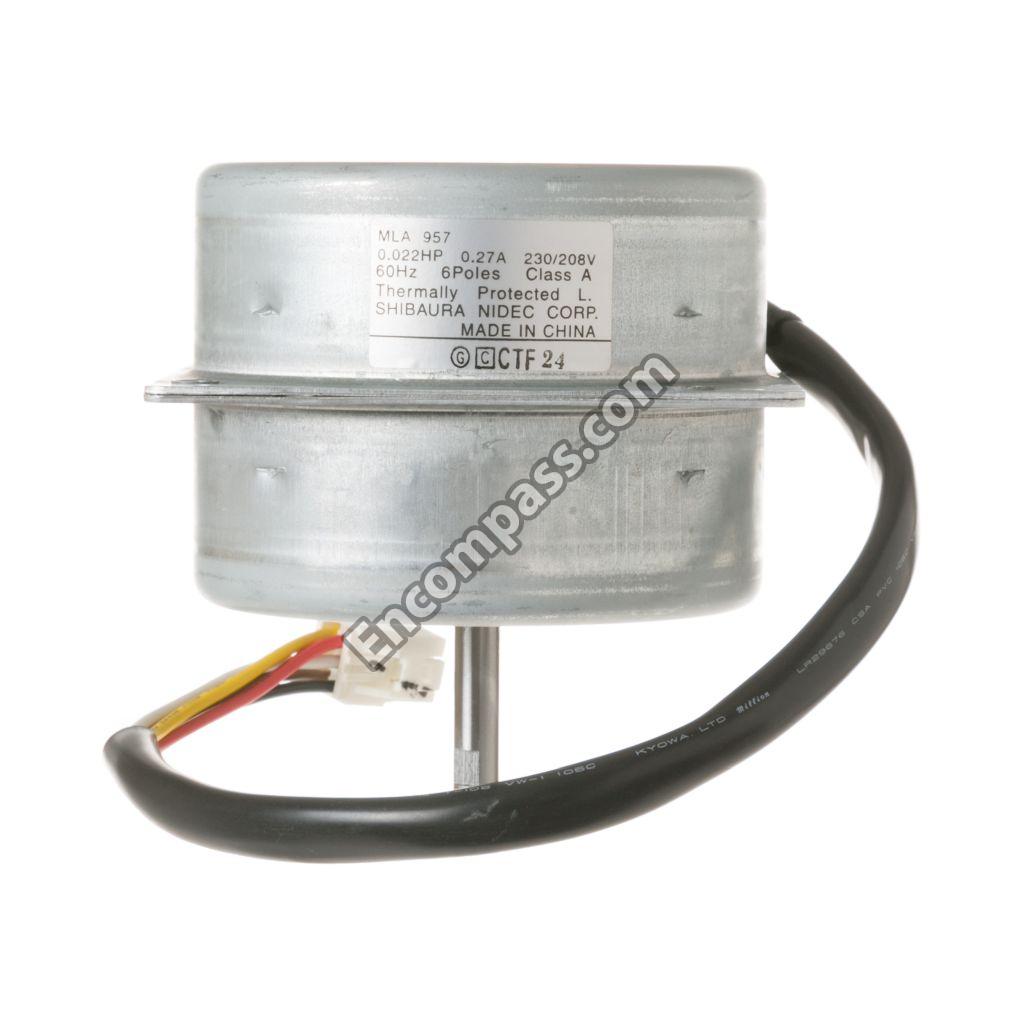

WP94X10091 WP94X10091 GE FAN MOTOR
WP94X10103 WP94X10103 GE FAN MOTOR
WP94X10133 WP94X10133 GE FAN MOTOR
WP20X10014 WP20X10014 GE FAN MOTOR CAPACITOR
WP20X10013 WP20X10013 GE FAN MOTOR CAPACITOR
WP20X10005 WP20X10005 GE FAN MOTOR CAPACITOR
WP94X10090 WP94X10090 GE FAN MOTOR IN DOOR
WP76X10002 WP76X10002 GE FRAME
WP71X10009 WP71X10009 GE FRONT PANEL
WP23X10003 WP23X10003 GE FUSE
WP23X10009 WP23X10009 GE FUSE,TRANSFORMER PRIMARY
WJ01X10003 WJ01X10003 GE GASKET WASHER
WP70X10006 WP70X10006 GE HEATER ASSEMBLY
WP70X10008 WP70X10008 GE HEATER ASSM.
WP01X10008 WP01X10008 GE HEATER READ COVER
WJ37X10024 WJ37X10024 GE HEATER WIRE ASS'Y
WJ20X10017 WJ20X10017 GE ID FAN MOTOR CAPACITOR
WJ82X10006 WJ82X10006 GE IN MOTOR ANG. ASS'Y
WP79X10007 WP79X10007 GE J BOX COVER
WP76X10011 WP76X10011 GE J-BOX
WP27X10030 WP27X10030 GE LEAD WIRE
WJ27X10001 WJ27X10001 GE LEAD WIRE
WP01X10001 WP01X10001 GE MAGNET
WP01X10002 WP01X10002 GE MAGNET SEAL
WP26X10020 WP26X10020 GE MAIN PWB-K
31-60800 31-60800 GE MINI-MANUAL
WJ01X10034 WJ01X10034 GE MOTOR CUSHION
WP26X10021 WP26X10021 GE OPERATION PWB-K
WJ65X10048 WJ65X10048 GE OUT DOOR MOTOR MOUNT
WP23X10008 WP23X10008 GE OVERLOAD COMPRESSOR
WJ73X10047 WJ73X10047 GE PROPELLER FAN
WP23X10014 WP23X10014 GE PROTECTOR
WP23X10015 WP23X10015 GE PROTECTOR
WP23X10013 WP23X10013 GE PROTECTOR
WJ02X10001 WJ02X10001 GE PROTECTOR SPRING
WP71X10012 WP71X10012 GE R. LOUVER
WJ58X10016 WJ58X10016 GE REVERSING VALVE BODY
WJ58X10015 WJ58X10015 GE REVERSING VALVE COIL
WP01X10005 WP01X10005 GE RUBBER WASHER
WP20X10009 WP20X10009 GE RUNNING CAPA CITOR
WP20X10016 WP20X10016 GE RUNNING CAPACITOR
WJ01X10043 WJ01X10043 GE SPACER
WJ01X10155 WJ01X10155 GE SPACER
WP01X10010 WP01X10010 GE SPACER
WJ01X10156 WJ01X10156 GE SPACER
WJ01X0981 WJ01X0981 GE SPECIAL NUT
WJ01X10041 WJ01X10041 GE SPECIAL NUT
WJ01X10010 WJ01X10010 GE SPECIAL NUT
WP01X10004 WP01X10004 GE SPECIAL SCREW
WJ01X10035 WJ01X10035 GE SPECIAL SCREW
WJ01X10037 WJ01X10037 GE SPECIAL SCREW
WJ01X10012 WJ01X10012 GE SPECIAL SCREW
WJ01X10059 WJ01X10059 GE SPECIAL SCREW
WP02X10001 WP02X10001 GE SPRING
WP71X10010 WP71X10010 GE STABI ASS'Y
WJ01X10031 WJ01X10031 GE STUD BOLT
WP01X10006 WP01X10006 GE SUPPORTER
WJ79X10013 WJ79X10013 GE TERMINAL COVER
WJ43X10003 WJ43X10003 GE TERMINAL GASKET
WP27X10028 WP27X10028 GE THERMISTOR
WJ03X10011 WJ03X10011 GE THERMISTOR HOLDER
WP27X10023 WP27X10023 GE TRANSFORMER
WP27X10029 WP27X10029 GE TRANSFORMER
49-7416 49-7416 GE USE&CARE MANUAL
WP27X10002 WP27X10002 GE VARISTO R
WP27X10015 WP27X10015 GE VARISTOR
WJ82X10005 WJ82X10005 GE WIRE ANGLE
WJ03X10007 WJ03X10007 GE WIRE HOLDER
WP71X10006 WP71X10006 GE WIRE NETTING
