Model Image
Manufacturer

GE

Model Number

AZ61H12EACW1

Description

Zoneline

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP85X10008 WP85X10008 GE AIR FILTER
WP65X10014 WP65X10014 GE BACK PLATE L
WJ07X10246 WJ07X10246 GE BADGE
WP76X10006 WP76X10006 GE BEARING ASM
WP03X10015 WP03X10015 GE BEARING HOLDER
WP65X10013 WP65X10013 GE BRACE
WP76X10041 WP76X10041 GE BULKHEAD K
WP03X10013 WP03X10013 GE CAB. ANGLE LH
WP03X10012 WP03X10012 GE CAB. ANGLE RH
WP03X10031 WP03X10031 GE CAPACITOR CLAMP
WP56X10028 WP56X10028 GE CAPILLARY TUBE
WP56X10027 WP56X10027 GE CAPILLARY TUBE
WP56X10020 WP56X10020 GE CAPILLARY TUBE
WP56X10010 WP56X10010 GE CAPILLARY TUBE
WP56X10009 WP56X10009 GE CAPILLARY TUBE
WP73X10013 WP73X10013 GE CLOSS FAN
WP28X10020 WP28X10020 GE COIL
WP27X10070 WP27X10070 GE COMP WIRINGRECHI
WJ01X10046 WJ01X10046 GE COMPRESSOR CUSHION
WP98X10041 WP98X10041 GE COMPRESSORRECHI
WP88X10091 WP88X10091 GE CONDENSER ASM
WJ79X10134 WJ79X10134 GE CONDENSER PLATE
WP76X10033 WP76X10033 GE CONDENSER SHROUD
WP03X10026 WP03X10026 GE CONNECTOR
WP07X10013 WP07X10013 GE CONTROL BASE ASM
WP71X10033 WP71X10033 GE CONTROL COVER W/LOGO
WP07X10008 WP07X10008 GE CONTROL SHEET
WP01X10038 WP01X10038 GE COVER
WP01X10037 WP01X10037 GE COVER
WP01X10039 WP01X10039 GE COVER RUBBER B
WP79X10029 WP79X10029 GE COVER, TRIAC
WP66X10007 WP66X10007 GE DAMPER ASSEMBLY
WP70X10031 WP70X10031 GE DAMPER LEVER
WP01X10058 WP01X10058 GE DAMPER LEVER COVER
WJ70X10026 WJ70X10026 GE DAMPER RUBBER

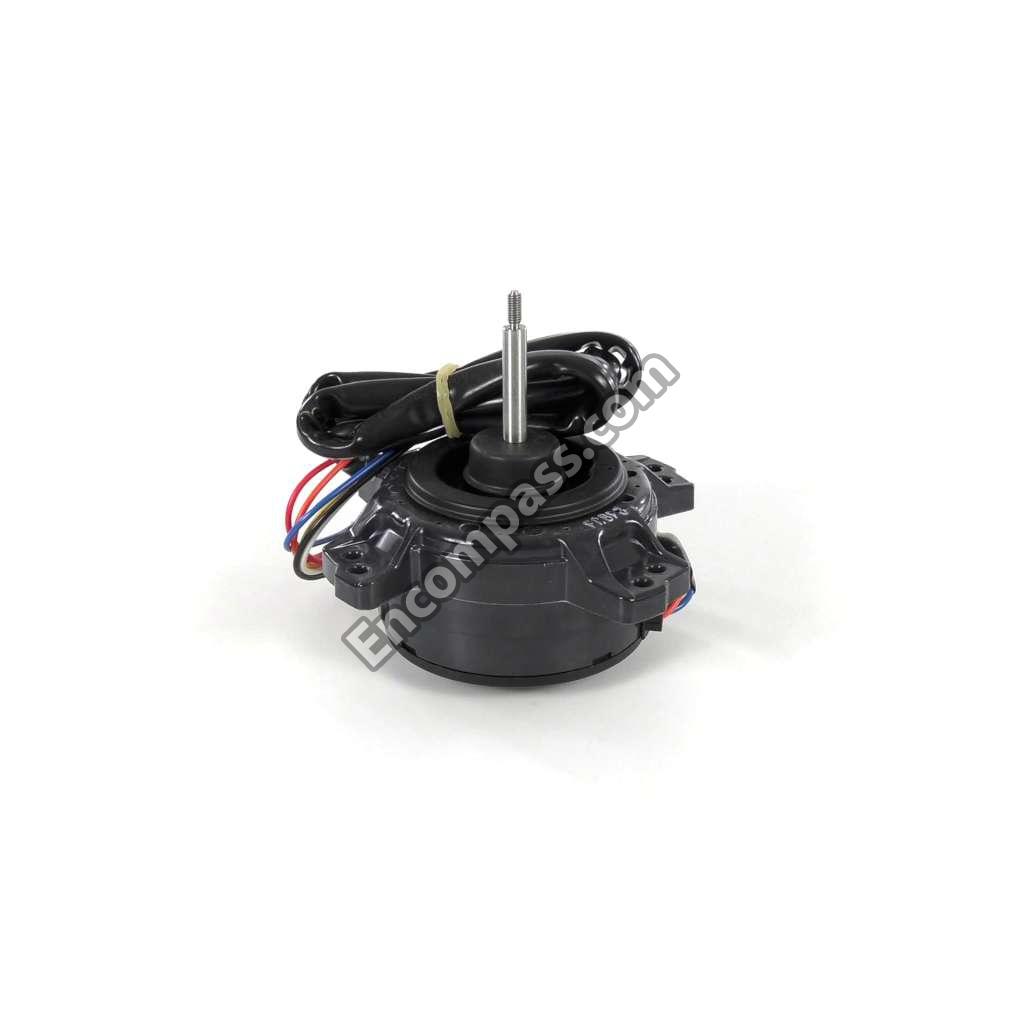

WP94X20645 WP94X20645 GE DC FAN MOTOR
WP94X20644 WP94X20644 GE DC FAN MOTOR OUT DOOR
WP94X10306 WP94X10306 GE DC IN FAN MOTOR
WP66X10008 WP66X10008 GE DC IN MOTOR ANGLE
WP89X10023 WP89X10023 GE DRAIN TRAY
WJ58X10043 WJ58X10043 GE DRAINING VALVE
WJ05X10018 WJ05X10018 GE DRIBBLER L
WJ05X10019 WJ05X10019 GE DRIBBLER R
WJ05X10017 WJ05X10017 GE DRIBBLER S
WP29X10015 WP29X10015 GE DRIVE PWB
WP87X21181 WP87X21181 GE EVAPORATOR ASM
WP73X10002 WP73X10002 GE FAN
WP03X10019 WP03X10019 GE FAN HOUSING COVER L
WP03X10020 WP03X10020 GE FAN HOUSING COVER R
WJ56X10009 WJ56X10009 GE FILTER DRIER
WP71X10030 WP71X10030 GE FRONT PANEL
WP71X10029 WP71X10029 GE FRONT PANEL ASM
WP23X10031 WP23X10031 GE FUSE
WP23X10032 WP23X10032 GE FUSE
WP23X10027 WP23X10027 GE FUSE
WP23X10026 WP23X10026 GE FUSE
WJ01X10288 WJ01X10288 GE GASKET WASHER
WP70X20721 WP70X20721 GE HEATER ASM
WP03X10016 WP03X10016 GE HOLDER
WP03X10017 WP03X10017 GE HOLDER ANG L TOP
WP56X10012 WP56X10012 GE LEAD TUBE
WP56X10011 WP56X10011 GE LEAD TUBE
WJ37X10001 WJ37X10001 GE LEAD WIRE
WP71X10031 WP71X10031 GE LOUVER
WP71X10032 WP71X10032 GE LOUVER ASM
WP71X10012 WP71X10012 GE LOUVER ASM
WP01X10001 WP01X10001 GE MAGNET
WP01X10002 WP01X10002 GE MAGNET SEAL
31-61552-2 31-61552-2 GE MINI MANUAL
WJ01X10060 WJ01X10060 GE NUT
WJ05X10016 WJ05X10016 GE O RING L
WJ05X10015 WJ05X10015 GE O RING S
WP66X10009 WP66X10009 GE OUT DOOR MOTOR ANGLE
WP76X10009 WP76X10009 GE P FAN HOUSING
WP76X10032 WP76X10032 GE P. FAN HOUSING
WJ73X10047 WJ73X10047 GE PROPELLER FAN
WP23X10033 WP23X10033 GE PROTECTOR
WP01X10059 WP01X10059 GE PROTECTOR COVER
WP27X10067 WP27X10067 GE PROTECTOR F
WP03X10030 WP03X10030 GE PROTECTOR HOLDER
WJ02X10031 WJ02X10031 GE PROTECTOR SPRING
WP79X10005 WP79X10005 GE PUMP COVER B
WP94X10219 WP94X10219 GE PUMP MOTOR
WP02X10003 WP02X10003 GE PUSH NUT
WP29X10061 WP29X10061 GE PWB MAIN ASM
WP26X21168 WP26X21168 GE PWB MAIN ASSEMBLY
WJ46X10002 WJ46X10002 GE RECEIVER TANK
WP58X10005 WP58X10005 GE REVERSE VALVE
WP58X10006 WP58X10006 GE REVERSE VALVE
WP03X10002 WP03X10002 GE RUBBER CLAMP
WP01X10005 WP01X10005 GE RUBBER WASHER
WJ20X10132 WJ20X10132 GE RUNNING CAPACITOR
WP03X10023 WP03X10023 GE SPACER
WP03X10022 WP03X10022 GE SPACER
WJ01X10041 WJ01X10041 GE SPECIAL NUT
WJ01X10286 WJ01X10286 GE SPECIAL NUT
WJ01X10392 WJ01X10392 GE SPECIAL SCREW
WP01X10024 WP01X10024 GE SPECIAL SCREW
WP01X10021 WP01X10021 GE SPECIAL SCREW
WP02X10001 WP02X10001 GE SPRING
WJ01X10031 WJ01X10031 GE STUD BOLT
WP01X10036 WP01X10036 GE SUPPORTER
WP01X10026 WP01X10026 GE TAP TIGHT SCREW
WP29X10014 WP29X10014 GE TERMINAL BOARD
WP03X10021 WP03X10021 GE TERMINAL BOX COVER
WJ79X10204 WJ79X10204 GE TERMINAL COVER
WJ43X10061 WJ43X10061 GE TERMINAL GASKET
WP27X10065 WP27X10065 GE THERMISTOR
WJ03X10011 WJ03X10011 GE THERMISTOR HOLDER
WP01X10007 WP01X10007 GE THERMO CUSHION
WP27X10066 WP27X10066 GE THERMOSTAT
WP27X10069 WP27X10069 GE TRANSFORMER
WP26X10093X WP26X10093X GE TRIAC PWB ASM
49-7612-2 49-7612-2 GE USE & CARE
WP28X10021 WP28X10021 GE VARISTOR
WP03X10029 WP03X10029 GE WIRE HOLDER
WP56X10004 WP56X10004 GE WIRE NETTING 61
